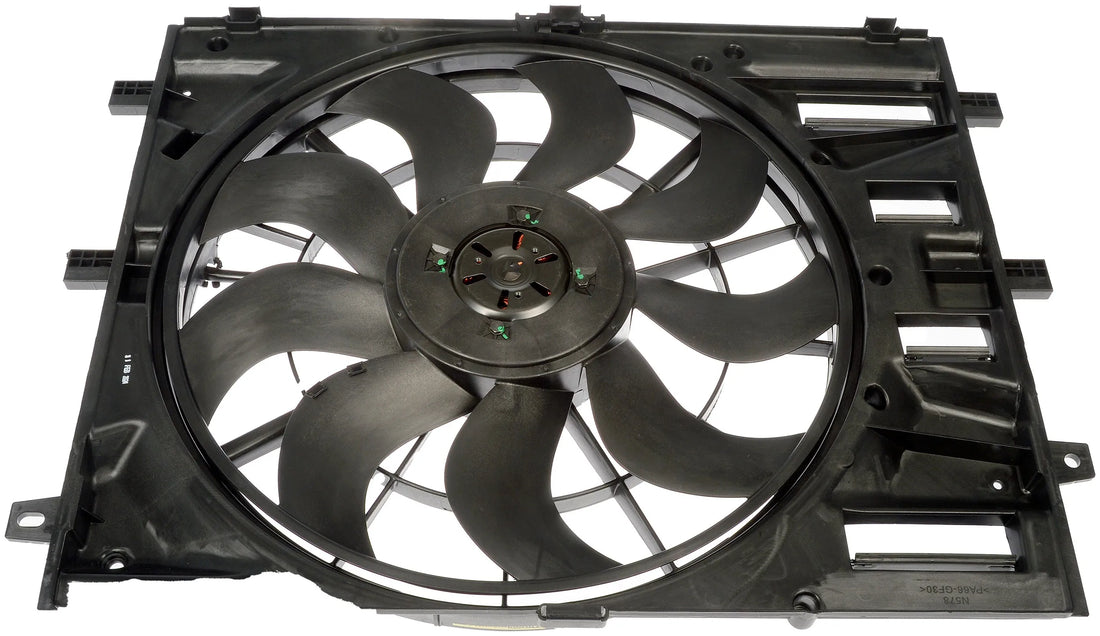

Dorman 621-985 Radiator Fan Assembly

Fits the 2020-2023 Chevrolet Equinox and GMC Terrain with the 1.5L L4. The Dorman 621-985 is a brushed electric motor radiator fan assembly designed to maintain engine temperature by pulling air through the radiator. This fan features nine blades with a 535-millimeter diameter and rotates clockwise to match the original equipment performance specifications. Constructed from black plastic with a hardwired male connector and two blade terminals, the assembly measures 781 millimeters in width, 567 millimeters in height, and 138 millimeters in thickness with an 86-millimeter depth. The unit operates electrically with a brushed motor design and includes all necessary components for installation. This is a complete radiator fan assembly package that serves as a standard replacement for the original equipment on these vehicles.

• Material: Plastic
• Width: 781 MM
• Terminal Type: Blade
• Height: 567 MM
• Terminal Quantity: 2
• Connector Gender: Male
• Amperage: 26.3 A
• Voltage: 12 VDC
• Connector Quantity: 1
• Connector Type: Blade
• Thickness: 138 MM
• Blade Type: Standard Replacement
• Depth: 86 MM
• Flow Rate: 4230.7 CFM
• Housing Finish: Plastic
• Color: Black
• Motor Type: Brushed
• Quantity: 2
• Fan Quantity: 1
• Grade Type: Standard Replacement
• Connection Type: Hardwired
• Fan 1 Diameter: 535 MM
• Operation Type: Electrical
• Fan 1 Blade Quantity: 9
• Rotation Direction: Clockwise (Right)
• Diameter: 535 mm
• Package Contents: 1 Radiator Fan Assembly
