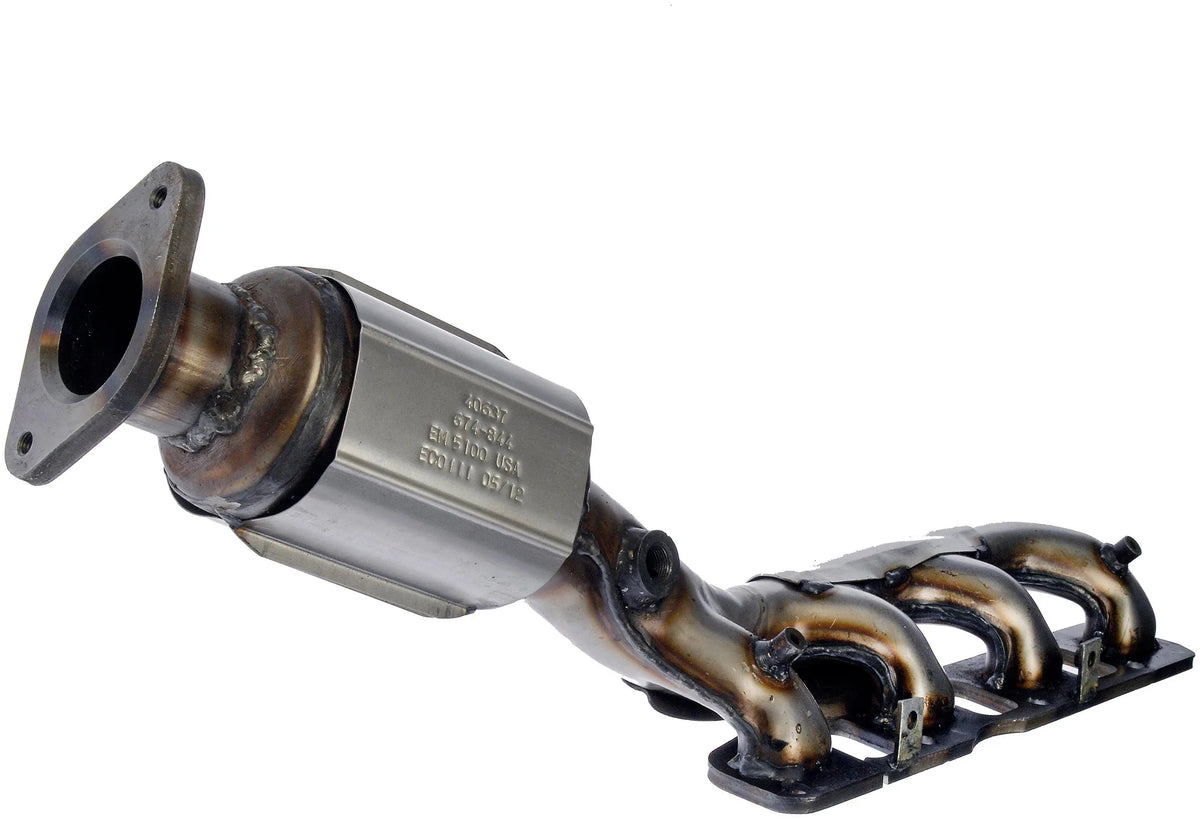

Dorman 672-844 Manifold Converter - CARB Compliant

Replacing the factory integrated exhaust manifold and catalytic converter, the Dorman 672-844 is a one-piece stainless steel direct replacement for original equipment. Fits the 2012-2016 Nissan NV2500 and NV3500; the 2007-2015 Nissan Armada and TITAN; the 2008-2012 Nissan Pathfinder; and the 2007-2010 INFINITI QX56 with the 5.6L V8. This converter measures 32 inches in overall length with a 4 inch body height and 6 inch body width, featuring 0.22 inch tube wall thickness and an attached heat shield. The inlet measures 3 inches inside diameter, while the outlet measures 2.25 inches inside diameter with a 2.3 inch outside diameter. One oxygen sensor port at 1.2 inch diameter is located at the pre-converter position. Gaskets are included. Mounting hardware is not included. Made in the United States and CARB certified under executive order D-798-14.

Fits: 2012-2016 Nissan NV2500 5.6L V8, 2012-2016 Nissan NV3500 5.6L V8 and 2007-2015 Nissan Armada 5.6L V8 and other applications

• Material: Stainless Steel
• Color: Metallic Gray
• Type: One-Piece
• Finish: Uncoated
• Shape: Round
• Inlet Type: Flanged
• Outlet Type: Flanged
• Inlet Port Shape: Round
• Inlet Inside Diameter: 3 IN
• Outlet Inside Diameter: 2.25 IN
• Outlet Outside Diameter: 2.3 IN
• Body Height: 4 IN
• Body Width: 6 IN
• Converter Body Length: 4 IN
• Tube Wall Thickness: 0.22 IN
• Overall Length: 32 IN
• Inlet Quantity: 4
• Outlet Quantity: 1
• Quantity: 1
• Sensor Port Count: 1
• Sensor Port Size: 1.2 IN
• O2 Sensor Location: Pre Converter
• Inlet Mounting Hole Quantity: 2
• Outlet Mounting Hole Quantity: 8
• Heat Shield Attached: Yes
• CARB Certified: Yes
• Substrate Material: Ceramic
• CARB Executive Order Number: D-798-14
• Application Type: Specific
• Grade Type: Standard Replacement
• Gasket Or Seal Included: Yes
• Mounting Hardware Included: No
• Package Contents: 1 Exhaust Manifold
