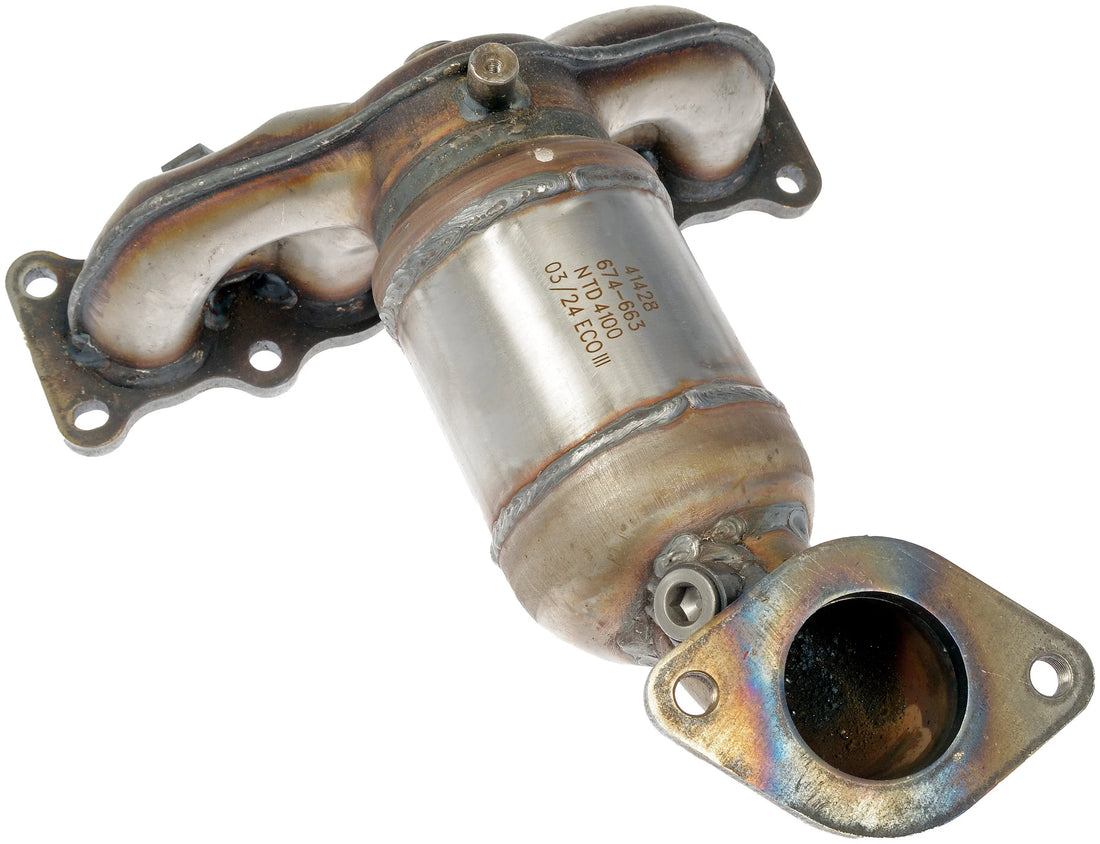

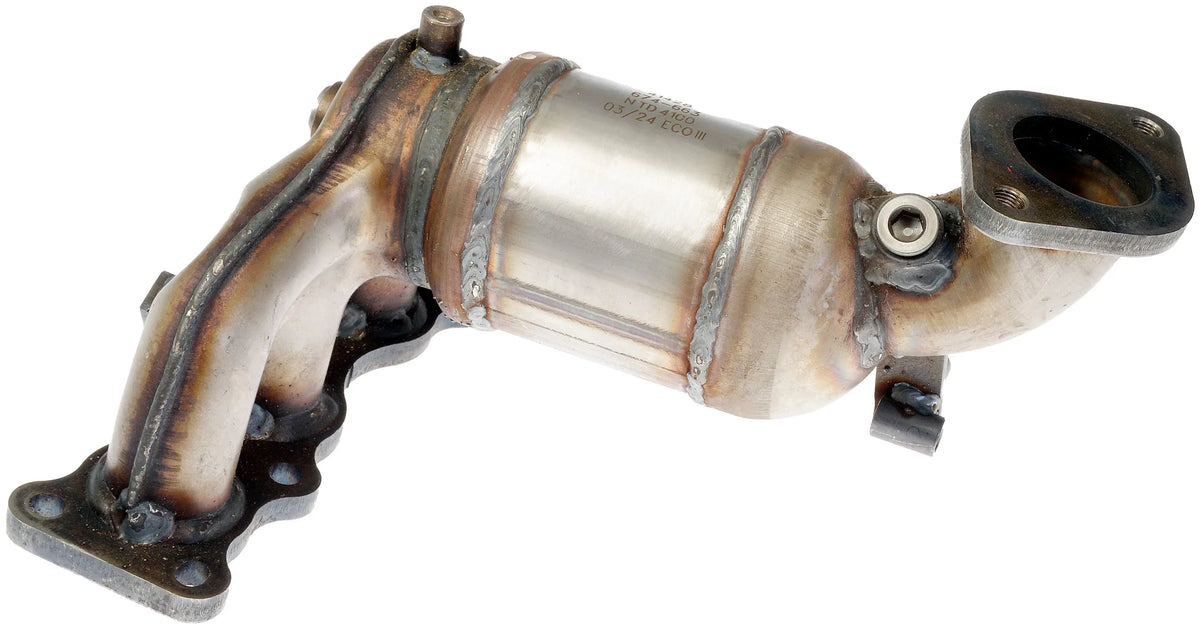

Dorman 674-663 Manifold Converter - Not CARB Compliant

Regulating exhaust emissions at the manifold stage, the Dorman 674-663 is a one-piece manifold converter with steel construction and ceramic substrate. Fits the 2017-2018 Hyundai Santa Fe Sport with the 2.4L L4. The converter features a round shape measuring 15 inches in overall length with a 40.49-millimeter inlet diameter and 52.06-millimeter outlet diameter, with dimensions of 6.5 inches in height and 13 inches in width. A single midbed oxygen sensor port at 25.17 millimeters enables emissions monitoring. The manifold converter includes gaskets and mounting hardware for installation while no heat shield is attached. Manufactured in the United States with a 5-year warranty, the Dorman 674-663 is a direct replacement manifold converter for specific vehicle applications.

• Material: Steel
• Color: Metallic Gray
• Type: One-Piece
• Finish: Uncoated
• Inlet Type: Flanged
• Outlet Type: Flanged
• Inlet Inside Diameter: 40.49 MM
• Body Height: 6.5 IN
• Body Width: 13 IN
• Heat Shield Attached: No
• Inlet Quantity: 4
• Outlet Inside Diameter: 52.06 MM
• Outlet Quantity: 1
• CARB Certified: No
• Substrate Material: Ceramic
• Outlet Outside Diameter: 84.48 MM
• Tube Wall Thickness: 0.125 IN
• Application Type: Specific
• Grade Type: Standard Replacement
• Converter Body Length: 6 IN
• Shape: Round
• Quantity: 1
• Inlet Mounting Hole Quantity: 7
• Outlet Mounting Hole Quantity: 2
• Overall Length: 15 IN
• Sensor Port Count: 1
• Inlet Port Shape: Oval
• O2 Sensor Location: Midbed
• Sensor Port Size: 25.17 MM
• Gasket Or Seal Included: Yes
• Mounting Hardware Included: Yes
• Package Contents: 1 Exhaust Manifold
