Dorman 678-527 Pre-Converter - CARB Compliant

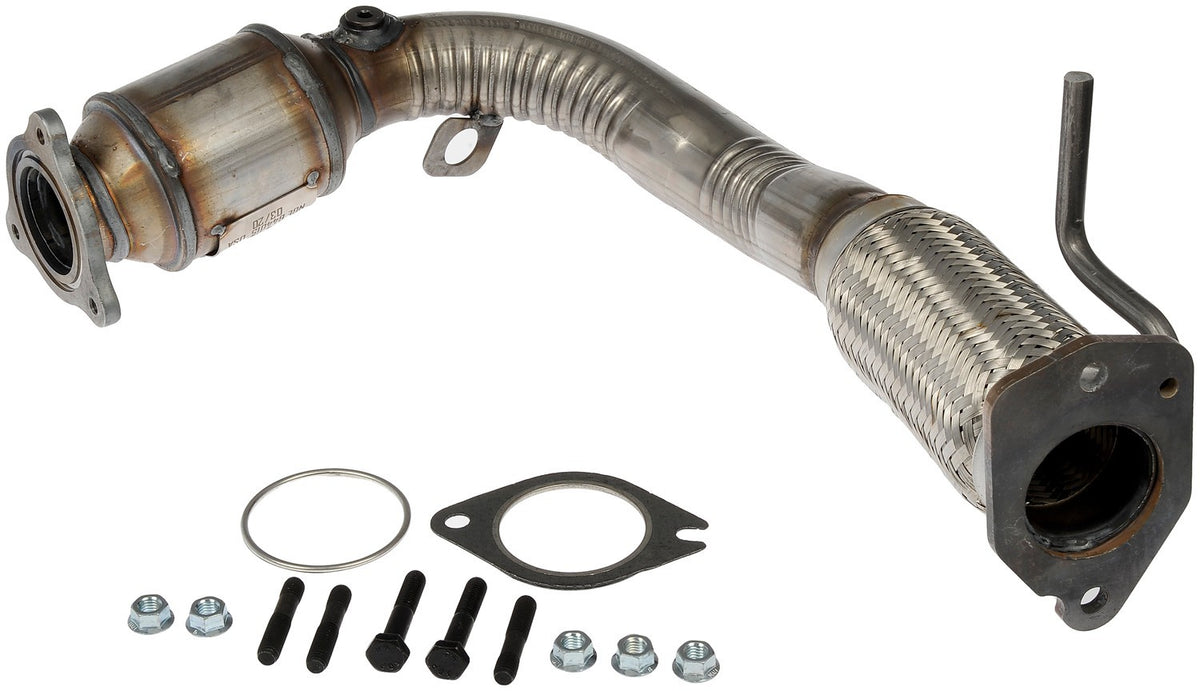

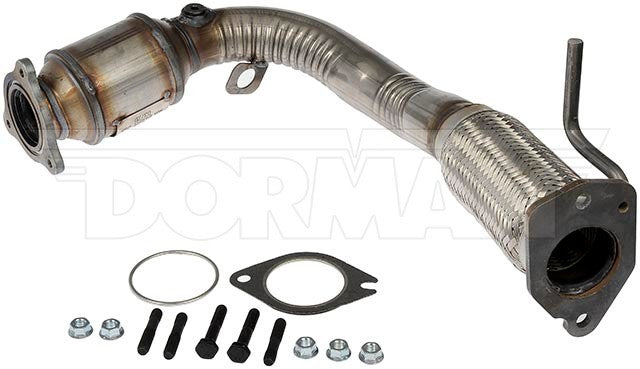

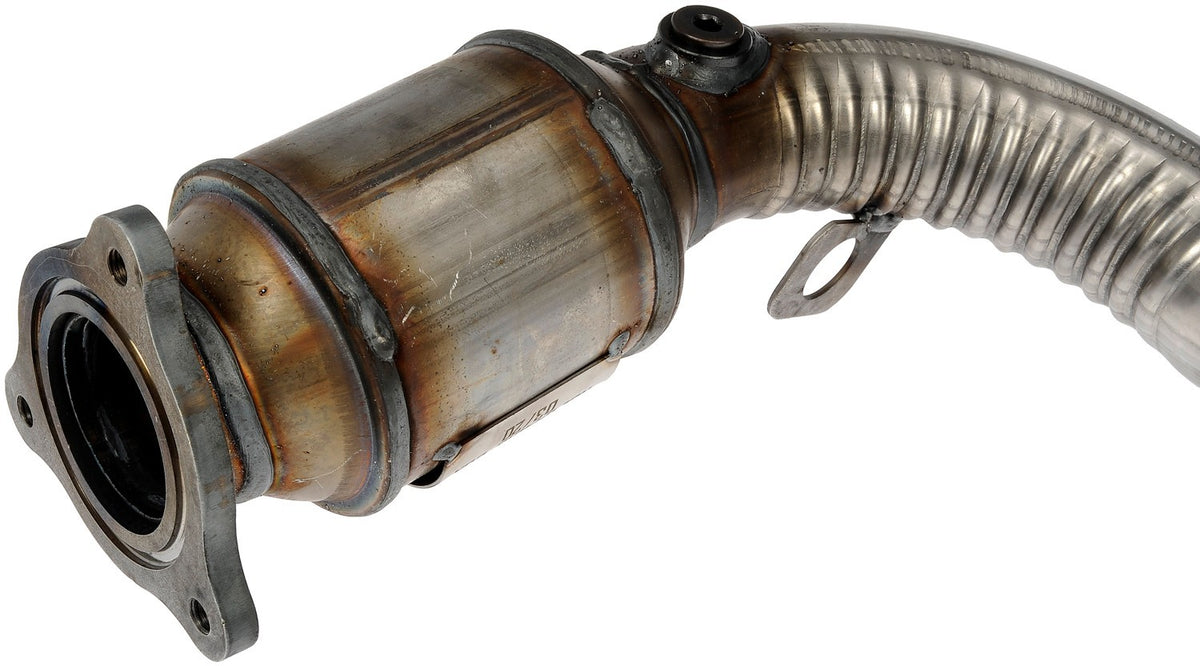

As a stainless steel one-piece design, the Dorman model 678-527 functions as a CARB-certified catalytic converter. Fits the 2012-2015 Chevrolet Captiva Sport, and the 2010-2014 Chevrolet Equinox and GMC Terrain with the 2.4L L4. This unit measures 26 inches overall in length with a 2.37-inch inlet diameter and 2.6-inch outlet diameter. The converter features a ceramic substrate with one oxygen sensor port located post-conversion and includes gaskets for installation. Manufactured in the United States with straight inlet and angled outlet ports, it is backed by a 5-year warranty.

• Material: Stainless Steel
• Mounting Hardware Included: No
• Body Type: Round
• Finish: Uncoated
• Inlet Type: Flanged
• Outlet Type: Flanged
• Inlet Inside Diameter: 2.37 IN
• Body Height: 6 IN
• Body Length: 6 IN
• Body Width: 4 IN
• Heat Shield Attached: No
• Inlet Quantity: 1
• Outlet Inside Diameter: 2.6 IN
• Outlet Quantity: 1
• CARB Certified: Yes
• Substrate Material: Ceramic
• Inlet Outside Diameter: 2.5 IN
• Outlet Outside Diameter: 3 IN
• Application Type: Specific
• Grade Type: Standard Replacement
• Body Shape: Cylinder
• Converter Quantity: 1
• Inlet Mounting Hole Quantity: 1
• Quantity: 3
• Overall Length: 26 IN
• O2 Sensor Ports: 1
• Inlet Orientation: Straight
• Outlet Orientation: Angled
• O2 Sensor Location: Post Converter
• CARB Executive Order Number: D-798-14
• Color: Metallic Gray
• Converter Body Length: 6 in
• Exhaust Manifold Inlet Port Shape: Round

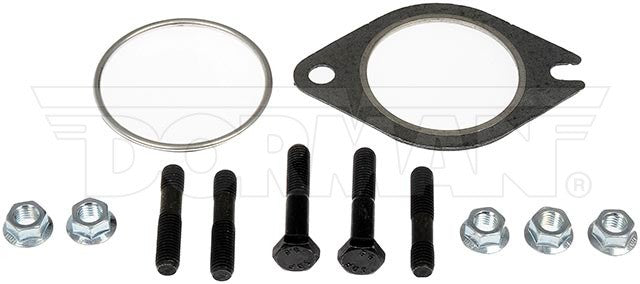

• Gasket Or Seal Included: Yes
• Inlet Port Shape: Round
• Outlet Port Shape: Round
• Package Contents: 1 Exhaust Manifold
• Tube Wall Thickness: 0.125 in
• Type: One-Piece
• Installation Hardware Included: No
