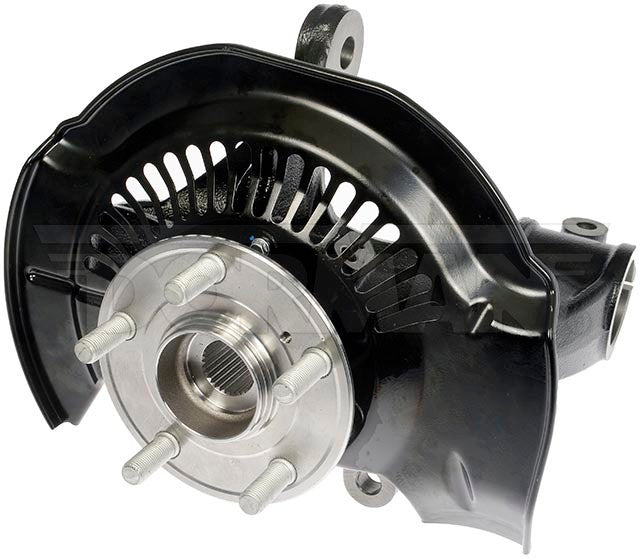

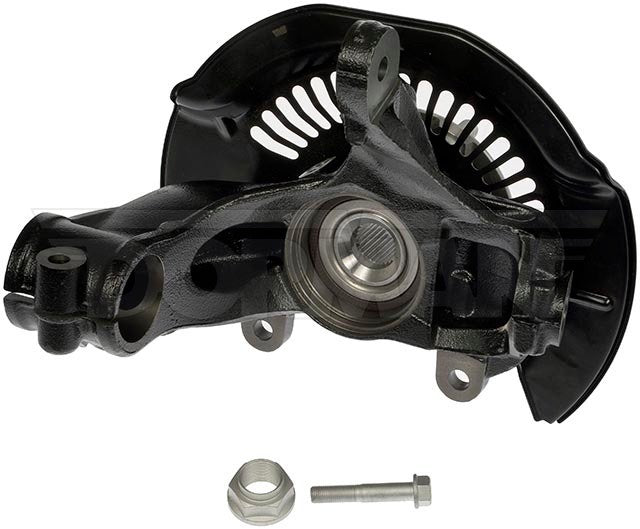

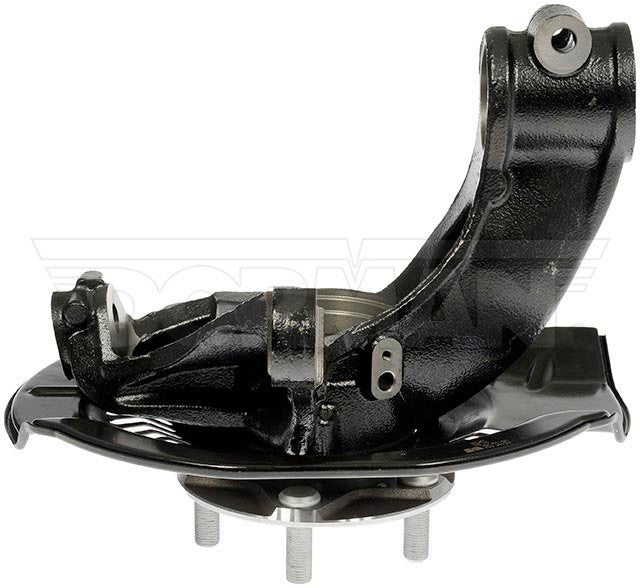

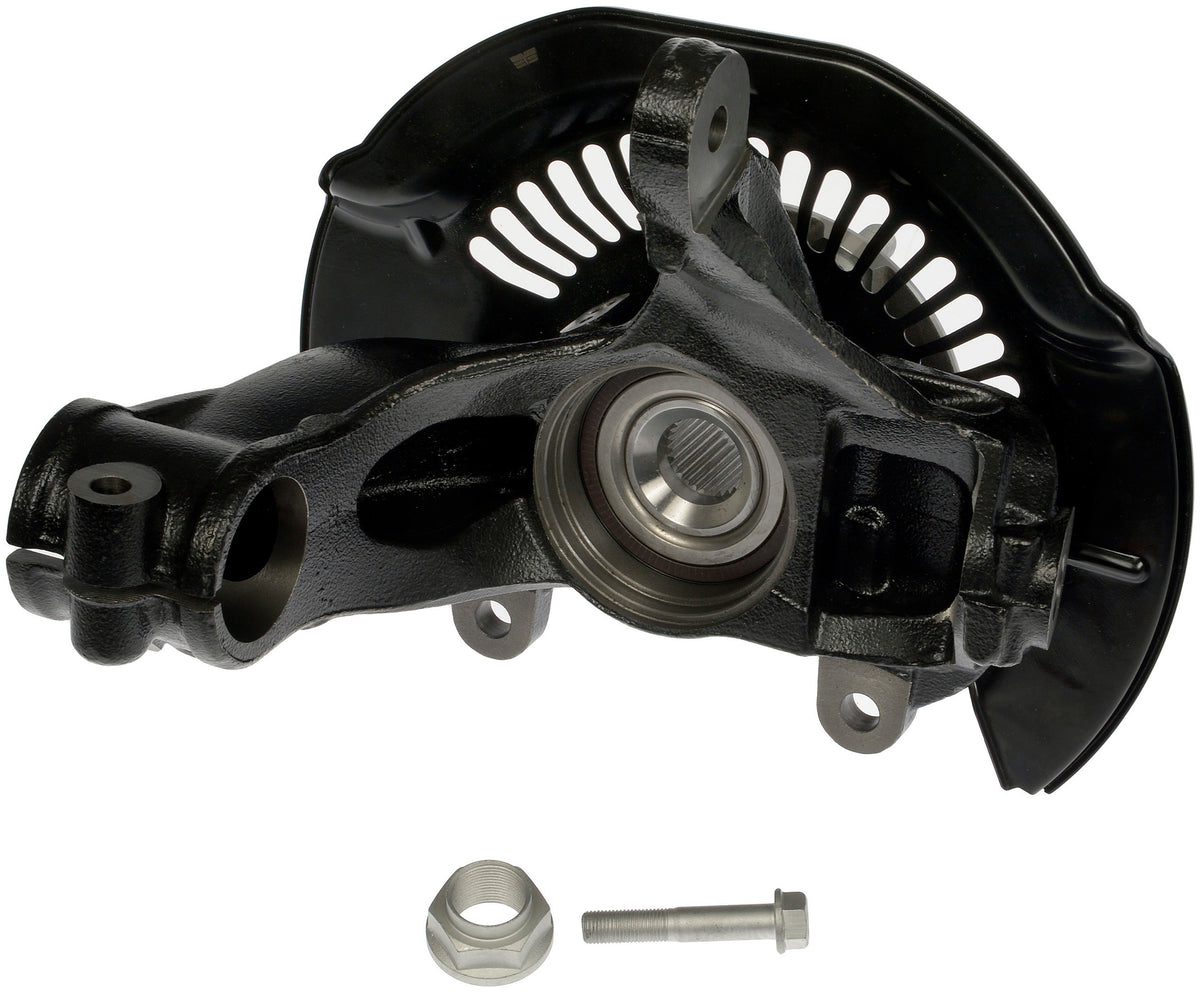

Dorman 686-434 Front Right Loaded Knuckle
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install
- Pre-pressed assembly - this complete loaded knuckle kit includes all necessary components ready for installation right out of the box
- Saves hours - eliminates the possibility of extended time spent wrestling with individual corroded components
- Simpler solution - no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers
- Quality engineering - designed in the United States and backed by a century of automotive aftermarket experience
Specifications
| Material | Steel |
| Color | Black |
| Mounting Hardware Included | No |
| Finish | Painted |
| Grade Type | Standard Replacement |
| Anti Lock Braking System Type | Encoder |
| Axle Nut Included | Yes |
| Bearing Generation | Gen 1 |
| Bearing Type | Ball |
| Bolt Circle Diameter | 120 mm |
| Brake Pilot Diameter | 152 mm |
| Connector Included | No |
| Drive Type | Driven |
| Flange Bolt Hole Diameter | 120 mm |
| Flange Bolt Hole Quantity | 5 |
| Flange Bolts Included | Yes |
| Flange Diameter | 152 mm |
| Flange Quantity | 1 |
| Hub Pilot Diameter | 69 mm |
| Inside Diameter | 95.8 mm |
| Knuckle Bolt Circle Diameter | 14.3 mm |
| Knuckle Bolt Hole Size | 14.3 mm |
| Knuckle Bolt Hole Thread Type | Fine |
| Knuckle Bolt Thread Pitch | 1.25 mm |
| Knuckle Pilot Hole Diameter | 95.8 mm |
| Nut Included | Yes |
| Outside Diameter | 105 mm |
| Package Contents | 1 Loaded Knuckle |
| Pre-Greased | No |
| Spline Quantity | 30 |
| Stud Thread Type | Fine |
| Wheel Bolt Thread Pitch | M14x1.5 MM |
| Wheel Pilot Diameter | 64 mm |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | M14x1.5 MM |
| Wheel Stud Thread Pitch | 1.5 mm |
| Wheel Studs Included | Yes |
| Width | 260 mm |
