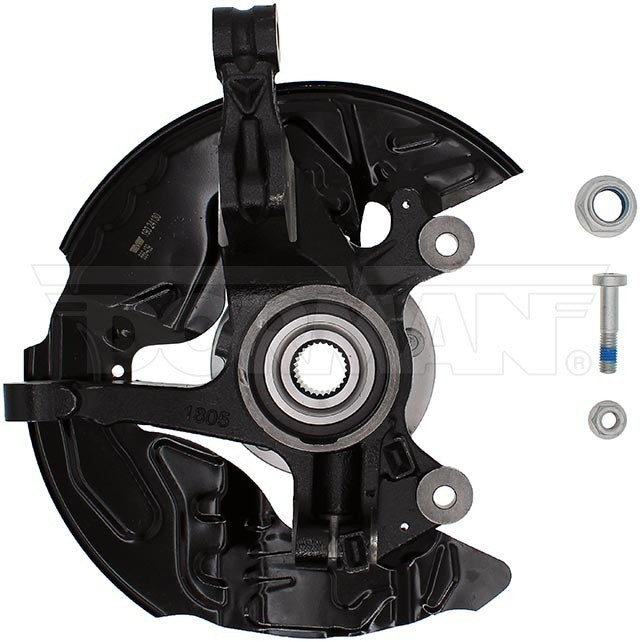

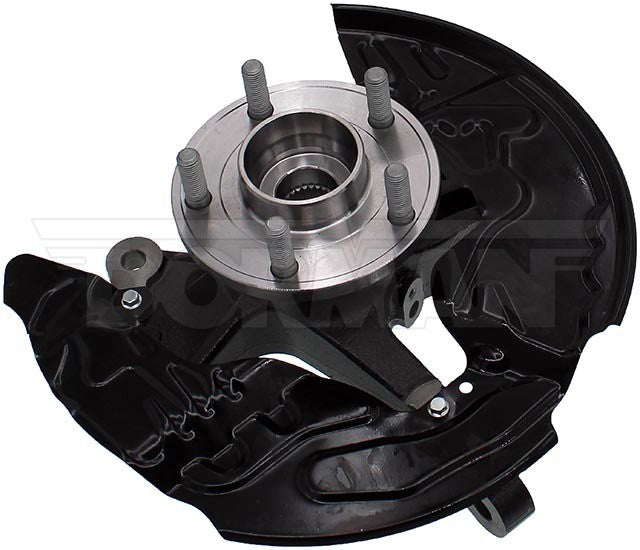

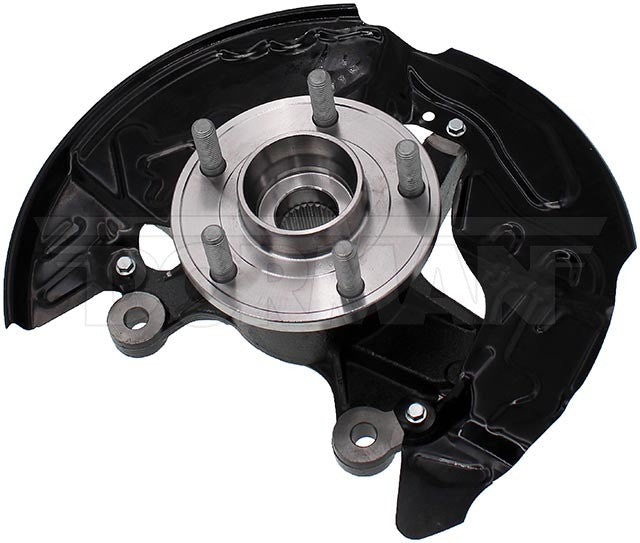

Dorman 686-439 Front Left Loaded Knuckle
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install. For repair shops, that makes it less likely that you will have a vehicle stuck in the service bay. For vehicle owners, that makes this formerly complex job requiring special equipment much easier.
- Pre-pressed assembly - this complete loaded knuckle kit includes all necessary components ready for installation right out of the box
- Saves hours - eliminates the possibility of extended time spent wrestling with individual corroded components
- Simpler solution - no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers
- Quality engineering - designed in the United States and backed by a century of automotive aftermarket experience
Specifications
| Material | Cast Iron |
| Color | Black |
| Mounting Hardware Included | No |
| Finish | Painted |
| Grade Type | Standard Replacement |
| Anti Lock Braking System Type | Tone Ring |
| Axle Nut Included | Yes |
| Bearing Generation | Gen 1 |
| Bearing Type | Ball |
| Bolt Circle Diameter | 114 mm MM |
| Brake Pilot Diameter | 136 mm MM |
| Connector Included | No |
| Drive Type | Driven |
| Flange Bolt Hole Diameter | 12.35 mm MM |
| Flange Bolt Hole Quantity | 5 |
| Flange Bolts Included | Yes |
| Flange Diameter | 136 mm MM |
| Flange Quantity | 1 |
| Hub Pilot Diameter | 63.5 mm MM |
| Inside Diameter | 55.6 mm |
| Knuckle Bolt Circle Diameter | 114 mm MM |
| Knuckle Bolt Hole Size | 12.05 mm |
| Knuckle Bolt Hole Thread Type | Fine |
| Knuckle Bolt Thread Pitch | 1.75 mm MM |
| Knuckle Pilot Hole Diameter | 63.5 mm MM |
| Nut Included | Yes |
| Outside Diameter | 136 mm MM |
| Package Contents | 1 Loaded Knuckle |
| Pre-Greased | Yes |
| Spline Quantity | 27 |
| Stud Thread Type | Fine |
| Thread Tolerance | -g/H |
| Wheel Bolt Thread Pitch | 1.5 mm MM |
| Wheel Pilot Diameter | 12 mm MM |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 12 mm MM |
| Wheel Stud Thread Pitch | 1.5 mm MM |
| Wheel Studs Included | Yes |
| Width | 260 mm MM |
