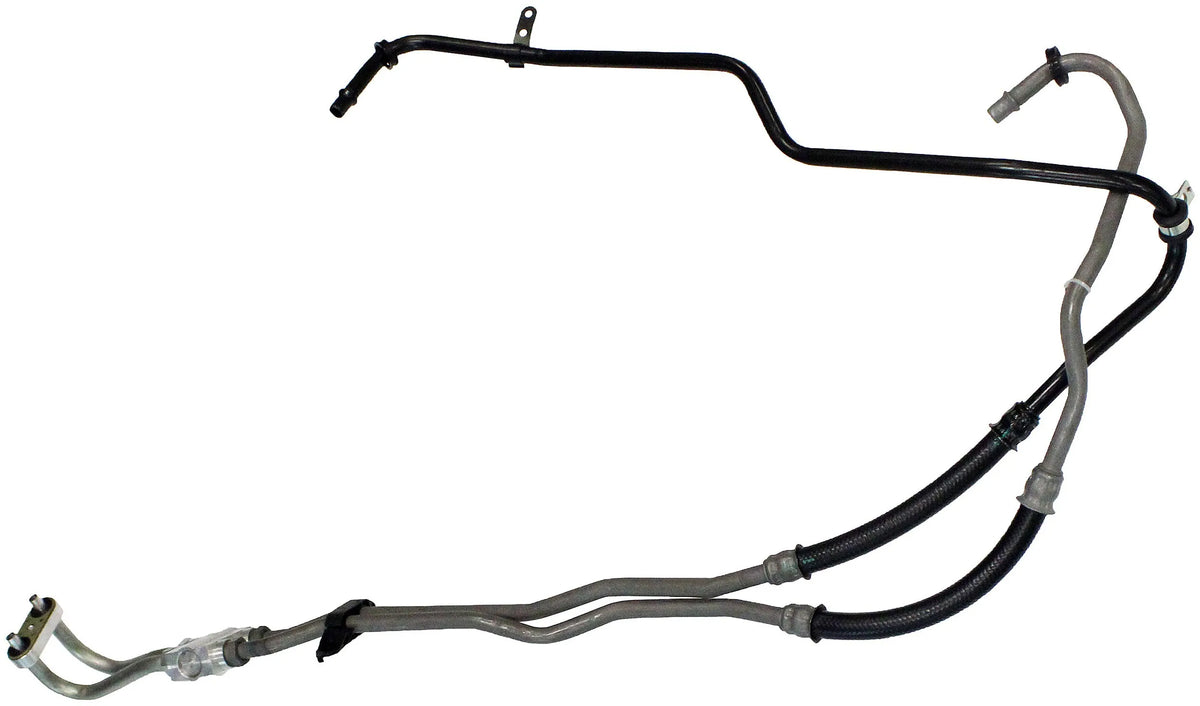

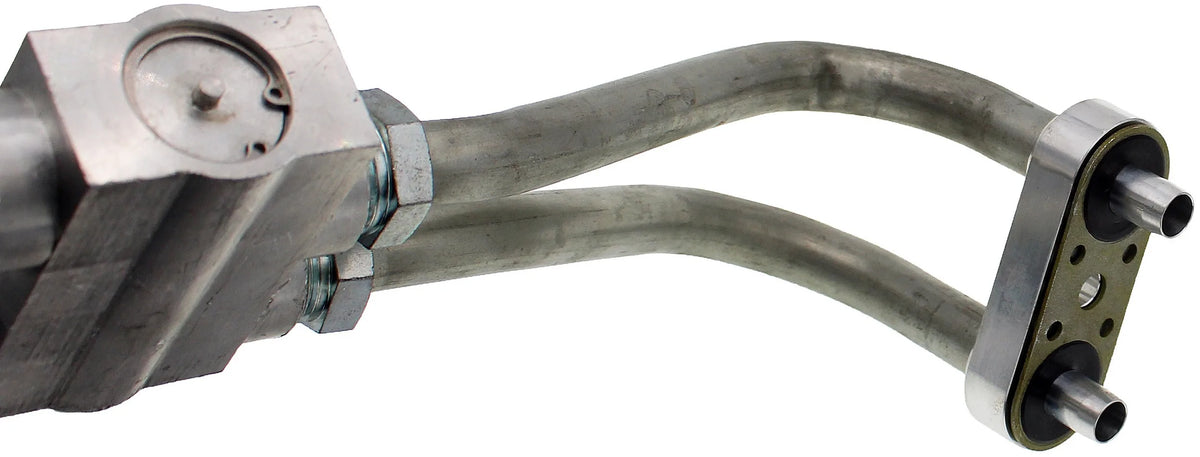

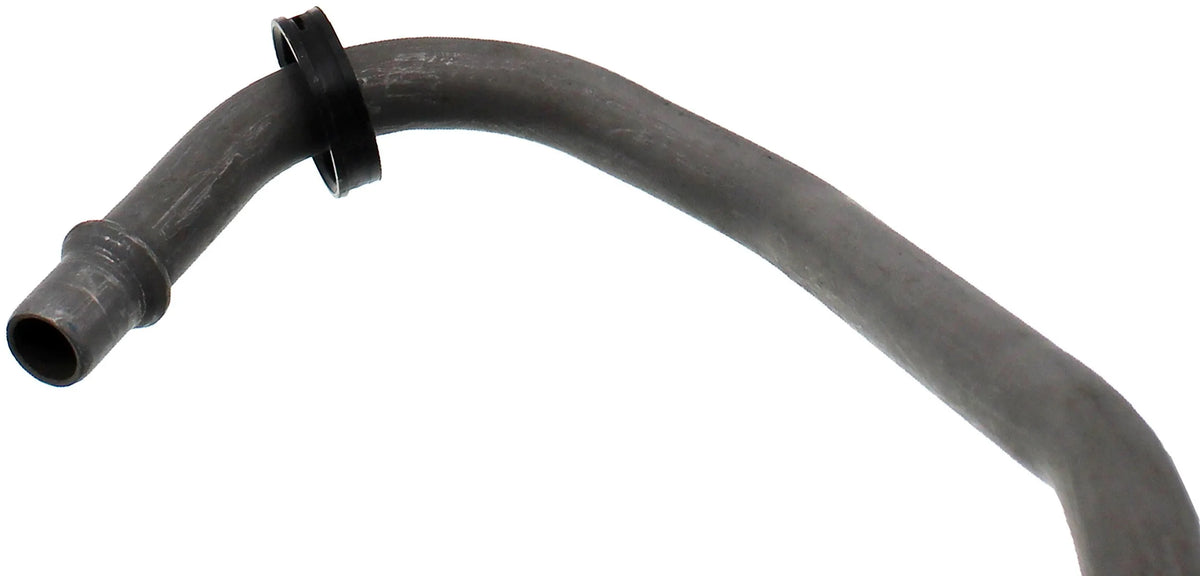

Dorman 724-133 Transmission Oil Cooler Pressure And Return Line With Bypass Valve
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
The original equipment automatic transmission oil cooler line assembly on certain Chevrolet Silverado and GMC Sierra trucks uses crimped connections between the lines and the bypass valve. That means that when a line leaks or fails from rust or fatigue, the dealer's only repair solution is to replace the entire assembly. This Dorman OE FIX assembly replaces the crimped connection with a threaded connection for simple and less expensive serviceability than the factory design, and ensures a secure, leak-free seal for proper fluid flow that helps protect the transmission.
- Serviceable assembly - this innovative automatic transmission oil cooler hose assembly replaces the factory design's crimped line connection with threaded connections for serviceability
- Cost-effective - replacing the original equipment assembly with this serviceable assembly can help reduce long-term operating and maintenance costs for fleets and vehicle owners
- Restores function - engineered and manufactured to help ensure a secure, leak-free seal for proper fluid flow that helps protect the transmission
- Direct replacement - designed to match the performance of the original equipment assembly on specified Chevrolet Silverado and GMC Sierra trucks
Specifications
| Length | 54 IN |
| Hose Material | Rubber |
| Fittings Included | Yes |
| Hose Color | Black |
| End 1 Type | 2 Bracket Connections |
| End 2 Type | 2 Male Quick Disconnects |
| End 1 Inside Diameter | 0.456 IN |
| End 2 Inside Diameter | 0.456 IN |
| Contains Spring | No |
| Maximum Working Pressure | 250 PS |
| Hose Shape | Molded Assembly |
| Flexible | Yes |
| Gasket Or Seal Included | Yes |
| Housing Color | Black |
| Maximum Operating Temperature (°F) | 329 Deg. F. FA |
| Minimum Operating Temperature (°F) | -40 Deg. F. FA |
| Package Contents | 1 Transmission Assembly With Gasket |
