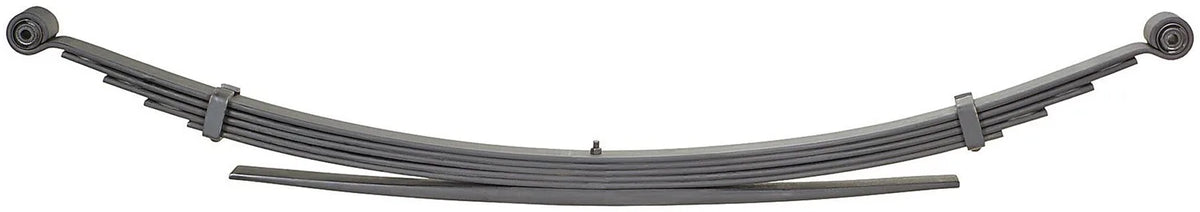

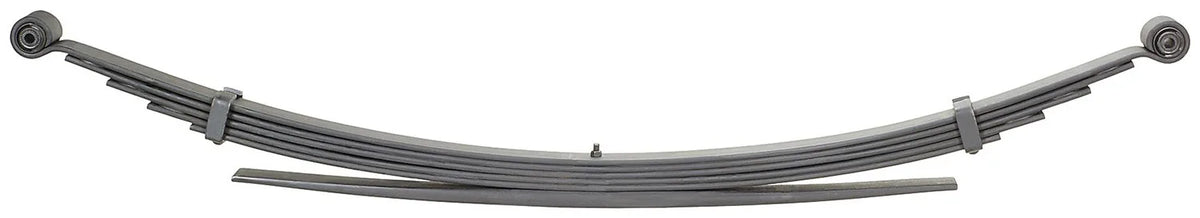

Dorman 929-108 Suspension Leaf Spring

Rated at 2234 pounds with six steel leaves, the Dorman 929-108 is a leaf spring assembly engineered for front axle suspension on specific vehicles. Fits the 1991-2000 Chevrolet C3500HD and GMC C3500HD, and the 1988-2000 Chevrolet C2500, C3500, K2500 and K3500 and GMC C2500, C3500, K2500 and K3500. Measuring 32 inches in length with a pack thickness of 2.82 inches and an arch length of 6.438 inches, each leaf spans 2.5 inches wide. The black steel spring features Berlin Eye attachments at both ends and includes black bushings for secure mounting. Built to match original equipment and manufactured in the United States, this #108-type leaf spring is backed by a limited warranty.

• Material: Steel
• Color: Black
• Mounting Hardware Included: No
• Bushing Color: Black
• Load Rate: 2234 lb
• Suspension Grade Type: Standard
• Leaf Quantity: 6
• Leaf Width: 2.5 IN
• Axle Orientation: Front
• Bushings Included: Yes
• Length Axis 1: 32 IN
• Length Axis 2: 32 IN
• Pack Thickness: 2.82 IN
• Leaf Spring Arch Length: 6.438 IN
• Spring Research Institute Number: 22-979

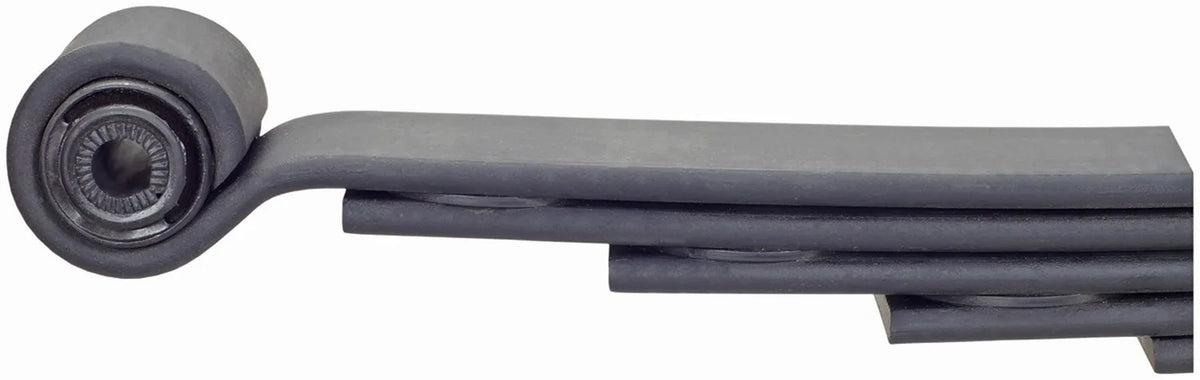

• End 1 Attachment Type: Berlin Eye
• End 2 Attachment Type: Berlin Eye
• Number of Leaves: 6
• Package Contents: 1 Leaf Spring
• Spring Type: #108 Leaf
