Dorman 929-234 Suspension Leaf Spring

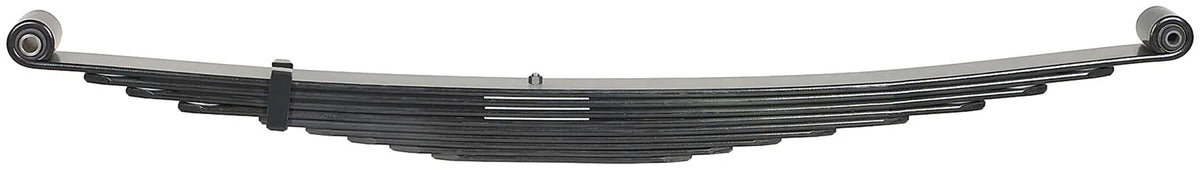

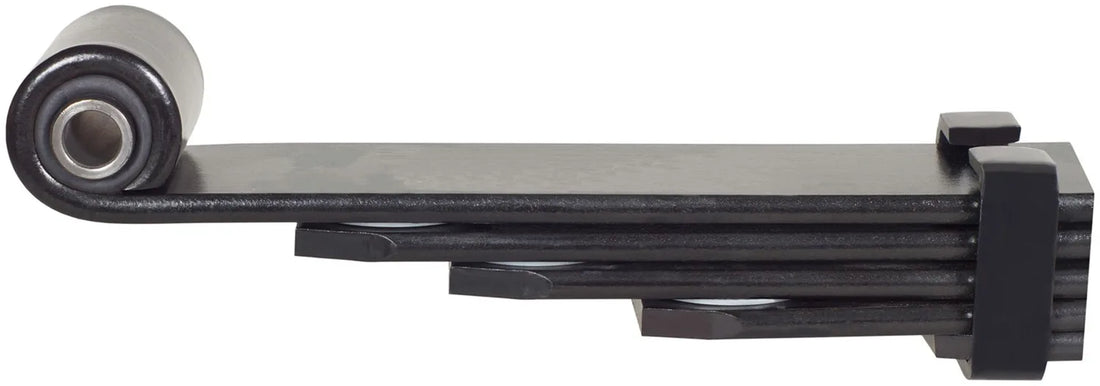

Built from nine leaves of steel, the Dorman 929-234 is a replacement front axle leaf spring assembly rated to carry a maximum load of 3460 pounds. Fits 14 Ford vehicles from 1993 to 2007, including the 2003-2007 Ford E-250 and the 1999-2000 and 2006-2007 Ford E-350 Super Duty. Full vehicle list below. The spring measures 23.88 inches along one length axis and 31 inches along another, with an overall pack thickness of 3.38 inches and a spring arch length of 1.88 inches. Both ends are finished with up-turned eye attachment types for secure mounting connection. The assembly includes black bushings for isolation and is manufactured to standard suspension-grade specifications. No mounting hardware is included with this part.

• Material: Steel
• Color: Black
• Mounting Hardware Included: No
• Bushing Color: Black
• Load Rate: 3460 LB
• Suspension Grade Type: Standard
• Leaf Quantity: 9
• Leaf Width: 3 IN
• Axle Orientation: Front
• Bushings Included: Yes
• Length Axis 1: 23.88 IN
• Length Axis 2: 31 IN
• Pack Thickness: 3.38 IN
• Leaf Spring Arch Length: 1.88 IN
• Spring Research Institute Number: 43-1085
• End 1 Attachment Type: Up Turned Eye
• End 2 Attachment Type: Up Turned Eye
• Number of Leaves: 9
• Package Contents: 1 Leaf Spring
• Spring Type: #234 Leaf
