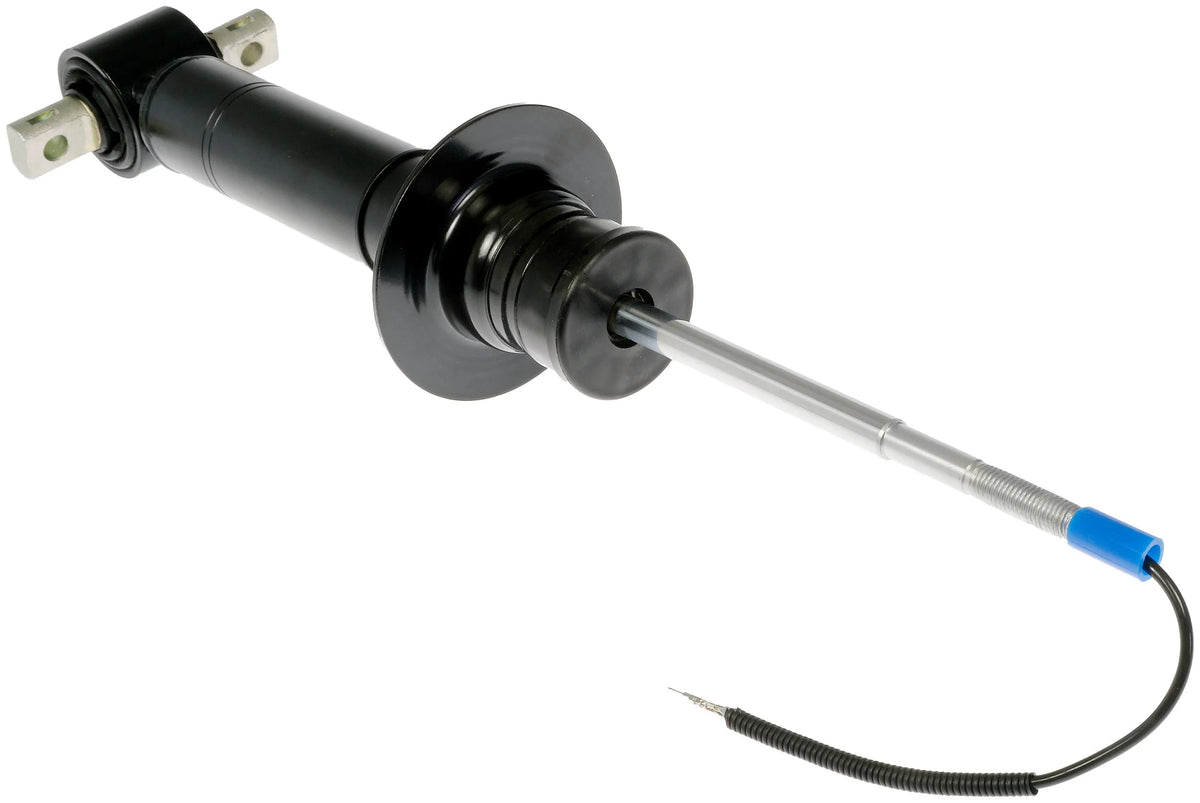

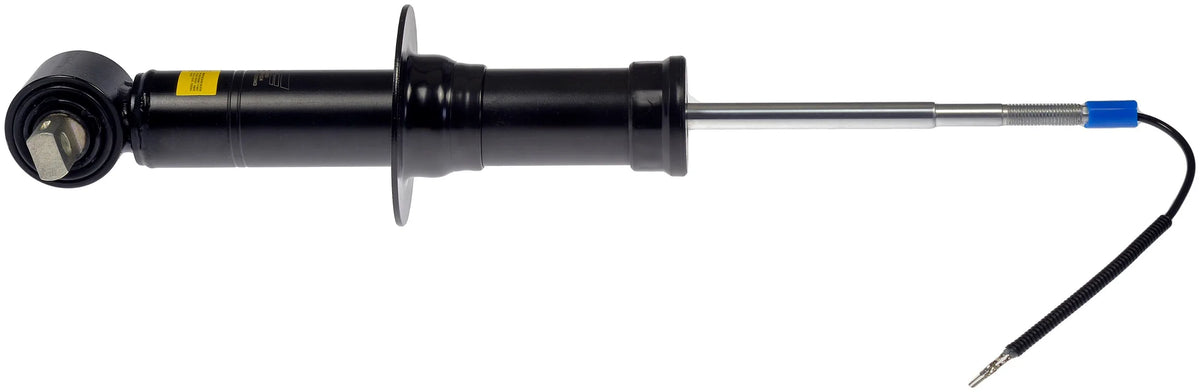

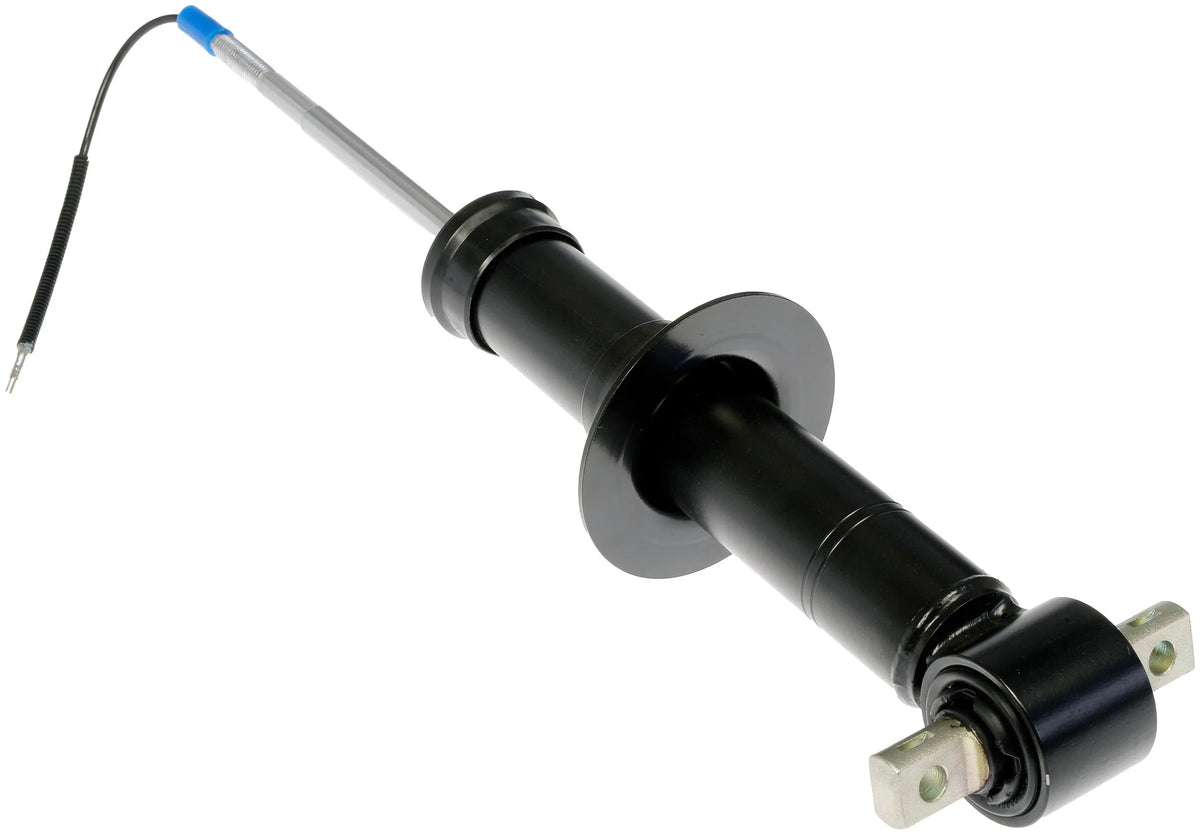

Dorman 949-700XD Magnetic Ride Control Shock

A front magnetic shock absorber with electronic damping adjustment, the Dorman 949-700XD provides suspension control for vehicles equipped with active magnetic ride control systems. Fits the 2015-2020 Cadillac Escalade and Escalade ESV, Chevrolet Suburban and Tahoe and GMC Yukon and Yukon XL, the 2019 Chevrolet Silverado 1500 LD and GMC Sierra 1500 Limited, and the 2015-2018 Chevrolet Silverado 1500 and GMC Sierra and Sierra 1500. This single-tube steel strut measures 442 millimeters in extended length and 165 millimeters in compressed length, with a 50-millimeter diameter and 128-millimeter travel range for full suspension articulation. The shock features adjustable damping with a progressive valve design to optimize performance across various driving conditions and road surfaces. Black painted finish and steel construction provide durability, while the T-Bar lower mount and screw-on upper mount configuration support proper fitment and installation. Mounting hardware comes included, though coil-over springs, dust shields, and upper mounting isolators are not included with this replacement.

• Color: Black
• System Style: Active
• Mounting Hardware Included: Yes
• Extended Length: 442 MM
• Length: 165 MM
• Lower Mount Type: T-Bar
• Upper Mount Type: Screw On
• Diameter: 50 MM
• Travel Length: 128 MM
• Finish: Painted
• Material: Steel
• Shock Absorber Rod End Measuring Point: Bottom of Mounting Ring
• Shock Absorber Body End Measuring Point: Piston-Rod (Shaft)
• Internal Construction Type: Single Tube
• Grade Type: Standard Replacement
• Damping Adjustment Type: Electronic
• Valving Type: Progressive
• Active or Passive Suspension: Active
• Cylinder Finish: Steel
• Adjustable: Yes
• Adjustable Damping: Yes
• Coil Over Springs Included: No
• Dust Shield: No
• Internal Rebound Bumper: No
• Lower Mount Code: T-Bar
• Package Contents: 1 Magnetic Shock
• Upper Mount Code: Screw On
• Upper Mounting Isolator Included: No
