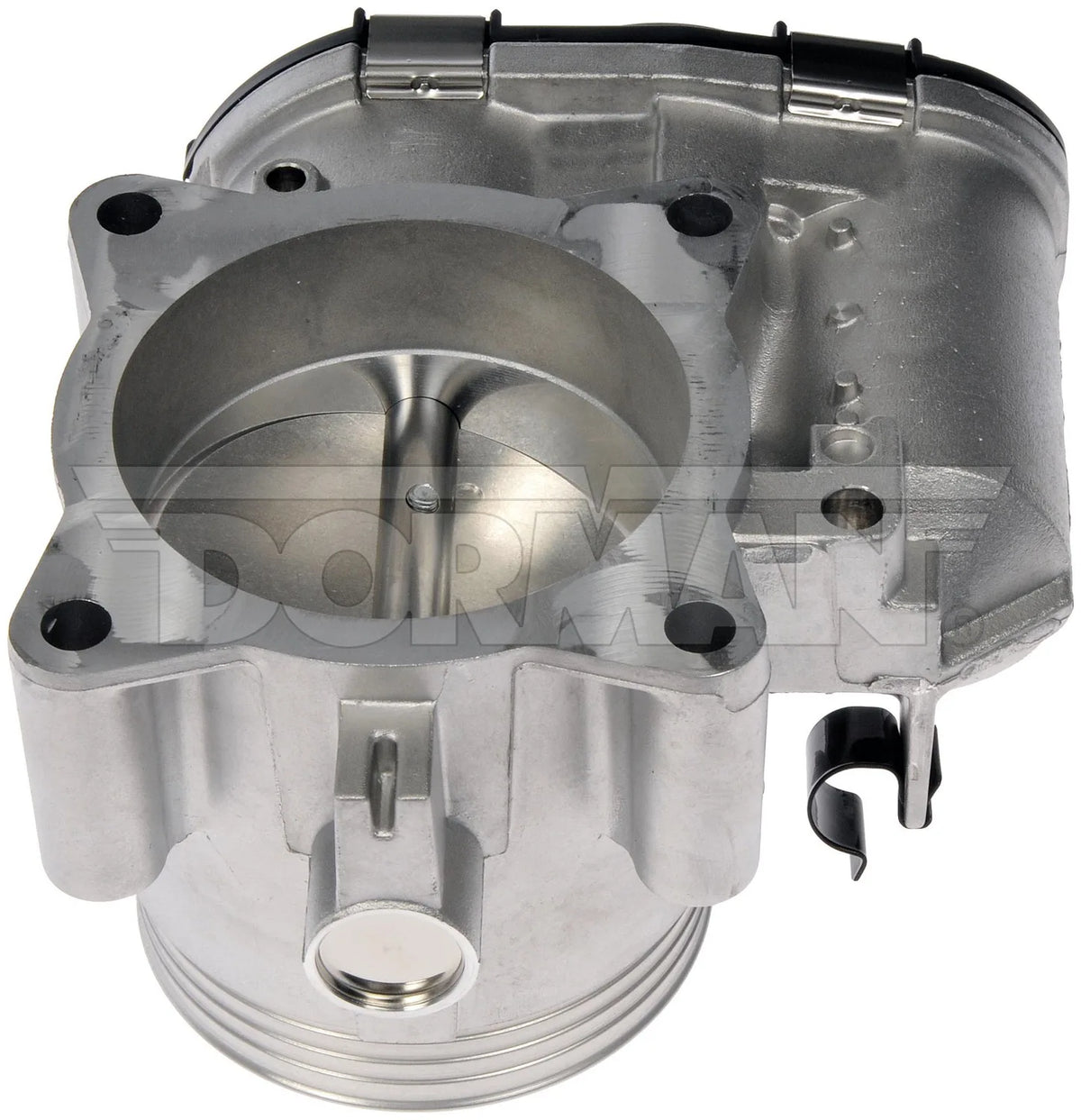

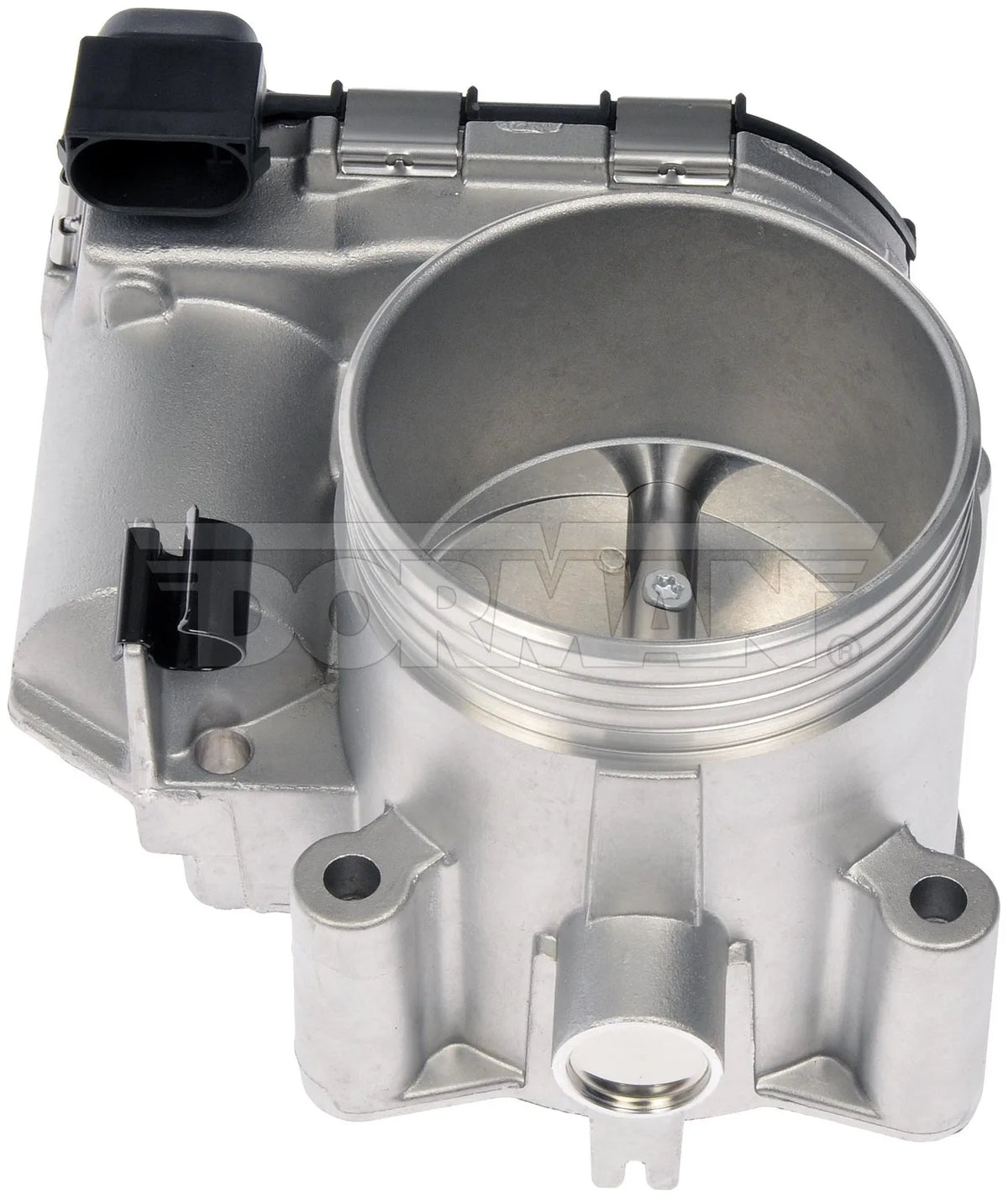

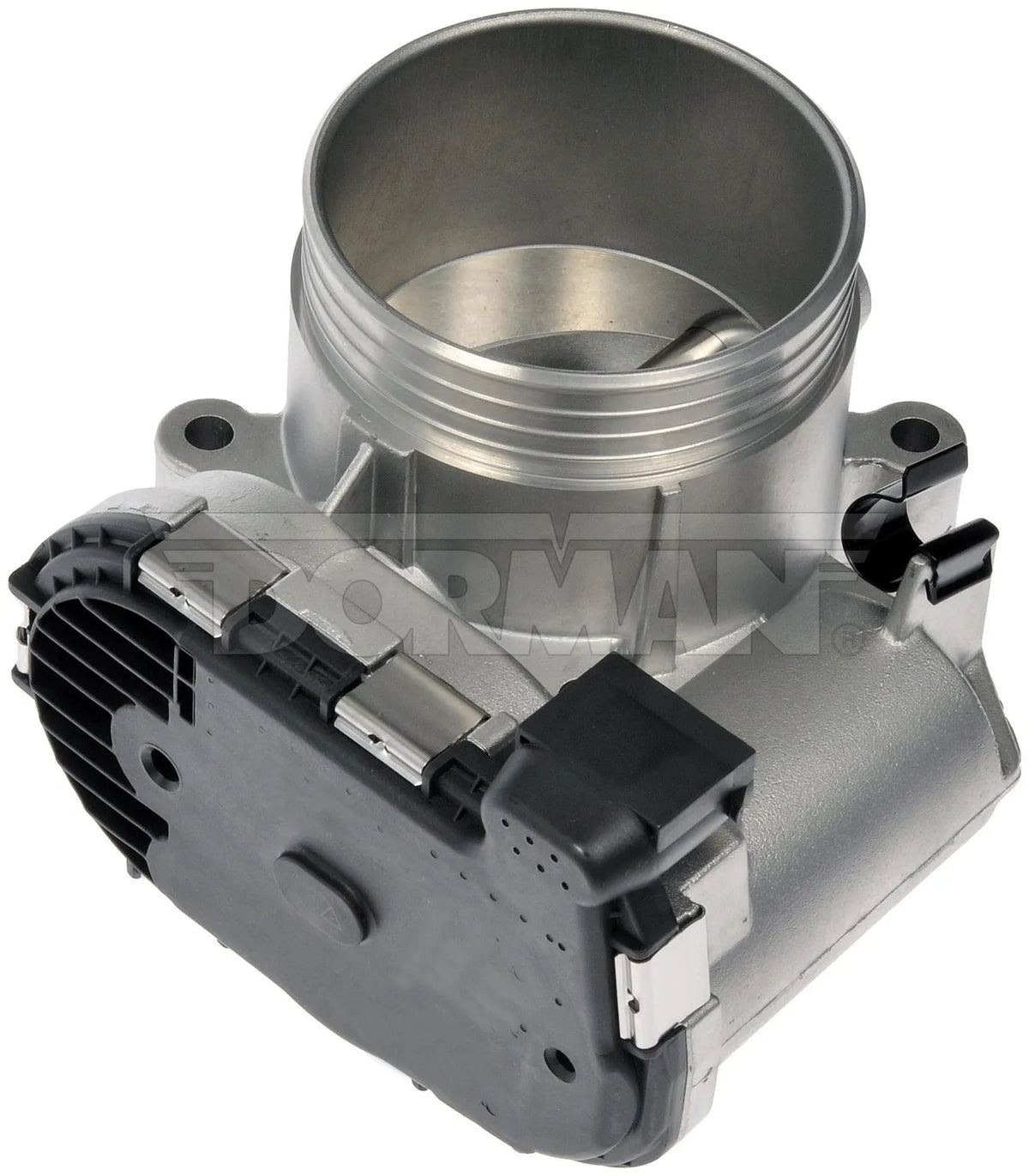

Dorman 977-354 Electronic Throttle Body

Controlling fuel delivery to the engine through the fuel injection system, the Dorman 977-354 is an electronic throttle body designed for direct replacement on specified vehicles. Fits the 2002-2009 Volvo S60; the 2003-2007 Volvo XC70; the 2002-2007 Volvo V70; the 2002-2006 Volvo S80; the 2003-2006 Volvo XC90; and the 2002-2004 Volvo C70. The assembly is built from cast aluminum material and has a diameter of 2.33 inches with a mounting footprint designed for the fuel intake configuration. Electrical connectivity is provided through a 6-terminal female socket connection with pin-type connector and terminal configuration. This unit operates on gasoline fuel within an electronic fuel injection system and meets FMVSS Federal Motor Vehicle Safety Standards compliance. The complete throttle body assembly is backed by a limited warranty, though installation hardware is not included with the product.

• Adjustable: No
• Outlet Quantity: 0
• Fuel Type: Gas
• Diameter: 2.33 IN
• Fuel System Type: Electronic
• Quantity: 0
• Connector/Terminal Type: Pin
• Electrical Connection Type: Female Socket
• FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes
• Housing Color: Metal
• Housing Material: Cast Aluminum
• Inlet Quantity: 0
• Installation Hardware Included: No
• Package Contents: 1 Fuel Injection Throttle Body
• Terminal Count: 6
• Throttle Body Mounted: No
