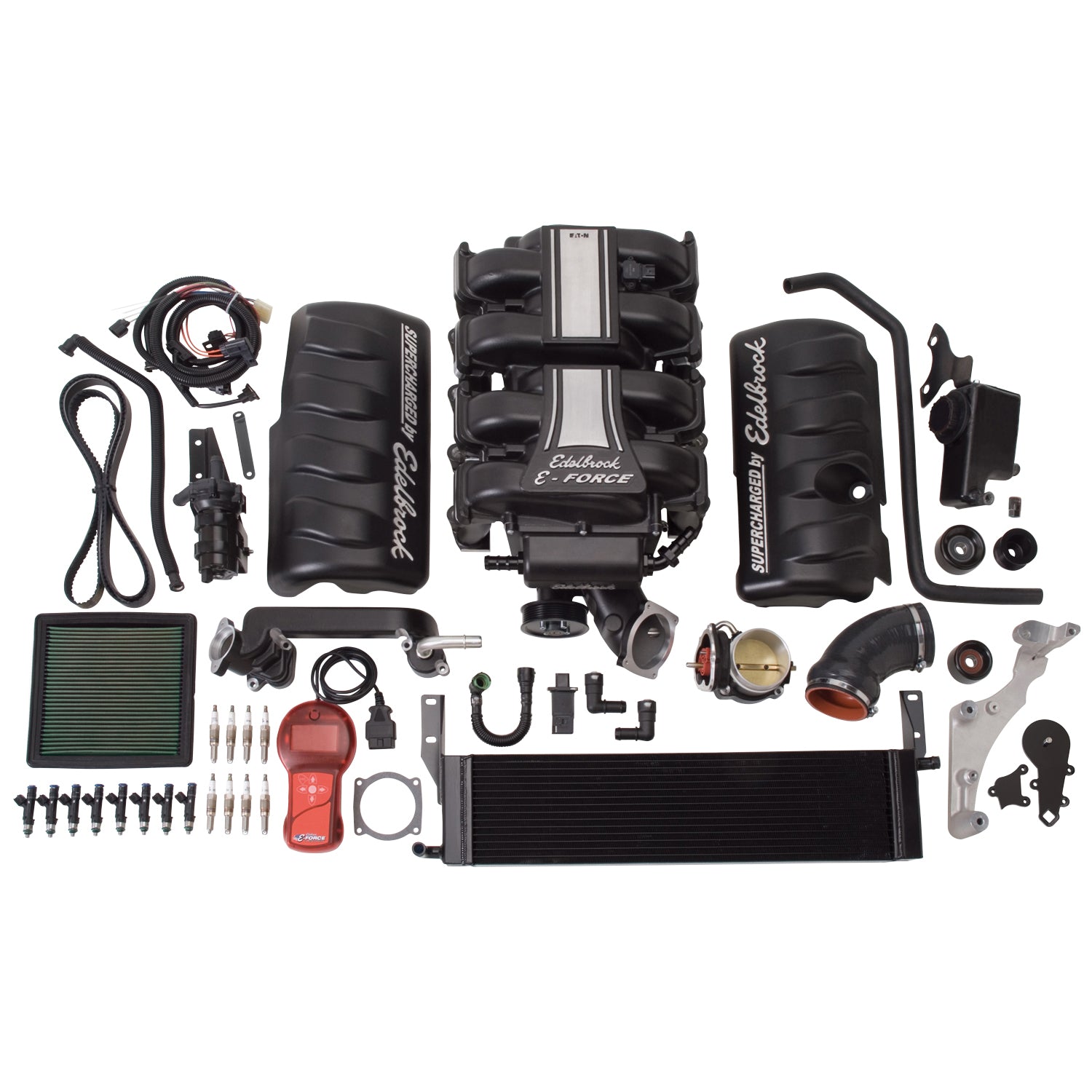

The Edelbrock Supercharger System part #1580 is for the 2005-09 Ford Mustang 4.6L 3V. This kit produces 466 horsepower and 439 ft-lbs of torque.
The Edelbrock supercharger Stage 1 Street system part #1580 for 2005-09 Ford Mustangs increases the performance of your 4.6L 3V engine to 466 horsepower and 439 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1580 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications
| Gasket Or Seal Included | Yes |
| Hose Included | Yes |
| Center Housing Cooling Type | Intercooler |
| Maximum Torque | 439 85 |
| Universal Or Specific Fit | Specific |
| Outside Pulley Diameter | 3.875 IN |
| Maximum Boost Pressure | 4.75 PS |
| Mounting Bracket Included | Yes |
| Rotor Type | Eaton TVS 2300 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Mounting Hardware Included | Yes |
| Finish | Black Powder Coated |
| Pulley Belt Width | 6-Rib |
| Maximum Pressure Reading | 4.75 PS |
| System Type | Stage 1 - Street System |
| 9040 | D-215-89 |
| Air Filter Included | Yes |
| Harmonic Balancer Diameter | 6.67 IN |
| Vehicle Model | Mustang |
| Spark Plugs Included | Yes |
| Calibration | Yes |
| Housing Material | Cast Aluminum |
| Fuel Injector Type | 41 4U |
| Internal Step Up | Yes |
| Maximum Horsepower | 466 |
| Quantity | Kit |
| Oil Capacity | 150 ML |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 36 Months
