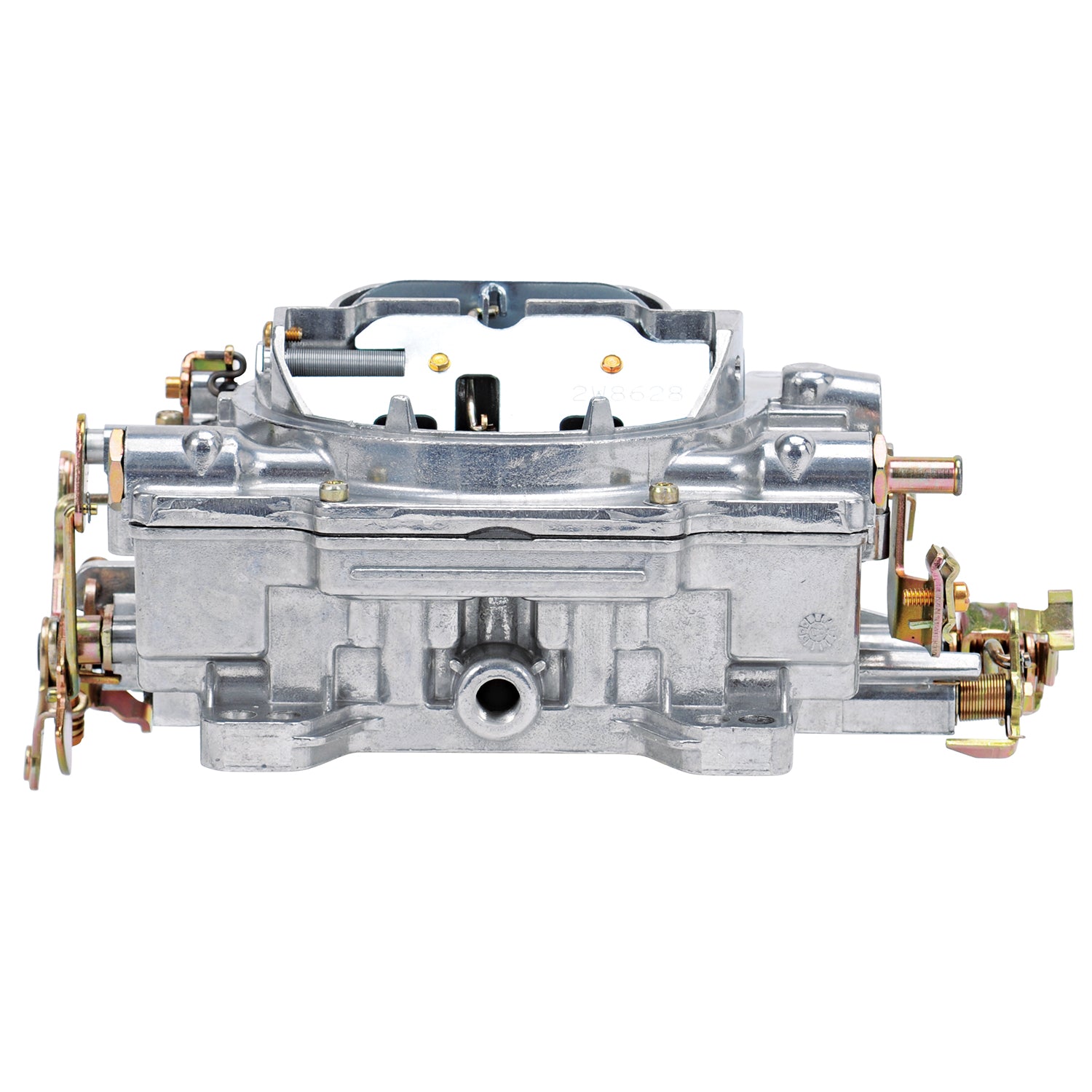

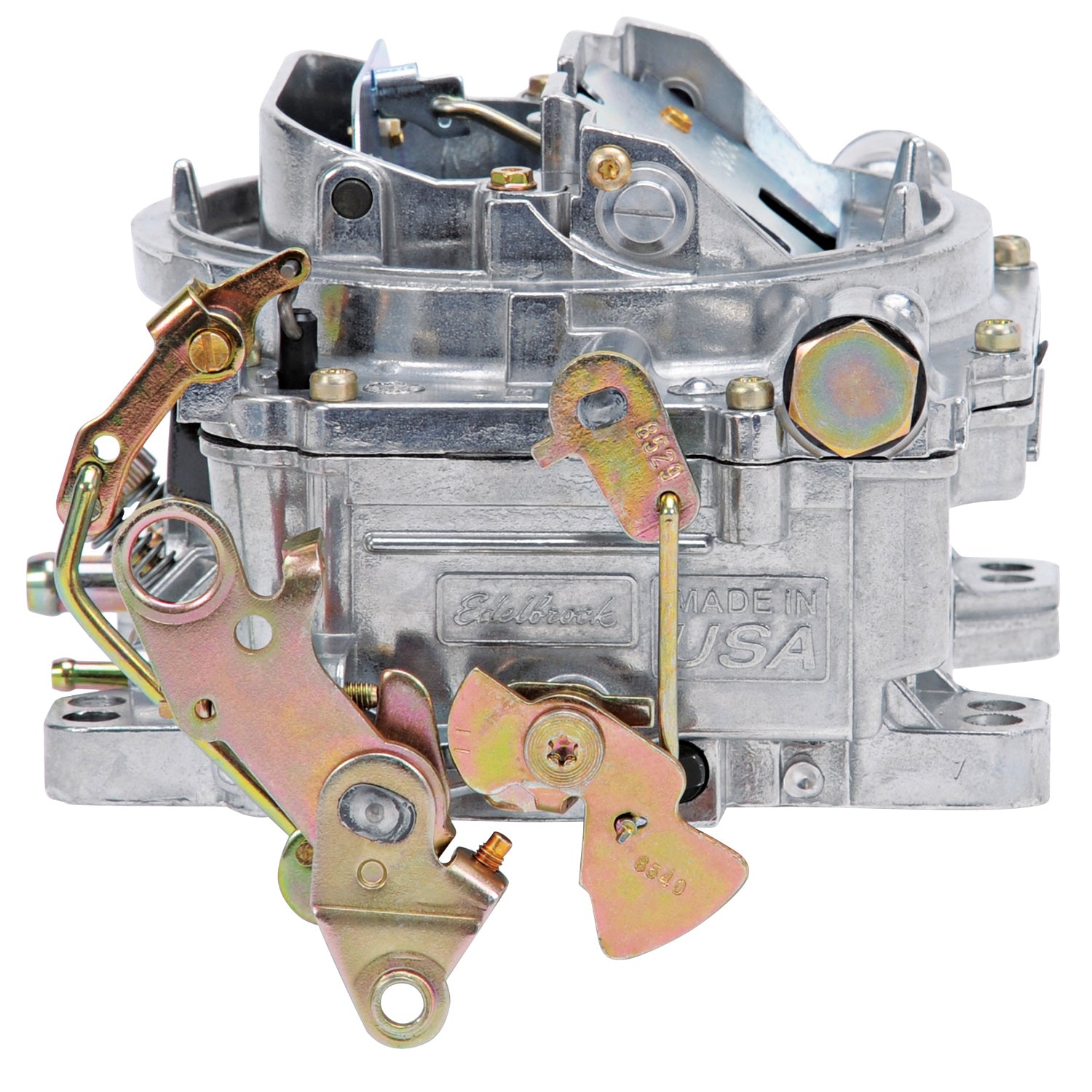

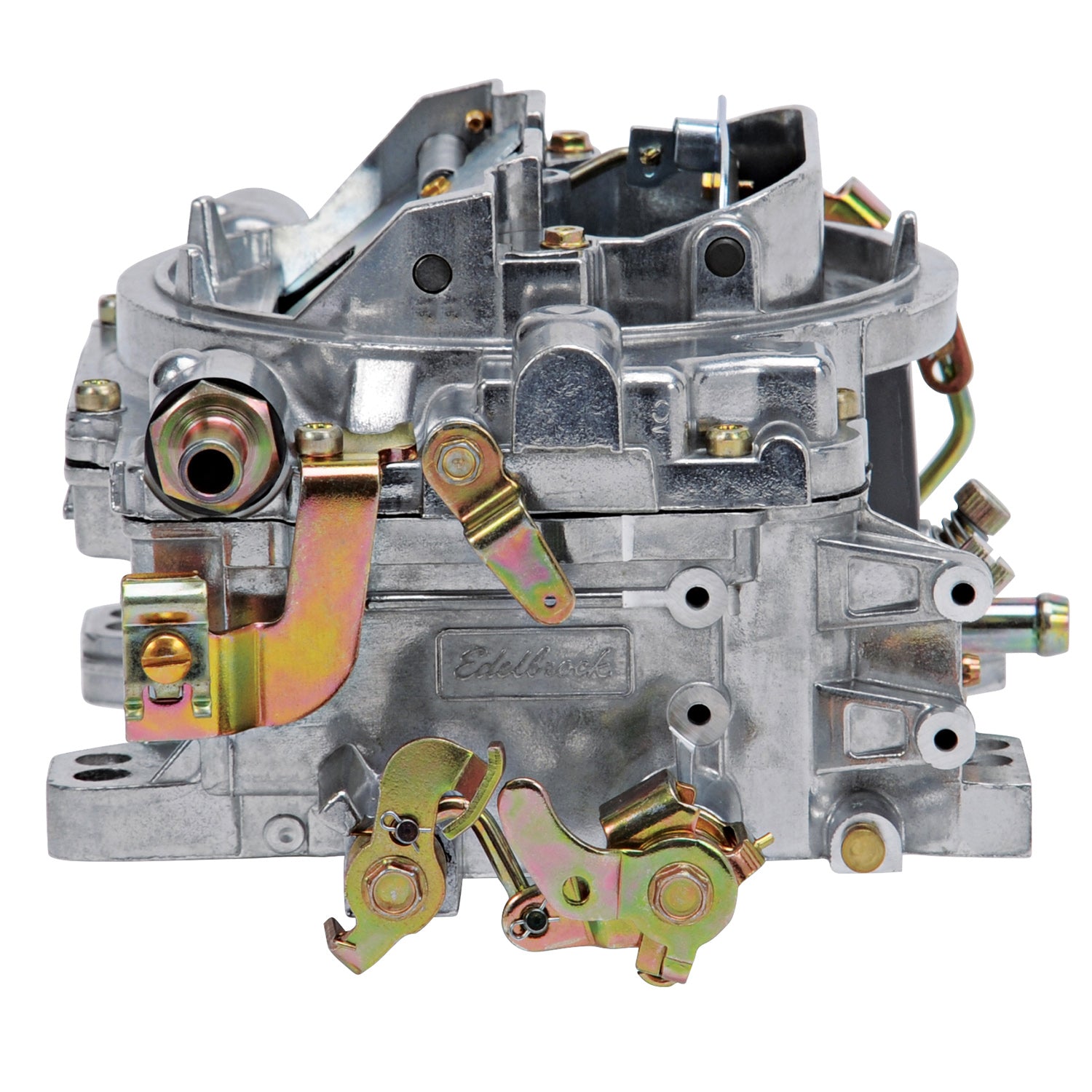

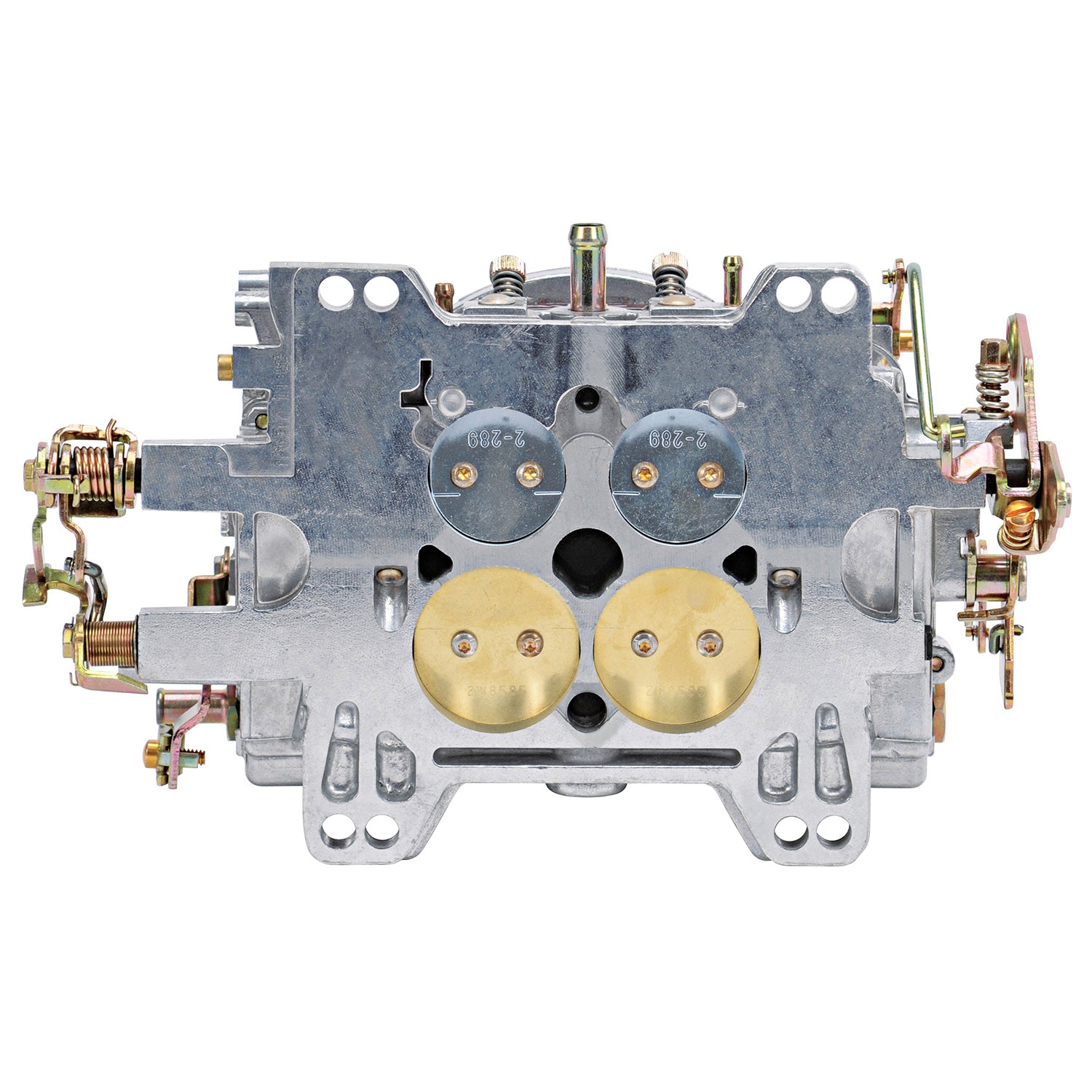

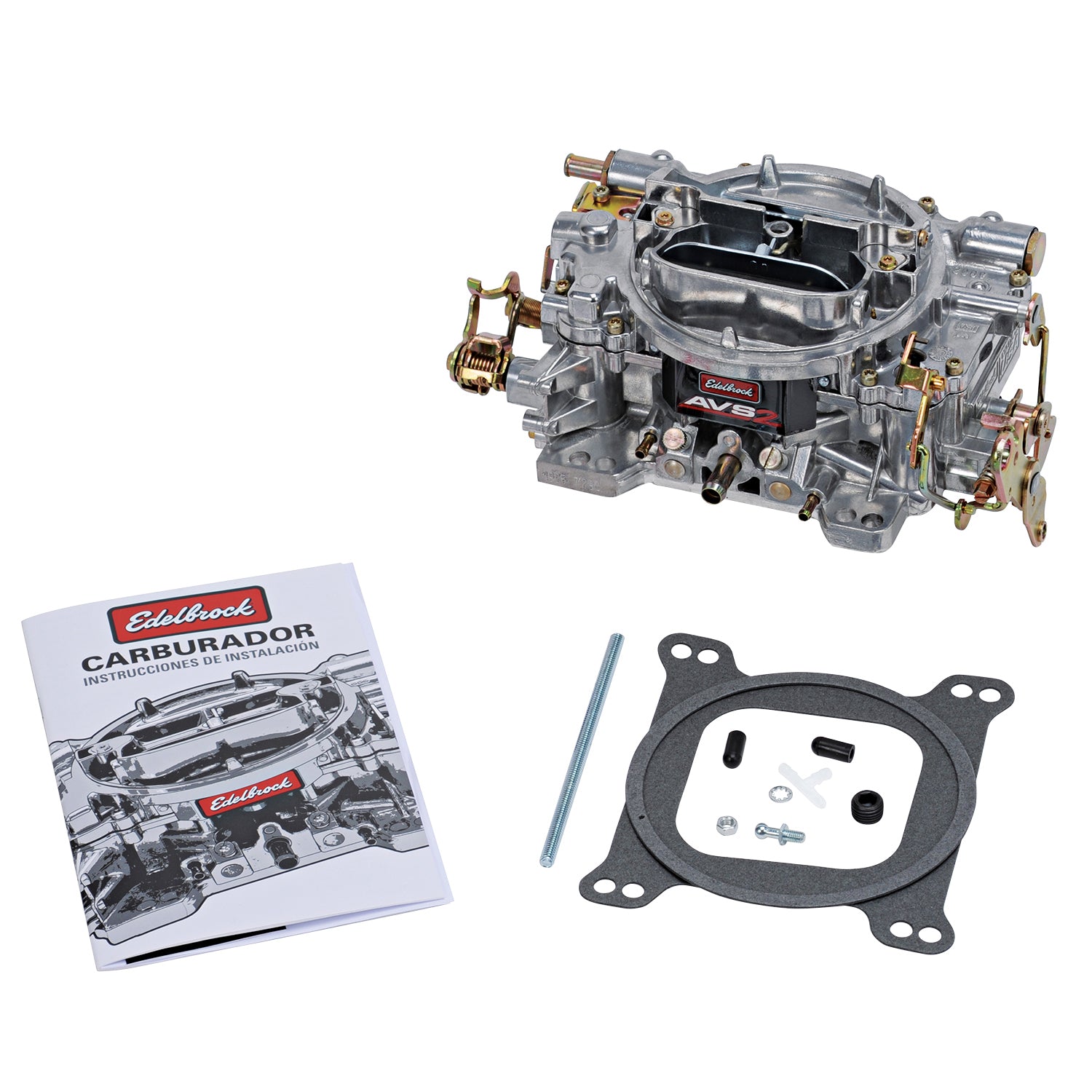

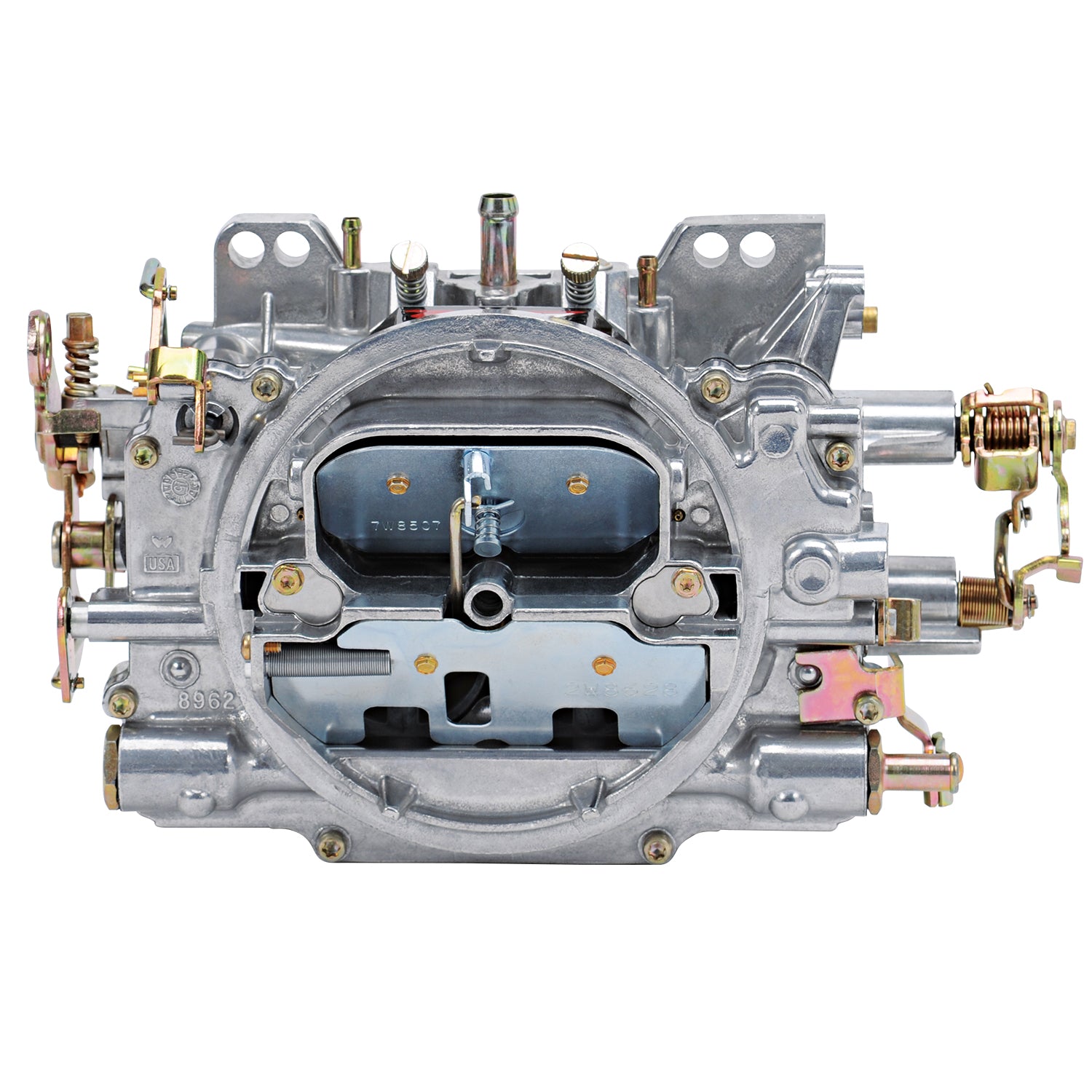

Edelbrock 1915 AVS2 Off-Road Carburetor #1915 650 CFM W/ Manual Choke, Satin Finish (Non-EGR)
Product Availability Request
Fill the form and our team will contact you.
The Edelbrock AVS2 Off-Road Carburetor #1915 with Manual Choke is a special 650 CFM version of the proven #1905 street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas.
The Edelbrock AVS2 Off-Road Carburetor #1915 with Manual Choke is a special 650 CFM version of the proven #1905 street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas. Like AVS2 street carbs, the AVS2 Off-Road features an annular ring with eight orifices that replaces the standard single brass tube (down-leg) fuel feed. The AVS2 Off-Road booster ring distributes fuel into the airflow stream with an even spray that eliminates flat spots and greatly improves throttle response in the low- to mid-RPM range without sacrificing top-end power. For superior fuel control over rough terrain, the AVS2 Off-Road features a new spring-loaded needle and seat along with a spring-loaded anti-syphon ball in the accelerator pump circuit to prevent fuel drip common with standard carbs in off-road situations. The AVS2 Off-Road is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 Off-Road carbs have the unique ability to "hold a tune? when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 Off-Road offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. AVS2 Off-Road Carburetors feature a two-piece design for easy tuning that allows you to make float level adjustments or replace internal components without draining the carburetor or removing it from the engine. The AVS2 Off-Road 650 CFM is available with a manual (#1915) or electric (#1916) choke and is manufactured by Edelbrock in the USA.
Features
- Annular Flow Booster technology
- Spring-loaded needle and seat for rough terrain
- Spring-loaded anti-syphon ball eliminates drip
- No power valves to blow out
- Available with manual or electric choke
Specifications
| Spring Force | 5" Hg (Orange) |
| Bore Diameter | Primary Bore 1.44; Secondary Bore 1.75 IN |
| Series | AVS2 |
| Choke Type | Manual |
| Finish | Satin |
| Body Height | 3.25 IN |
| Flange Shape | Square |
| Main Venturi Diameter | 1.19 IN |
| Booster Type | annular |
| Metering Rod Size | .073 x .042 IN |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Gasket Or Seal Included | Yes |
| Barrel Quantity | 4 Barrel |
| Primary Jet Diameter | 0.104 IN |
| Secondary Jet Diameter | 0.098 IN |
| EGR Port | No |
| Condition | New |
| Material | Aluminum |
| Maximum Flow Rating | 650 2L |
Installation Guide: Download PDF
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
