Edelbrock 28002 Big Victor 2 Spread-Port, Tall Deck Intake Manifold for Big-Block Chevy
Product Availability Request
Fill the form and our team will contact you.

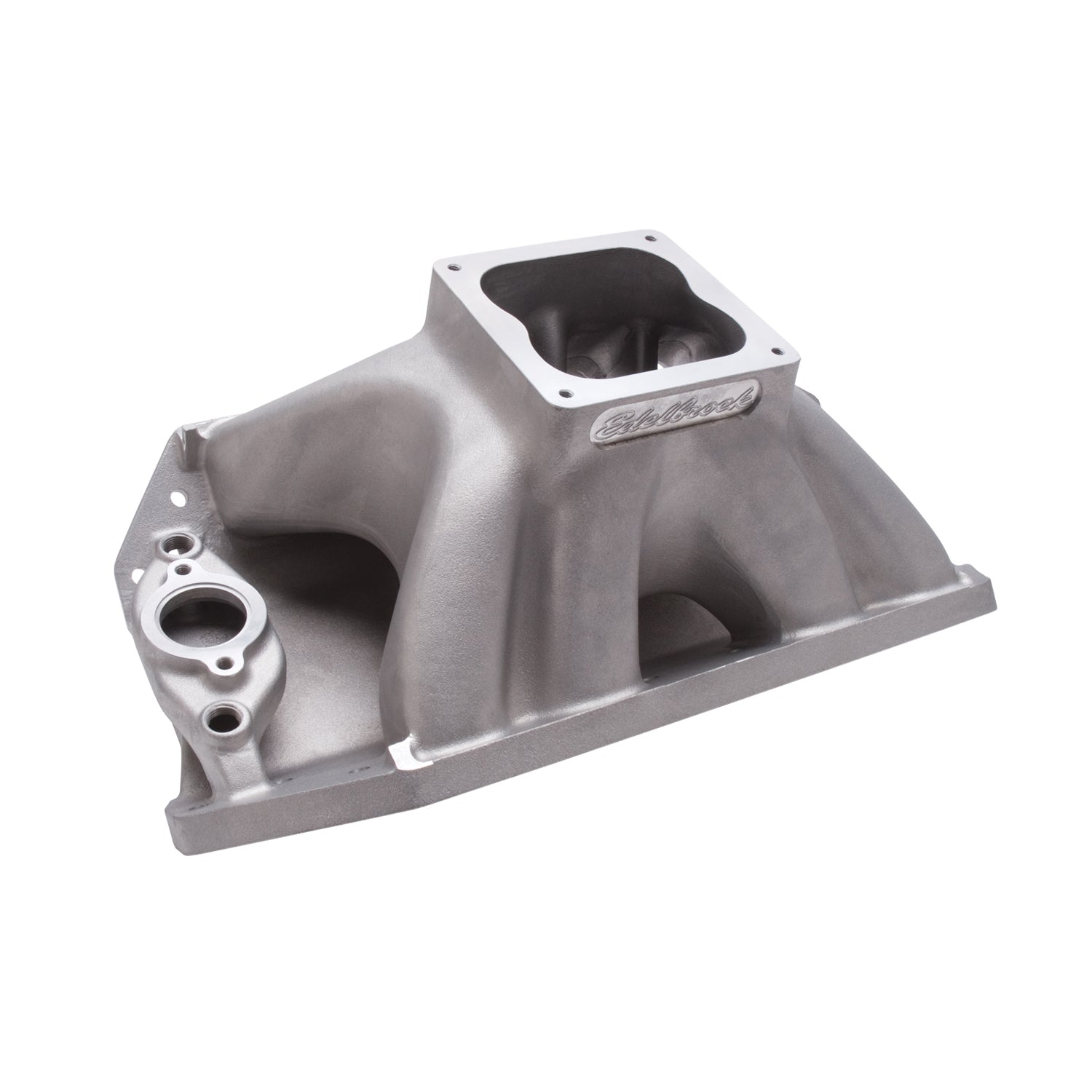

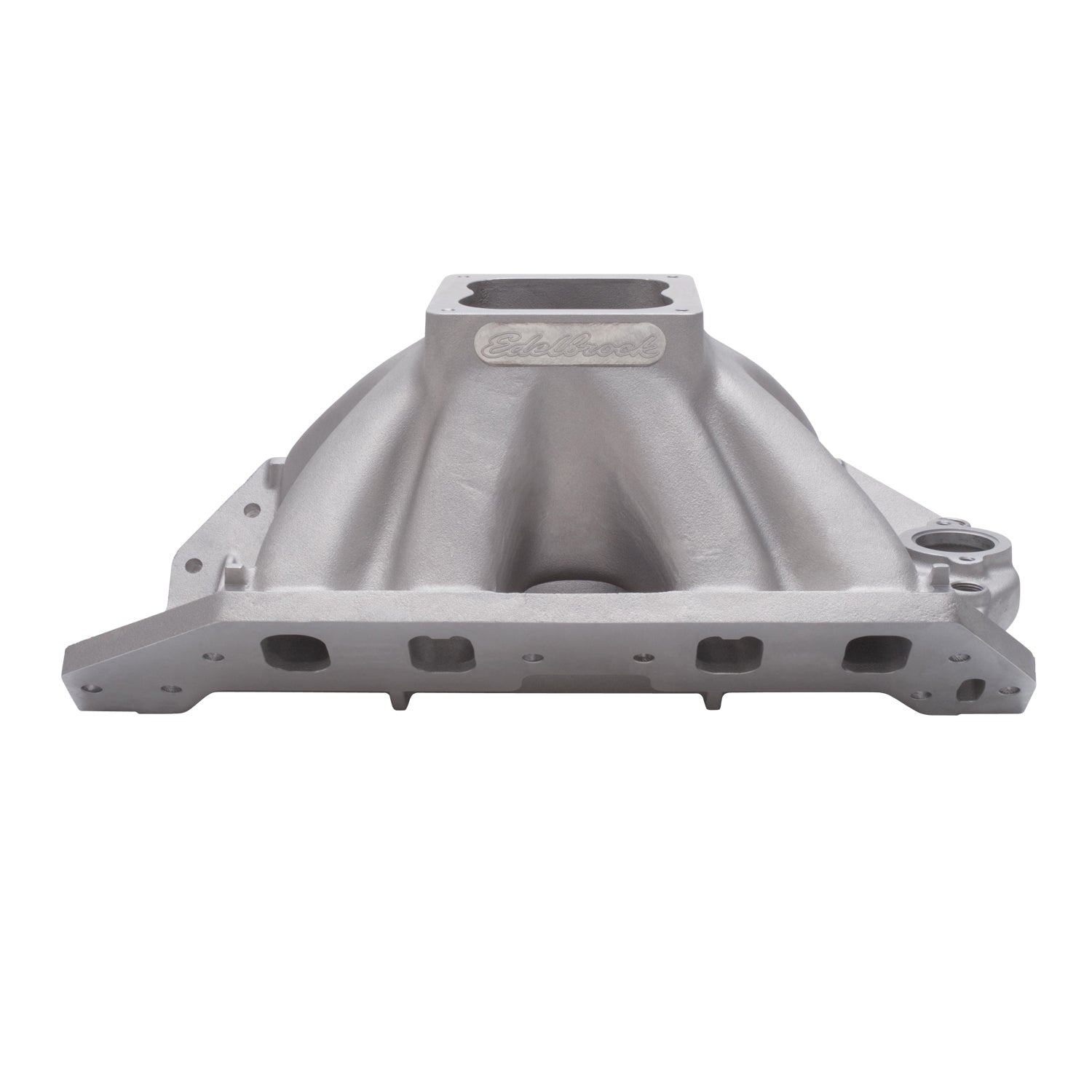

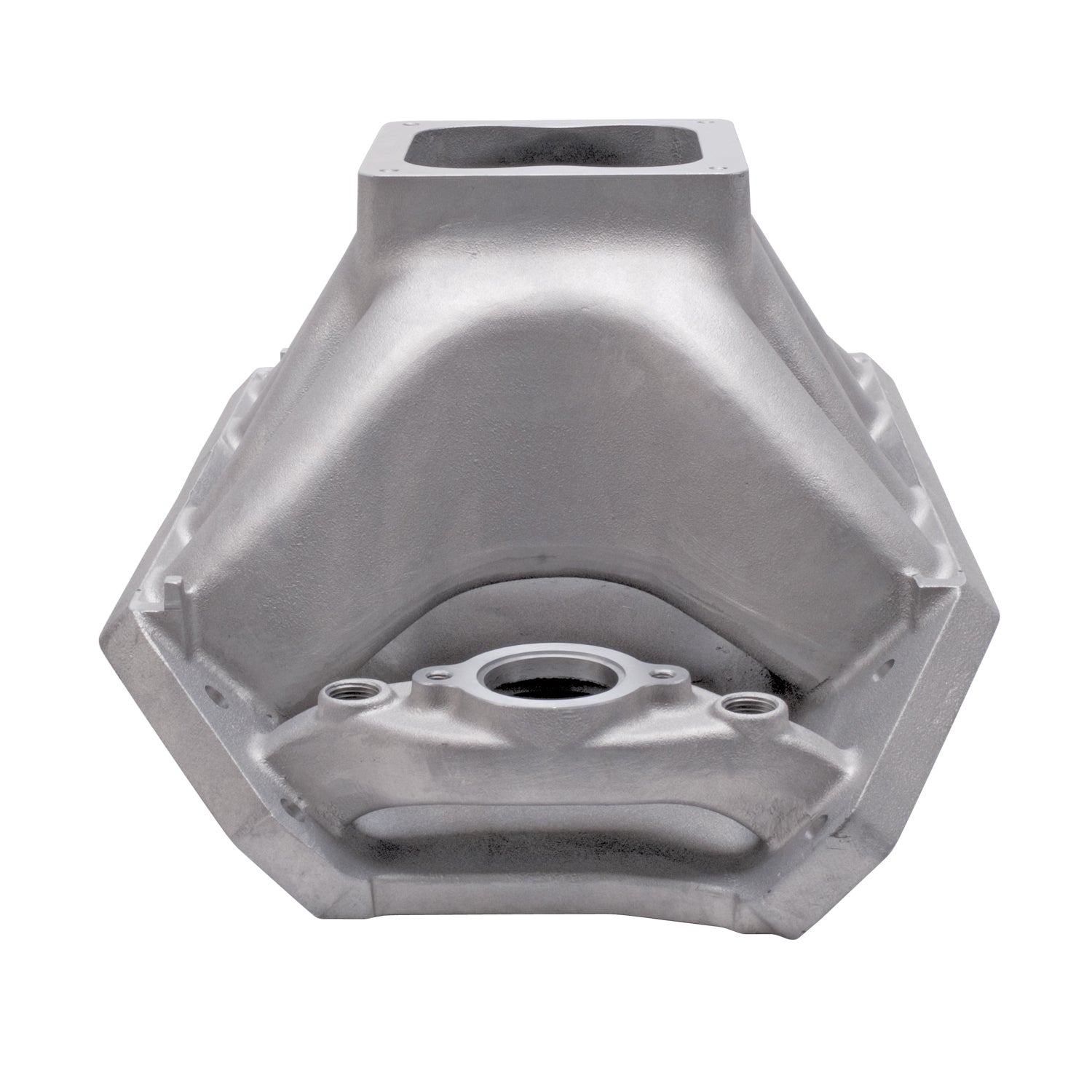

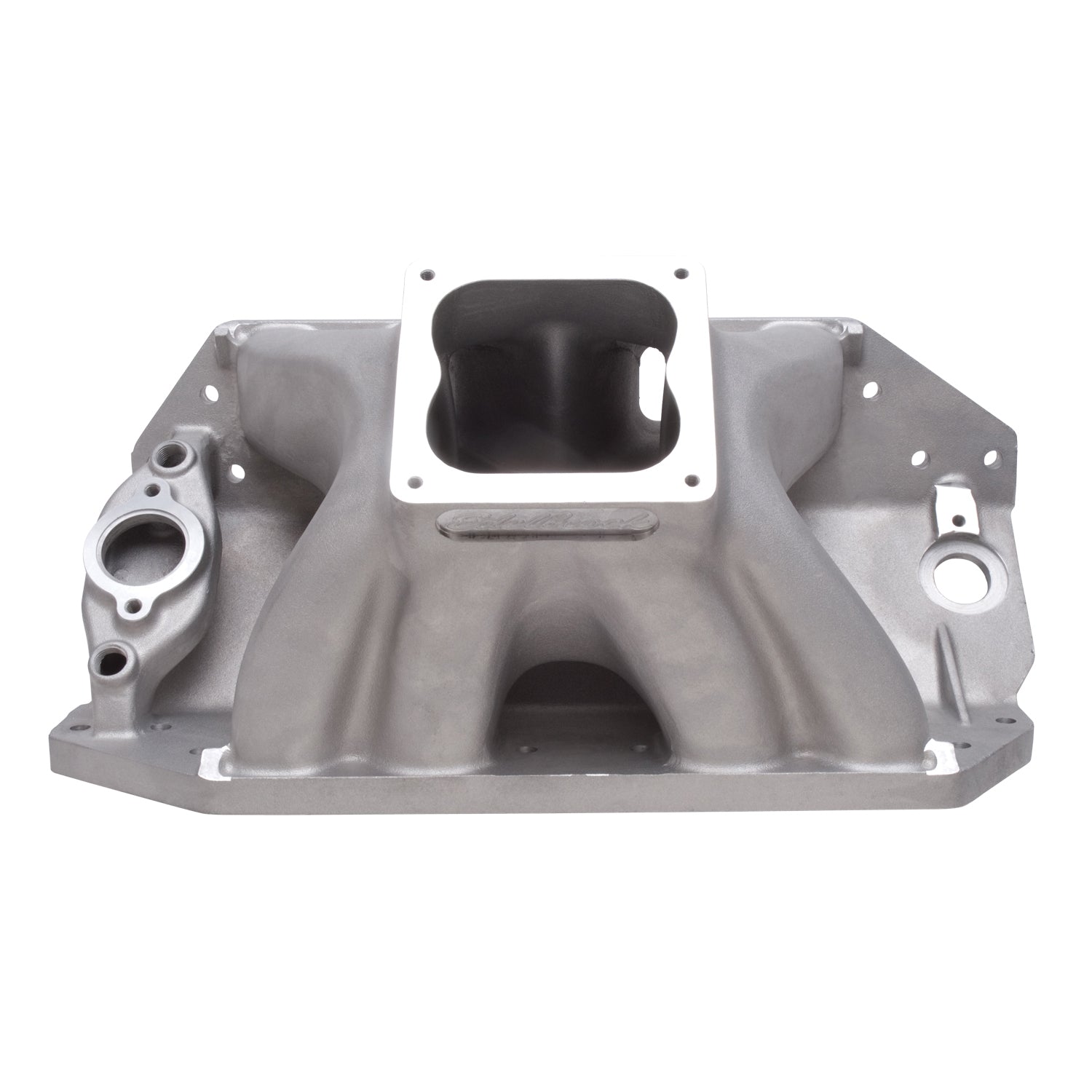

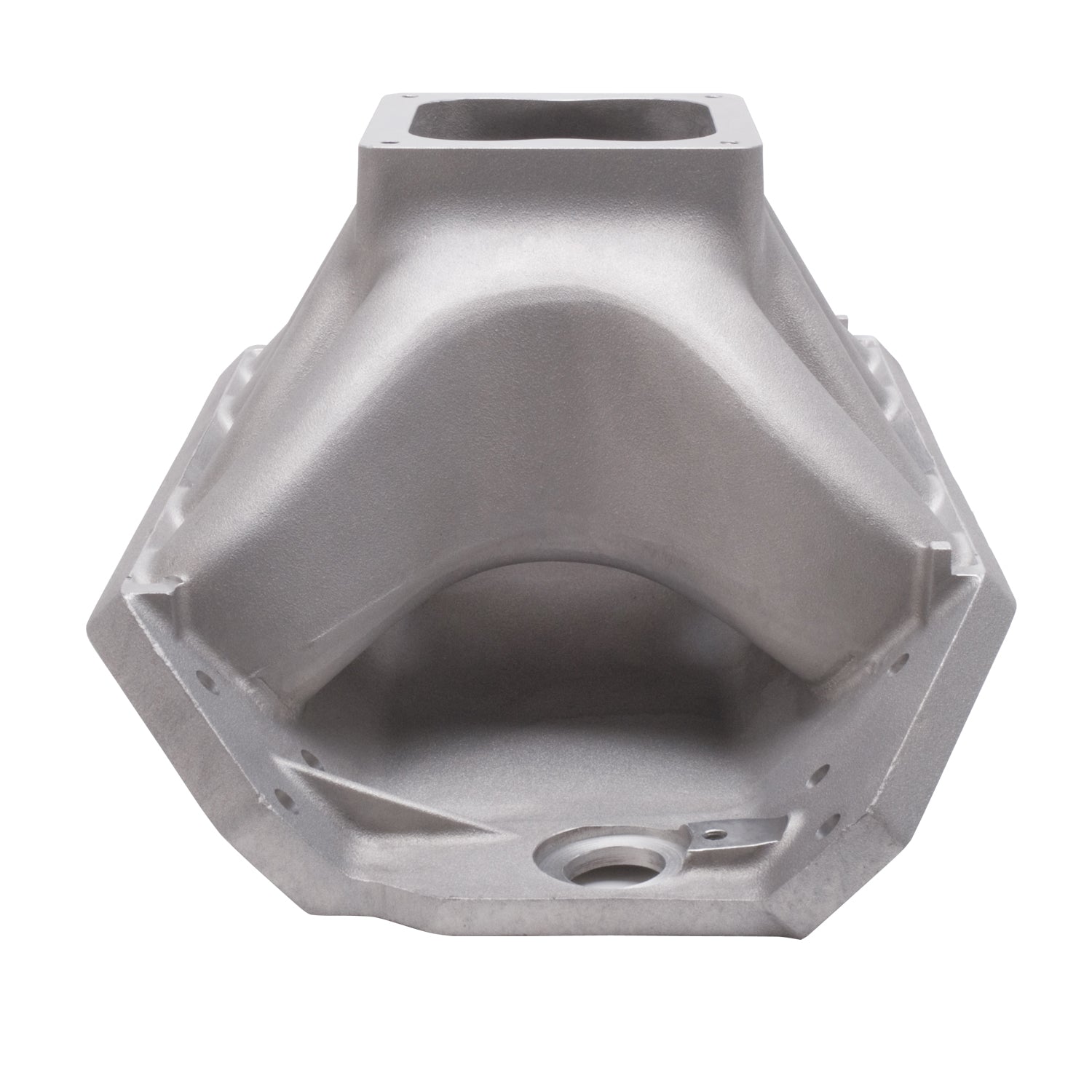

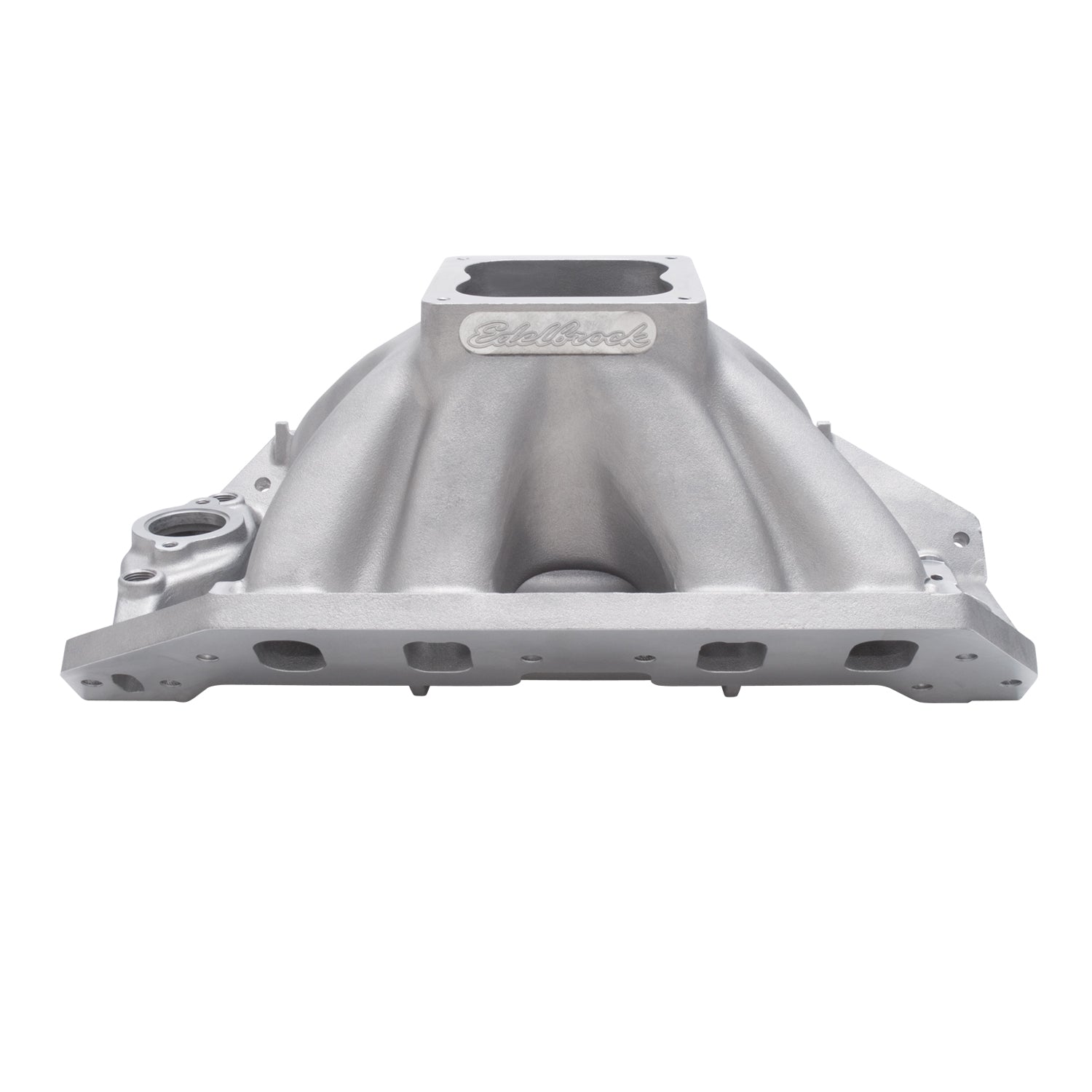

Edelbrock Big Victor 2 Spread-Port Tall Deck Intake Manifold for Big-Block Chevrolet
Edelbrock part #28002 Big Victor 2 Spread-Port Tall-Deck intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks with Edelbrock Big Victor, Dart Big Chief or Brodix Big Duke cylinder heads, this manifold has an average runner area of approximately 4.75 sq. in. The port exits have been reduced to accommodate the wide variety of intake port sizes and require port matching. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop. All applications are equipped with a 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification.
Specifications
| Material | Aluminum |
| Finish | Satin |
| Basic Operating RPM Range | 3500-8500 R3 |
| CNC Ported | No |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Front Maximum Height | 9.530 IN |
| Gasket Or Seal Included | No |
| Center Maximum Height | 9.530 IN |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Vehicle Model | Chevrolet |
| Rear Maximum Height | 9.530 IN |
| EGR Port | No |
| Flange Type | 4500 |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
Shipping Information
Free shipping is available for eligible orders.
Shipping: For USA - Up to 50lbs.
Orders are processed during normal business days. Delivery dates may vary by carrier and destination.
