Edelbrock 28455 Victor Jr Small Block Chevy LS3/L76/L92 GM EFI Intake Manifold
Product Availability Request
Fill the form and our team will contact you.
Edelbrock Victor Jr LS3/L76/L92 GM EFI Intake Manifold GM LS Engines

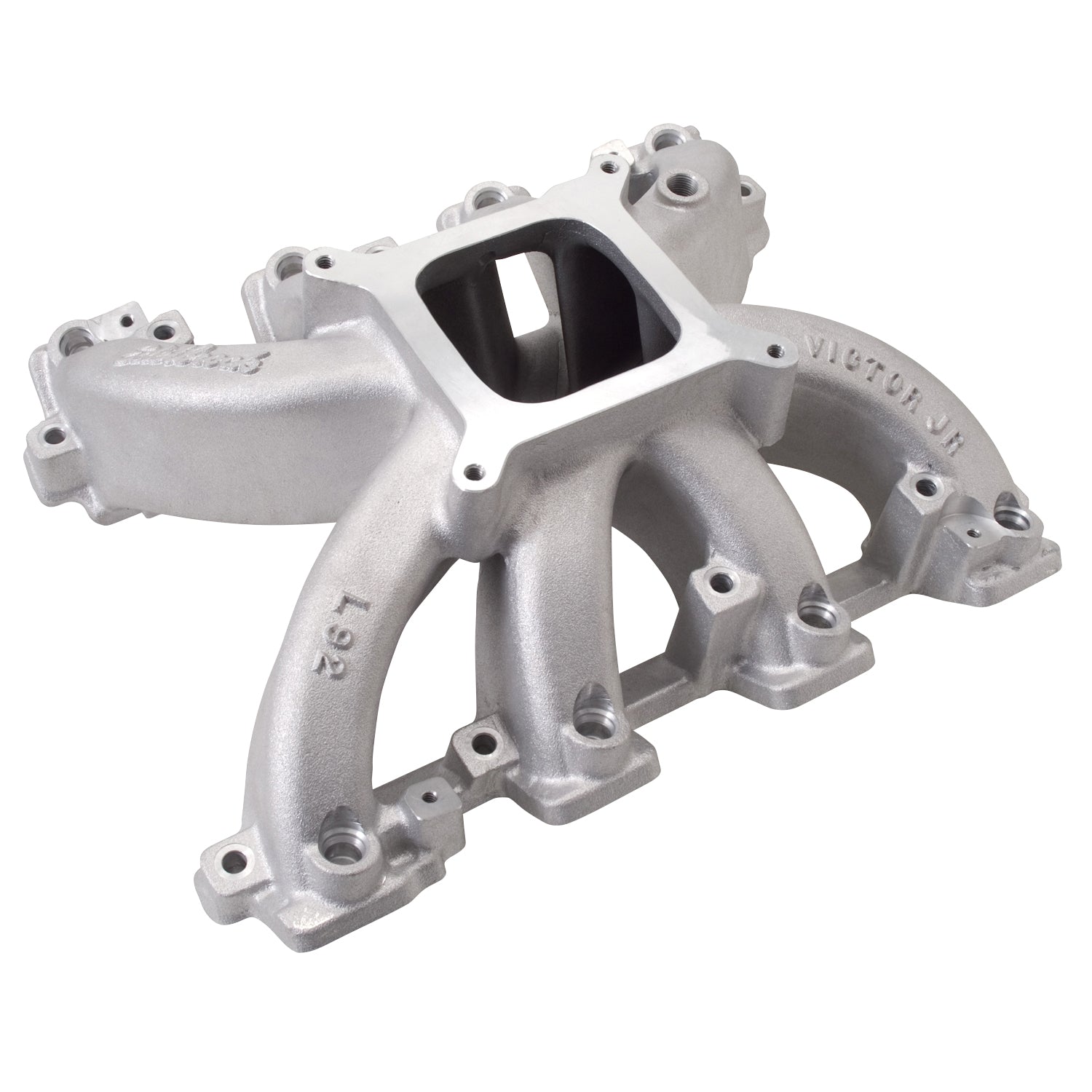

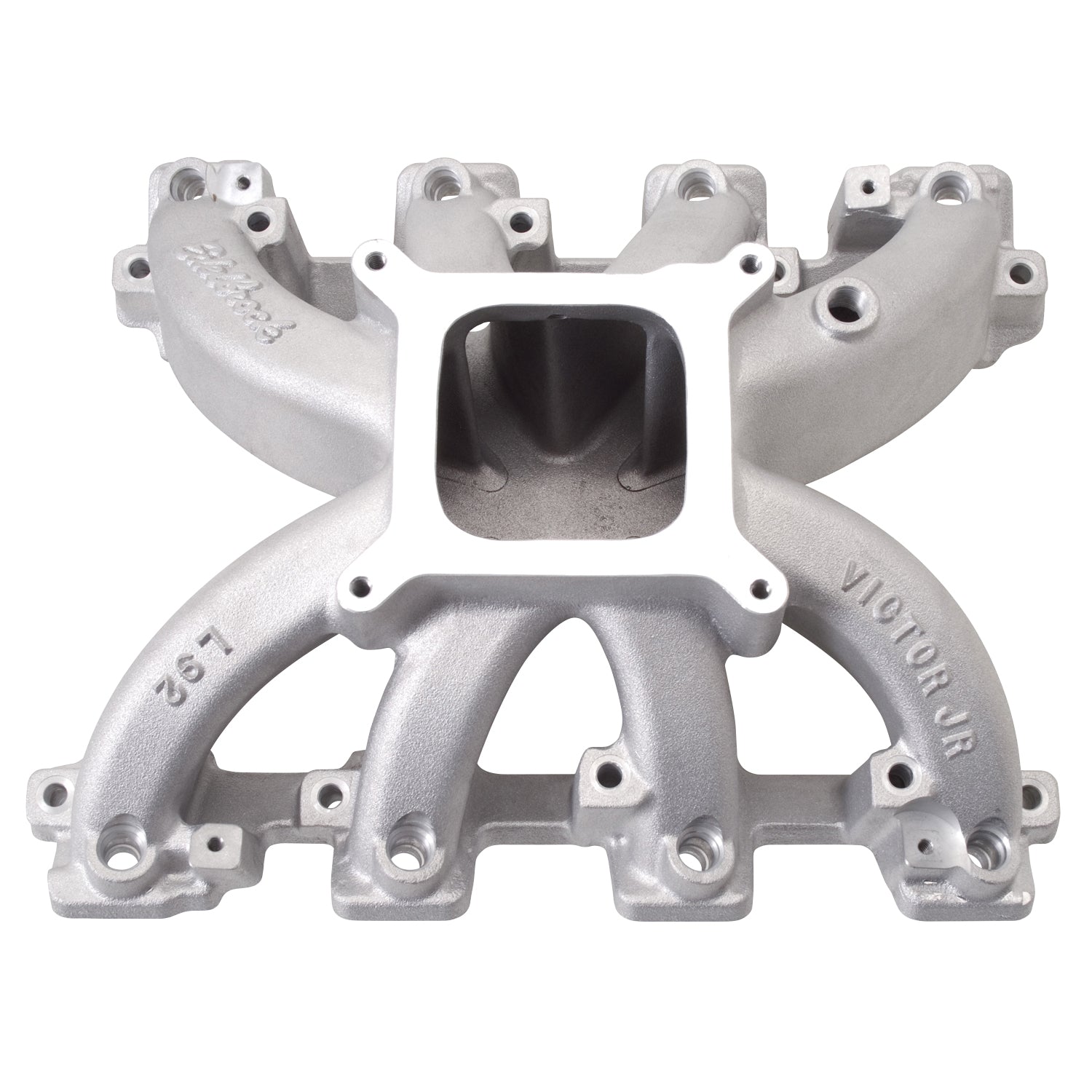

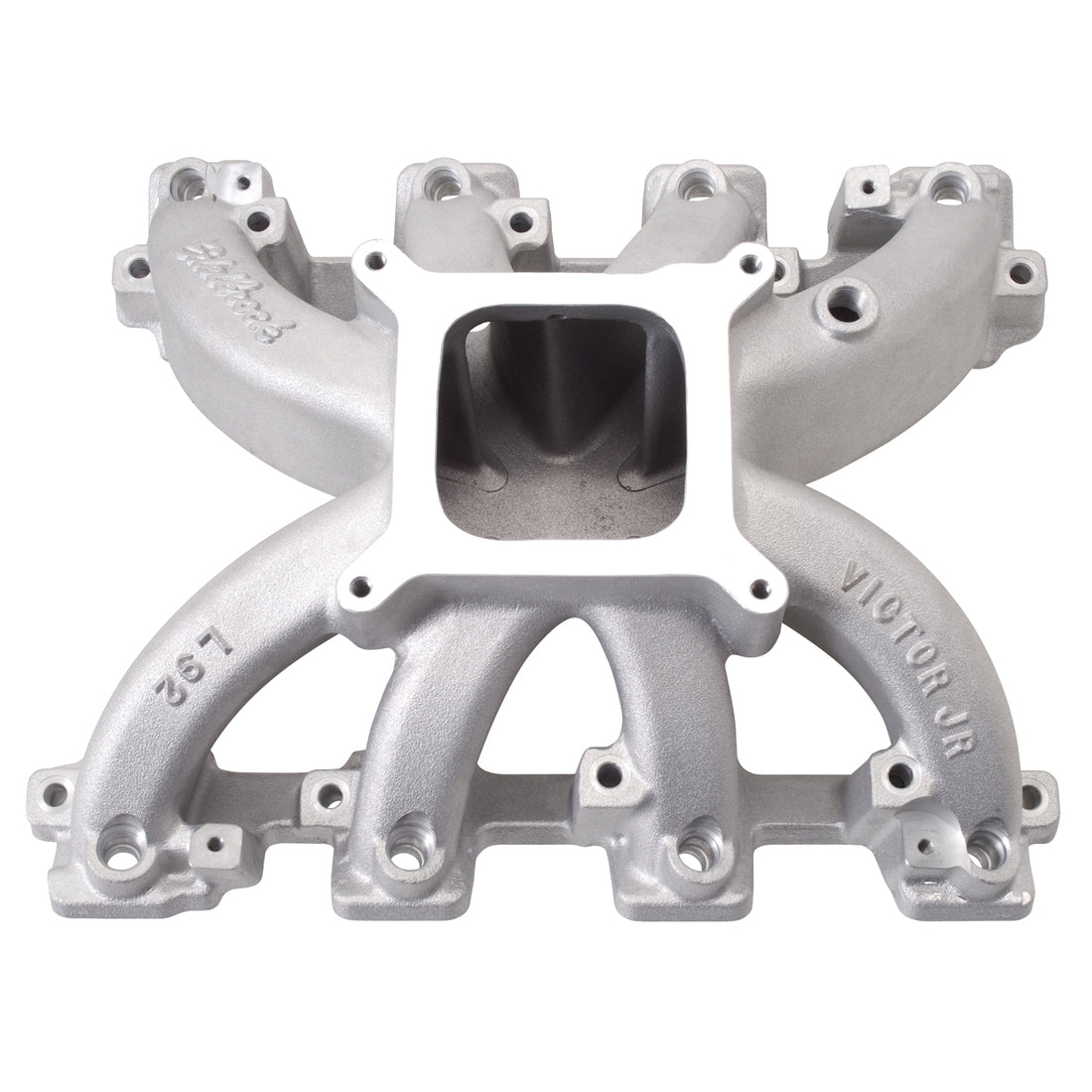

Edelbrock part #28455 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for EFI racing applications operating between 3500-7500 rpm. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. This intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately).
Specifications
| Flange Type | 4150 |
| CNC Ported | No |
| Series | Victor |
| Vehicle Model | Chevrolet |
| Center Maximum Height | 6.000 IN |
| Gasket Or Seal Included | No |
| Basic Operating RPM Range | 3500-7500 R3 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Material | Aluminum |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Front Maximum Height | 6.000 IN |
| EGR Port | No |
| Finish | Satin |
| Rear Maximum Height | 6.000 IN |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
