Edelbrock 2908 Victor Jr. Small-Block Chevy LS1 Intake Manifold
Product Availability Request
Fill the form and our team will contact you.
Edelbrock Victor Jr. LS Cathedral Port Carbureted Intake Manifold with Timing Control Module For GM LS Gen III and Gen IV Engines

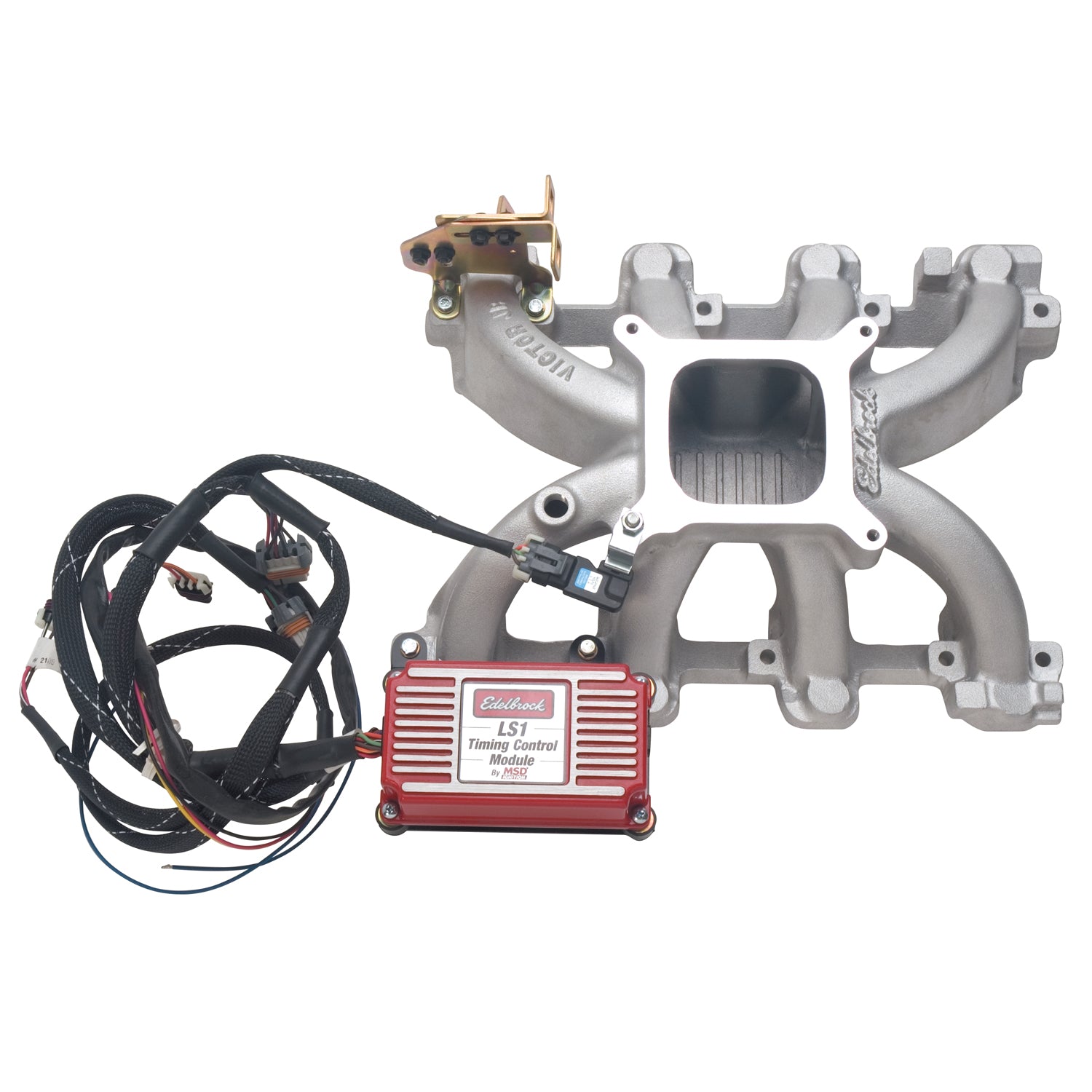

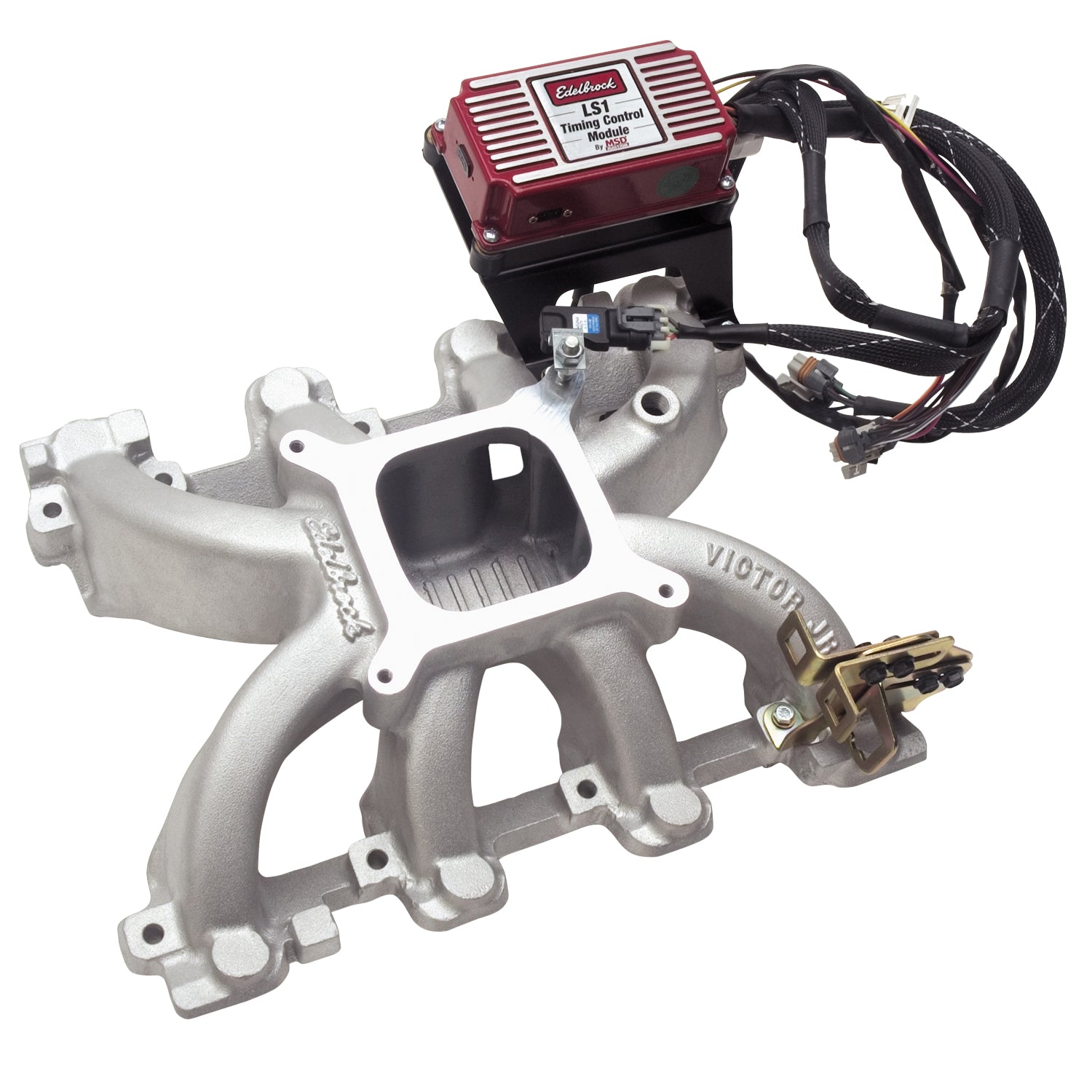

Edelbrock part #2908 Victor Jr. Cathedral Port intake manifold is a low-rise single plane intake capable of supporting up to 600 hp. The Victor Jr. Cathedral Port accepts a square bore carburetor and includes an electronic timing module that picks up MAP, crank position, and cam position in order to drive the stock LS Coil-on-Plug ignition system. It accepts either 24x or 58x input signal. The module offers a choice of 6 built-in timing curves, each tailored for engine displacement, cam profiles, and fuel grades. Can also be tuned using a laptop to control features such as launch and max rev limit, individual cylinder timing, and nitrous retard. The kit includes a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions. Uses stock o-ring gaskets GM PN 12533587. Fittings and mounting bolts included.
Specifications
| Material | Aluminum |
| Gasket Or Seal Included | No |
| Basic Operating RPM Range | 3500-7500 R3 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rear Maximum Height | 4.950 IN |
| EGR Port | No |
| Series | Victor |
| Front Maximum Height | 4.950 IN |
| Finish | Satin |
| Single Or Dual Plane Type | Single |
| Flange Type | 4150 |
| Vehicle Model | Chevrolet |
| Center Maximum Height | 4.950 IN |
| Grade Type | Performance |
| CNC Ported | No |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
