Edelbrock 35690 Pro-Flo 4 EFI Traditional 4150-Style Kit #35690 For Chevy Small-Block
Product Availability Request
Fill the form and our team will contact you.
Edelbrock Pro-Flo 4 EFI System for 1986 & Earlier Small-Block Chevy engines. The EFI system comes with a 4150-Style satin finish single plane intake manifold and 42 Lb/Hr injectors capable of 675 HP.

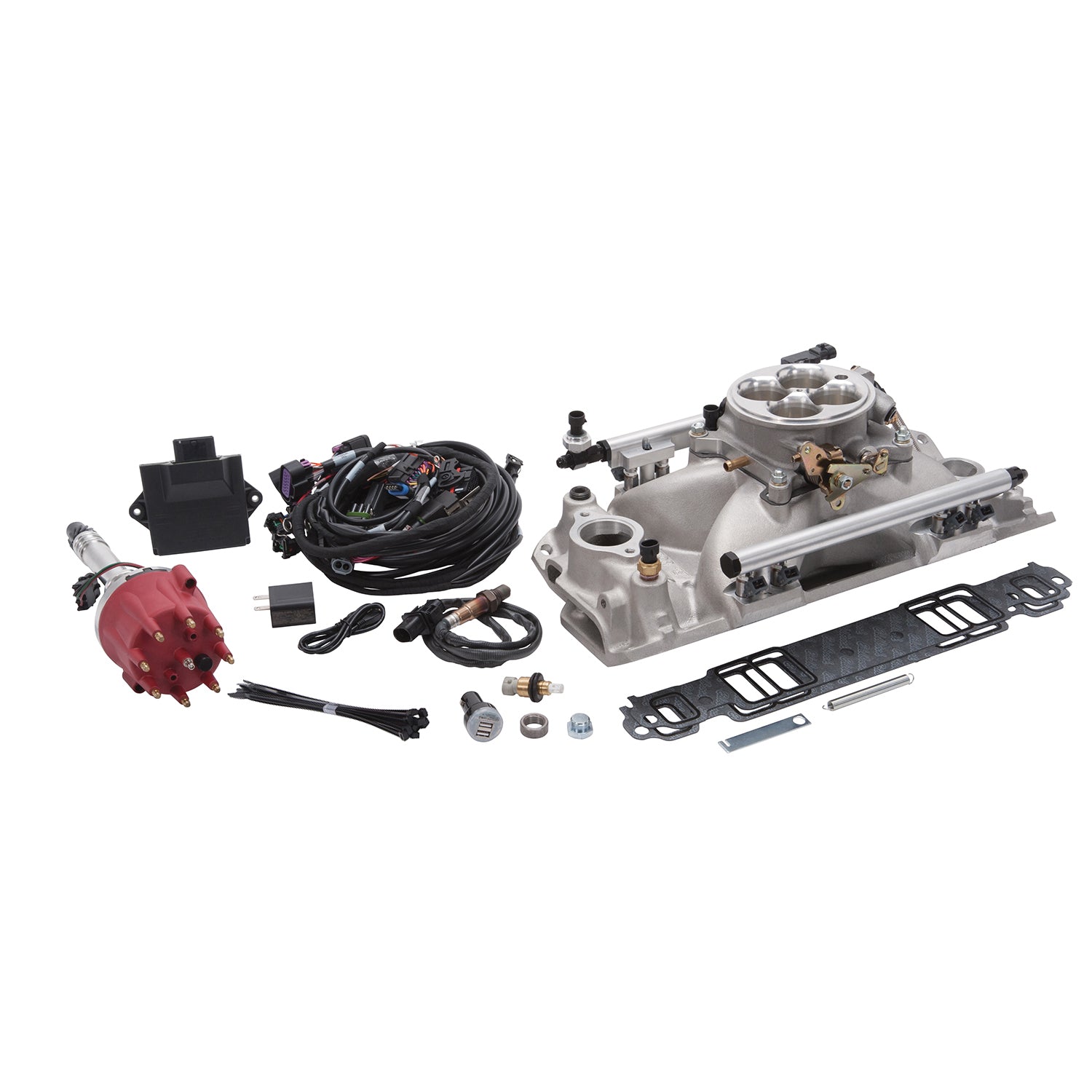

The Edelbrock Pro-Flo 4 EFI Kit #35690 for 1986-earlier small-block Chevy engines is a fully sequential multi-port injection system designed with a fuel injector positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Super Victor single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses and ECU. The Super Victor SBC manifold is designed with a larger cross-sectional area in the plenum and large runners for high-horsepower and/or large cubic-inch applications. This kit uses 42 lb/hr injectors and is rated for 675 horsepower at 58 PSI of fuel pressure.The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Specifications
| Flange Type | 4150 |
| Quantity | Kit |
| Throttle Body Type | 4 Barrel |
| System Type | Traditional 4150-Style Kit |
| Wiring Harness Included | Yes |
| Bore Diameter | 1.75 IN |
| Idle Air Control Motor Included | Yes |
| Manifold Height | 4.58 IN |
| Distributor Cap Included | Yes |
| Fuel Pressure Port | 1/8-27 NPT |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Satin |
| Wire Harness Included | Yes |
| Gasket Or Seal Included | Yes |
| Maximum Horsepower | 675 |
| Fuel Injector Type | 42 lb/hr |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 24 Months
