Edelbrock 35770 Pro-Flo 4 EFI Traditional 4150-Style Kit #35770 1986 & Earlier Chevy Small-Block
Product Availability Request
Fill the form and our team will contact you.

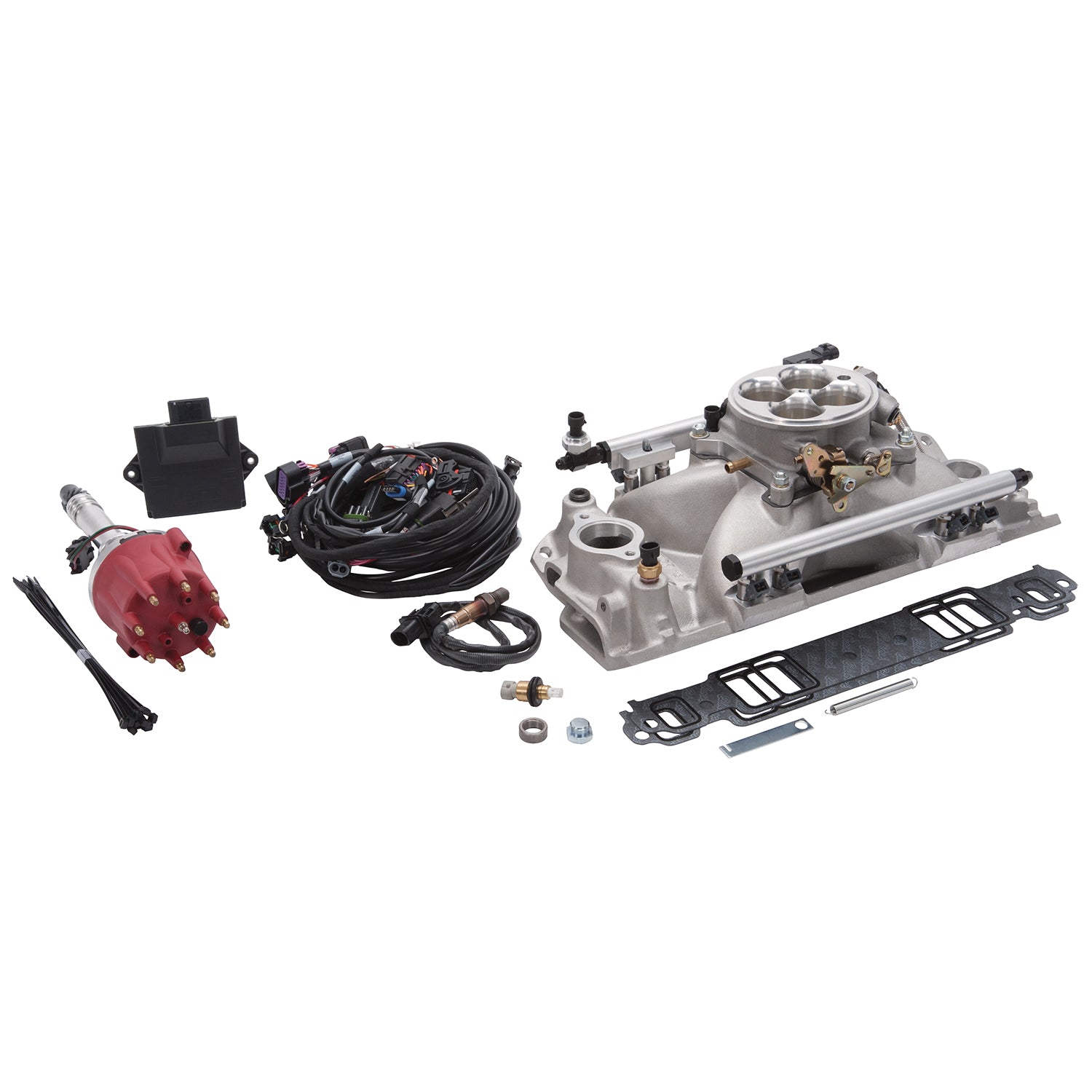

Edelbrock Pro-Flo 4 EFI System for 1986 & Earlier Small-Block Chevy engines. The EFI System comes with a 4150-Style satin finish single plane intake manifold & 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure.
The Edelbrock Pro-Flo 4 EFI Kit #35770 for 1986 & Earlier Small-Block Chevy engines is equipped with the latest technology and features. The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals.The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Specifications
| Flange Type | 4150 |
| Quantity | Kit |
| Throttle Body Type | 4 Barrel |
| System Type | Traditional 4150-Style Kit |
| Gasket Or Seal Included | Yes |
| Fuel Pressure Port | 1/8-27 NPT |
| Finish | Satin |
| Bore Diameter | 1.75 IN |
| Wire Harness Included | Yes |
| Distributor Cap Included | Yes |
| Wiring Harness Included | Yes |
| Idle Air Control Motor Included | Yes |
| Manifold Height | 4.58 IN |
| Maximum Horsepower | 550 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Fuel Injector Type | 35 lb/hr |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 24 Months
