Edelbrock 3848 Ultra Low Profile Universal Intake Elbow - 90mm T.B. to 4150 Flange
Product Availability Request
Fill the form and our team will contact you.

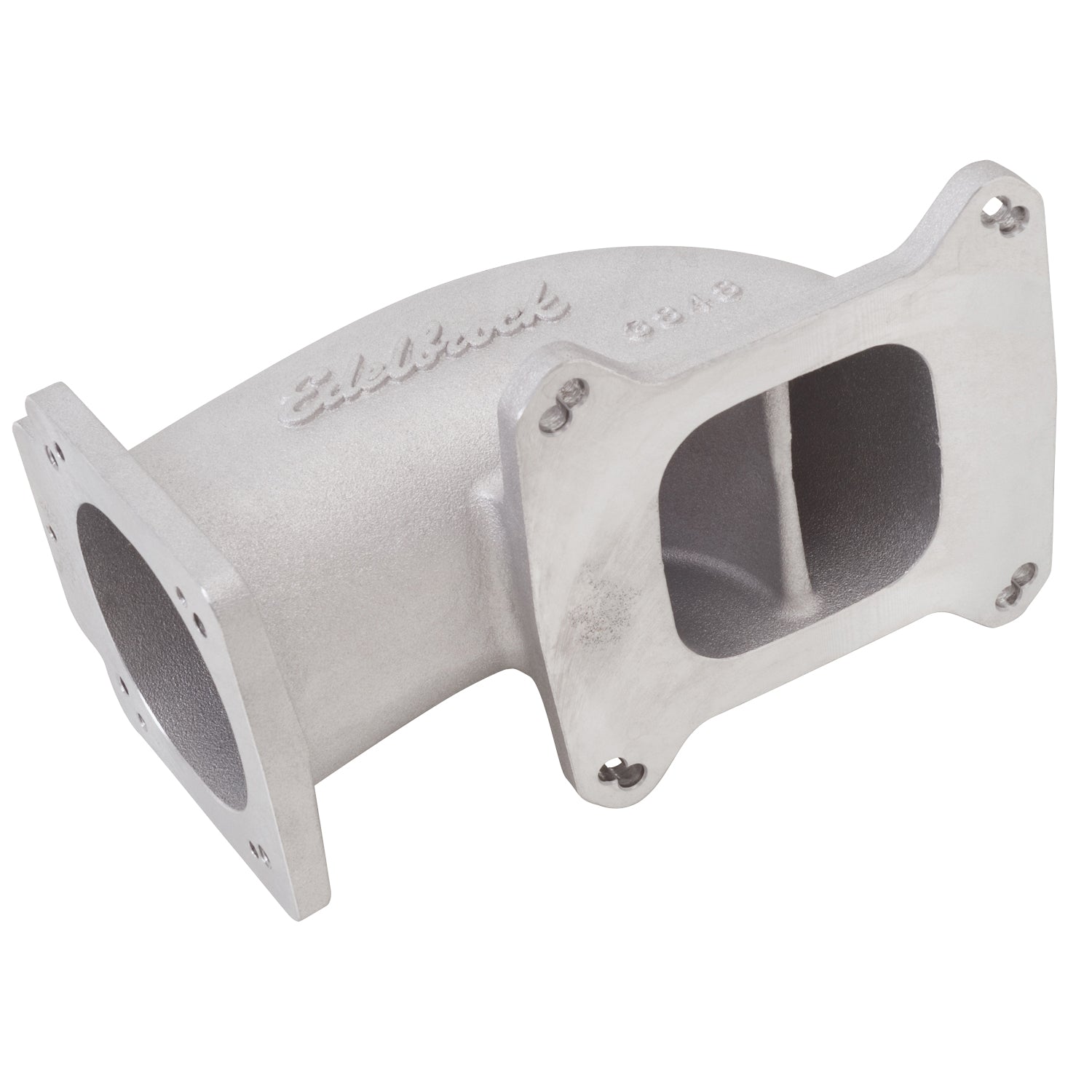

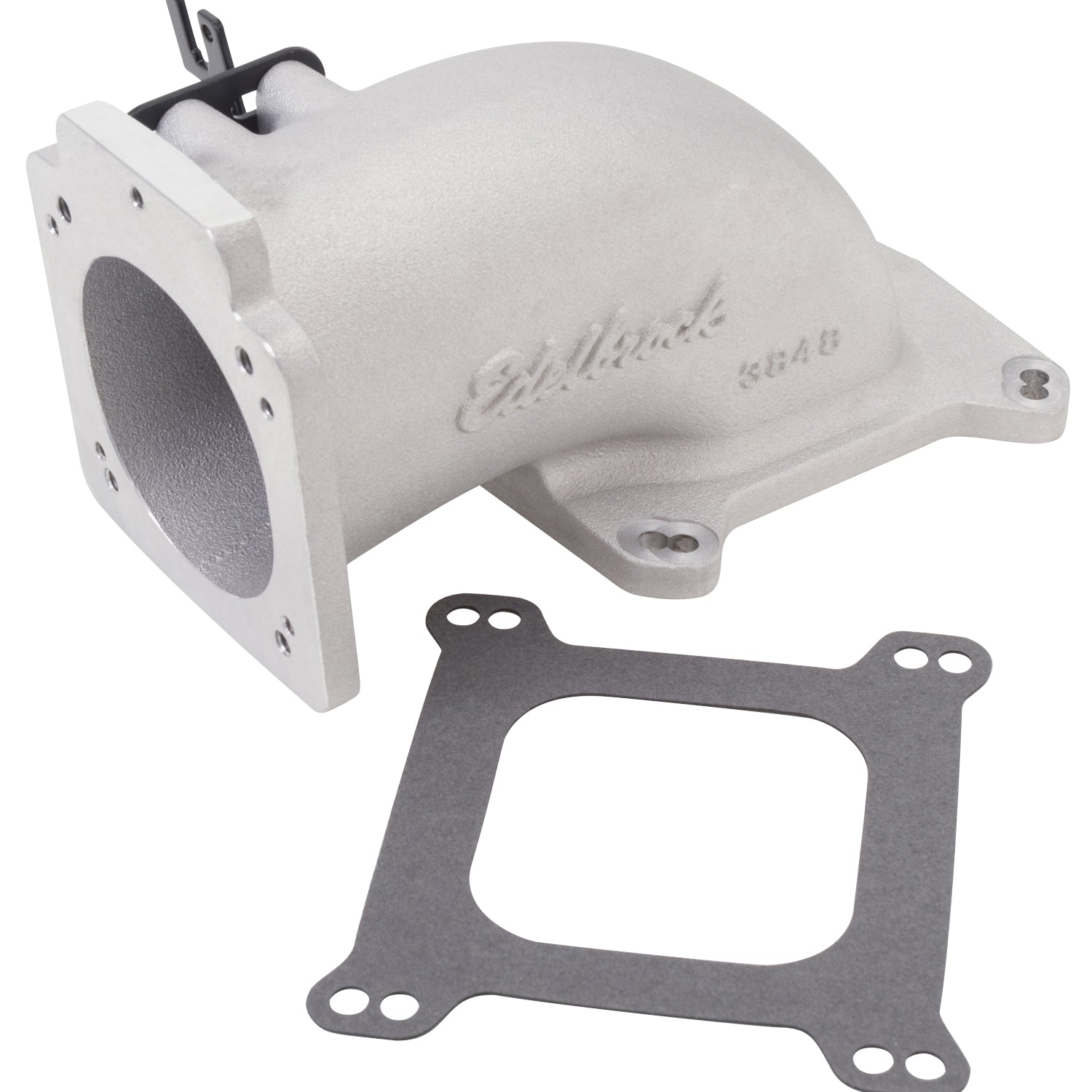

The Edelbrock PN 3848 EFI Elbow Low Profile Universal 75/85/90mm TB to 4150 Flange
This Edelbrock Low Profile elbow was designed for limited hood clearance applications. This adaptor can be used with our 29085 Victor Jr LS1 but cowl trimming and an SS hood are required. The 3848 Elbow can be used in other square bore (4150 style) manifold applications as well. It can be mounted forward, backward, or sideways on any of our Victor EFI Square bore (4150) style manifolds. Because of its low profile a one inch spacer is required for small or Big Block Chevy forward mount configurations to clear the water neck. It can be used with an LS1 80 mm (must use PN 2737 adaptor) or Edelbrock PN 3869 90mm Universal, or Ford style 75mm throttle bodies. The 3848 adaptor features: Bolt pattern fits LS1, LS2 and Ford 5.0l based throttle bodies, adapts to standard (4150 style) square bore manifolds, Fits manifold either in a forwards, backward, or sideways configuration, The throttle bore center sits 7.00" forward and only 2.00" up from the manifold 4150 flange, The throttle body points downward on a 5 Deg angle. For ultra-low applications out PN 3847 elbow sits 9.00" forward and only .56" above the flange, with a 12 Deg downward throttle body angle.
Specifications
| Type | Low Profile |
| Gasket Or Seal Included | Yes |
| Length | 7.0 IN |
| Material | Aluminum |
| Finish | Satin |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Size | 90 MM |
| Flange Angle | 95 DD |
| Bore Centerline Height | 2.0 IN |
| Adapter Included | No |
| Overall Height | 5.04 IN |
| Quantity | Sold Individually |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
