Edelbrock 5023 Small-Block Ford E-Street Cylinder Heads 1.90"
Product Availability Request
Fill the form and our team will contact you.

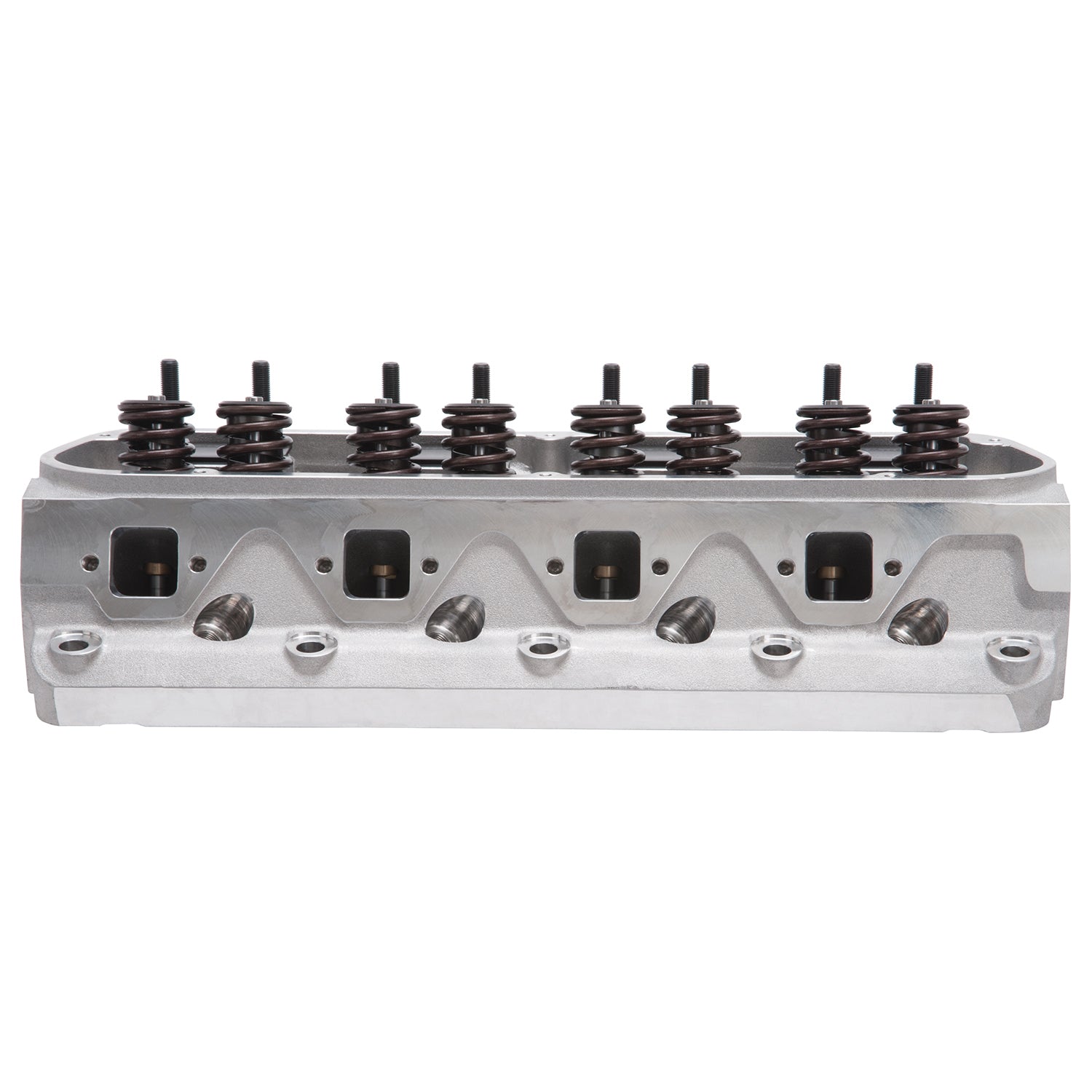

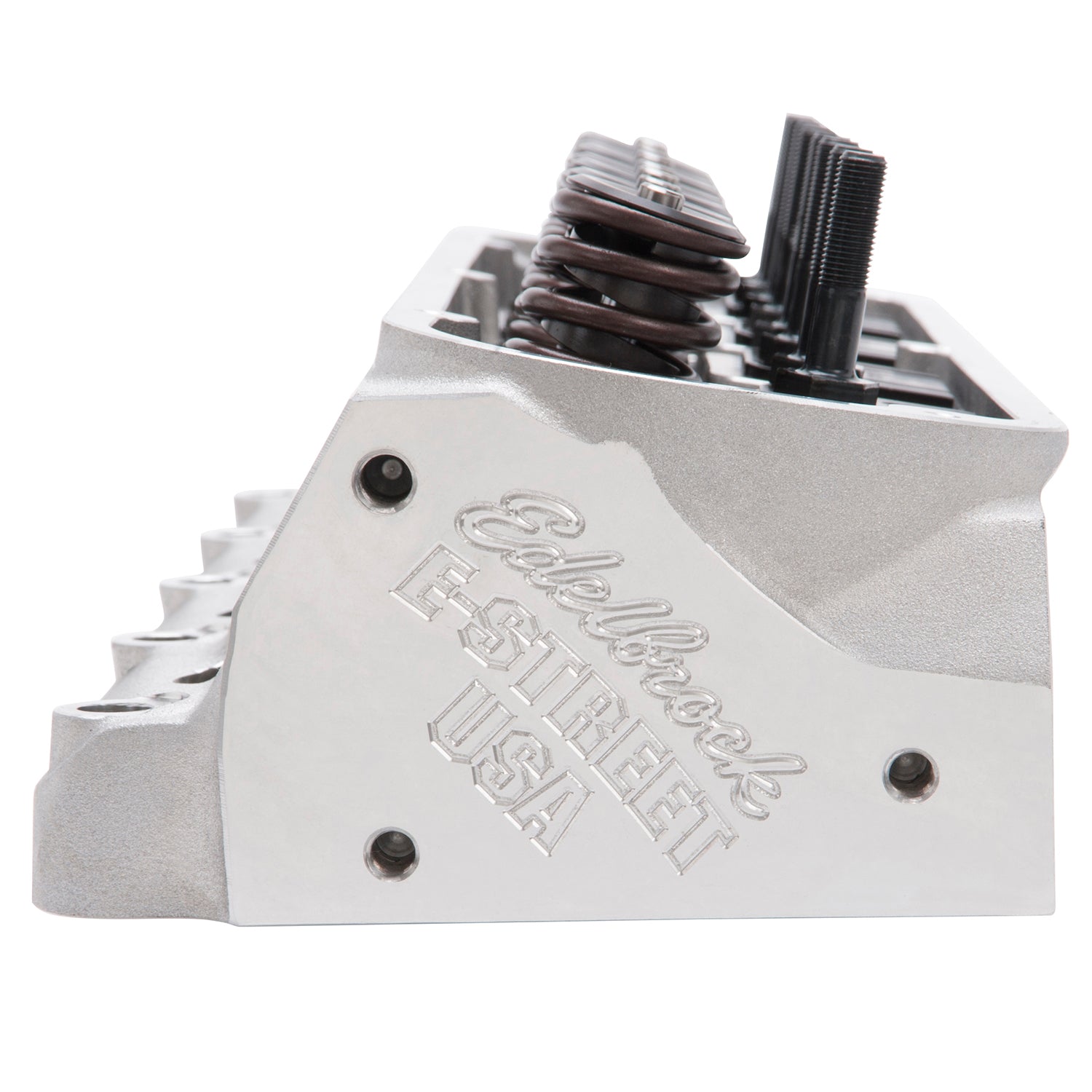

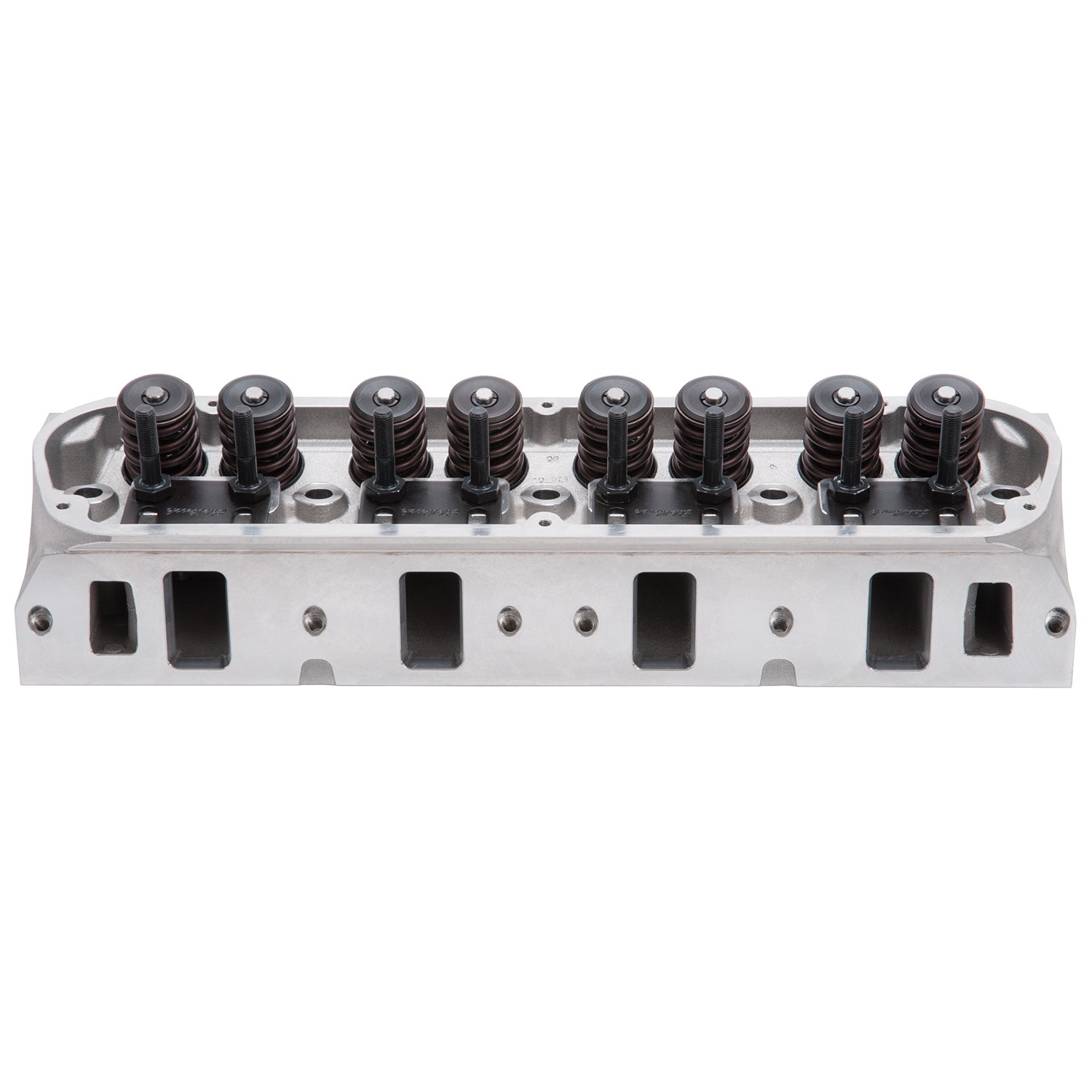

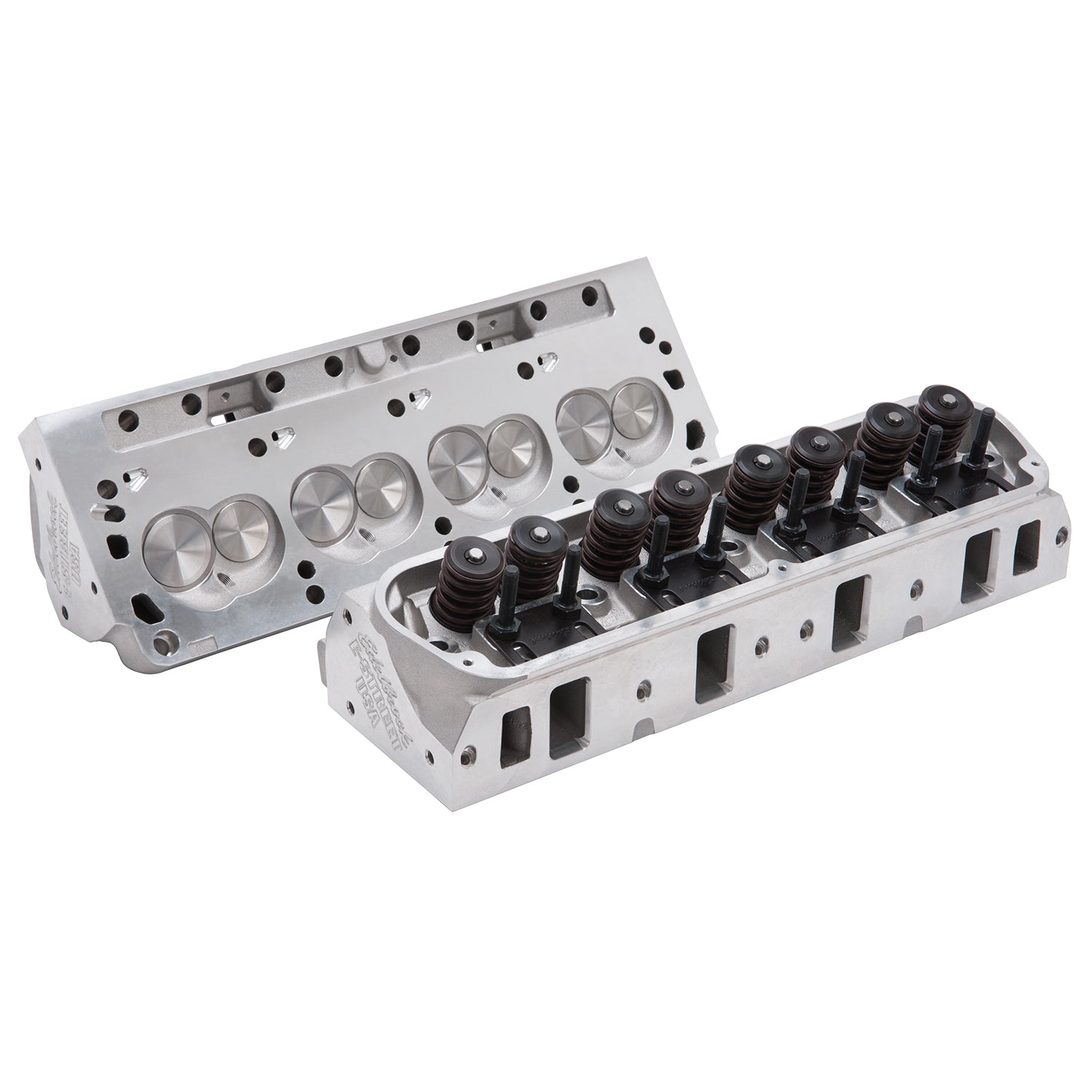

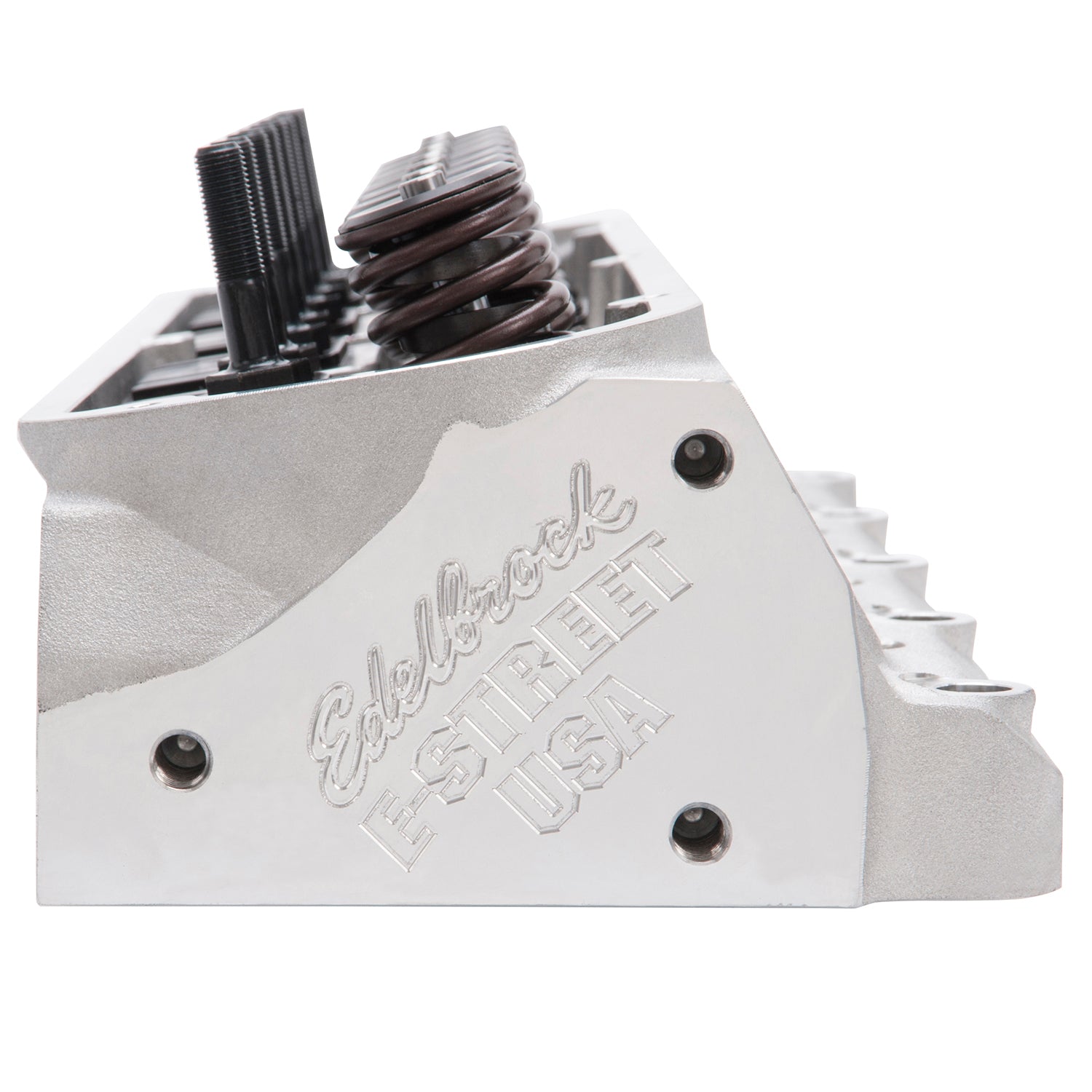

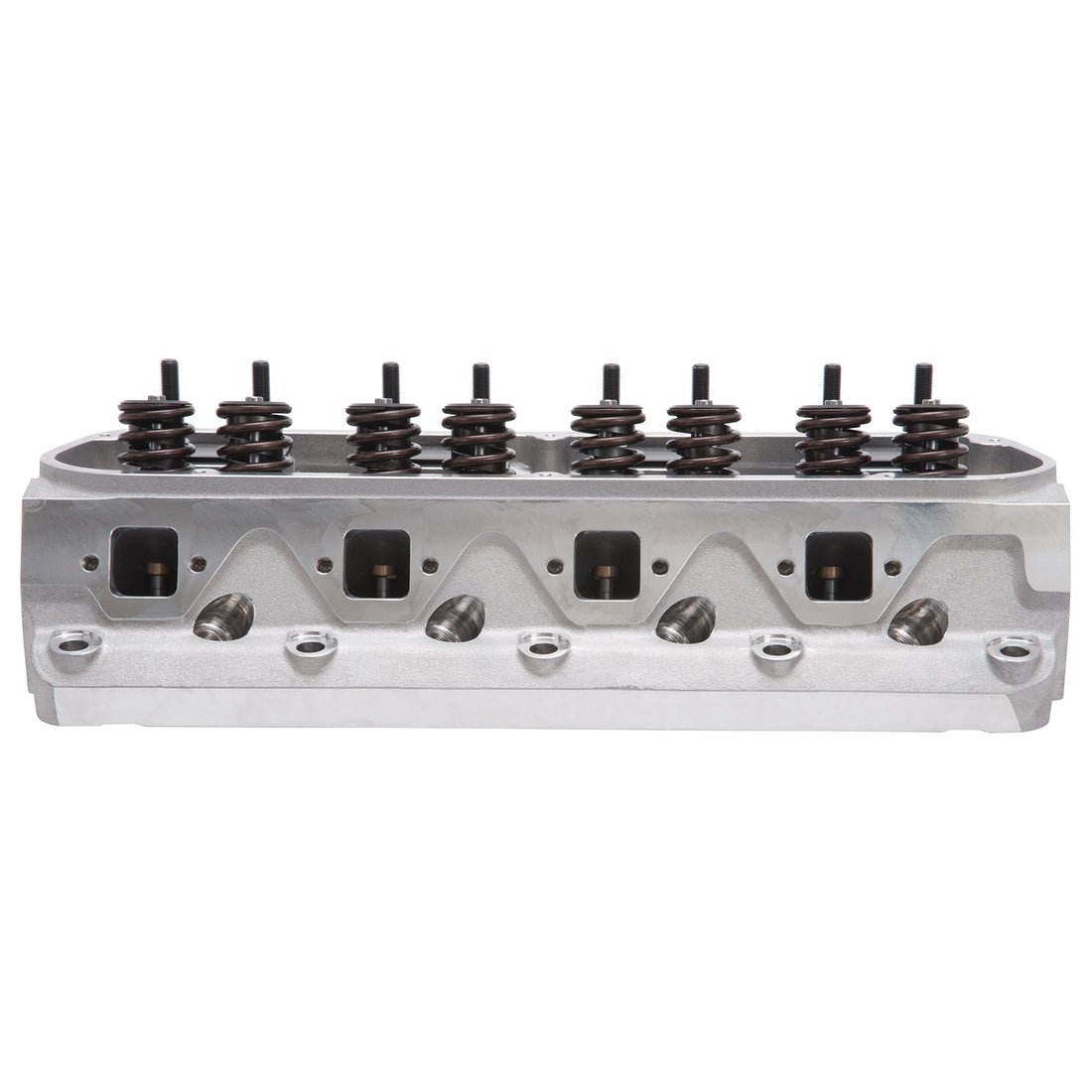

The Edelbrock #5023 E-Street cylinder heads are designed for Ford 289-351W applications. American made quality and affordable performance. E-Street heads feature as-cast ports and are designed for street performance applications.
The Edelbrock #5023 E-Street cylinder heads are designed for Ford 289-351 W V8 applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
Specifications
| Family | E-Street |
| Horsepower | 200-400 HJ |
| Valve Spring Diameter | 1.46 IN |
| Valve Spring Maximum Lift | 0.550 IN |
| Series | E-Street |
| Seat Material | Ductile Iron |
| Retainer Included | Yes |
| Push Rod Diameter | (Suggested) 0.3125 IN |
| Valve Stem Diameter | 0.341 IN |
| Rocker Arm Stud Diameter | 0.375 IN |
| Deck Thickness | 0.625 IN |
| Exhaust Valve Diameter | 1.60 IN |
| Intake Valve Diameter | 1.90 IN |
| Valve Angle | 12 DD |
| Intake Runner Volume | 170 CCM |

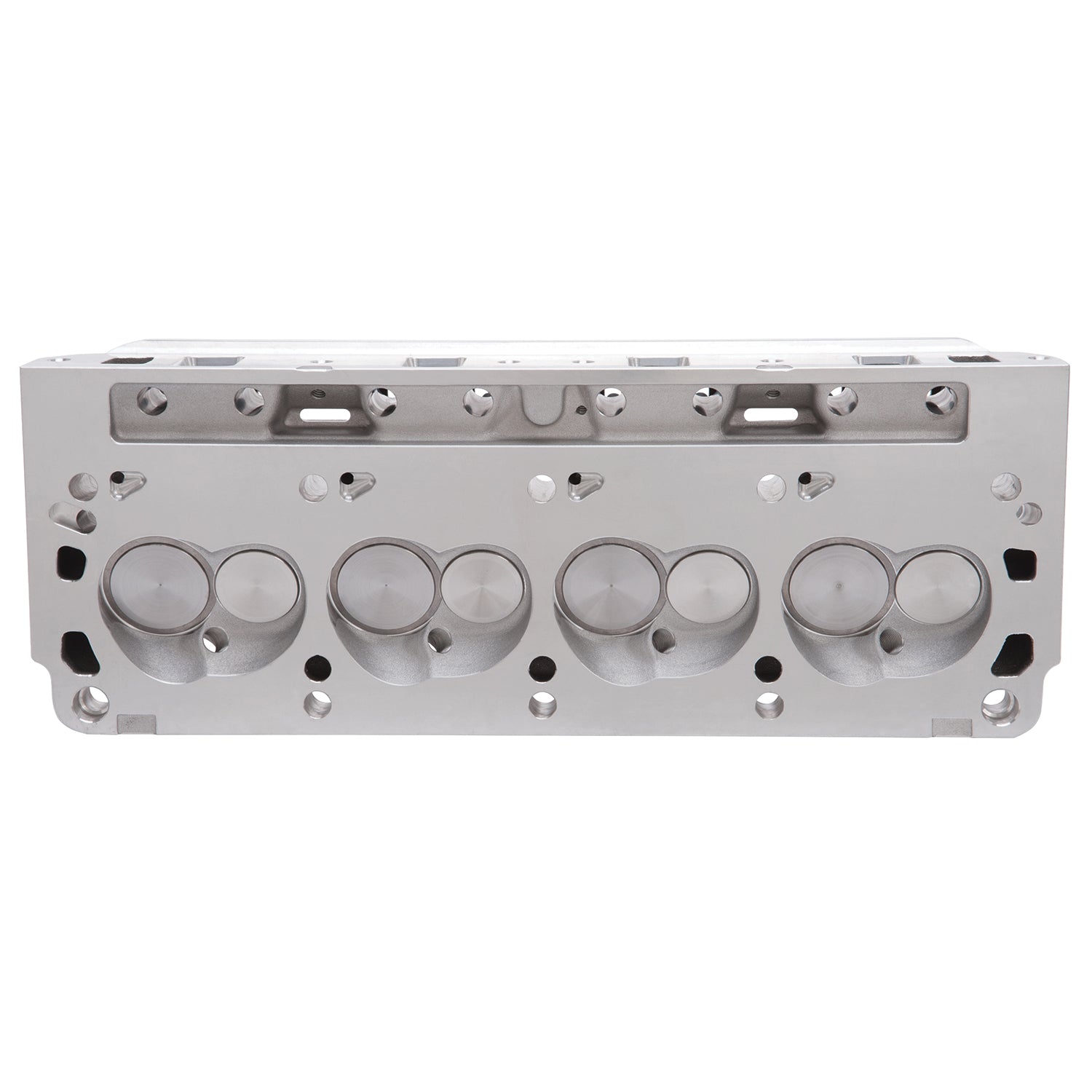

| Combustion Chamber Volume | 60 CCM |
| Exhaust Runner Volume | 60 CCM |
| Head Casting Number | 6025P |
| Deck Height | 9.5 IN |
| Material | Aluminum |
| Valve Lock Material | Chromoly Steel |
| Guide Plate Material | Chromoly Steel |
| Construction Type | Complete |
| Seat Angle | Exhaust 45 deg/Intake 45 DD |
| Camshaft Type | Flat Tappet |
| Guide Plate Material | Hardened Steel |
| Guide Material | Manganese Bronze |
| Rocker Arms Included | No |
| Cylinder Head Gasket Included | No |
| Valve Cover Gasket Included | No |
| Mounting Hardware Included | No |
| CNC Ported | No |
| EGR Port | No |
| Grade Type | Performance |
| Quantity | Set of 2 |
| Exhaust Port Location | Standard |
| Valve Lock Material | Steel |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Spring Retainers Included | Yes |
| Valve Locks Included | Yes |
| Rocker Arm Studs/Bolts Included | Yes |
| Assembled | Yes |
| Guide Plates Included | Yes |
| Valve Springs Included | Yes |
| Valve Seals Included | Yes |
| Valves Included | Yes |
Warranty: 12 Months
