Edelbrock 5087 Small-Block Chevy E-Series Cylinder Head E-210 Hydraulic Roller Cam
Product Availability Request
Fill the form and our team will contact you.

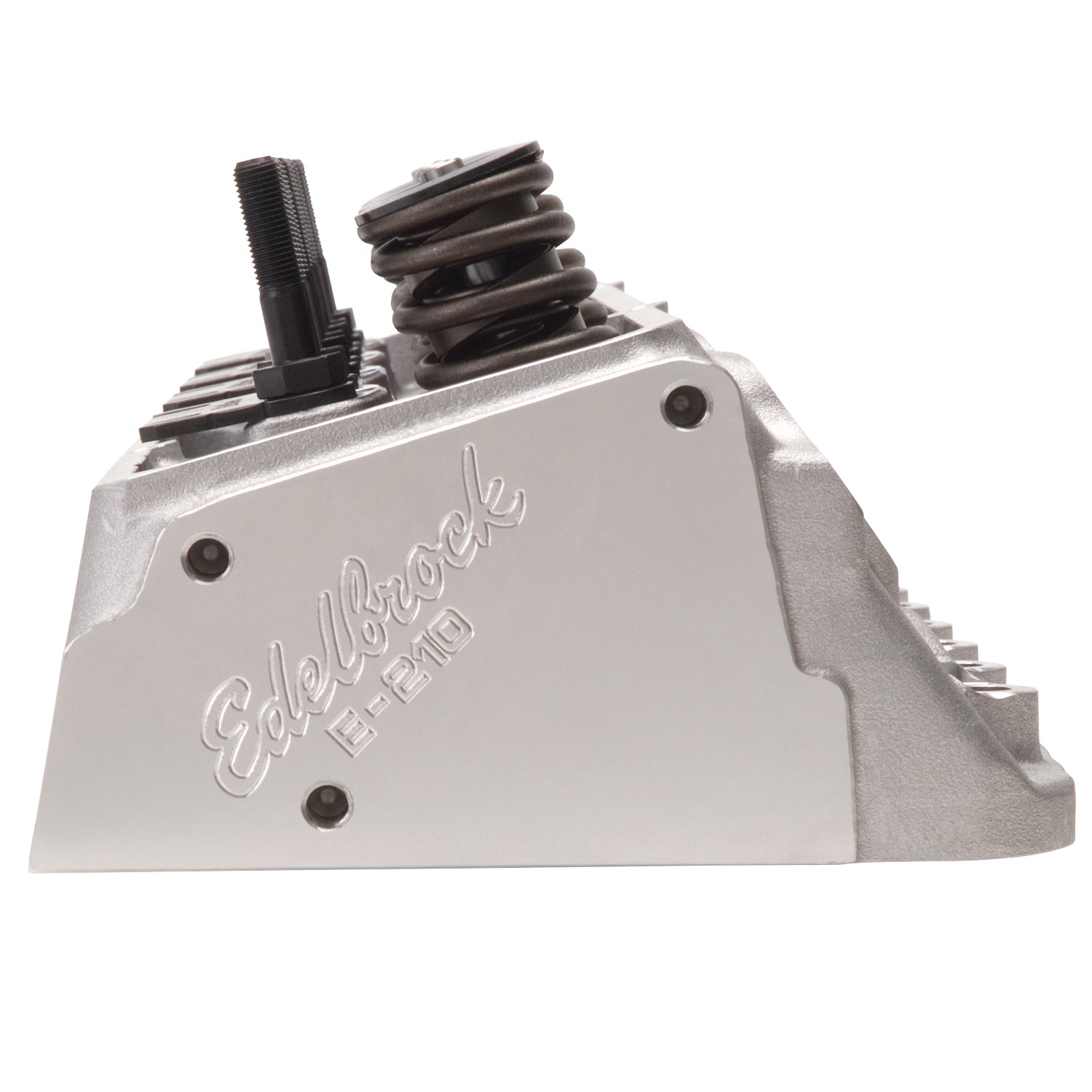

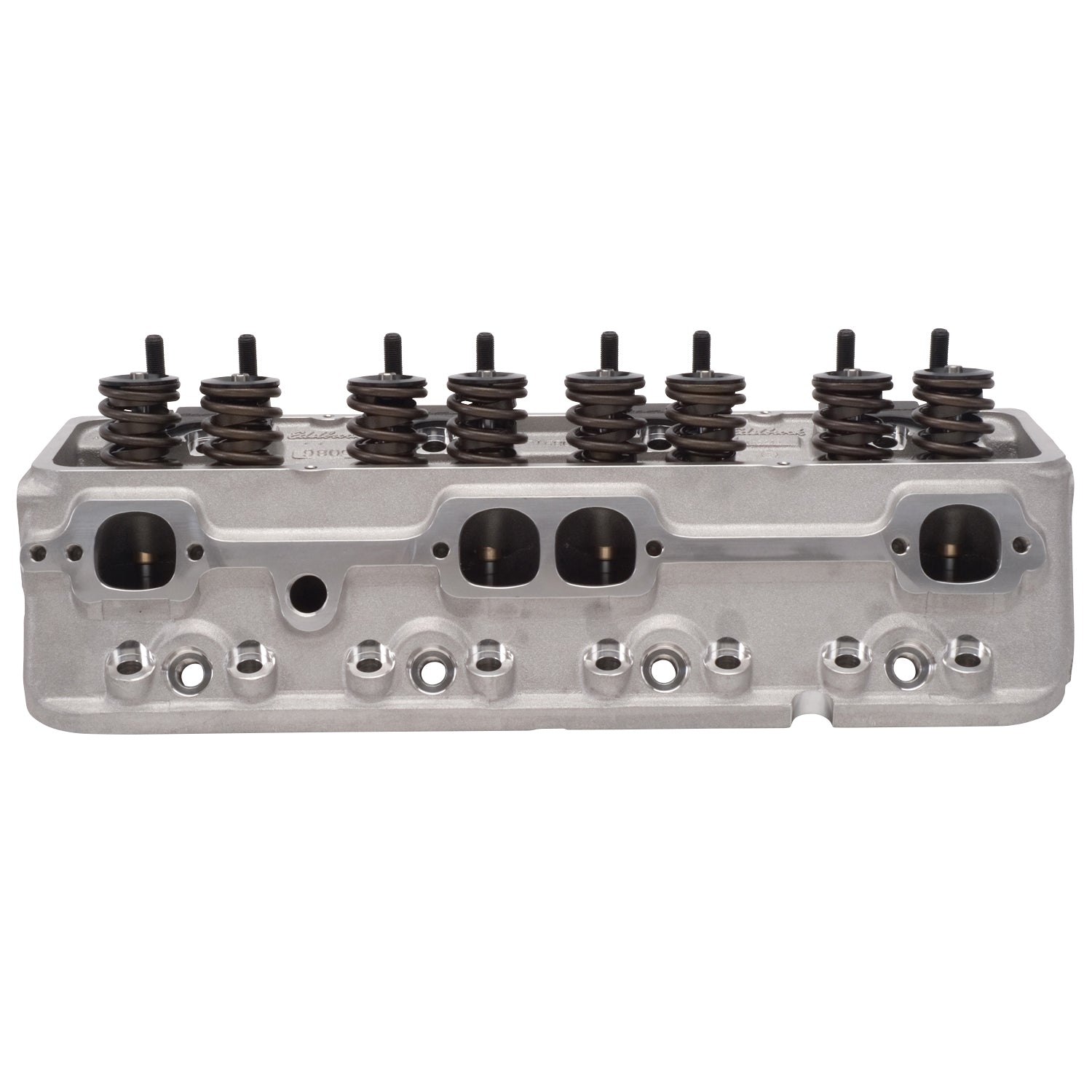

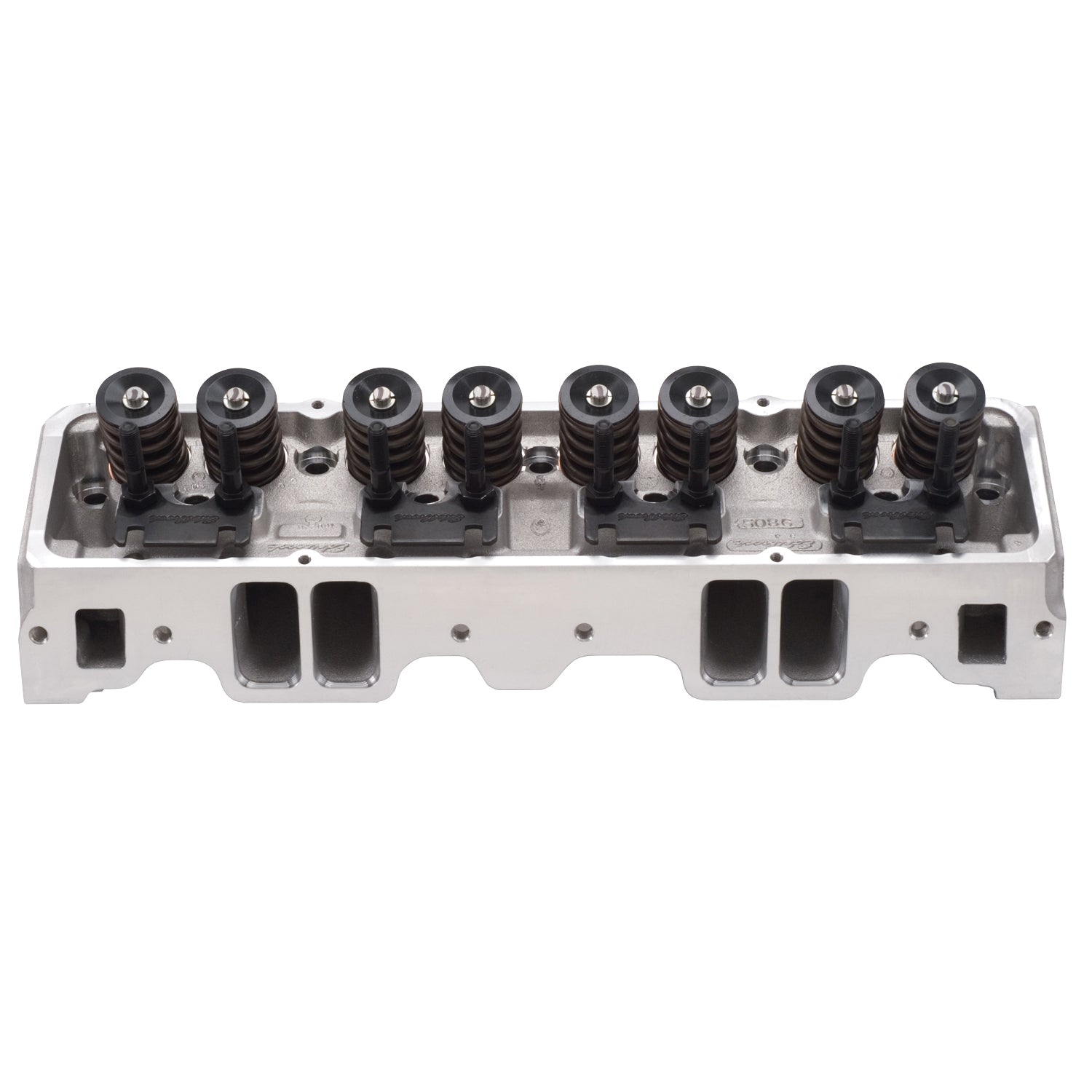

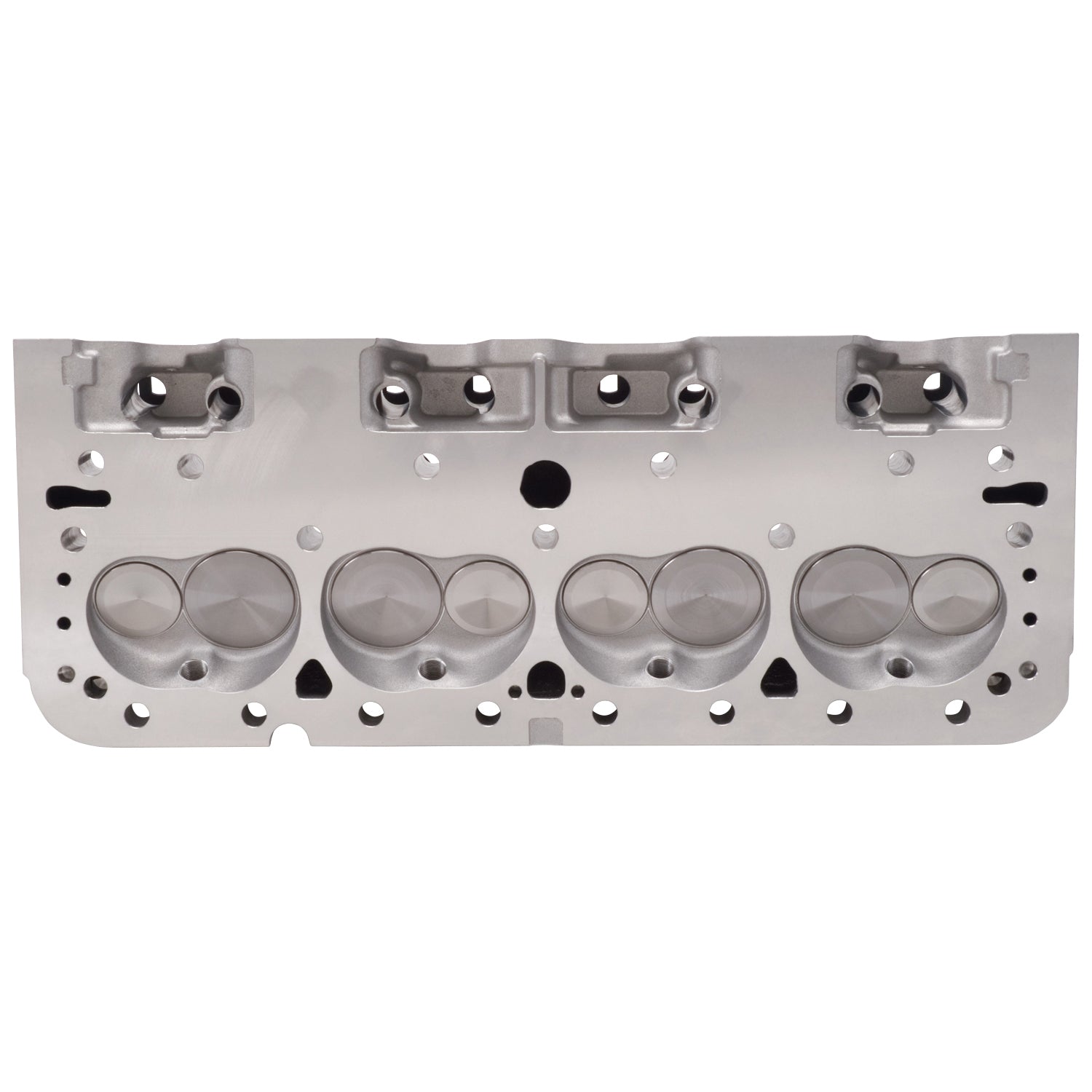

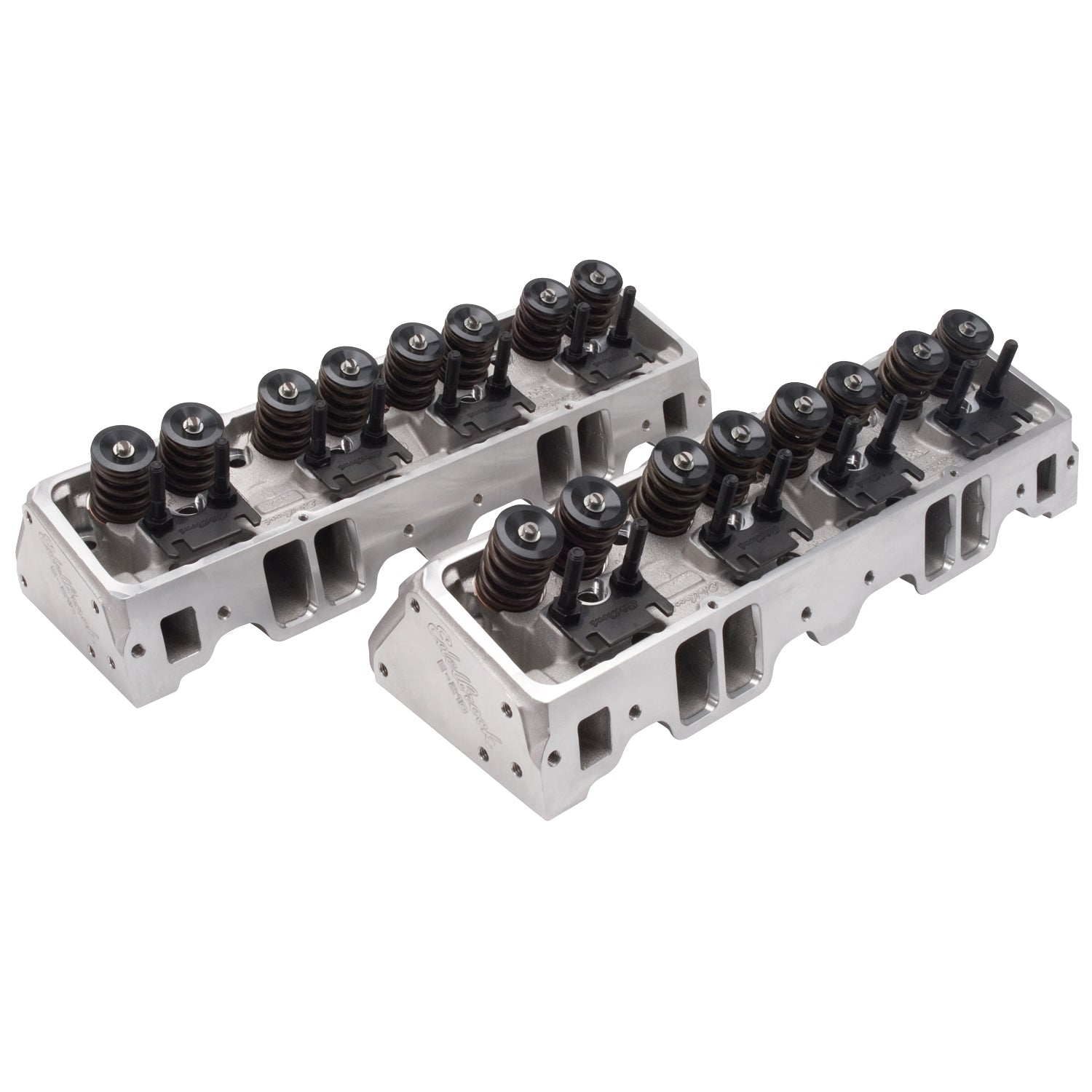

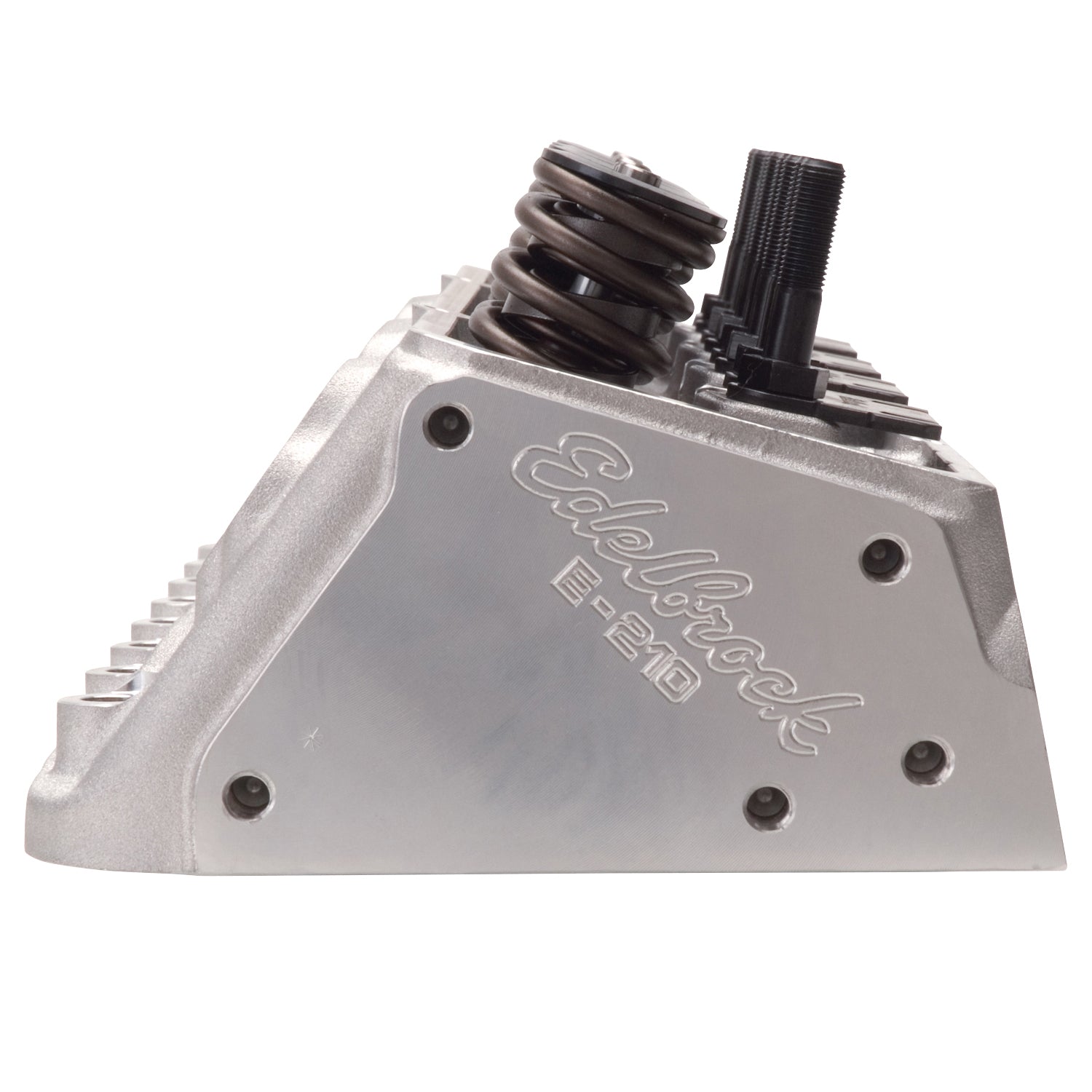

The Edelbrock #5087 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts.
The Edelbrock #5087 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5027 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.
Specifications
| Exhaust Runner Volume | 75 CCM |
| Valve Stem Diameter | 0.3438 IN |
| Intake Valve Diameter | 2.08 IN |
| Rocker Arm Stud Diameter | 0.375 IN |
| EGR Port | No |
| Push Rod Diameter | (Suggested) 0.5625 IN |
| Deck Thickness | 0.5625 IN |
| Valve Spring Maximum Lift | 0.650 IN |
| Valve Spring Diameter | 1.55 IN |
| Exhaust Valve Diameter | 1.60 IN |
| Intake Runner Volume | 210 CCM |
| Valve Angle | 23 DD |
| Horsepower | 400-550 HJ |
| Head Casting Number | 5086P |
| Combustion Chamber Volume | 64 CCM |
| Deck Height | 9.025 IN |
| Material | Aluminum |
| Valve Lock Material | Chromoly Steel |
| Guide Plate Material | Chromoly Steel |
| Construction Type | Complete |
| Seat Material | Ductile Iron |
| Family | E-Series |
| Series | E-Series |
| Seat Angle | Exhaust 45 deg/Intake 45 DD |
| Guide Plate Material | Hardened Steel |
| Camshaft Type | Hydraulic Roller |
| Guide Material | Manganese Bronze |
| Rocker Arms Included | No |
| Cylinder Head Gasket Included | No |
| Valve Cover Gasket Included | No |
| Mounting Hardware Included | No |
| CNC Ported | No |
| Grade Type | Performance |
| Quantity | Set of 2 |
| Exhaust Port Location | Standard |
| Valve Lock Material | Steel |
| Rotor Center Bore Inside Diameter | Straight |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Spring Retainers Included | Yes |
| Valve Locks Included | Yes |
| Rocker Arm Studs/Bolts Included | Yes |
| Assembled | Yes |
| Guide Plates Included | Yes |
| Valve Springs Included | Yes |
| Valve Seals Included | Yes |
| Valves Included | Yes |
| Retainer Included | Yes |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
