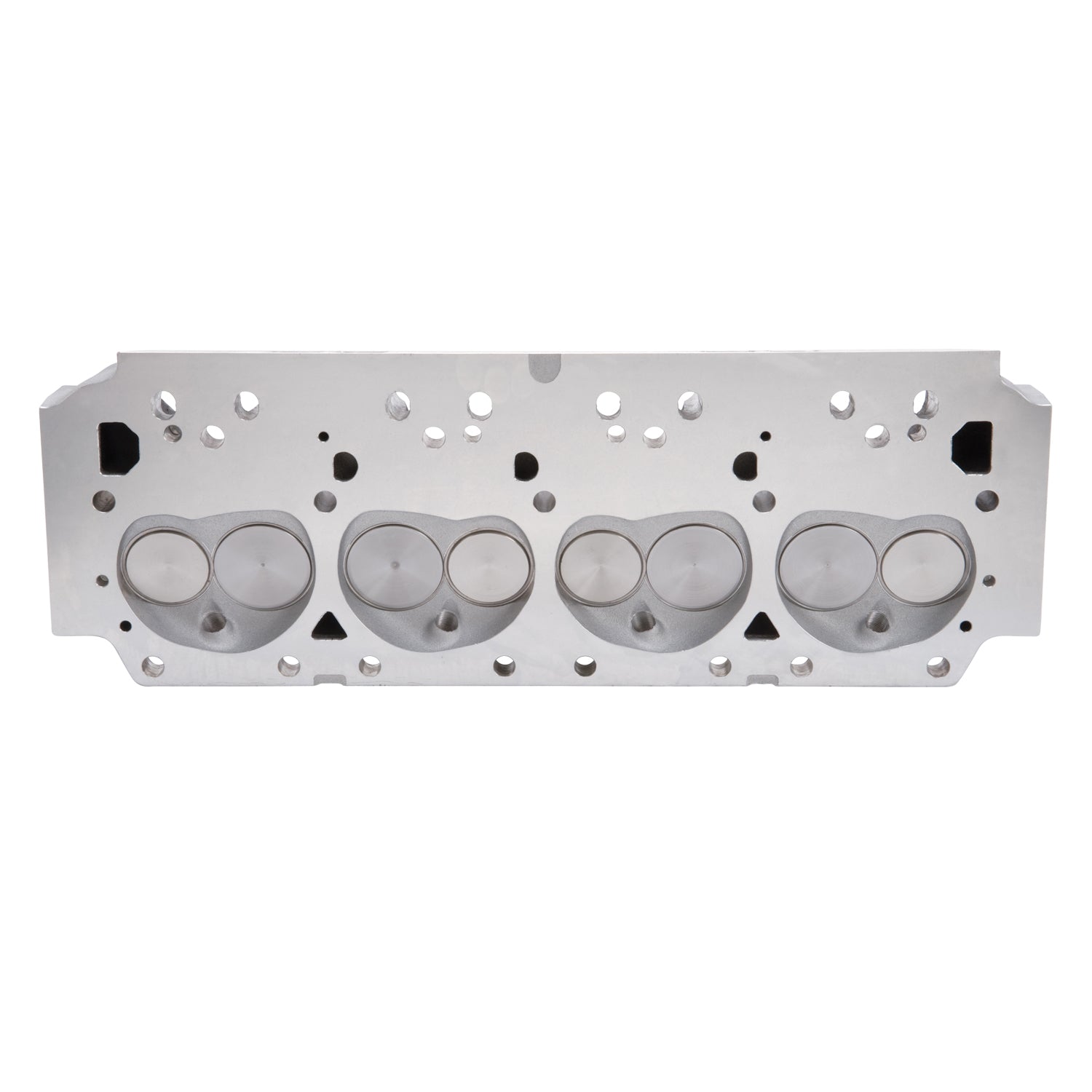

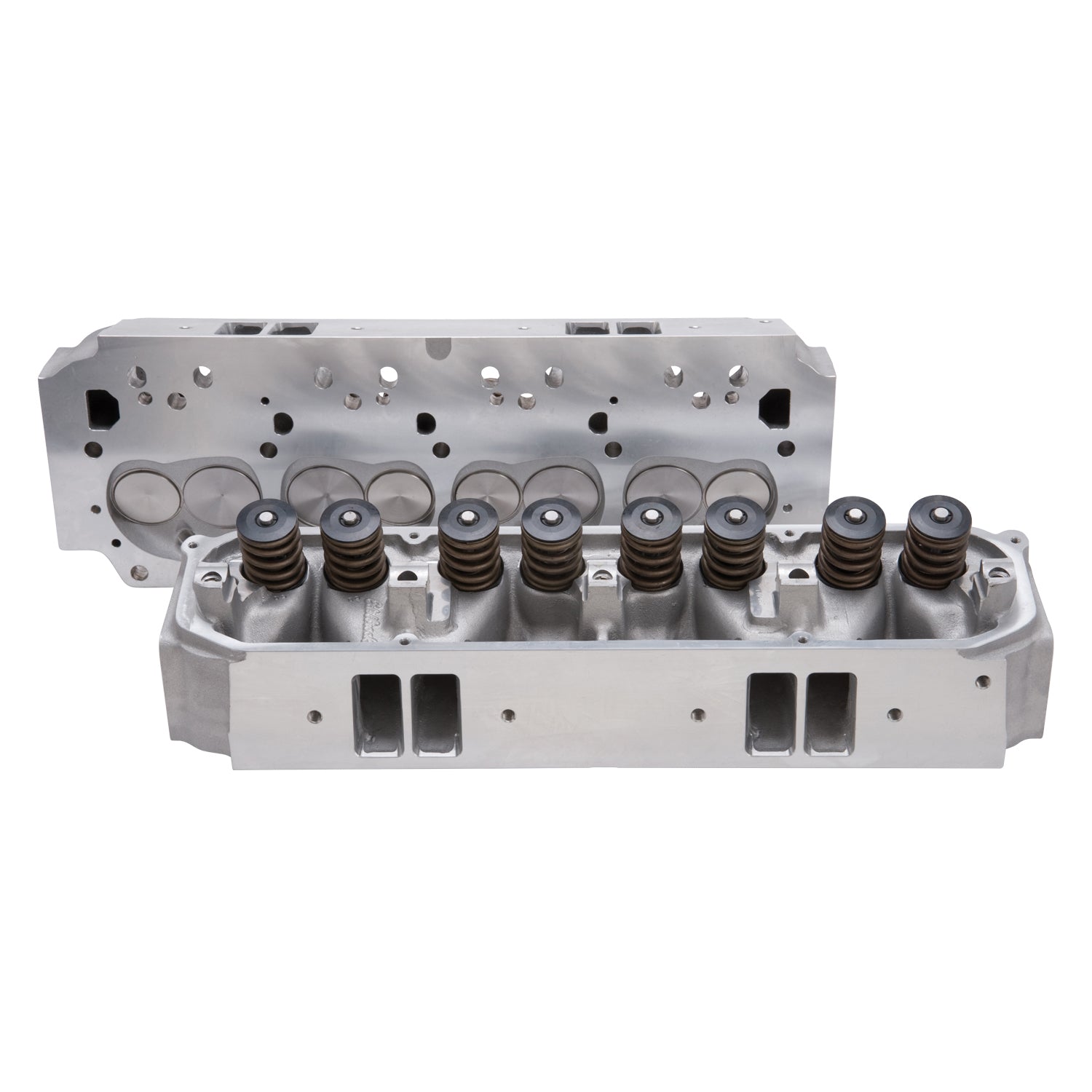

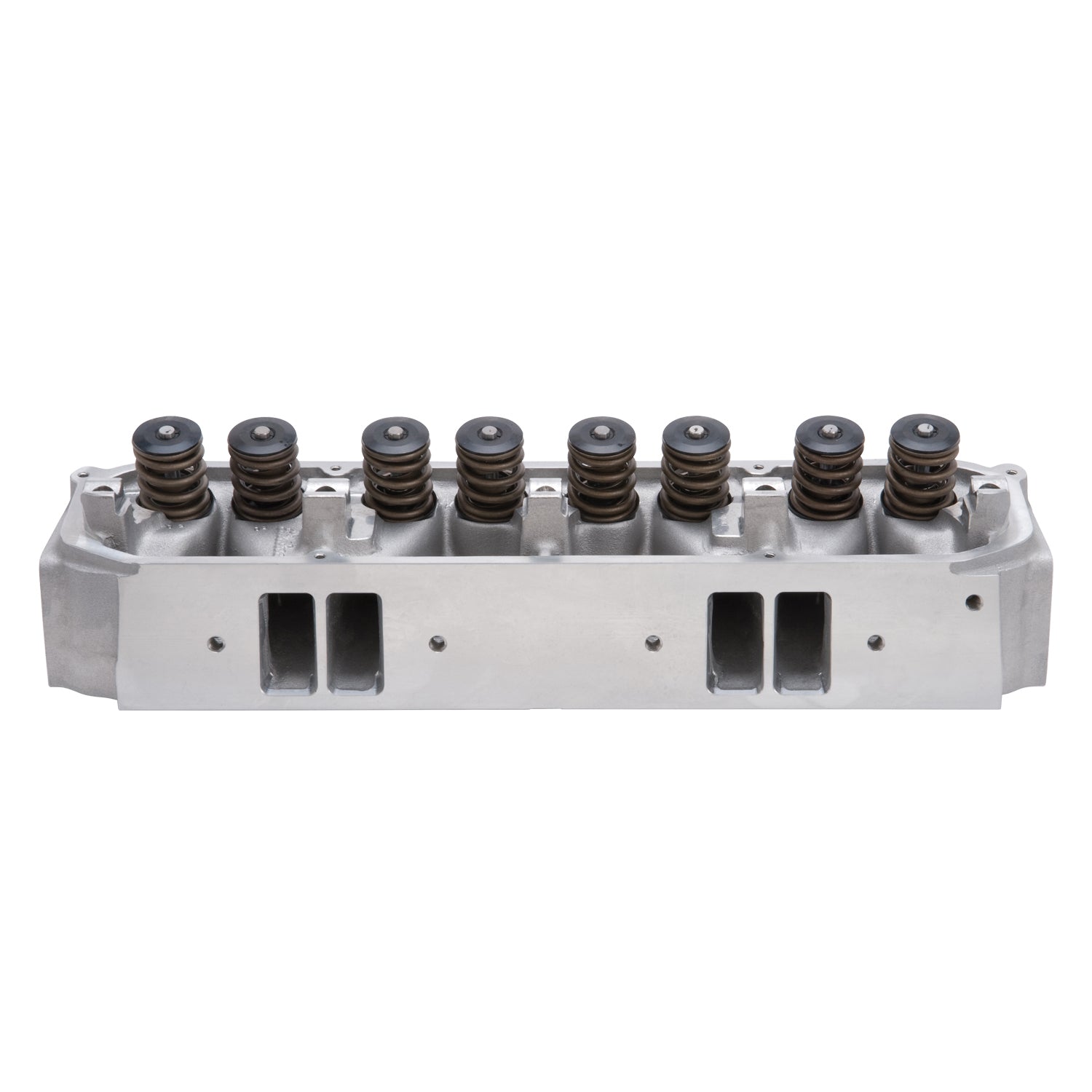

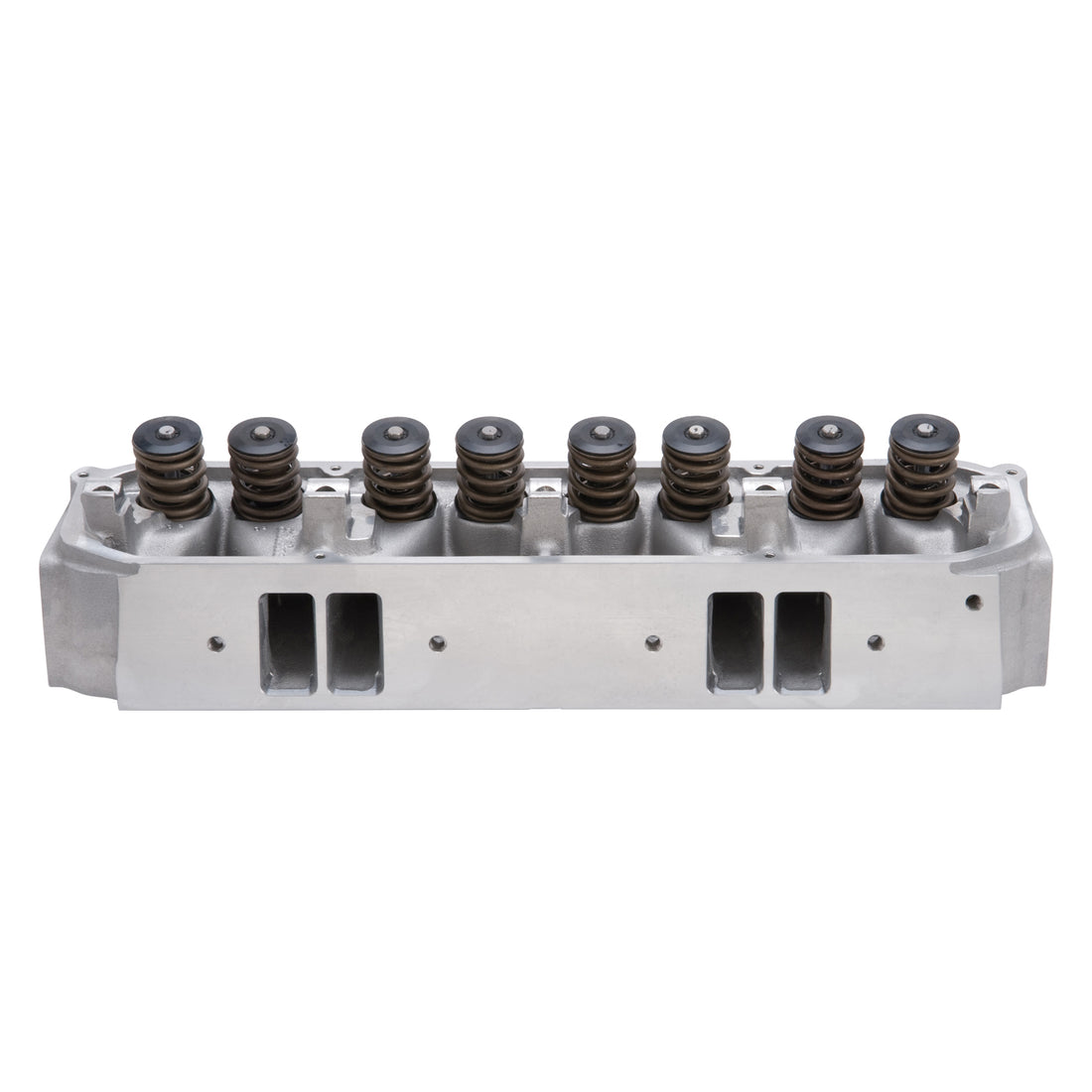

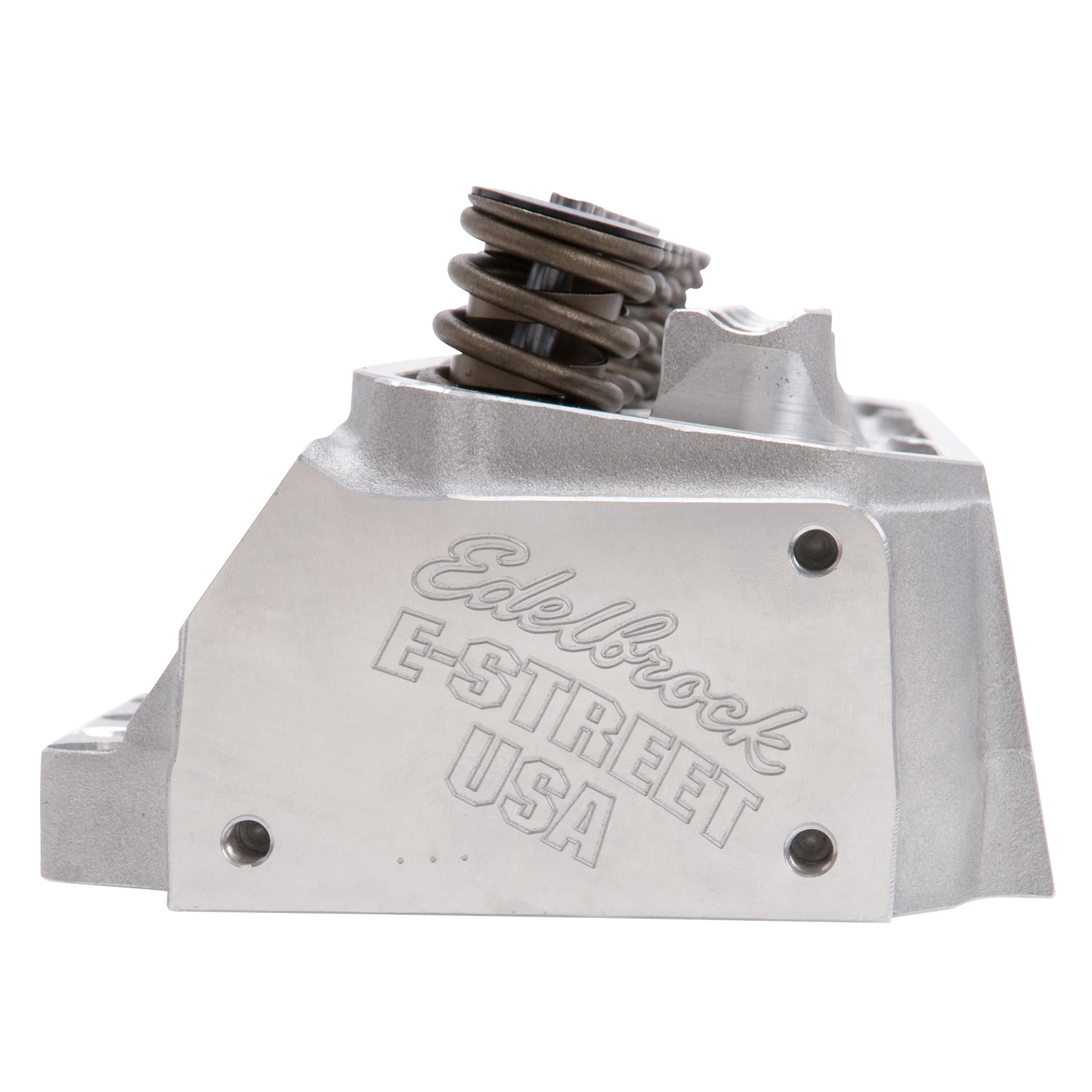

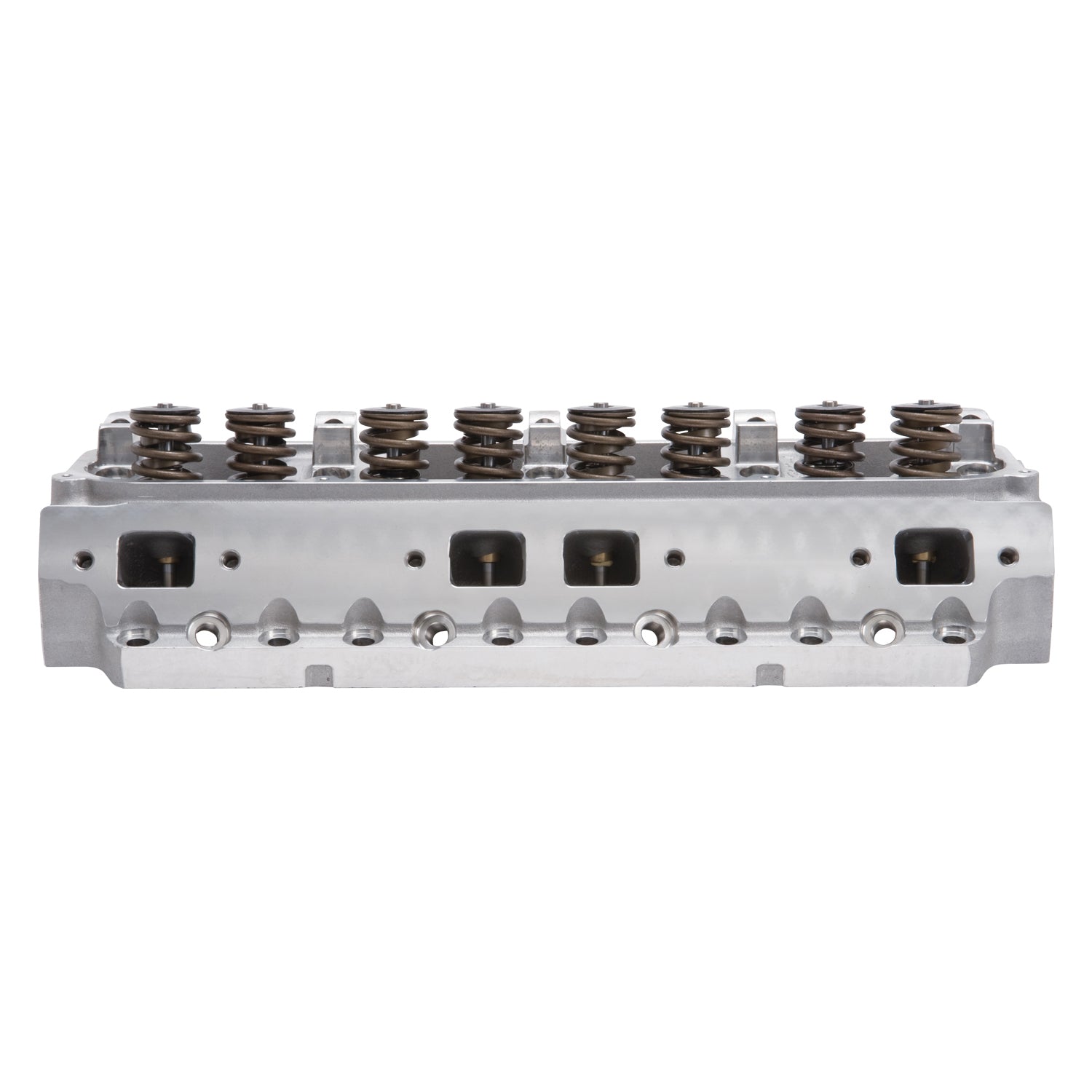

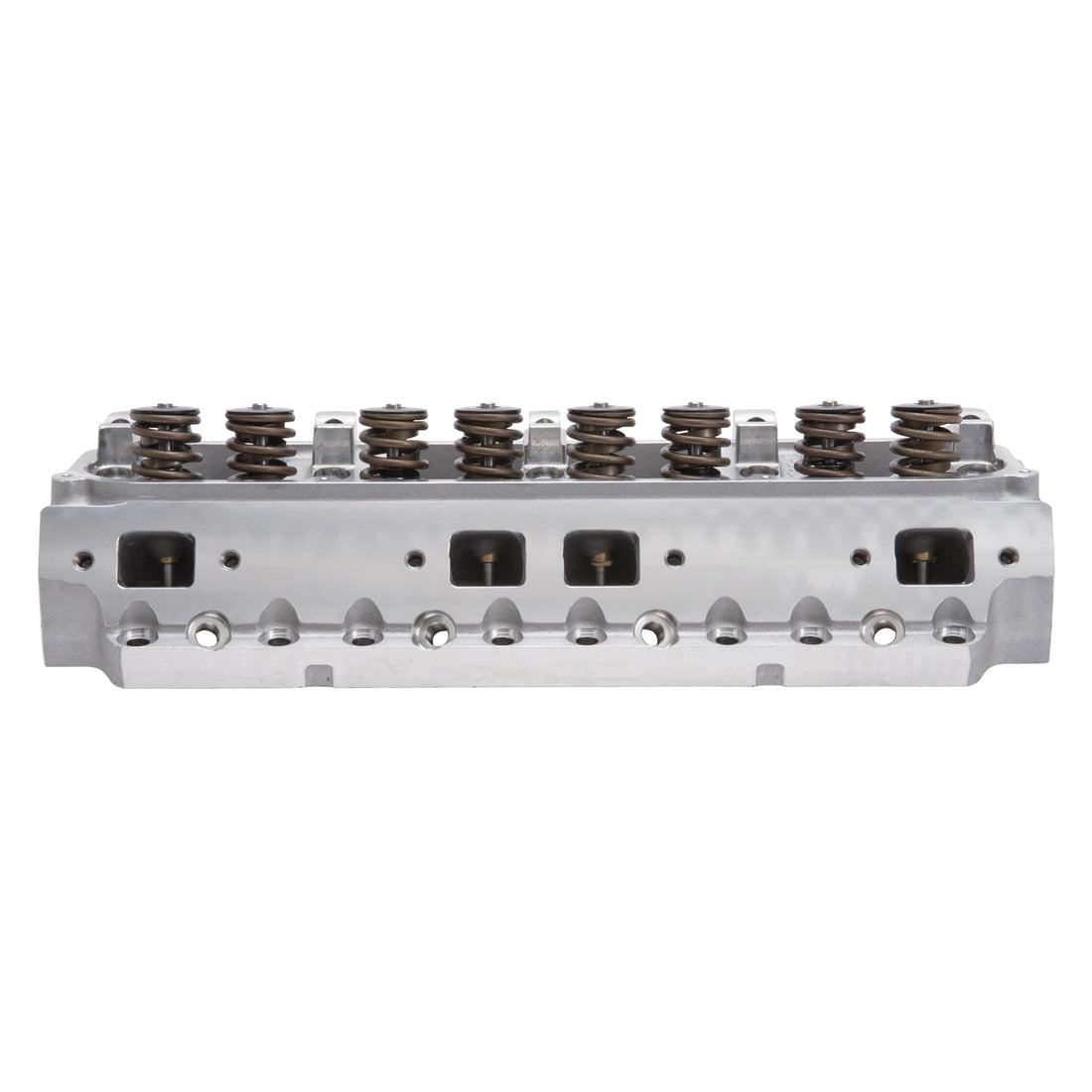

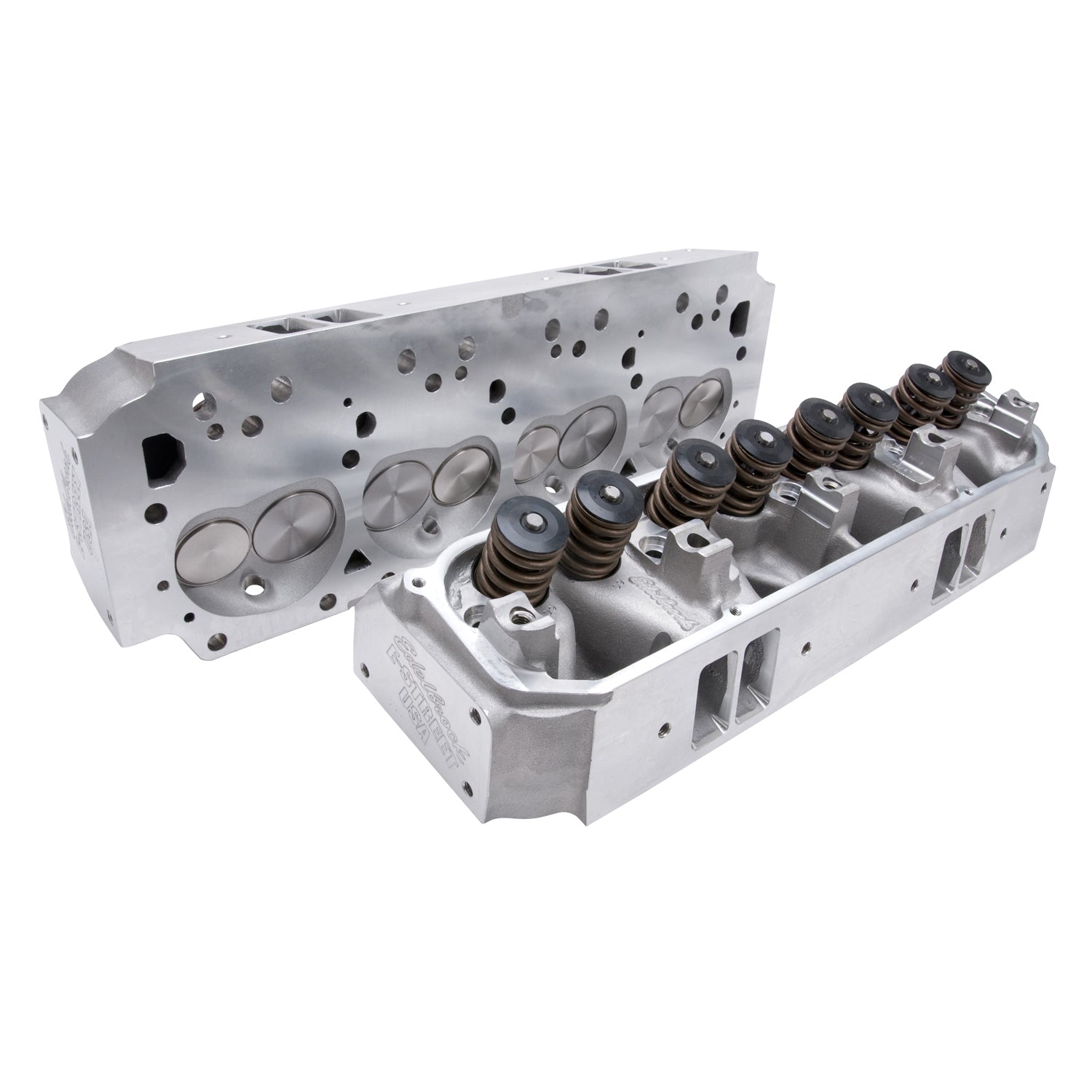

Edelbrock 5090 Big-Block Chrysler E-Street Cylinder Heads 75cc
Product Availability Request
Fill the form and our team will contact you.
The #5090 E-Street cylinder heads are designed for 1961-1979 Chrysler 361-440 Wedge engines. American made affordable power the combustion chamber improves the combustion process, larger than stock intake and exhaust ports move more air.
The Edelbrock #5090 E-Street cylinder heads are designed for use with 1961-1979 Chrysler 361-440 c.i.d. Wedge engine applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
Specifications
| Exhaust Runner Volume | 70 CCM |
| Push Rod Diameter | (Suggested) 0.375 IN |
| Valve Stem Diameter | 0.3438 IN |
| Valve Spring Maximum Lift | 0.600 IN |
| Deck Thickness | 0.625 IN |
| Valve Spring Diameter | 1.55 IN |
| Exhaust Valve Diameter | 1.81 IN |
| Valve Angle | 15 DD |
| Intake Valve Diameter | 2.14 IN |
| Intake Runner Volume | 210 CCM |
| Horsepower | 400-550 HJ |
| Head Casting Number | 5090F |
| Combustion Chamber Volume | 75 CCM |
| Deck Height | 9.98 IN |
| Material | Aluminum |
| Valve Lock Material | Chromoly Steel |
| Construction Type | Complete |
| Seat Material | Ductile Iron |
| Family | E-Street |
| Series | E-Street |
| Seat Angle | Exhaust 45 deg/Intake 45 DD |
| Camshaft Type | Flat Tappet |
| Guide Material | Manganese Bronze |
| Rocker Arms Included | No |
| Cylinder Head Gasket Included | No |
| Valve Cover Gasket Included | No |
| Rocker Arm Studs/Bolts Included | No |
| Mounting Hardware Included | No |
| Guide Plates Included | No |
| CNC Ported | No |
| EGR Port | No |
| Grade Type | Performance |
| Quantity | Set of 2 |
| Exhaust Port Location | Standard |
| Valve Lock Material | Steel |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Spring Retainers Included | Yes |
| Valve Locks Included | Yes |
| Assembled | Yes |
| Valve Springs Included | Yes |
| Valve Seals Included | Yes |
| Valves Included | Yes |
| Retainer Included | Yes |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
