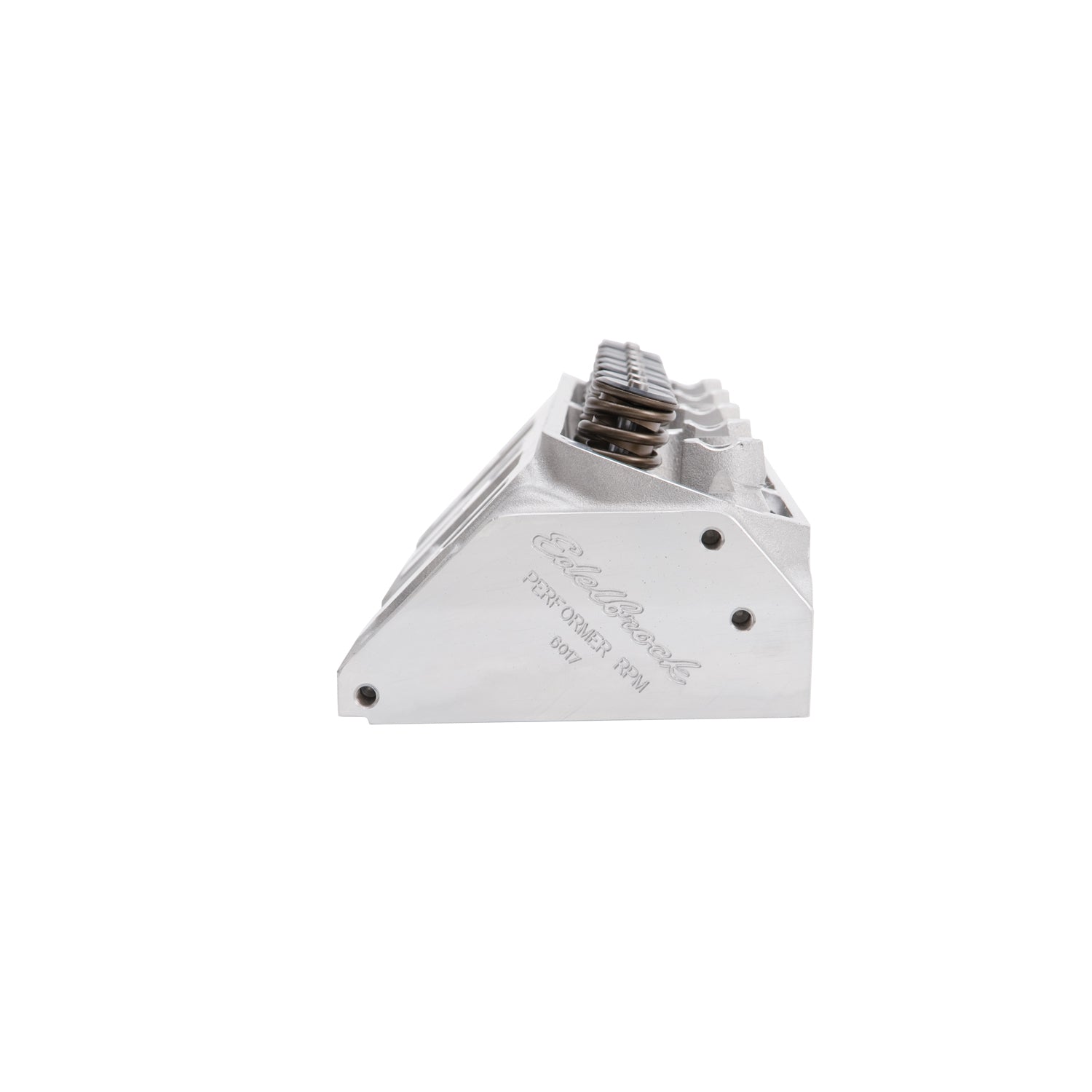

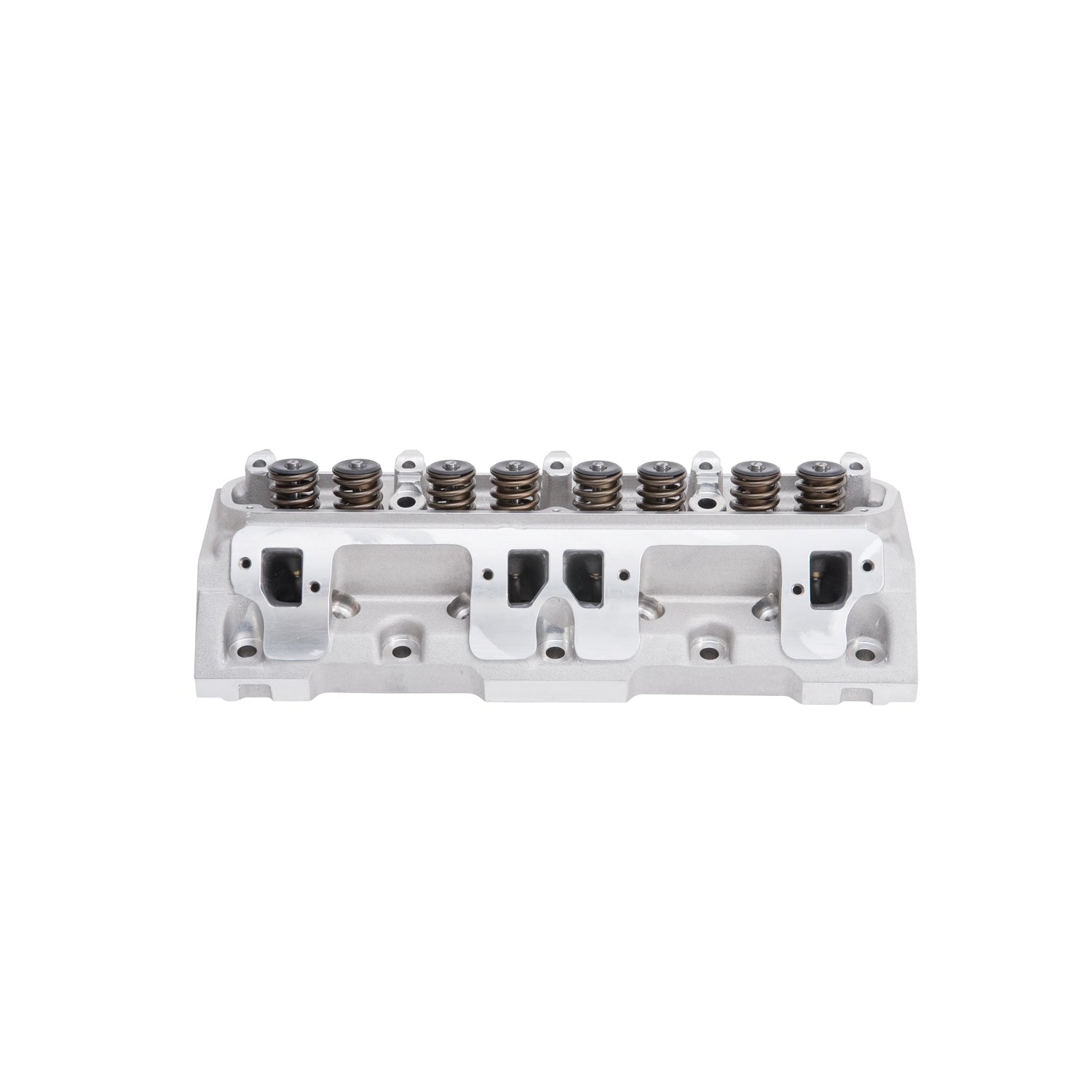

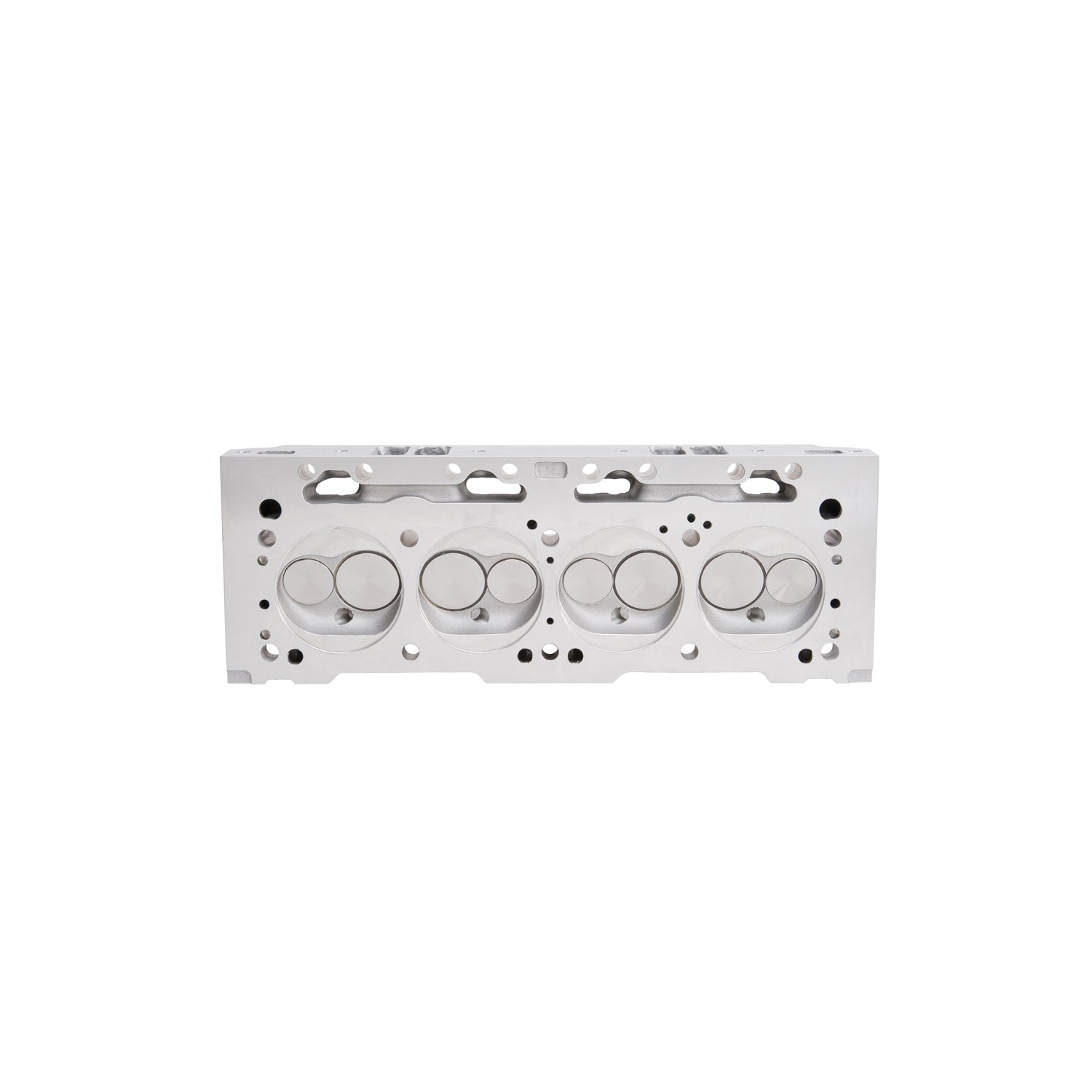

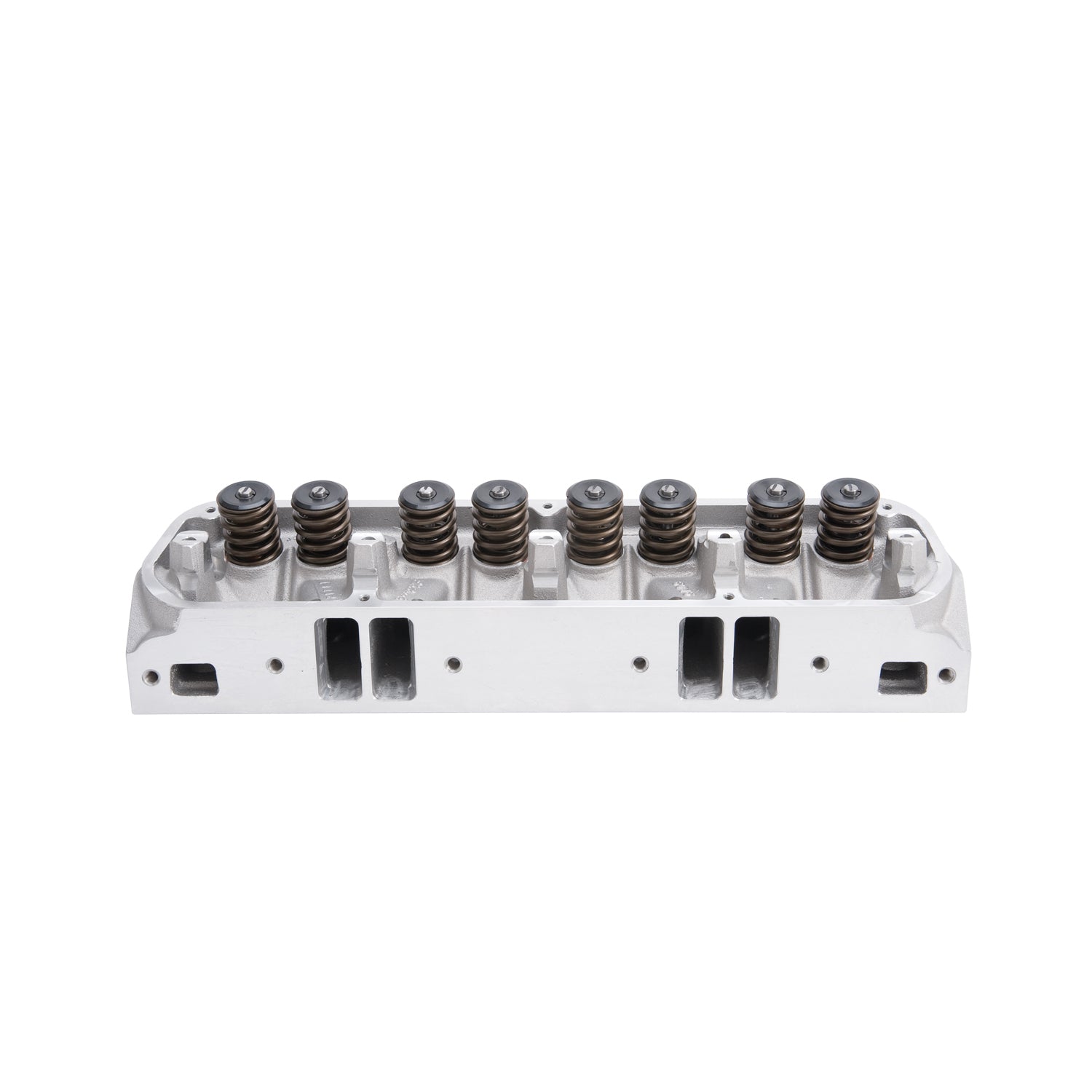

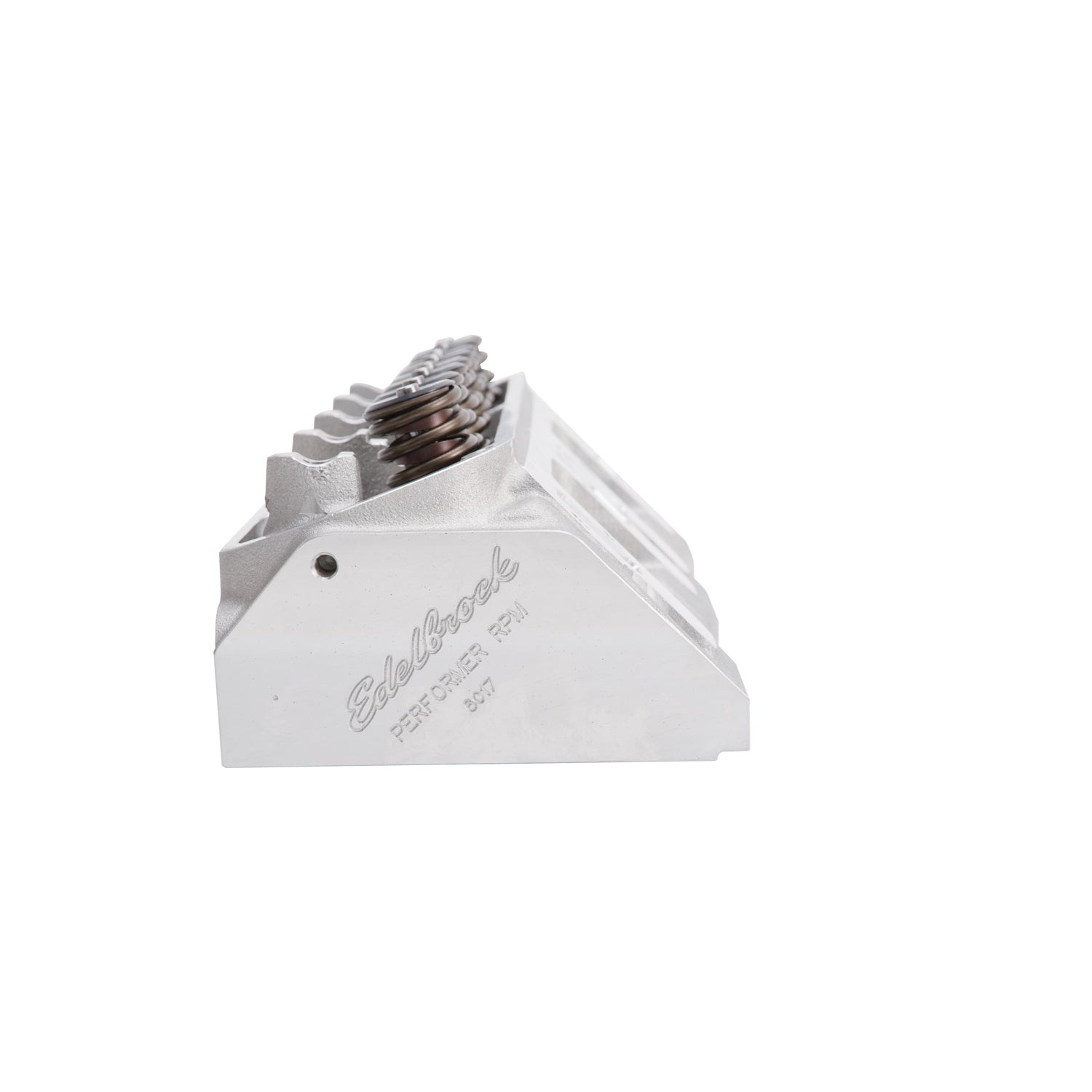

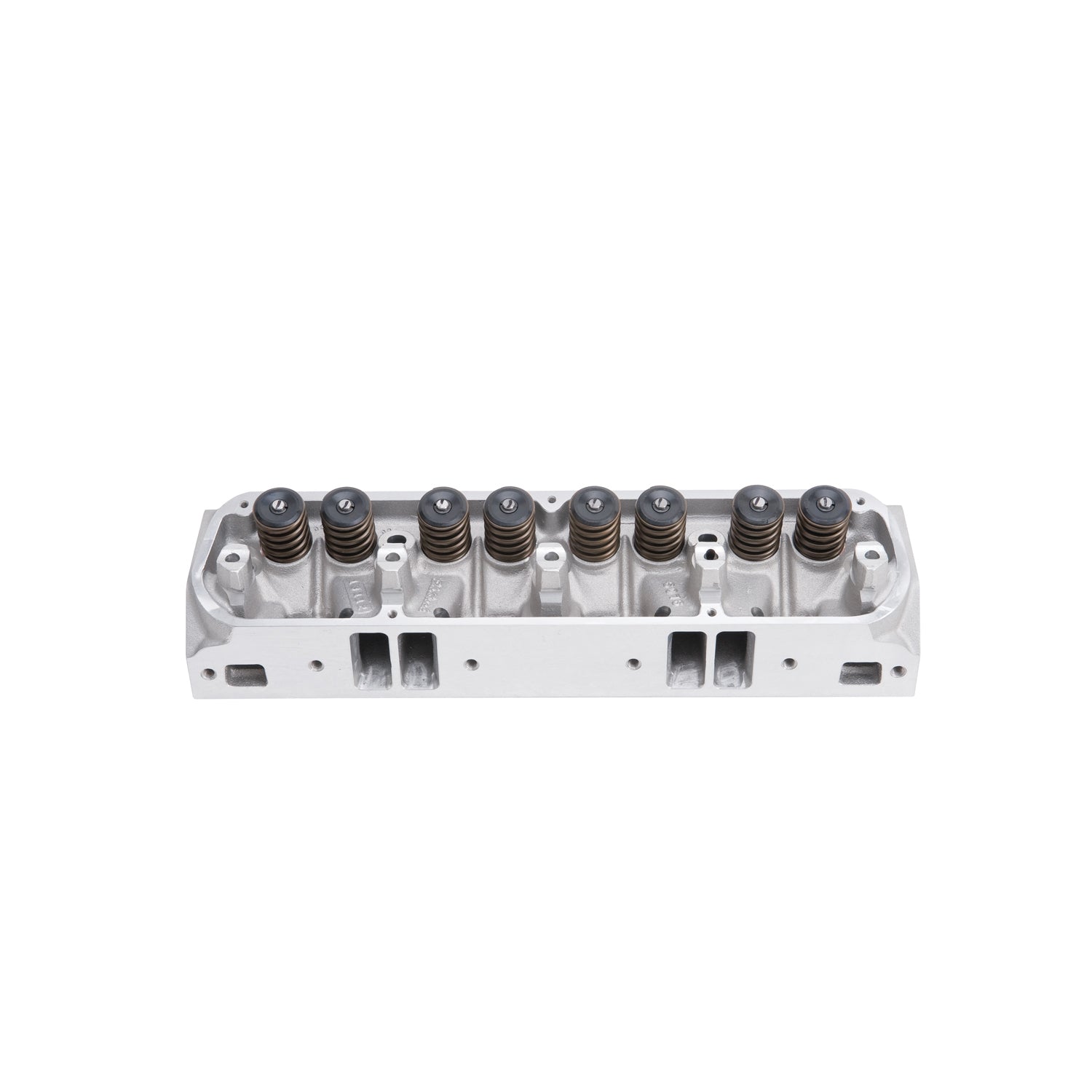

Edelbrock 60179 RPM Chrysler 340 Cylinder Head
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
Constructed of aluminum as a complete assembled unit, the Edelbrock Performer RPM cylinder head (part 60179) delivers street performance and power from 1500 to 6500 rpm with intake and exhaust valve assemblies already in place. Fits the 1970-1973 Dodge Challenger, Charger and Coronet and Plymouth Cuda and Duster; the 1968-1973 Dodge Dart and Plymouth Barracuda, Satellite and Valiant; the 1972-1973 Dodge Polara; the 1968 and 1971-1973 Plymouth Road Runner; and the 1971 Plymouth Belvedere with the 5.6L V8. The head features a deck height of 9.6 inches, an intake valve diameter of 2.02 inches, and an exhaust valve diameter of 1.60 inches, along with valve stems measuring 0.3438 inches in diameter. Rocker arm studs are 0.375 inches in diameter, deck thickness is 0.625 inches, valve spring diameter is 1.46 inches, and maximum valve spring lift is 0.575 inches, with valve seat angles of 45 degrees for both intake and exhaust.
- Family: Performer RPM
- Series: Performer RPM
- Construction Type: Complete
- Assembled: Yes
- Material: Aluminum
- Seat Material: Ductile Iron
- Grade Type: Performance
- Horsepower: 350-450 HJ
- Power Range: 1500 to 6500 rpm
- Deck Height: 9.6 IN
- Deck Thickness: 0.625 IN
- Valve Angle: 18 deg
- Seat Angle: Exhaust 45 deg/Intake 45 deg
- Intake Valve Diameter: 2.02 IN
- Exhaust Valve Diameter: 1.60 IN
- Valve Stem Diameter: 0.3438 IN
- Valve Spring Diameter: 1.46 IN
- Valve Spring Maximum Lift: 0.575 IN
- Rocker Arm Stud Diameter: 0.375 IN
- Intake Runner Volume: 171 CCM
- Exhaust Runner Volume: 77 CCM
- Combustion Chamber Volume: 65 CCM
- Head Casting Number: 31-6076
- Guide Material: Manganese Bronze
- Guide Plate Material: Hardened Steel
- Valve Lock Material: Chromoly Steel
- Camshaft Type: Flat Tappet
- Exhaust Port Location: Standard
- Valves Included: Yes
- Valve Springs Included: Yes
- Valve Seals Included: Yes
- Valve Locks Included: Yes
- Valve Spring Retainers Included: Yes
- Rocker Arms Included: No
- Cylinder Head Gasket Included: No
- Valve Cover Gasket Included: No
- Rocker Arm Studs/Bolts Included: No
- Mounting Hardware Included: No
- Guide Plates Included: No
- CNC Ported: No
- EGR Port: No
- Quantity: Sold Individually
Weight: 31.7 lb
Country of Origin: United States
