Edelbrock 61175 Victor Jr Gen II HEMI Chrysler Cylinder Head Hydraulic Roller Camshaft
Product Availability Request
Fill the form and our team will contact you.

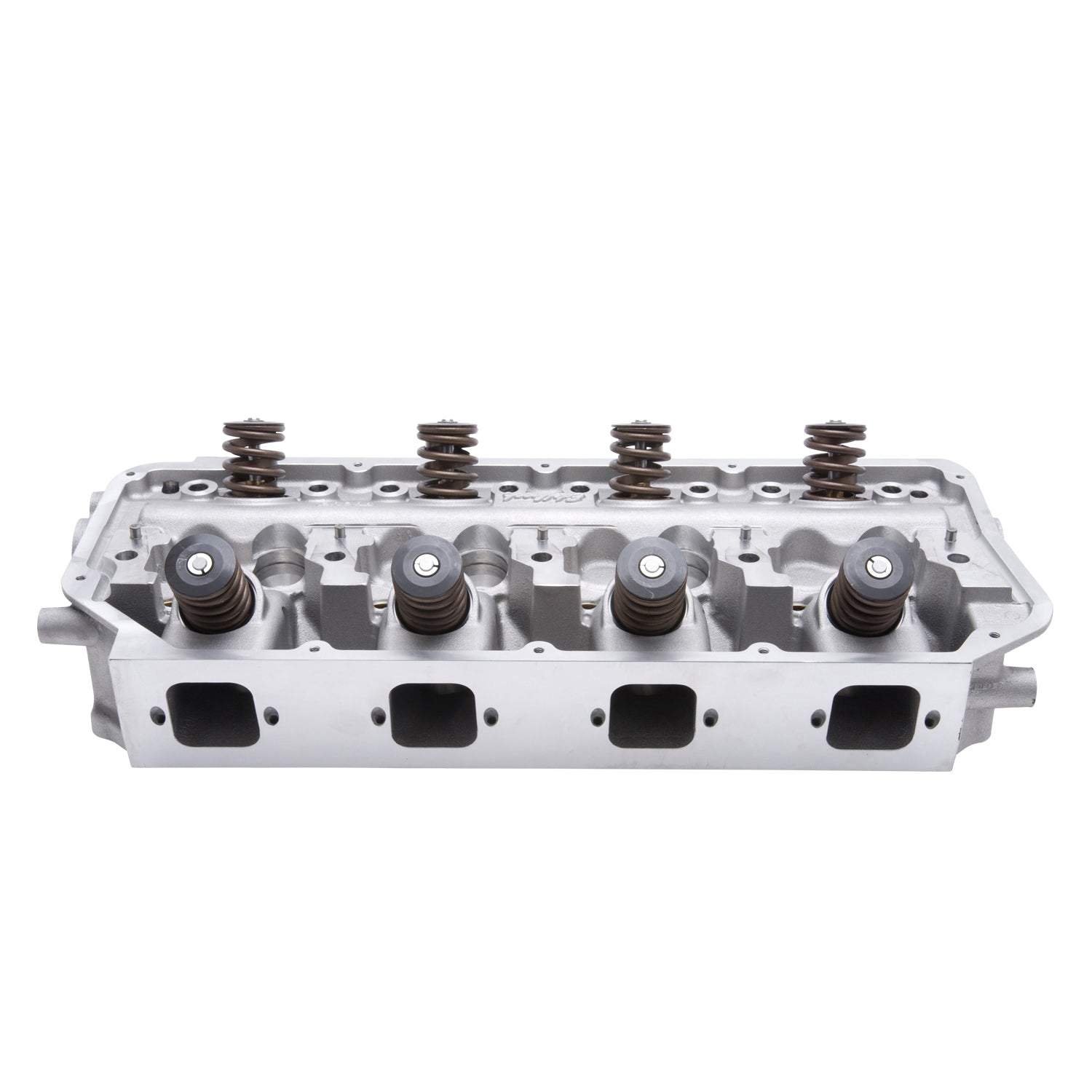

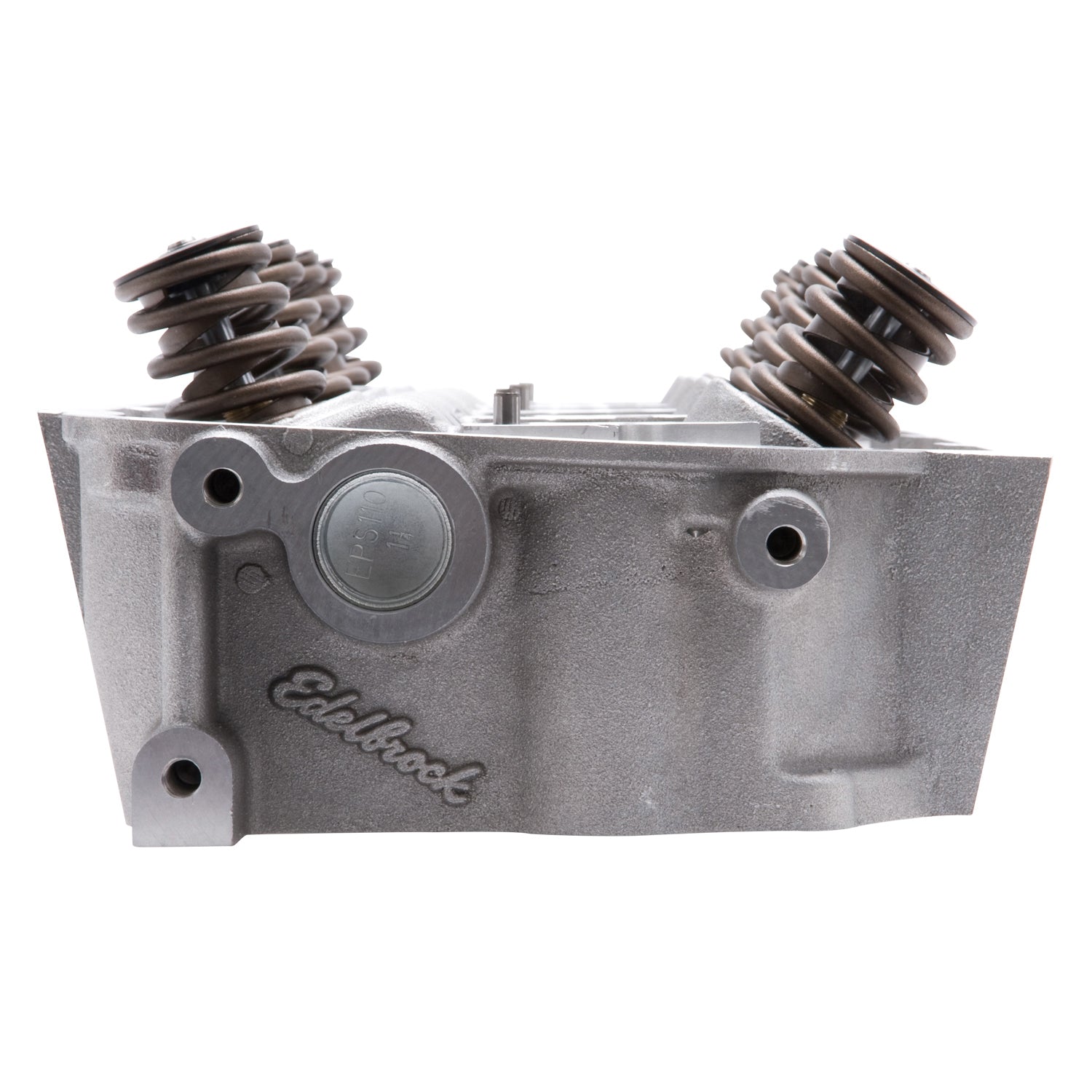

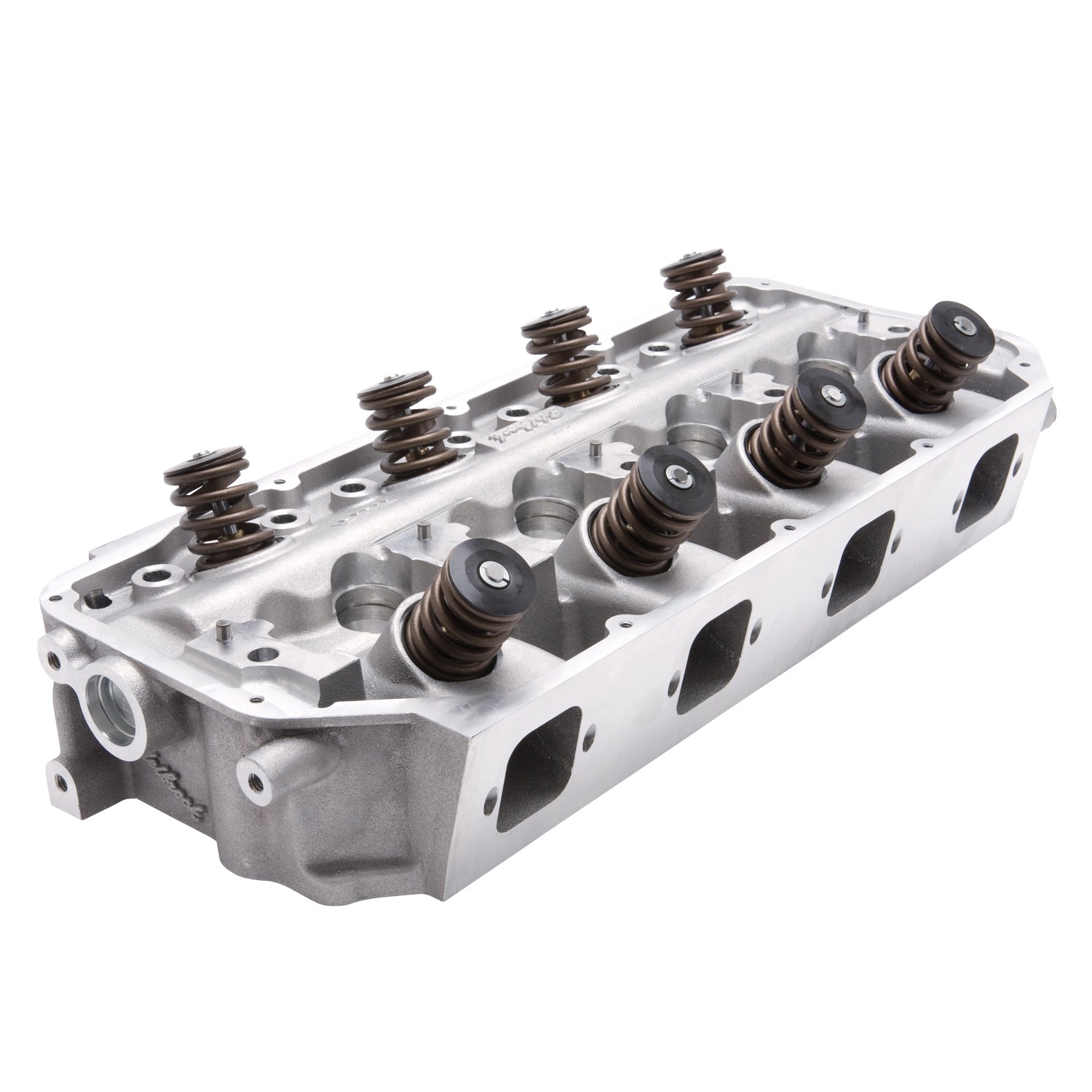

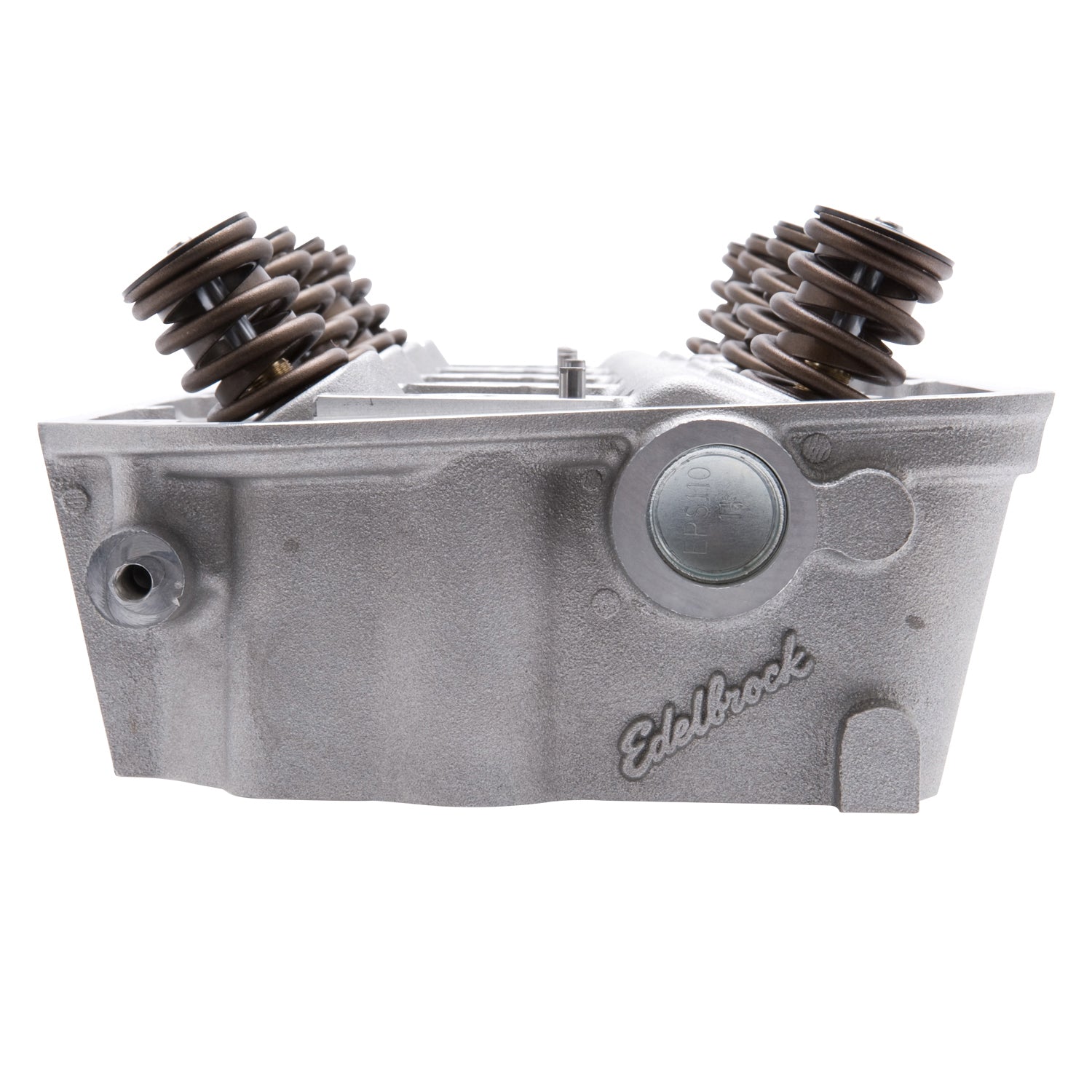

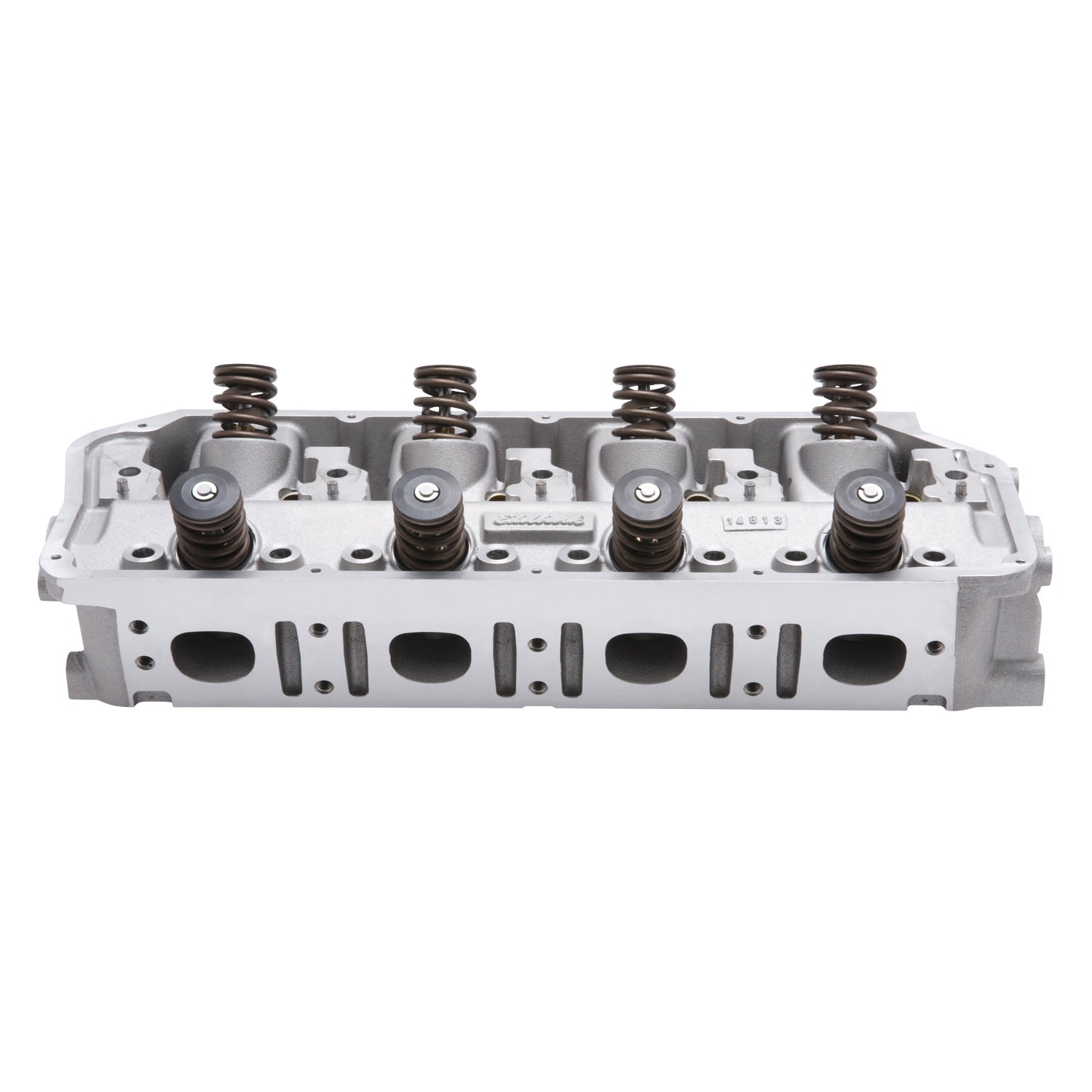

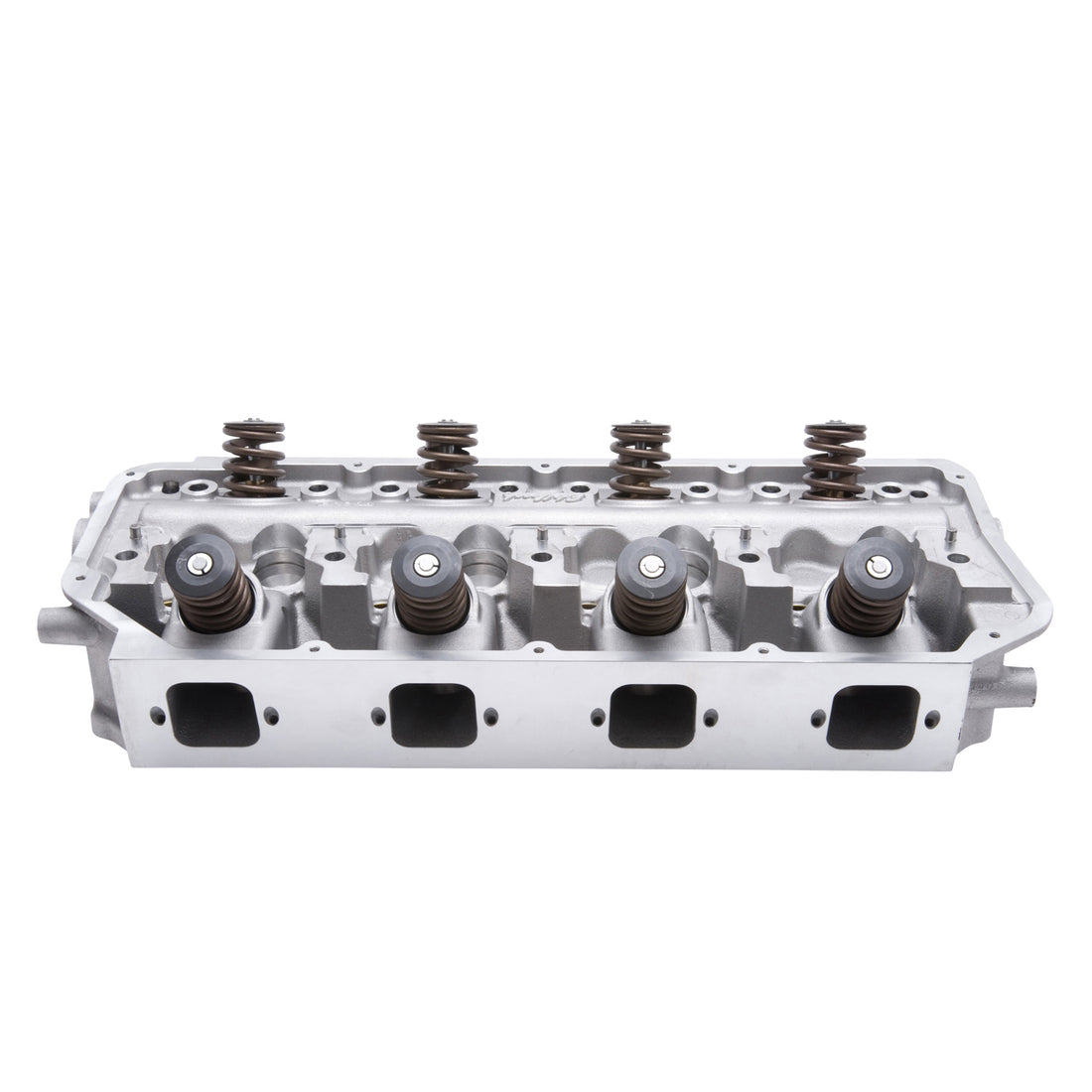

Our new Edelbrock #61175 Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI engines. Fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance.

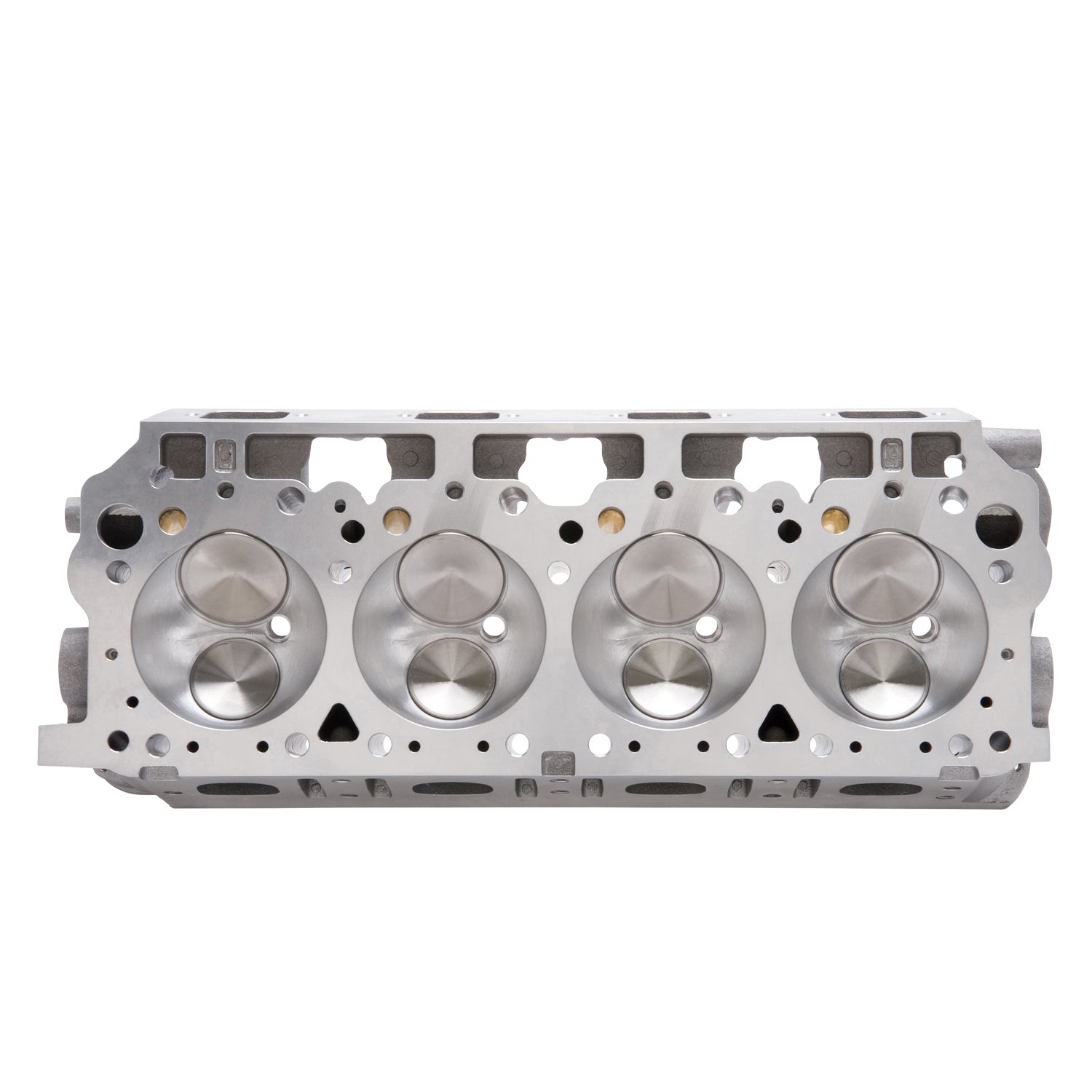

Our new Edelbrock #61175 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
Specifications
| Seat Material | Ductile Iron |
| Deck Thickness | 0.625 IN |
| Valve Angle | Exhaust (Tipped) 1.5-21.5 deg/Intake Stock |
| Push Rod Diameter | (Suggested) 0.3125 in Or 0.375 IN |
| Valve Stem Diameter | 0.3125 IN |
| Valve Spring Maximum Lift | 0.700 IN |
| Valve Spring Diameter | 1.54 IN |
| Exhaust Valve Diameter | 1.94 IN |
| Deck Height | 10.72 IN |
| Exhaust Runner Volume | 105 CCM |
| Combustion Chamber Volume | 170 CCM |
| Intake Valve Diameter | 2.320 IN |
| Intake Runner Volume | 245 CCM |
| Head Casting Number | 31-6117 |
| Horsepower | 550-800 HJ |
| Material | Aluminum |
| Valve Lock Material | Chromoly Steel |
| Construction Type | Complete |
| Seat Angle | Exhaust 45 deg/Intake 45 DD |
| Camshaft Type | Hydraulic Roller |
| Guide Material | Manganese Bronze |
| Rocker Arms Included | No |
| Cylinder Head Gasket Included | No |
| Valve Cover Gasket Included | No |
| Rocker Arm Studs/Bolts Included | No |
| Mounting Hardware Included | No |
| Guide Plates Included | No |
| EGR Port | No |
| Grade Type | Performance |
| Quantity | Sold Individually |
| Exhaust Port Location | Standard |
| Valve Lock Material | Steel |
| Family | Victor Jr. |
| Series | Victor Jr. |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Spring Retainers Included | Yes |
| Valve Locks Included | Yes |
| Assembled | Yes |
| Valve Springs Included | Yes |
| Valve Seals Included | Yes |
| Valves Included | Yes |
| CNC Ported | Yes |
| Retainer Included | Yes |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
