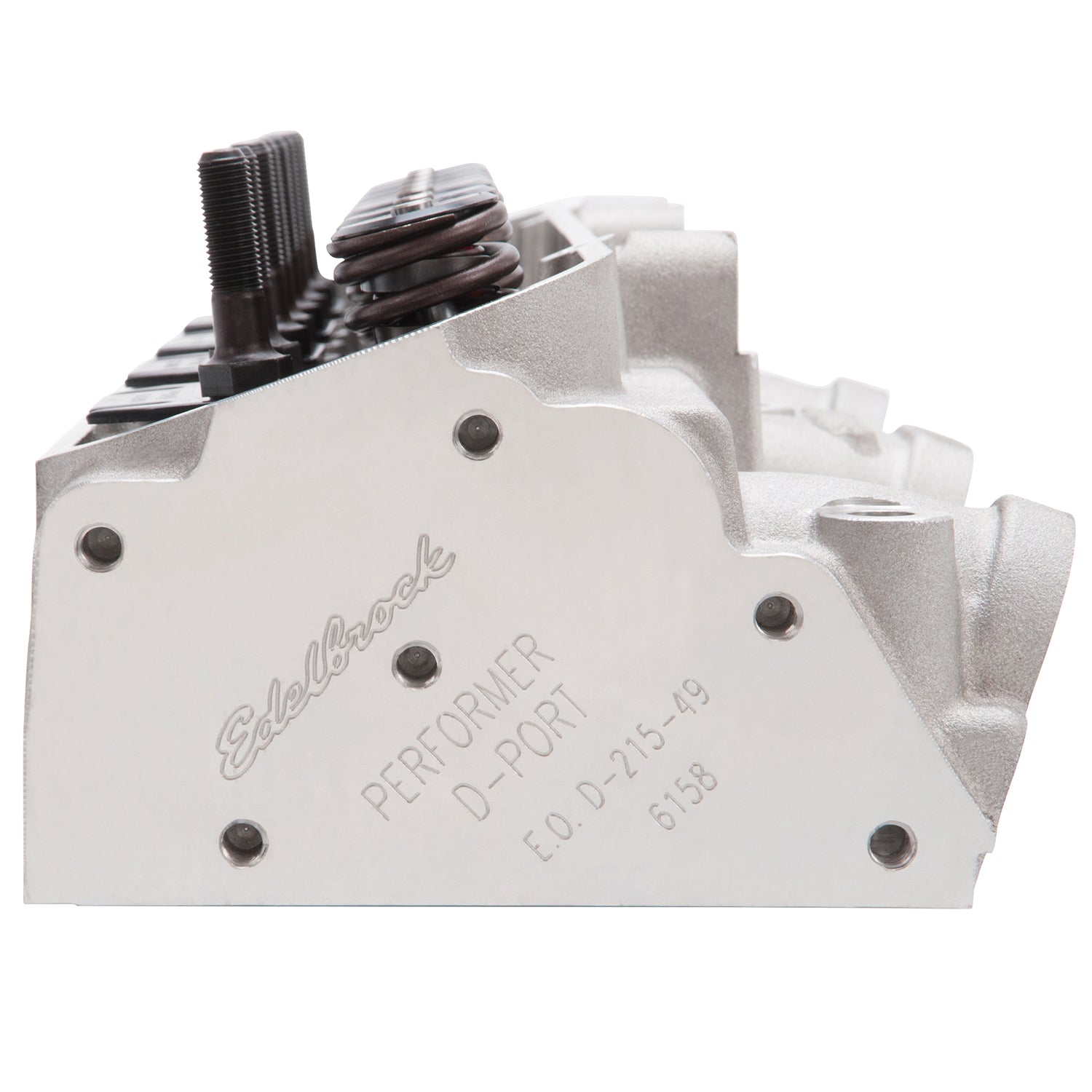

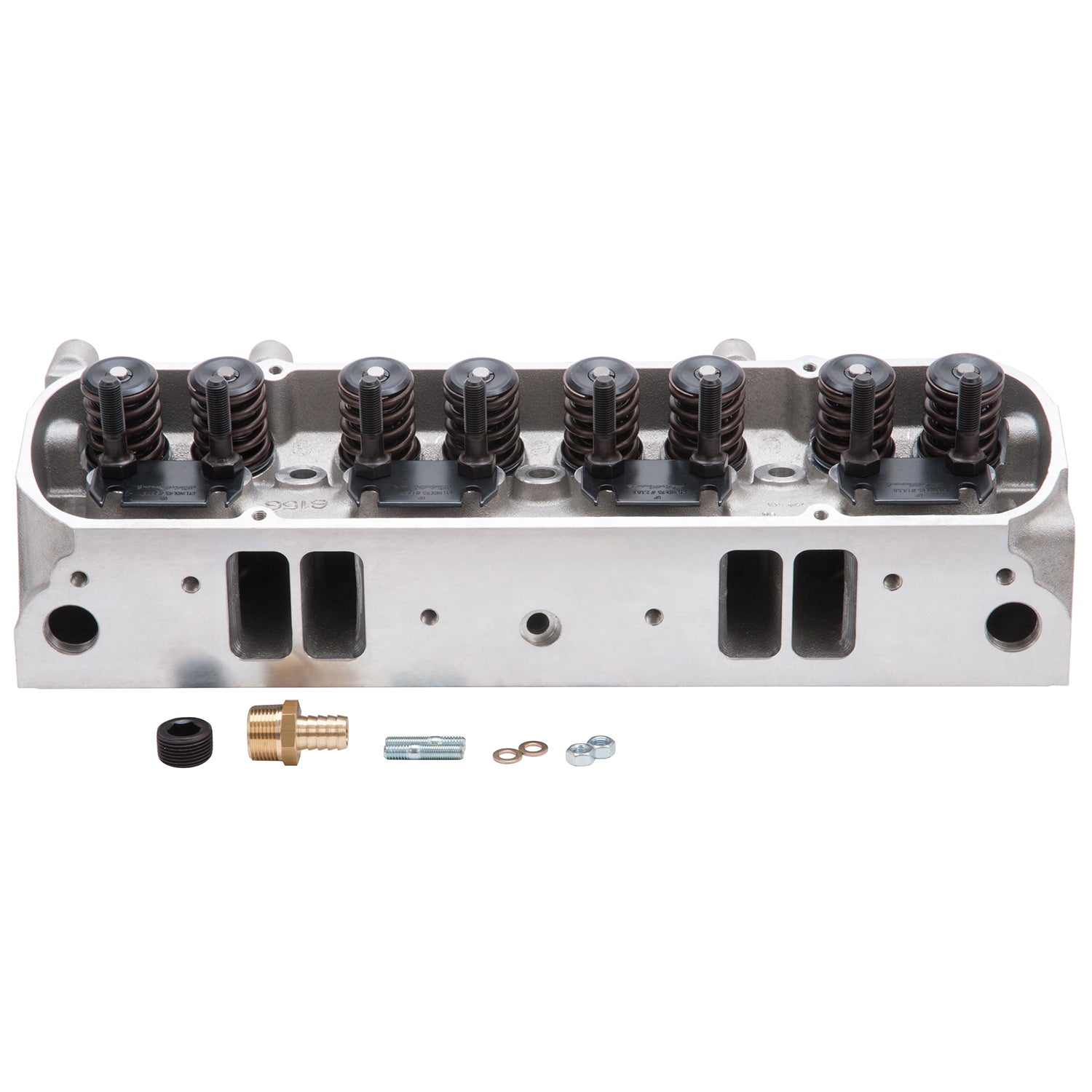

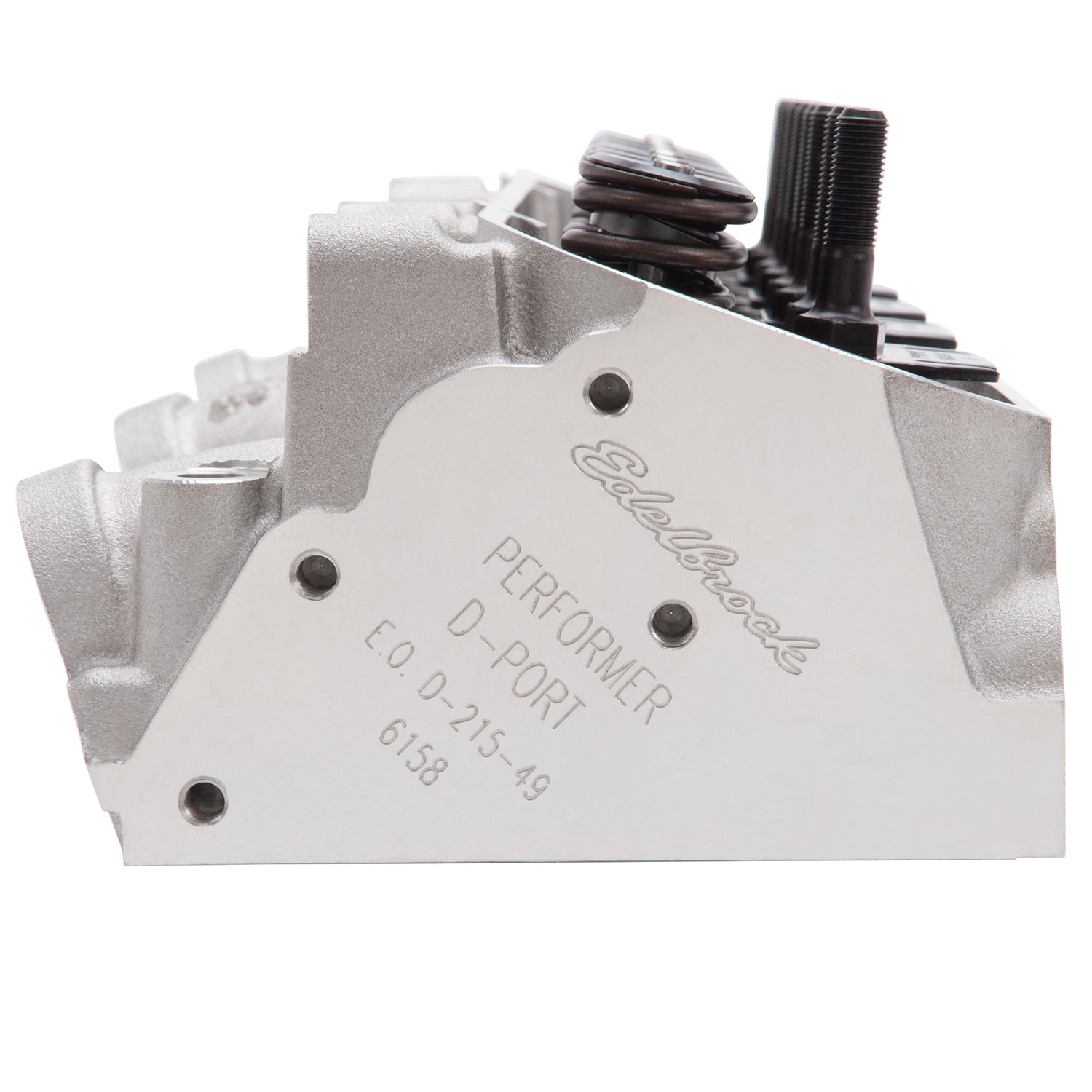

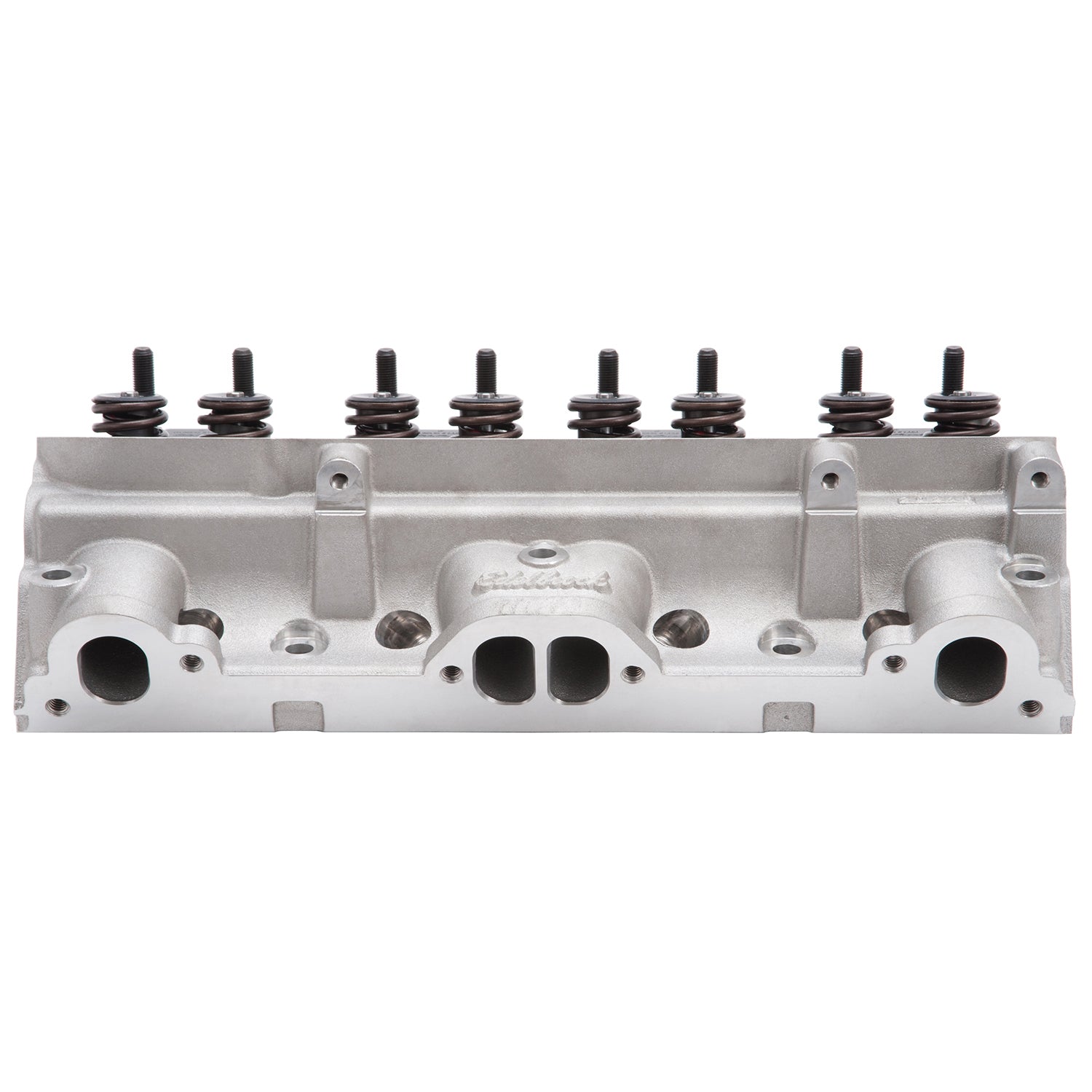

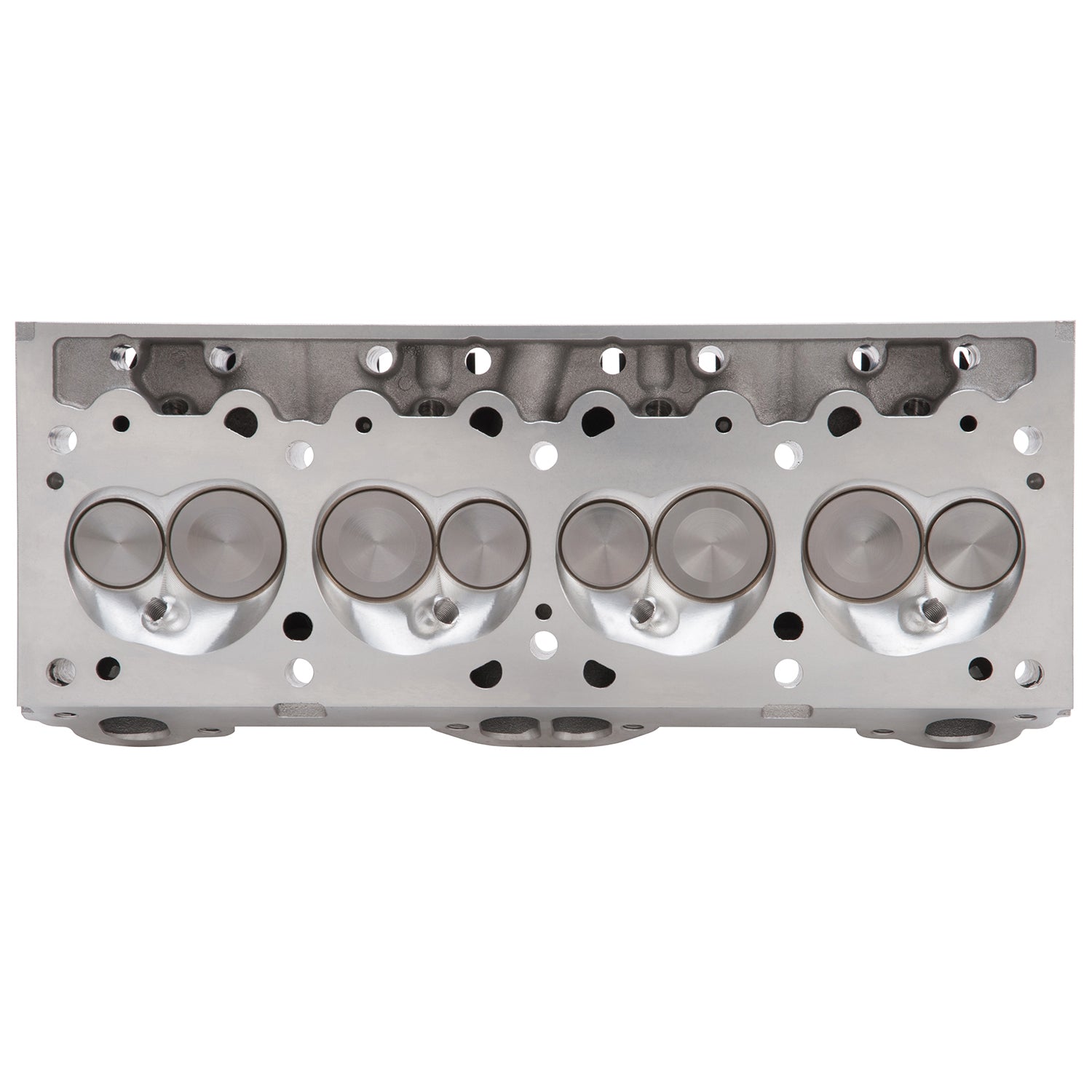

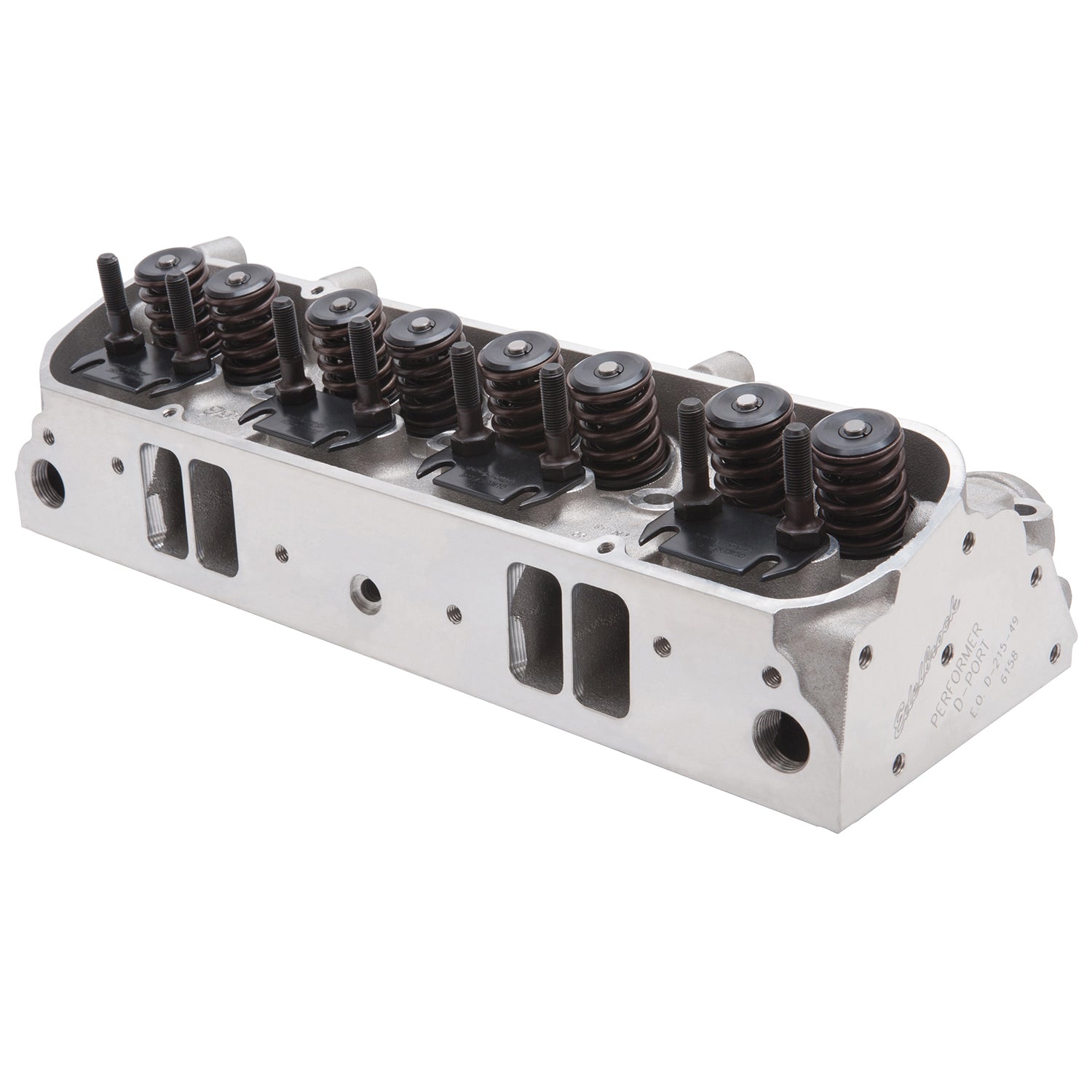

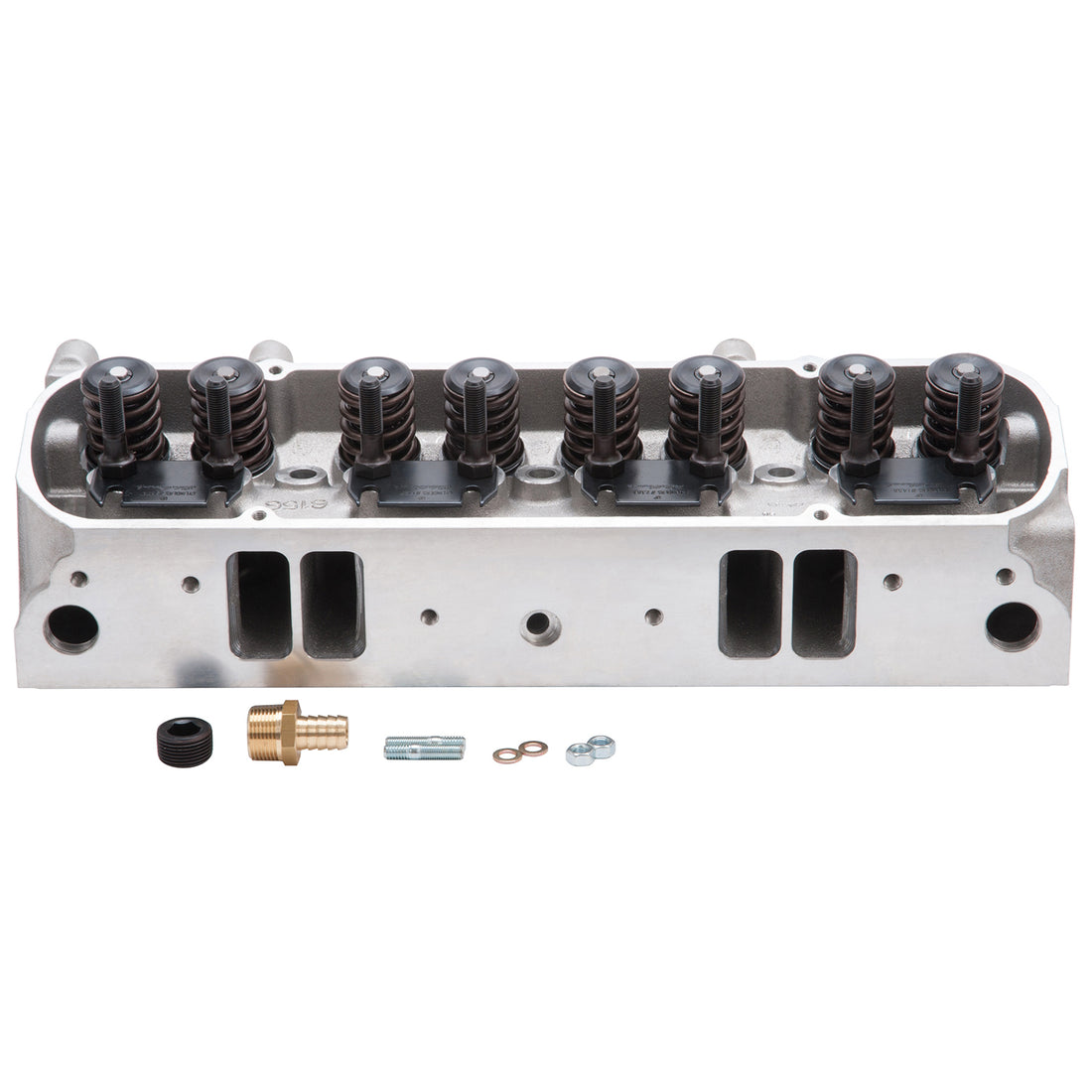

Edelbrock 61595 RPM CNC Pontiac D-Port Cylinder Head 72cc Hydraulic Roller Camshaft
Product Availability Request
Fill the form and our team will contact you.
Edelbrock part #61595 Performer Pontiac D-Port Cylinder Heads are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow.
The Edelbrock #61595 Performer Pontiac Cylinder Head utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance.
Specifications
| Camshaft Type | Hydraulic Roller |
| Horsepower | 400-500 HJ |
| Push Rod Diameter | (Suggested) 0.3125 IN |
| Valve Stem Diameter | 0.3438 IN |
| Rocker Arm Stud Diameter | 0.4375 IN |
| Valve Spring Maximum Lift | 0.575 IN |
| Deck Thickness | 0.625 IN |
| Valve Spring Diameter | 1.46 IN |
| Exhaust Valve Diameter | 1.66 IN |
| Deck Height | 10.25 IN |
| Valve Angle | 14 DD |
| Exhaust Runner Volume | 145 CCM |
| Intake Valve Diameter | 2.11 IN |
| Intake Runner Volume | 204 CCM |
| Head Casting Number | 31-6156 |
| Combustion Chamber Volume | 72 CCM |
| Material | Aluminum |
| Valve Lock Material | Chromoly Steel |
| Guide Plate Material | Chromoly Steel |
| Construction Type | Complete |
| 9040 | D-215-94 |
| Seat Material | Ductile Iron |
| Seat Angle | Exhaust 45 deg/Intake 45 DD |
| Guide Plate Material | Hardened Steel |
| Guide Material | Manganese Bronze |
| Rocker Arms Included | No |
| Cylinder Head Gasket Included | No |
| Valve Cover Gasket Included | No |
| Mounting Hardware Included | No |
| Grade Type | Performance |
| Family | Performer |
| Series | Performer |
| Quantity | Sold Individually |
| Exhaust Port Location | Standard |
| Valve Lock Material | Steel |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Spring Retainers Included | Yes |
| Valve Locks Included | Yes |
| Rocker Arm Studs/Bolts Included | Yes |
| Assembled | Yes |
| Guide Plates Included | Yes |
| Valve Springs Included | Yes |
| Valve Seals Included | Yes |
| Valves Included | Yes |
| CNC Ported | Yes |
| EGR Port | Yes |
| Retainer Included | Yes |
