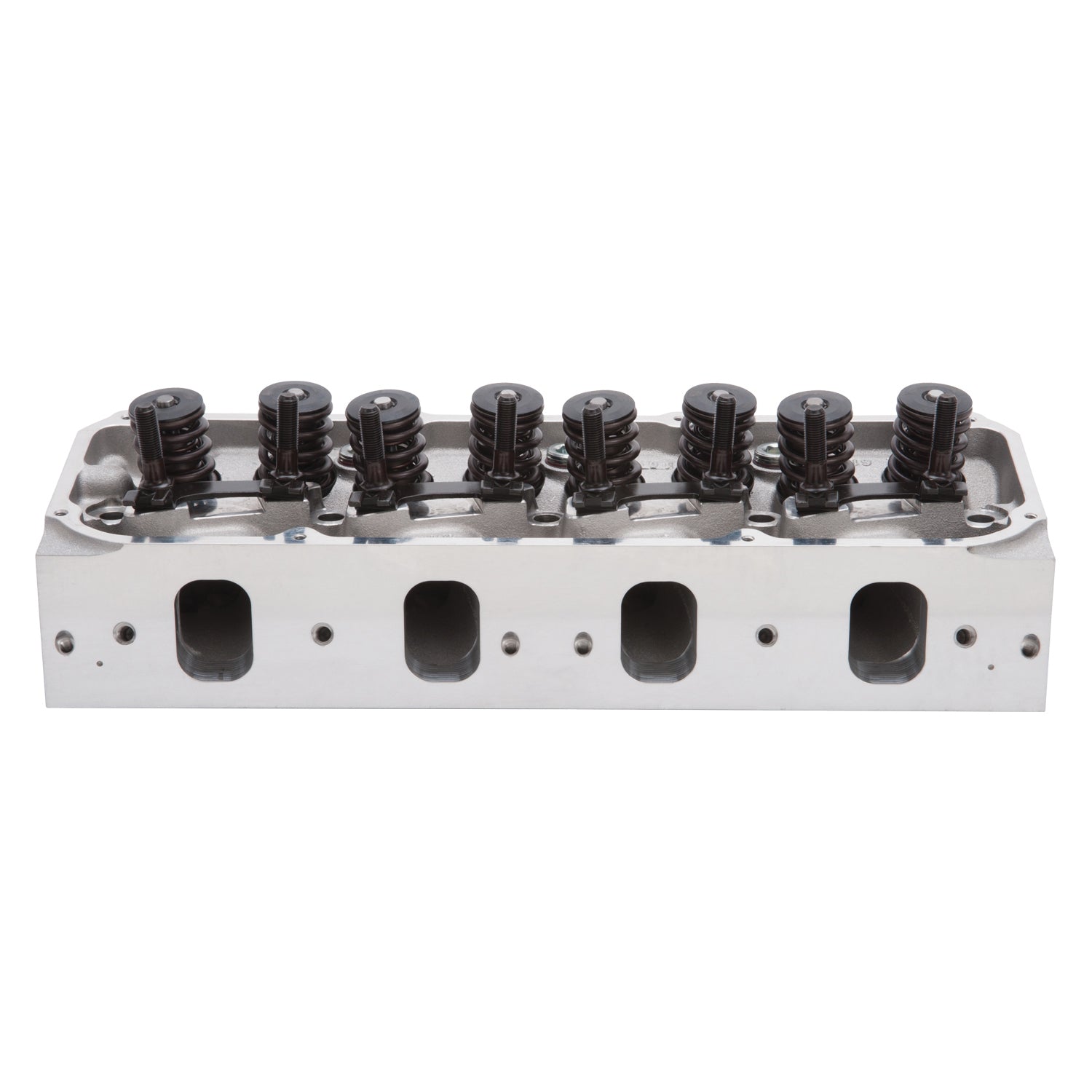

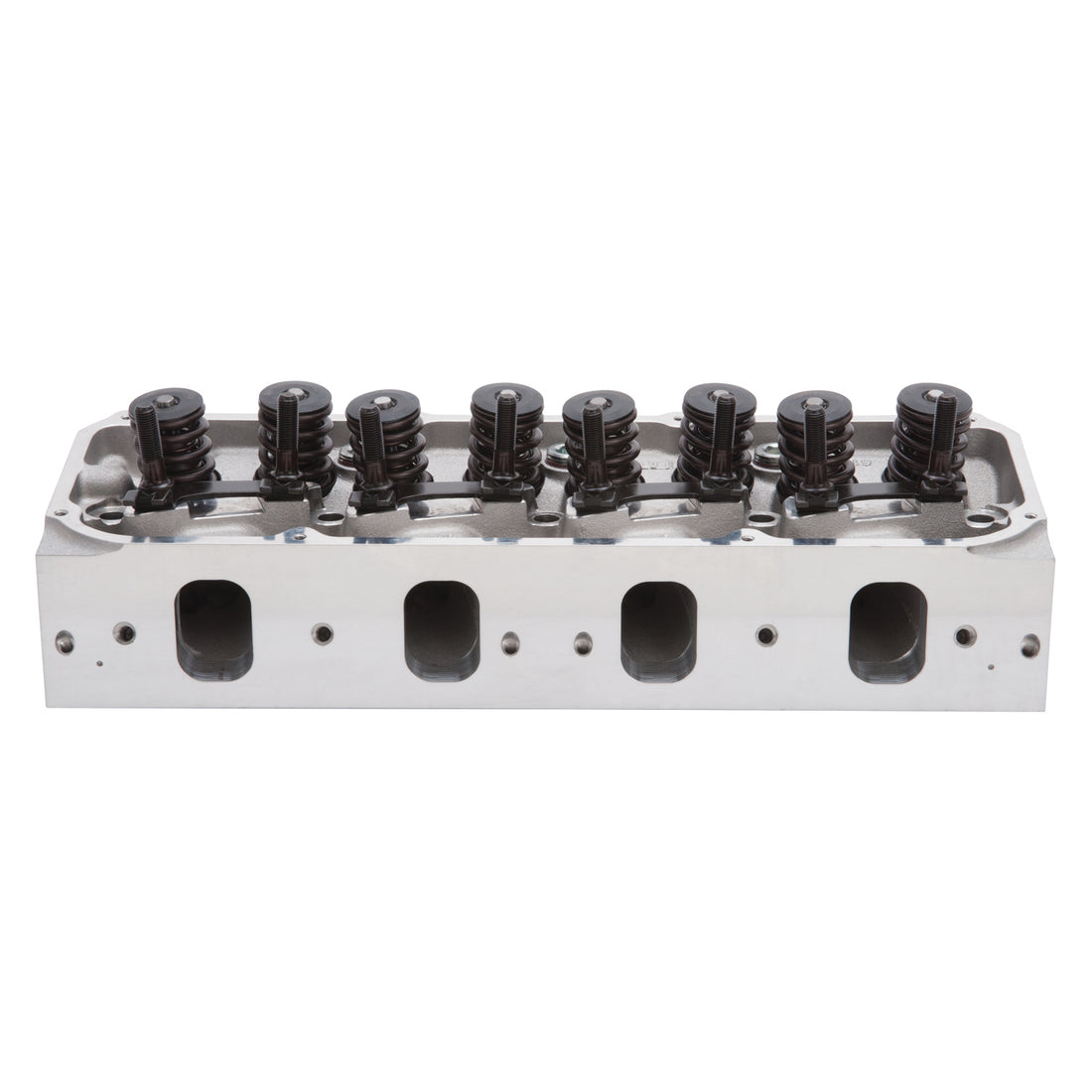

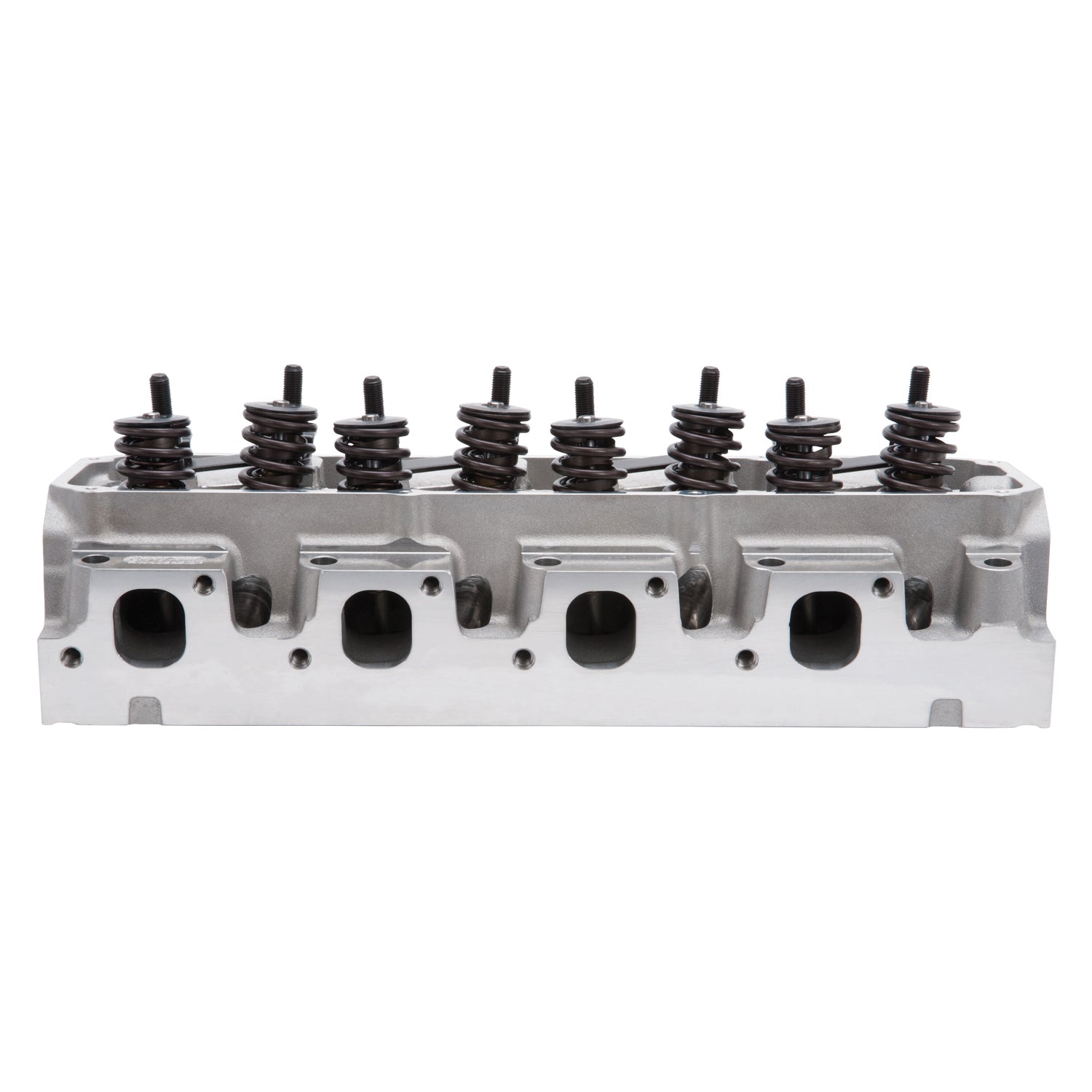

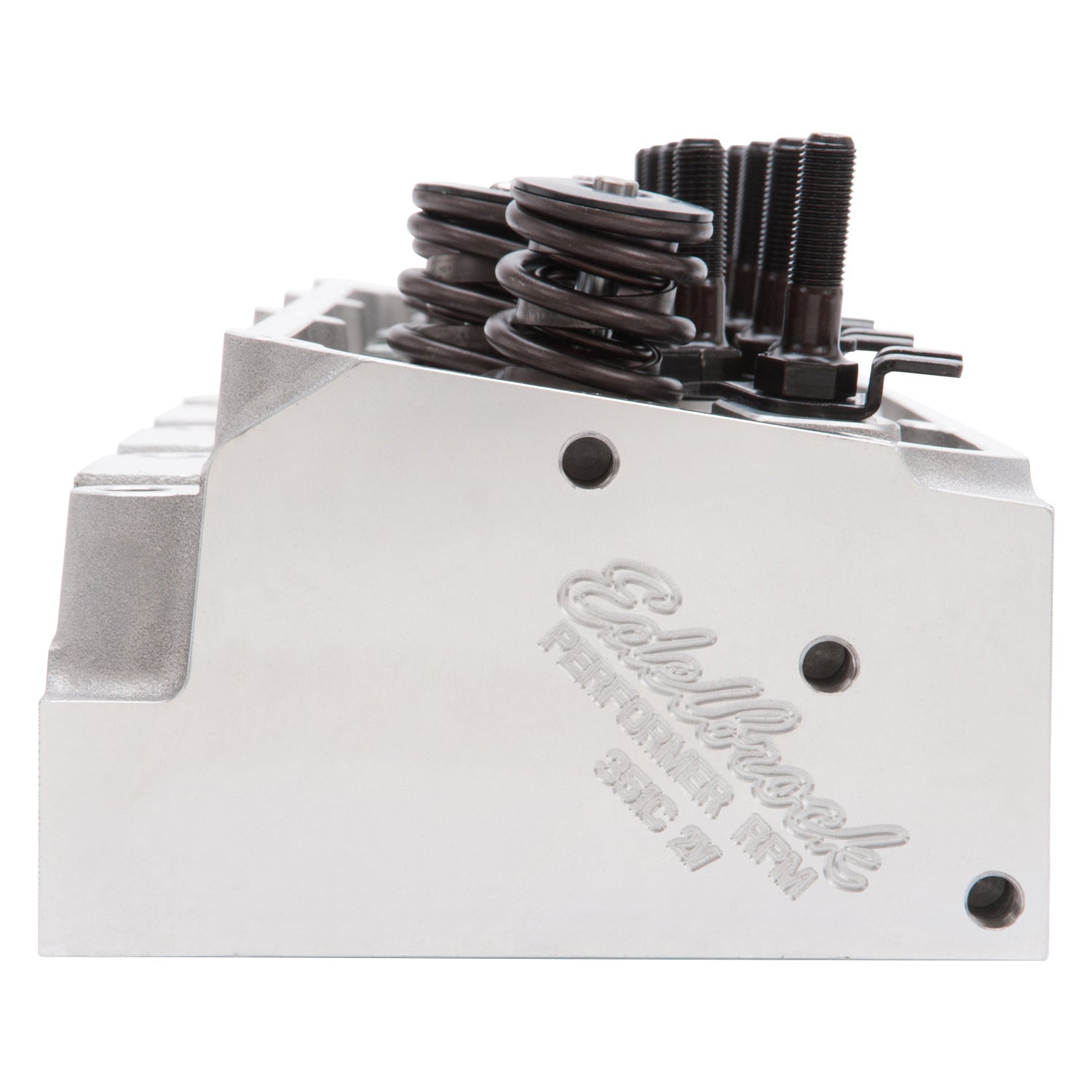

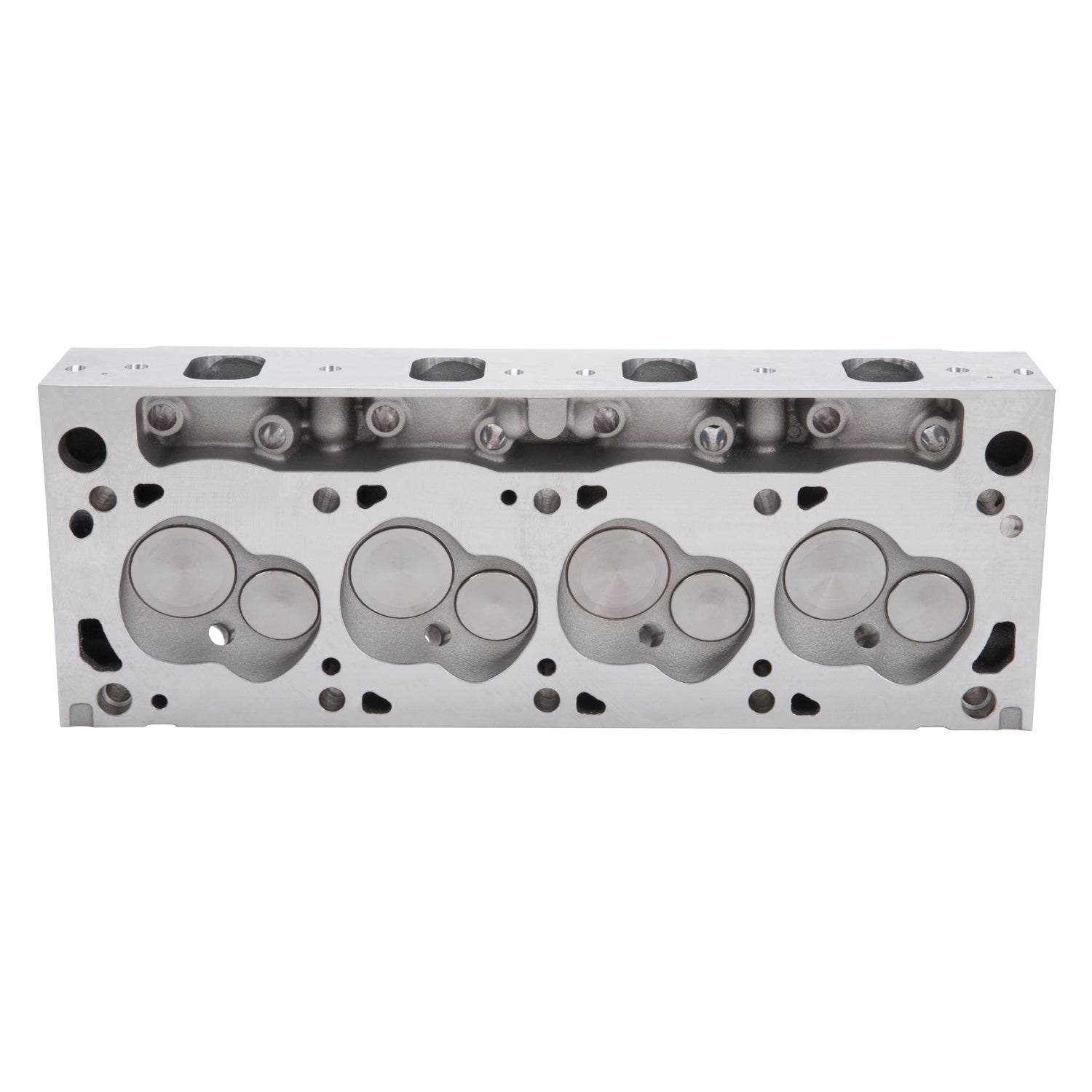

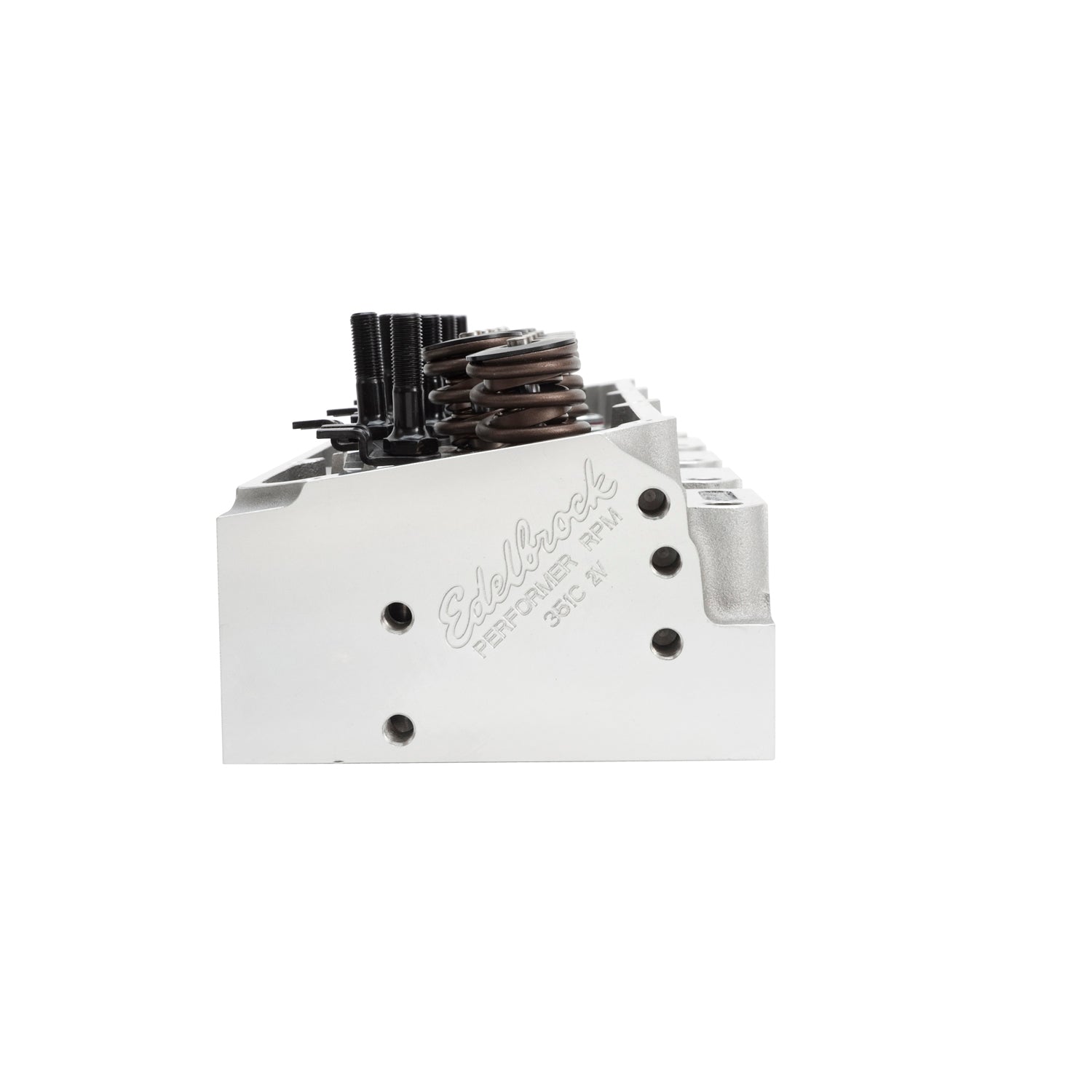

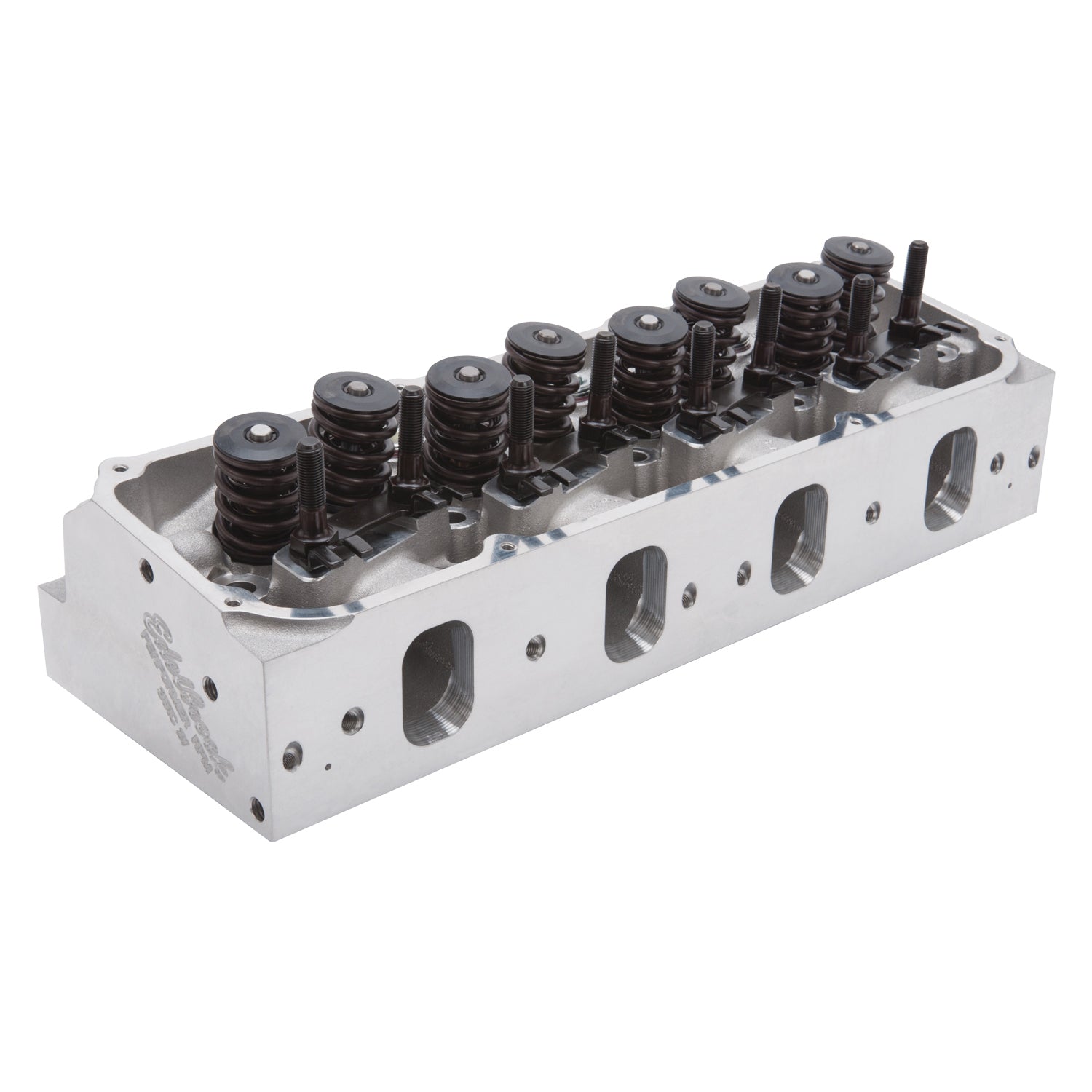

Edelbrock 61625 RPM Small-Block Ford 351 Cleveland Cylinder Head Hydraulic Roller Cam
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
A complete aluminum cylinder head in the Performer RPM series, the Edelbrock #61625 is assembled with valves, valve springs, valve seals, valve locks, retainers, rocker arm studs and guide plates for immediate installation. Fits 21 DeTomaso, Ford and Mercury vehicles from 1969 to 1986, including the 1971-1974 and 1981-1986 DeTomaso Pantera and the 1969-1974 Ford Country Sedan, Country Squire, Custom 500, Galaxie 500, LTD, Ranch Wagon and Ranchero and Mercury Montego. Full vehicle list below. This hydraulic roller head features a 9.206 inch deck height with 0.625 inch deck thickness, 0.3125 inch push rod diameter, 0.4375 inch rocker arm stud diameter, and a 0.580 inch valve spring maximum lift. The head delivers 350-500 horsepower with a 6500 rpm capability and includes 2.05 inch intake valves with 1.55 inch diameter springs and 1.60 inch exhaust valves. Featuring a 9.5 degree valve angle with 45 degree seat angles on both intake and exhaust, the 0.3438 inch valve stems utilize ductile iron seats, manganese bronze guides, and hardened steel guide plates for precision valve actuation.
- Camshaft Type: Hydraulic Roller
- Horsepower: 350-500 HJ
- Exhaust Valve Diameter: 1.60 IN
- EGR Port: No
- Rocker Arm Stud Diameter: 0.4375 IN
- Exhaust Runner Volume: 90 CCM
- Intake Valve Diameter: 2.05 IN
- Retainer Included: Yes
- CNC Ported: No
- Construction Type: Complete
- Valve Spring Maximum Lift: 0.580 IN
- Valve Angle: 9.5 deg
- Mounting Hardware Included: No
- Valve Springs Included: Yes
- Valve Spring Retainers Included: Yes
- Valve Seals Included: Yes
- Valve Locks Included: Yes
- Valve Lock Material: Chromoly Steel
- Valve Cover Gasket Included: No
- Rocker Arms Included: No
- Rocker Arm Studs/Bolts Included: Yes
- Material: Aluminum
- Assembled: Yes
- Intake Runner Volume: 190 CCM
- Head Casting Number: 31-6162
- Guide Plates Included: Yes
- Guide Plate Material: Chromoly Steel
- Grade Type: Performance
- Deck Height: 9.206 IN
- Cylinder Head Gasket Included: No
- Combustion Chamber Volume: 60 CCM
- Valves Included: Yes
- Valve Stem Diameter: 0.3438 IN
- Seat Material: Ductile Iron
- Push Rod Diameter: (Suggested) 0.3125 IN
- Exhaust Port Location: Standard
- Valve Spring Diameter: 1.55 IN
- Seat Angle: Exhaust 45 deg/Intake 45 deg
- Series: Performer RPM
- Family: Performer RPM
- Guide Material: Manganese Bronze
- Quantity: Sold Individually
- Deck Thickness: 0.625 IN
- Guide Plate Material: Hardened Steel
- Valve Lock Material: Steel
Weight: 35.4 lb
Country of Origin: United States
