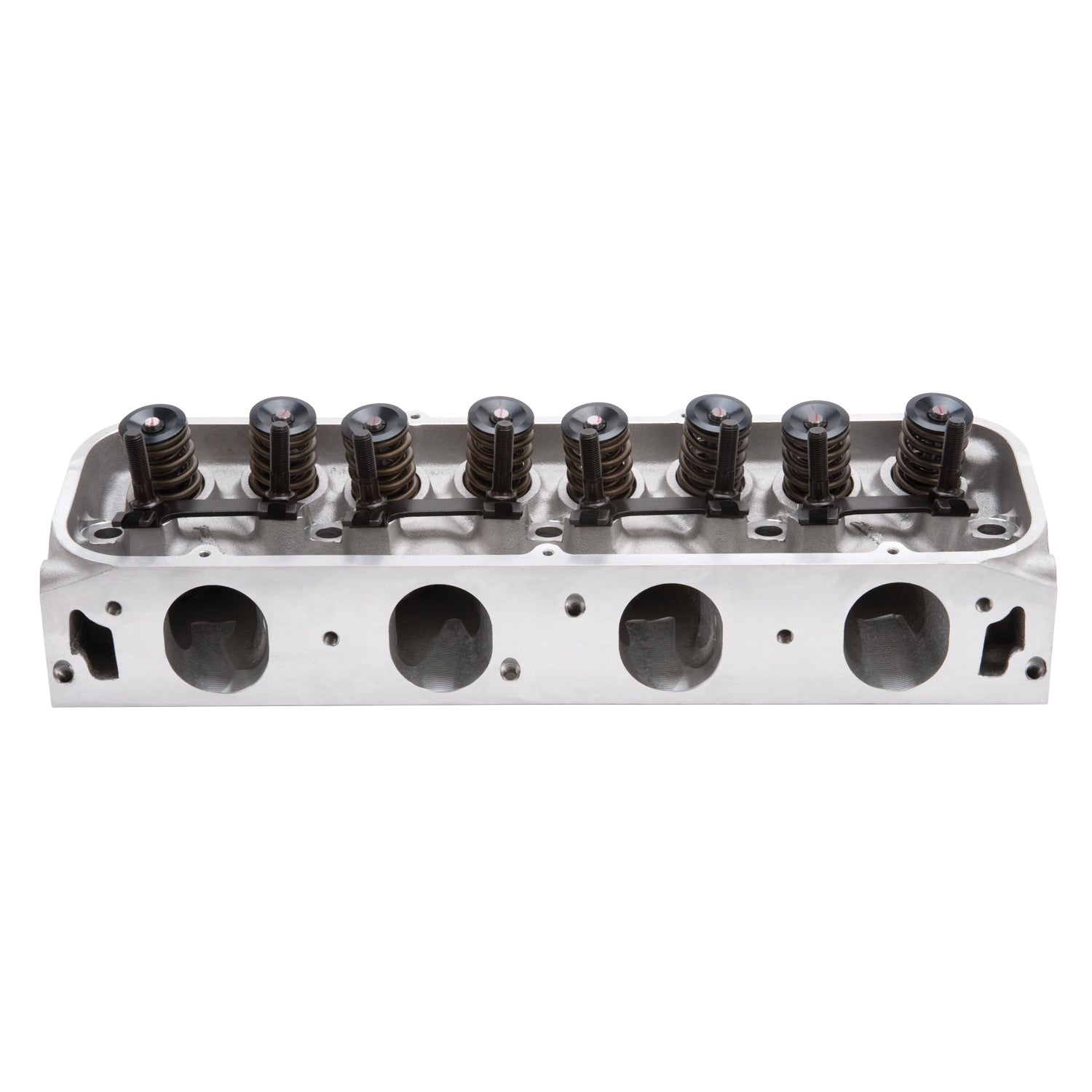

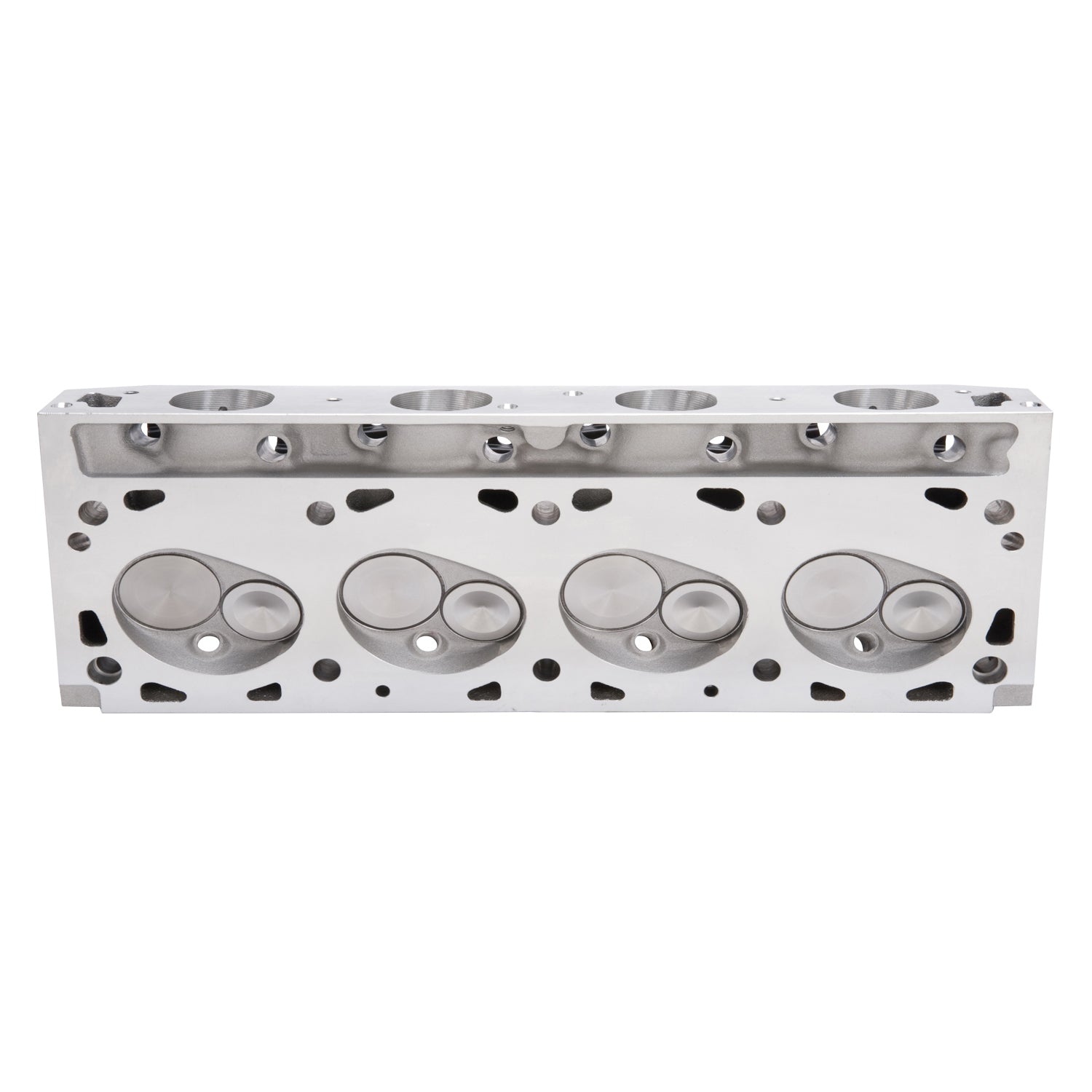

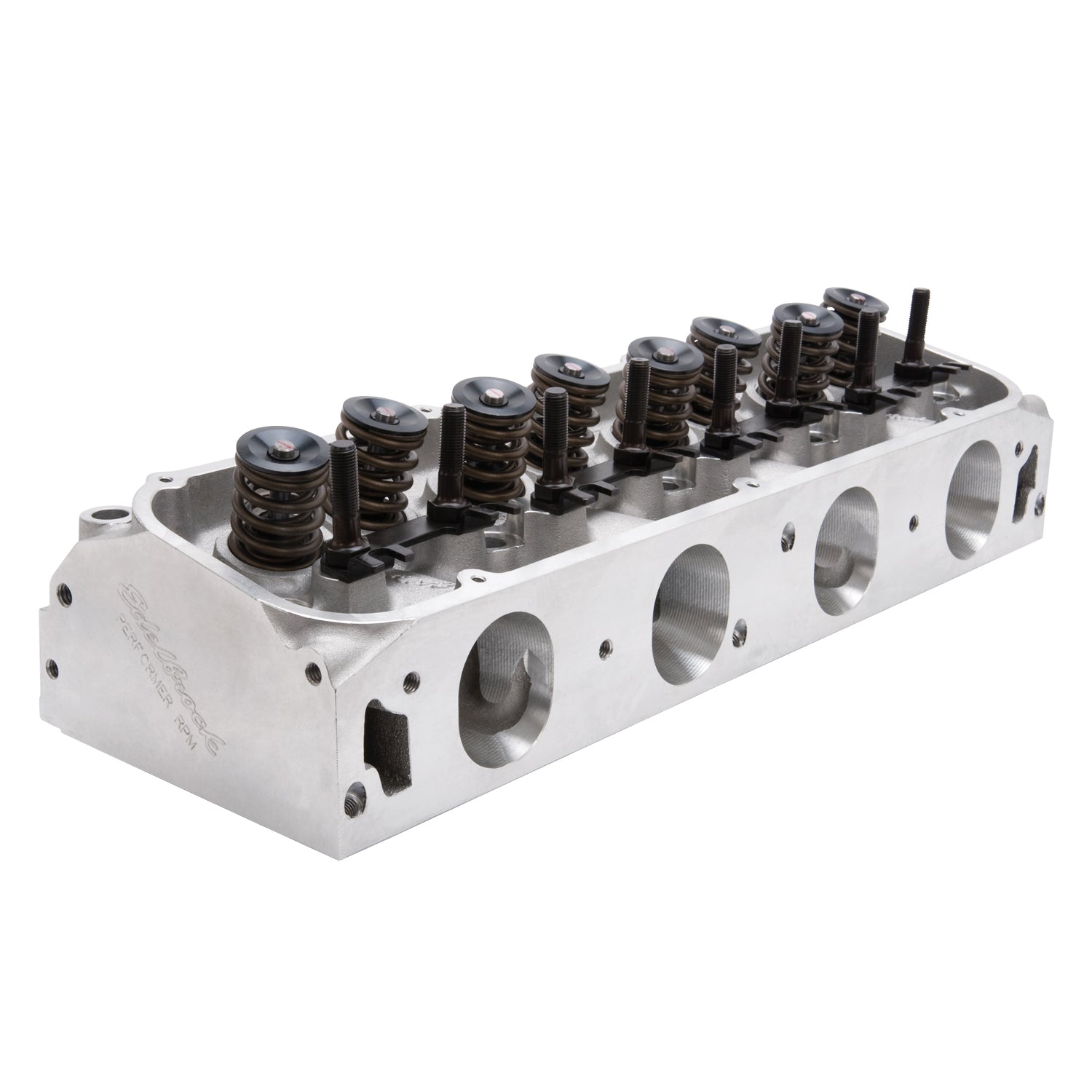

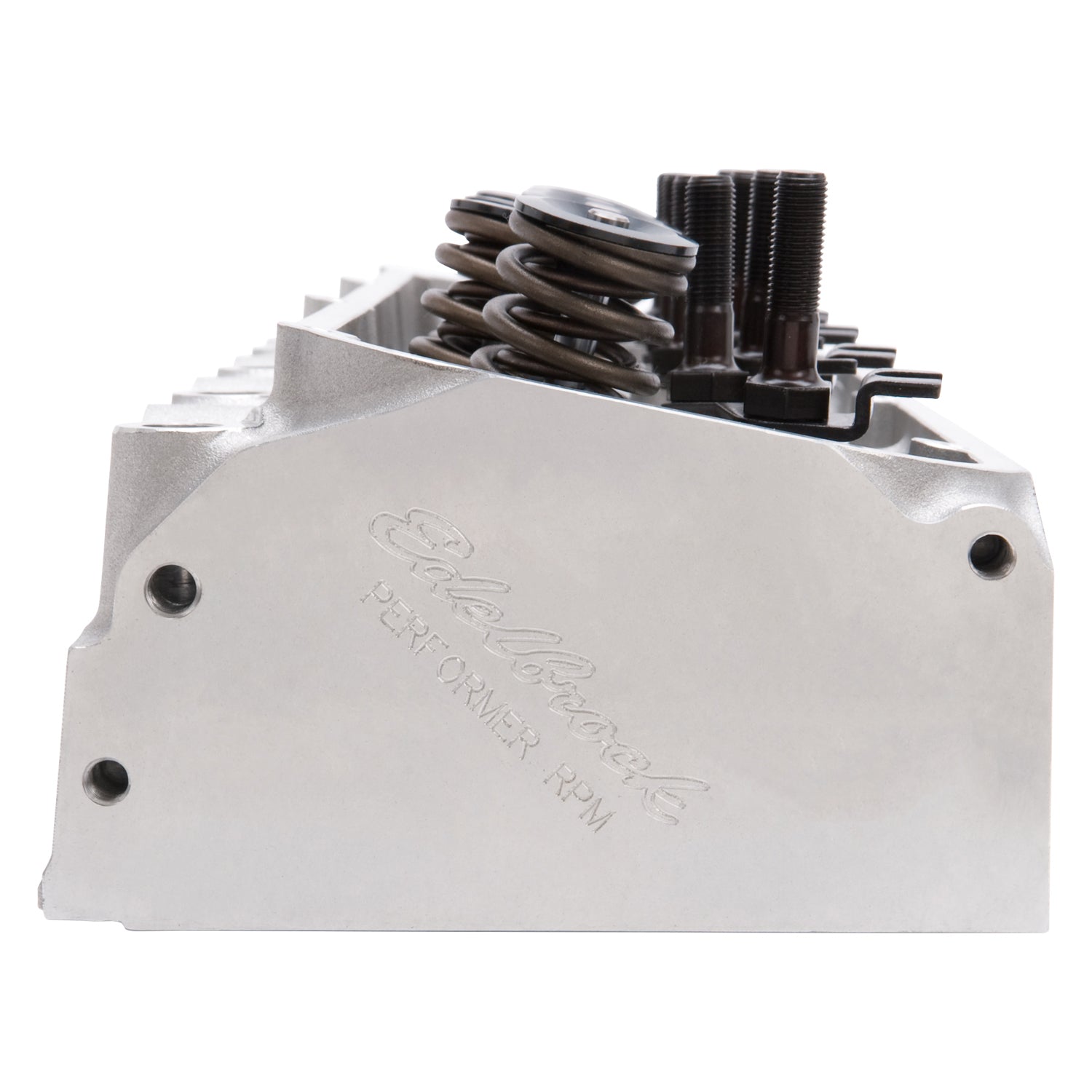

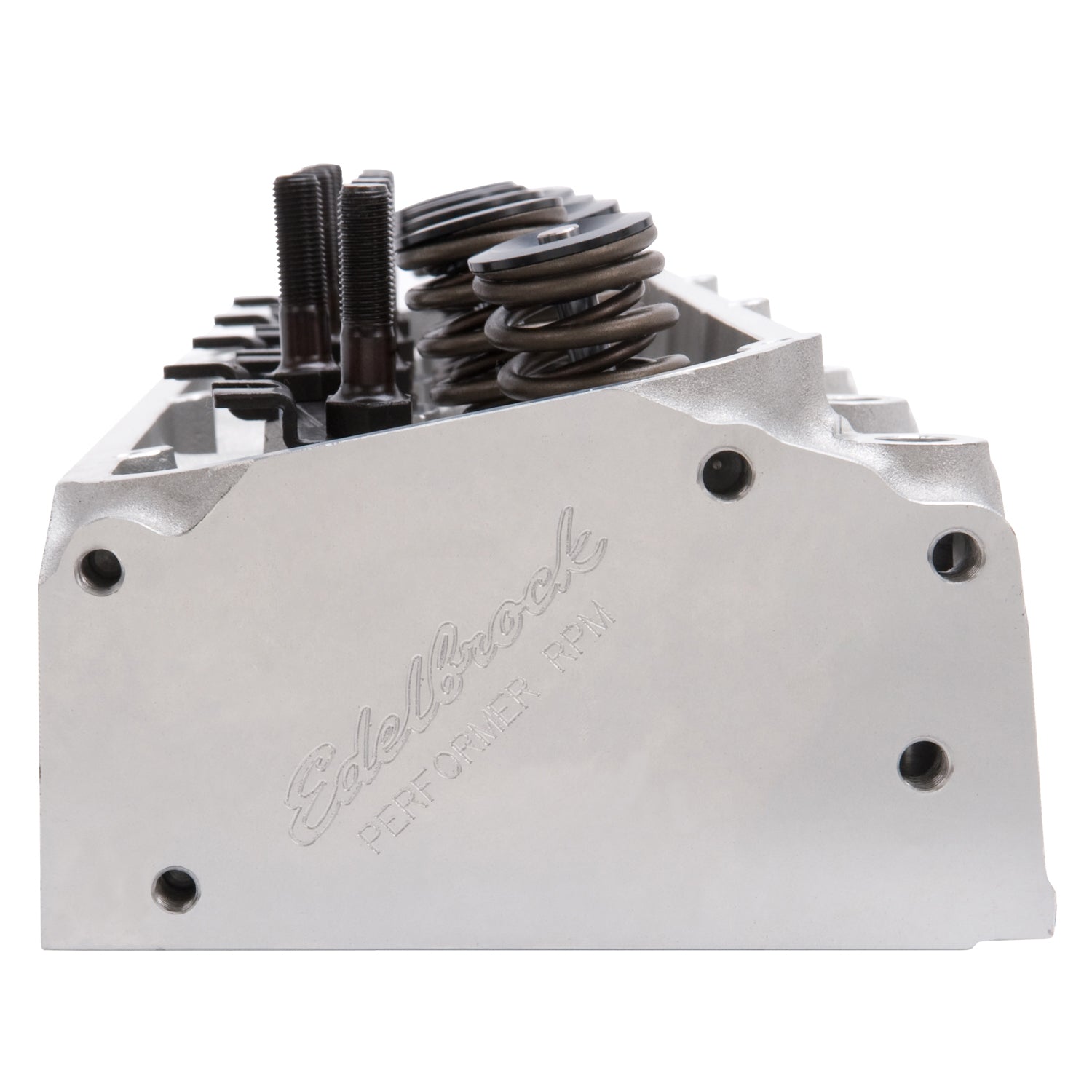

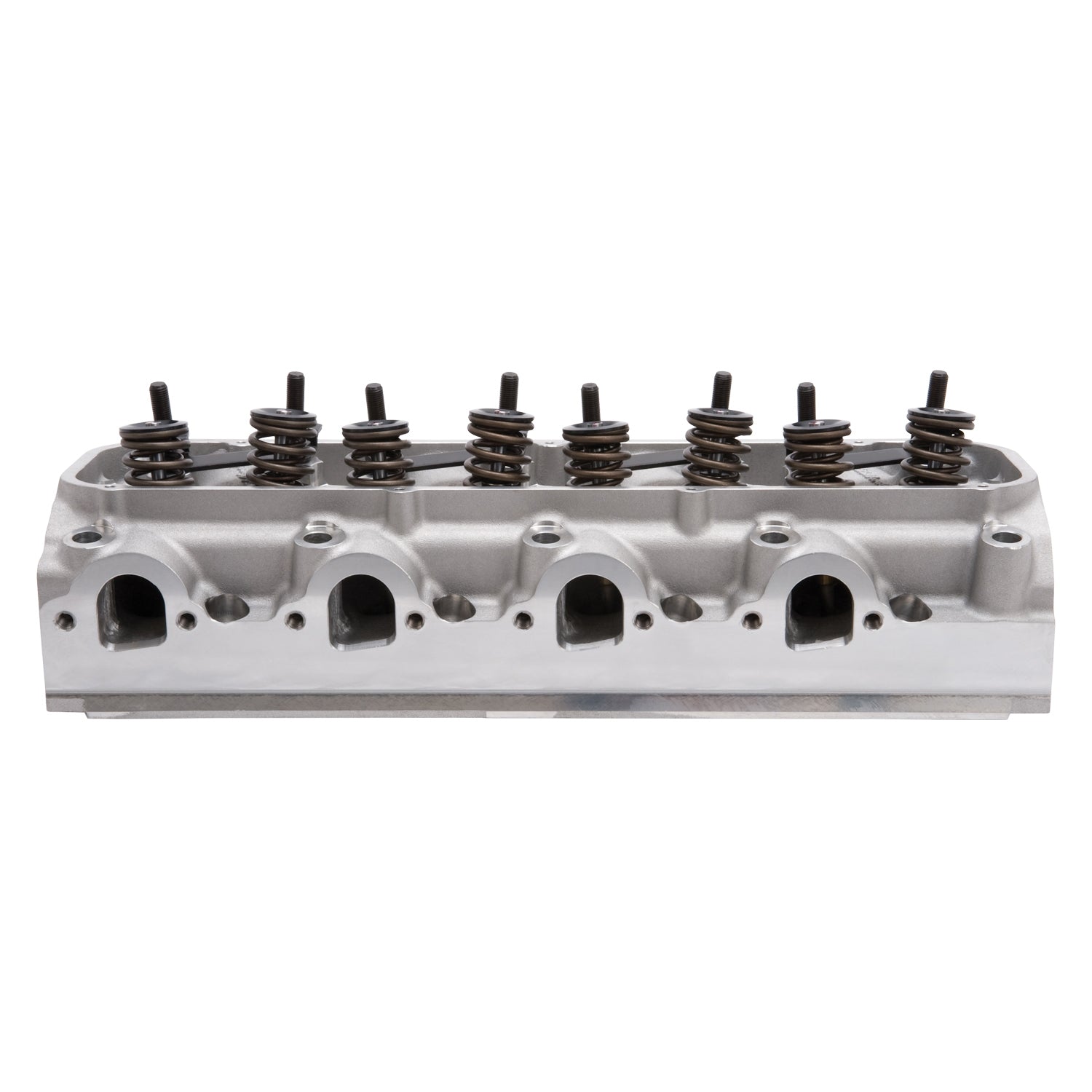

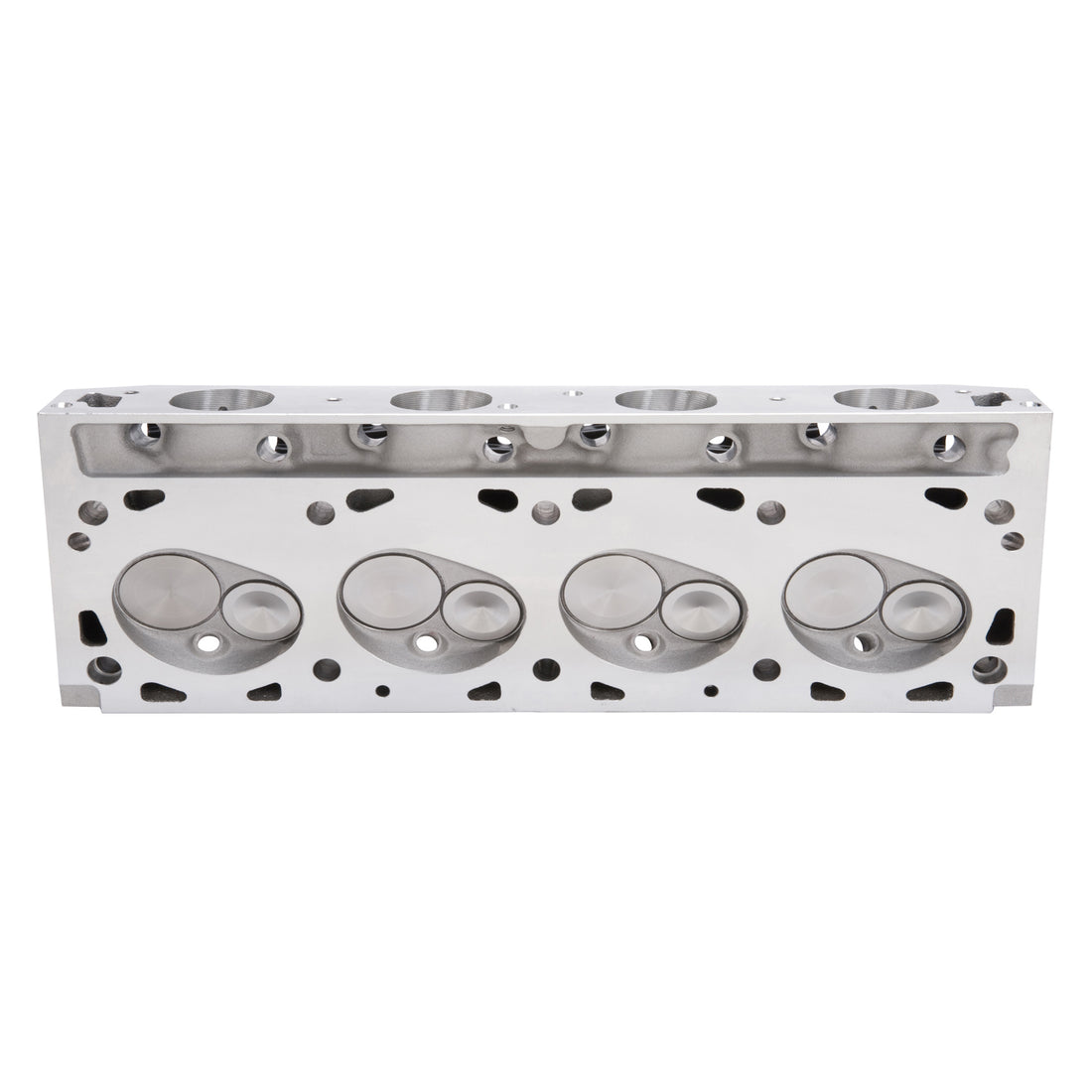

Edelbrock 61649 RPM Big-Block Ford 460 CJ 75cc Cylinder Head
Product Availability Request
Fill the form and our team will contact you.
Edelbrock part #61649 Performer RPM CJ cylinder heads are designed for use with 1968-87 429/460 Fords and SVO 514 engine applications.
The Edelbrock #61649 Performer RPM CJ cylinder head is designed for use with 1968-87 429/460 Fords and SVO 514 engine applications. The Edelbrock #61649 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications
| Exhaust Runner Volume | 100 CCM |
| Valve Stem Diameter | 0.3438 IN |
| Camshaft Type | Flat Tappet |
| Push Rod Diameter | (Suggested) 0.375 IN |
| Rocker Arm Stud Diameter | 0.4375 IN |
| Deck Thickness | 0.625 IN |
| Valve Spring Maximum Lift | 0.700 IN |
| Valve Spring Diameter | 1.55 IN |
| Exhaust Valve Diameter | 1.76 IN |
| Deck Height | 10.322 IN |
| Intake Valve Diameter | 2.19 IN |
| Head Casting Number | 31-6067 |
| Intake Runner Volume | 310 CCM |
| Horsepower | 550-750 HJ |
| Combustion Chamber Volume | 75 CCM |
| Material | Aluminum |
| Valve Lock Material | Chromoly Steel |
| Guide Plate Material | Chromoly Steel |
| Construction Type | Complete |
| Seat Material | Ductile Iron |
| Seat Angle | Exhaust 45 deg/Intake 45 DD |
| Guide Plate Material | Hardened Steel |
| Guide Material | Manganese Bronze |
| Rocker Arms Included | No |
| Cylinder Head Gasket Included | No |
| Valve Cover Gasket Included | No |
| Mounting Hardware Included | No |
| CNC Ported | No |
| EGR Port | No |
| Grade Type | Performance |
| Family | Performer RPM |
| Series | Performer RPM |
| Quantity | Sold Individually |
| Exhaust Port Location | Standard |
| Valve Lock Material | Steel |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Spring Retainers Included | Yes |
| Valve Locks Included | Yes |
| Rocker Arm Studs/Bolts Included | Yes |
| Assembled | Yes |
| Guide Plates Included | Yes |
| Valve Springs Included | Yes |
| Valve Seals Included | Yes |
| Valves Included | Yes |
| Retainer Included | Yes |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
