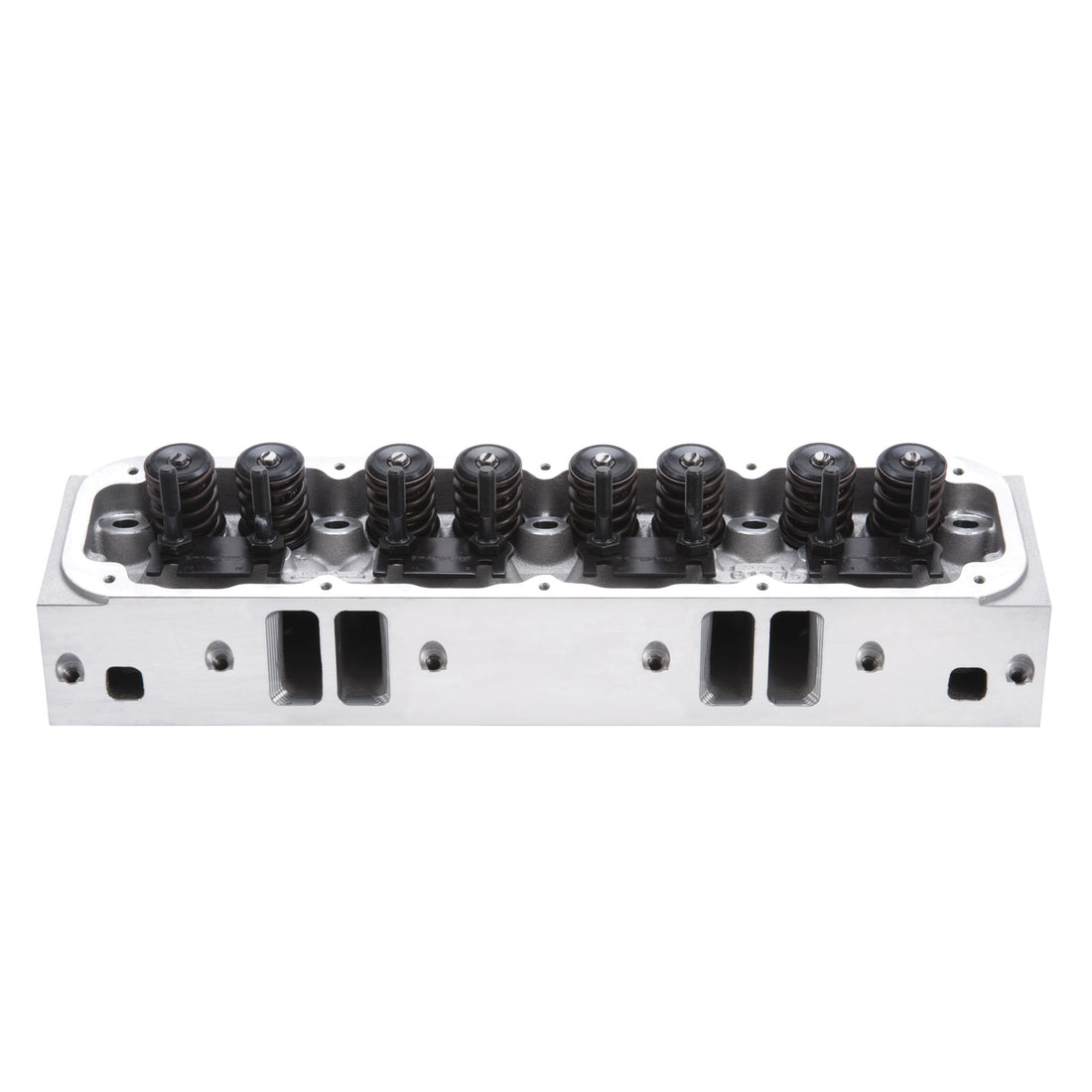

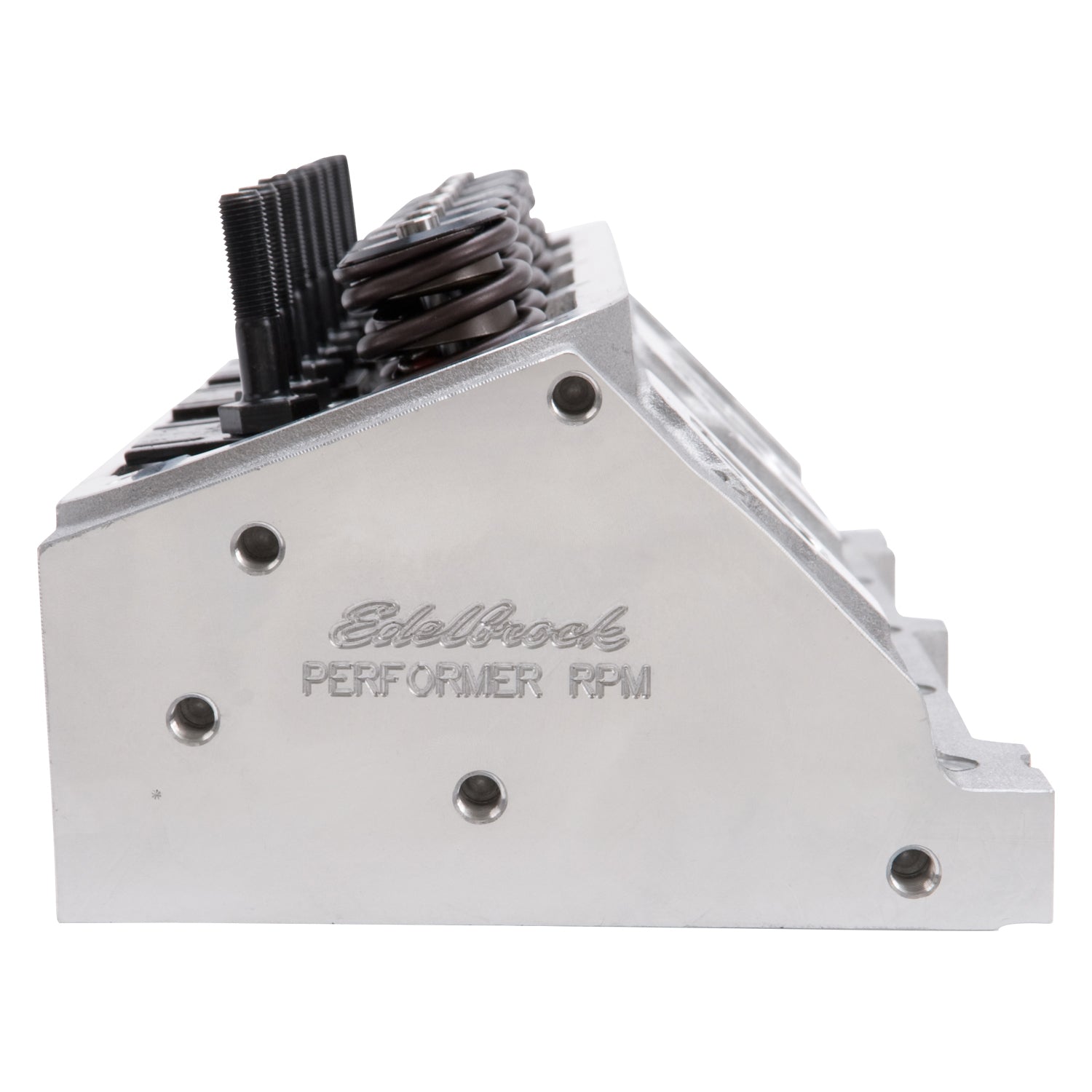

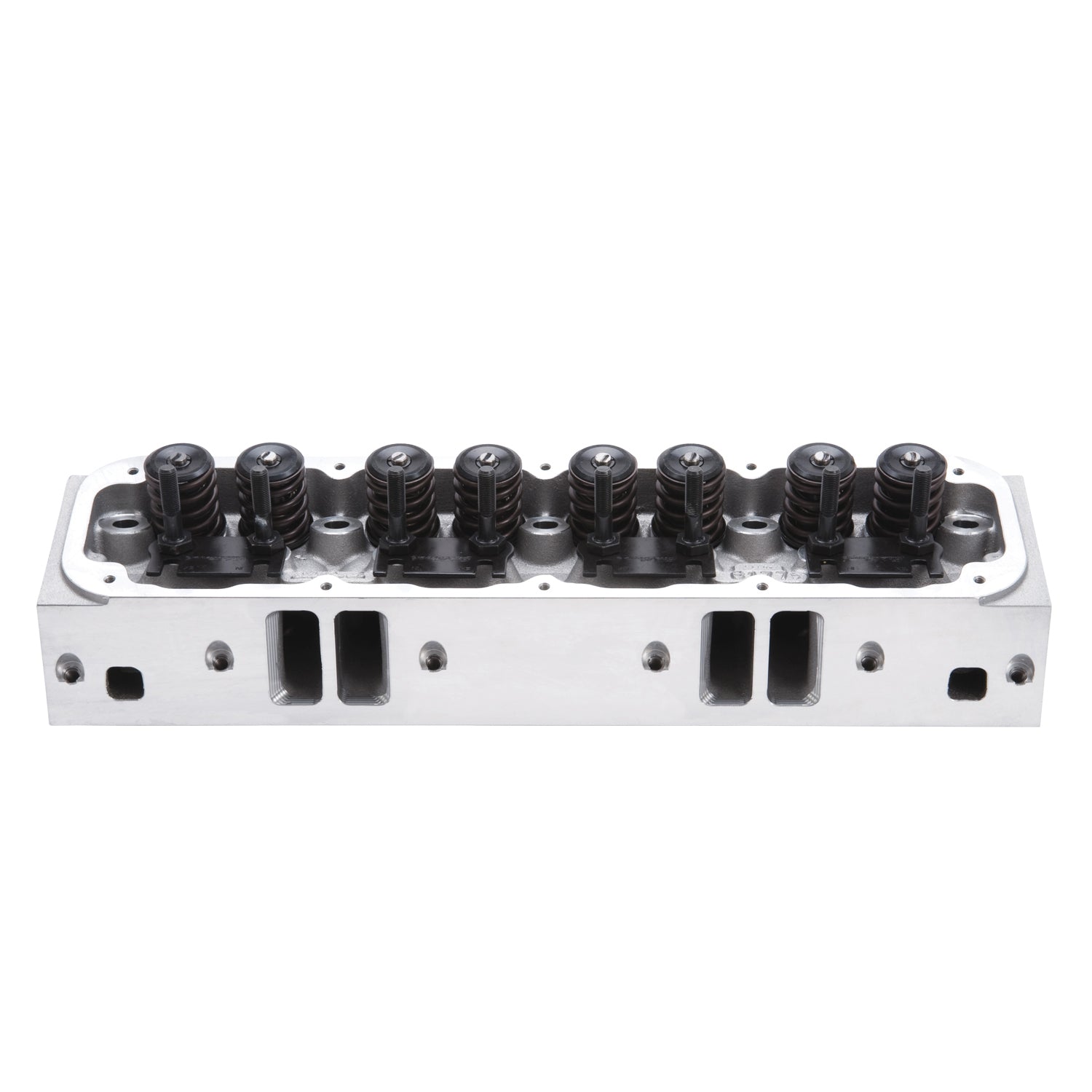

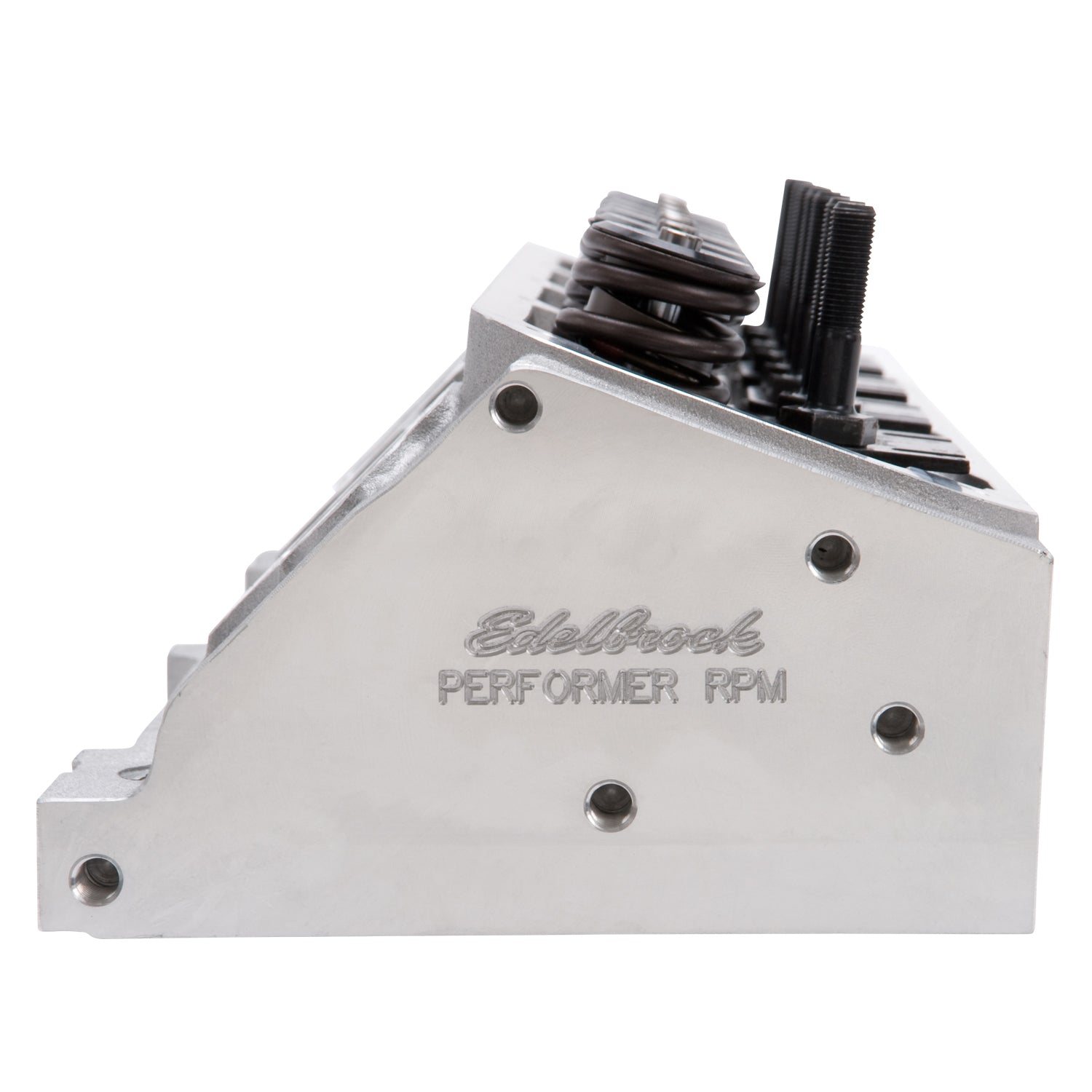

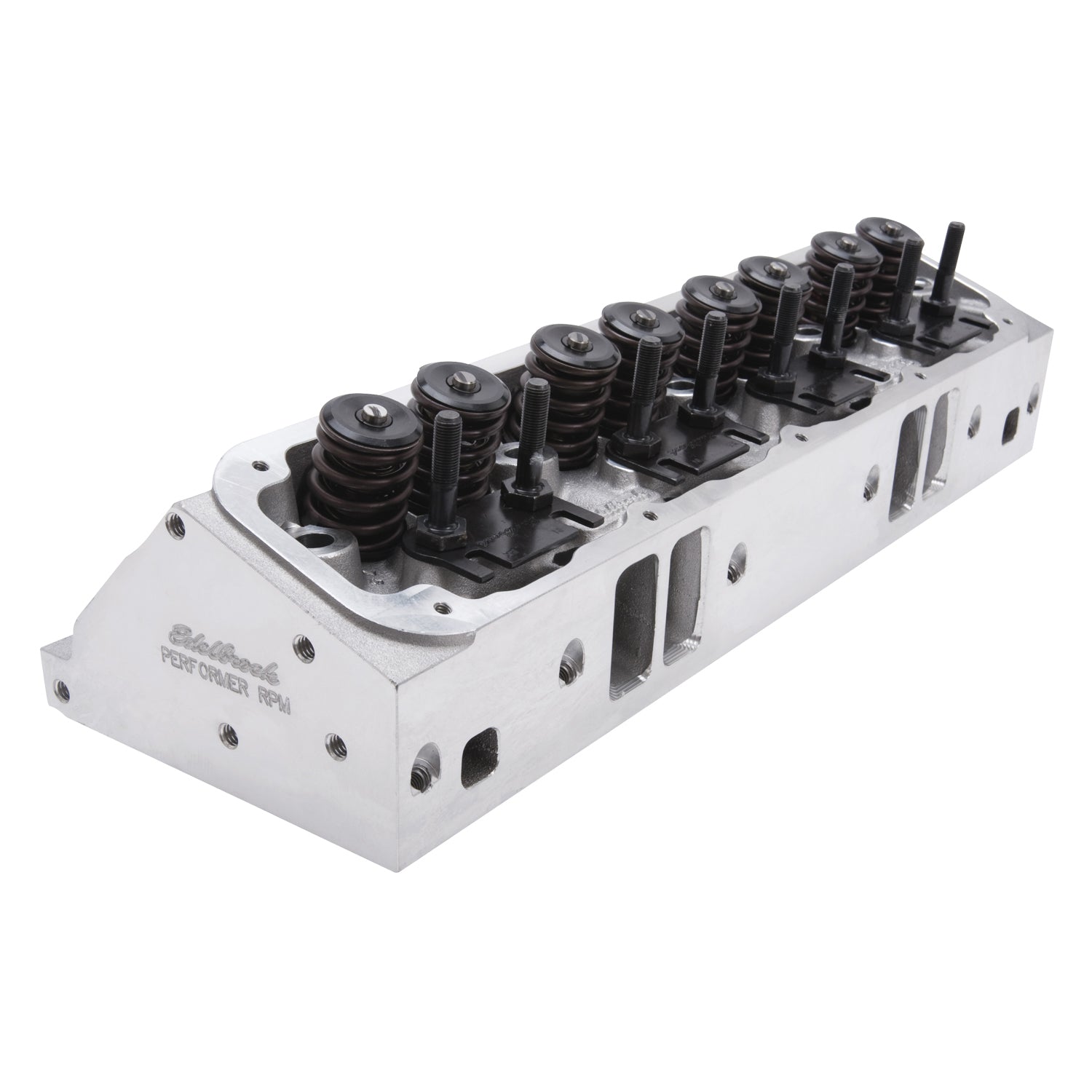

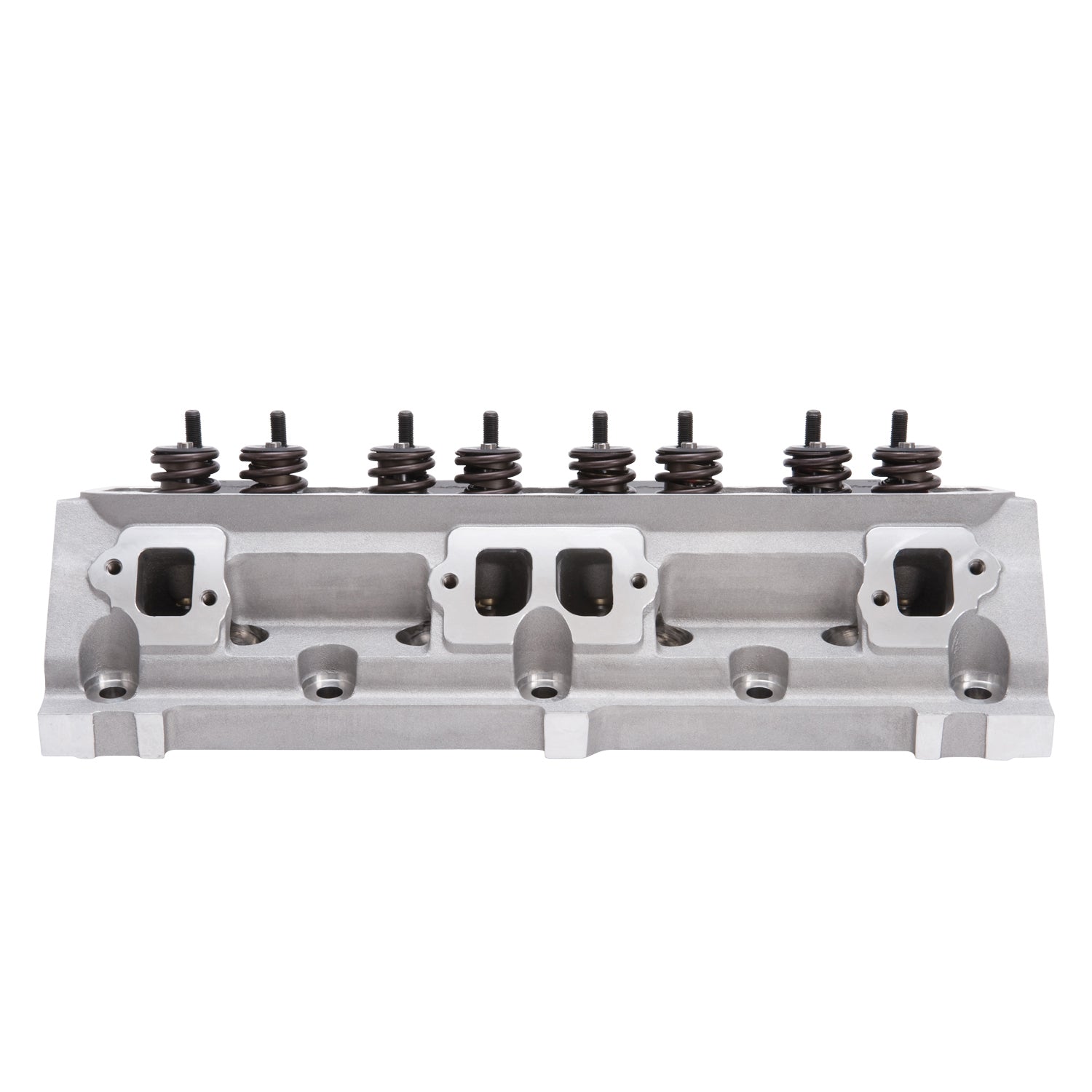

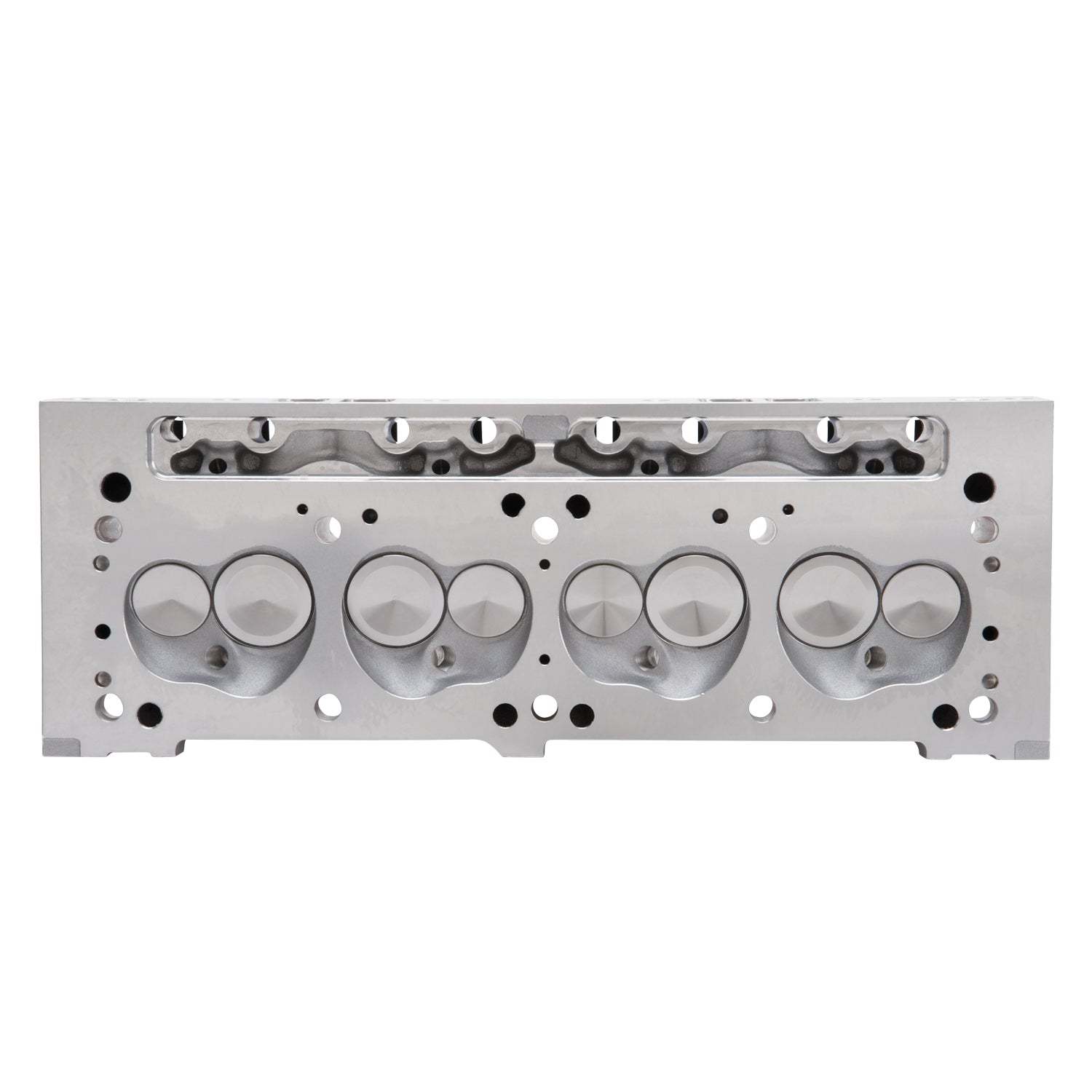

Edelbrock part #61775 Performer RPM cylinder heads are designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications.
The Edelbrock #61775 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications
| Quantity | Sold Individually |
| Retainer Included | Yes |
| Exhaust Valve Diameter | 1.60 IN |
| Push Rod Diameter | (Suggested) 0.3125 IN |
| Valve Stem Diameter | 0.3438 IN |
| Rocker Arm Stud Diameter | 0.375 IN |
| Valve Spring Maximum Lift | 0.580 IN |
| Deck Thickness | 0.625 IN |
| Valve Spring Diameter | 1.46 IN |
| Intake Runner Volume | 176 CCM |
| Valve Angle | 18 DD |
| Intake Valve Diameter | 2.02 IN |
| Head Casting Number | 31-6177 |
| Horsepower | 350-500 HJ |
| Combustion Chamber Volume | 58 CCM |
| Exhaust Runner Volume | 75 CCM |
| Deck Height | 9.6 IN |
| Material | Aluminum |
| Valve Lock Material | Chromoly Steel |
| Guide Plate Material | Chromoly Steel |
| Construction Type | Complete |
| Seat Material | Ductile Iron |
| Seat Angle | Exhaust 45 deg/Intake 45 DD |
| Guide Plate Material | Hardened Steel |
| Camshaft Type | Hydraulic Roller |
| Guide Material | Manganese Bronze |
| Rocker Arms Included | No |
| Cylinder Head Gasket Included | No |
| Valve Cover Gasket Included | No |
| Mounting Hardware Included | No |
| CNC Ported | No |
| EGR Port | No |
| Grade Type | Performance |
| Family | Performer RPM |
| Series | Performer RPM |
| Exhaust Port Location | Standard |
| Valve Lock Material | Steel |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Spring Retainers Included | Yes |
| Valve Locks Included | Yes |
| Rocker Arm Studs/Bolts Included | Yes |
| Assembled | Yes |
| Guide Plates Included | Yes |
| Valve Springs Included | Yes |
| Valve Seals Included | Yes |
| Valves Included | Yes |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
