Edelbrock 7566 RPM Air-Gap Big Block Ford 460 Intake Manifold

Name: Edelbrock 7566 RPM Air-Gap Big Block Ford 460 Intake Manifold
Brand: Edelbrock
SKU: 7566
Price: 569.95 USD
Availability: InStock

$569.95 USD

In Stock - Fast Shipping

Free shipping over $80 To the USA

Warranty 12 Months

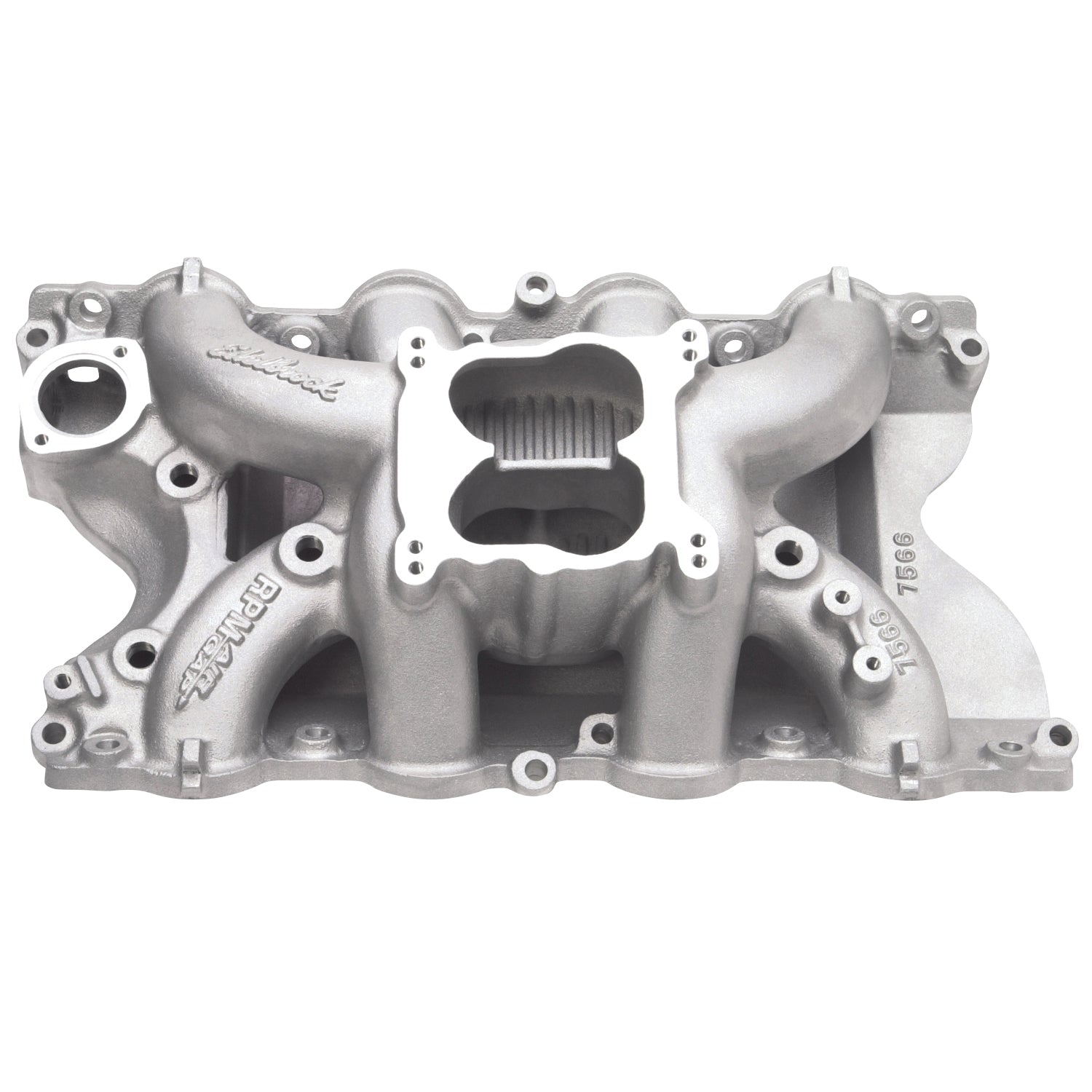

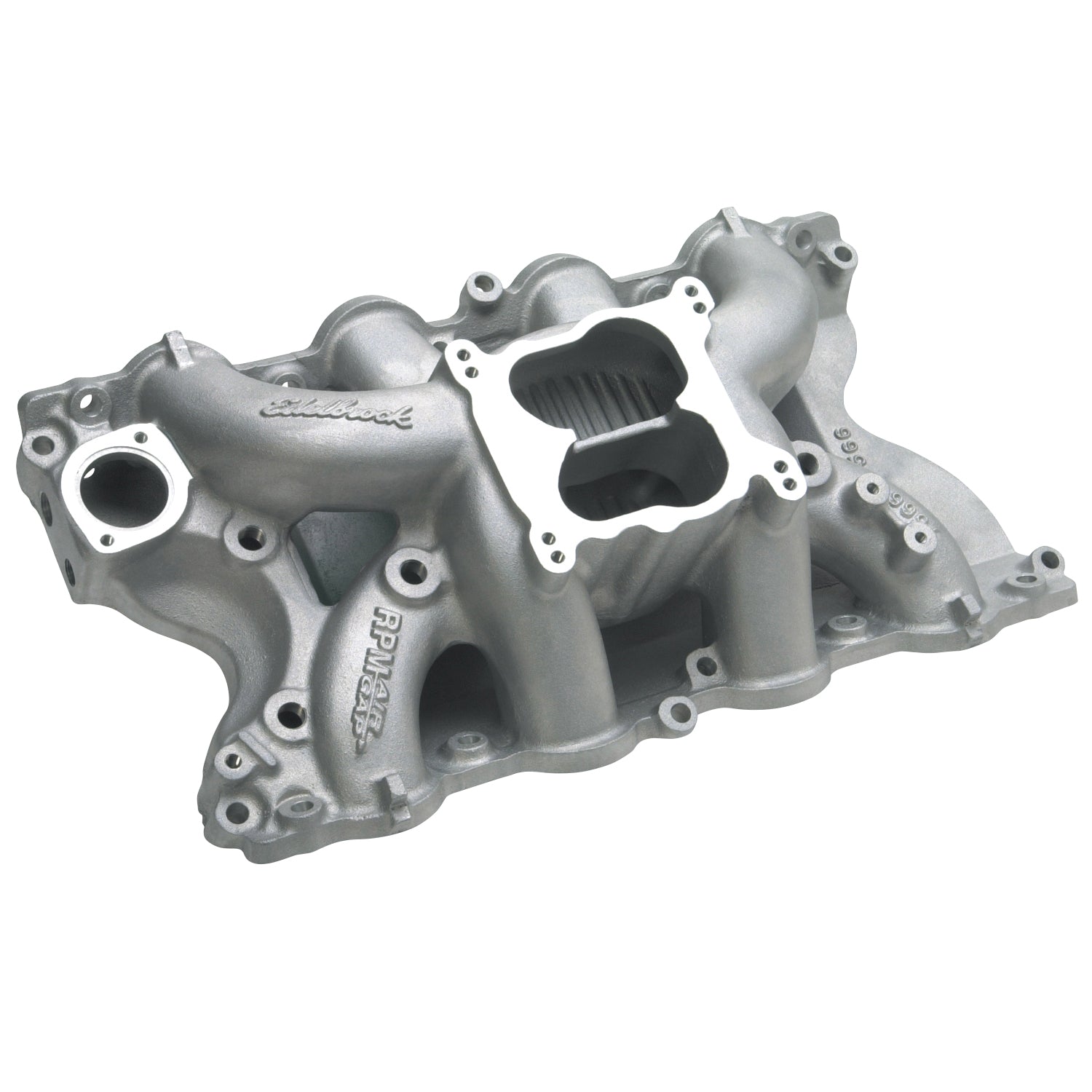

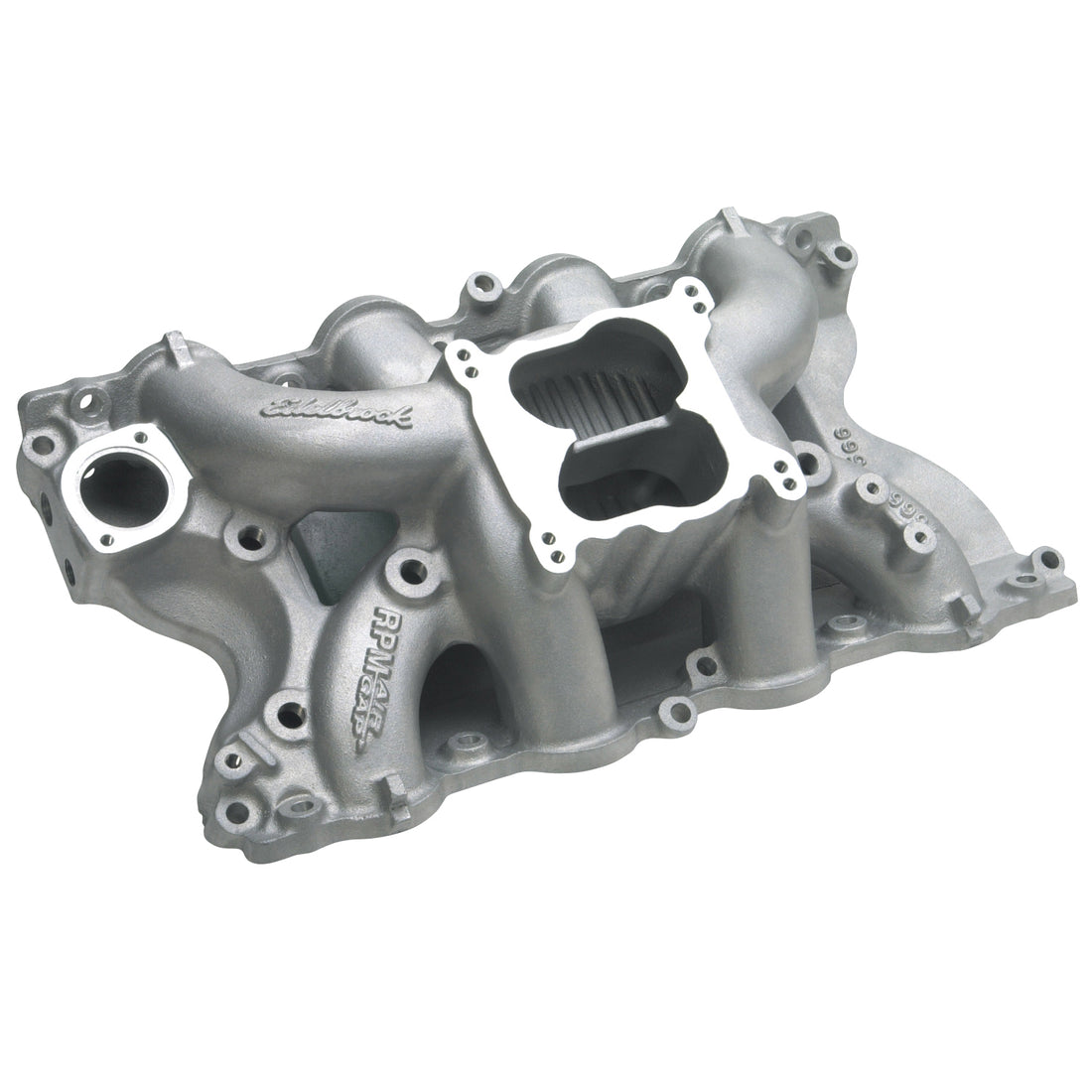

Edelbrock RPM Air-Gap 460 Intake Manifold for Ford 429/460 Big-Block V8

Edelbrock part #7566 RPM Air-Gap 460 intake manifold is designed for street and high performance 429/460+ c.i.d. Ford V8's with standard or Cobra Jet heads. The RPM Air-Gap 460 incorporates the same race-winning design that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. It also features a larger cross sectional area (3.3 square inches) than the Performer RPM 460 manifold #7166 intake manifold for even more power in high performance and large displacement engines. The carb mount flange accepts both square-bore and spread-bore carbs for Cobra Jet applications. Will not fit 1988 and later models. Note: Early Cobra Jets came with Quadrajets.

Specifications

CNC Ported	No
Grade Type	Performance
Front Maximum Height	4.810 IN
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Flange Type	4150
Basic Operating RPM Range	1500-6500 R3
Vehicle Model	Ford
EGR Port	No
Series	RPM Air-Gap
Single Or Dual Plane Type	Dual
Material	Aluminum
Finish	Satin
Rear Maximum Height	6.150 IN
Gasket Or Seal Included	No
Center Maximum Height	5.480 IN

⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Warranty: 12 Months

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
