Edelbrock 77199 Victor Jr Small-Block Ford Cylinder Head Mechanical Roller Camshaft
Product Availability Request
Fill the form and our team will contact you.

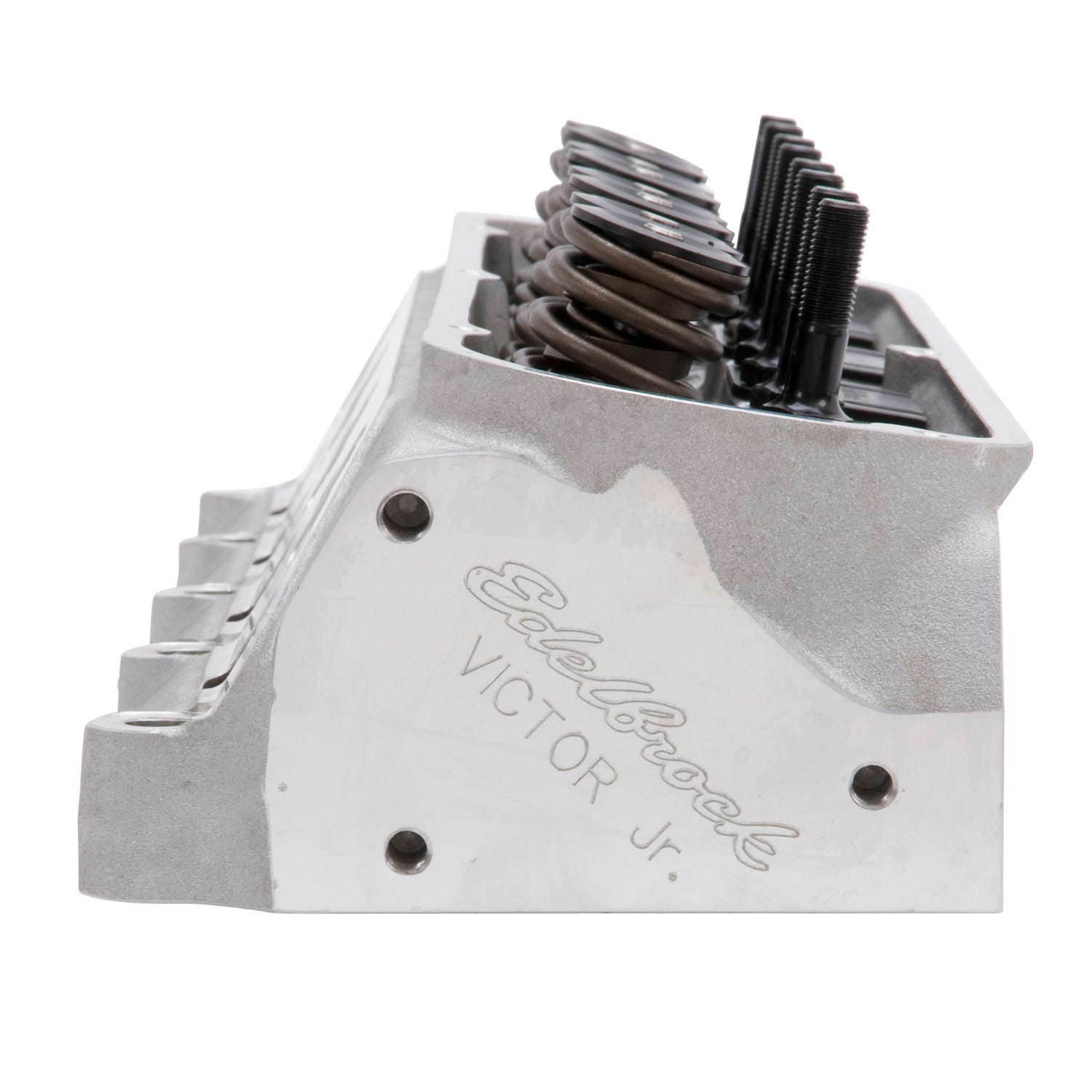

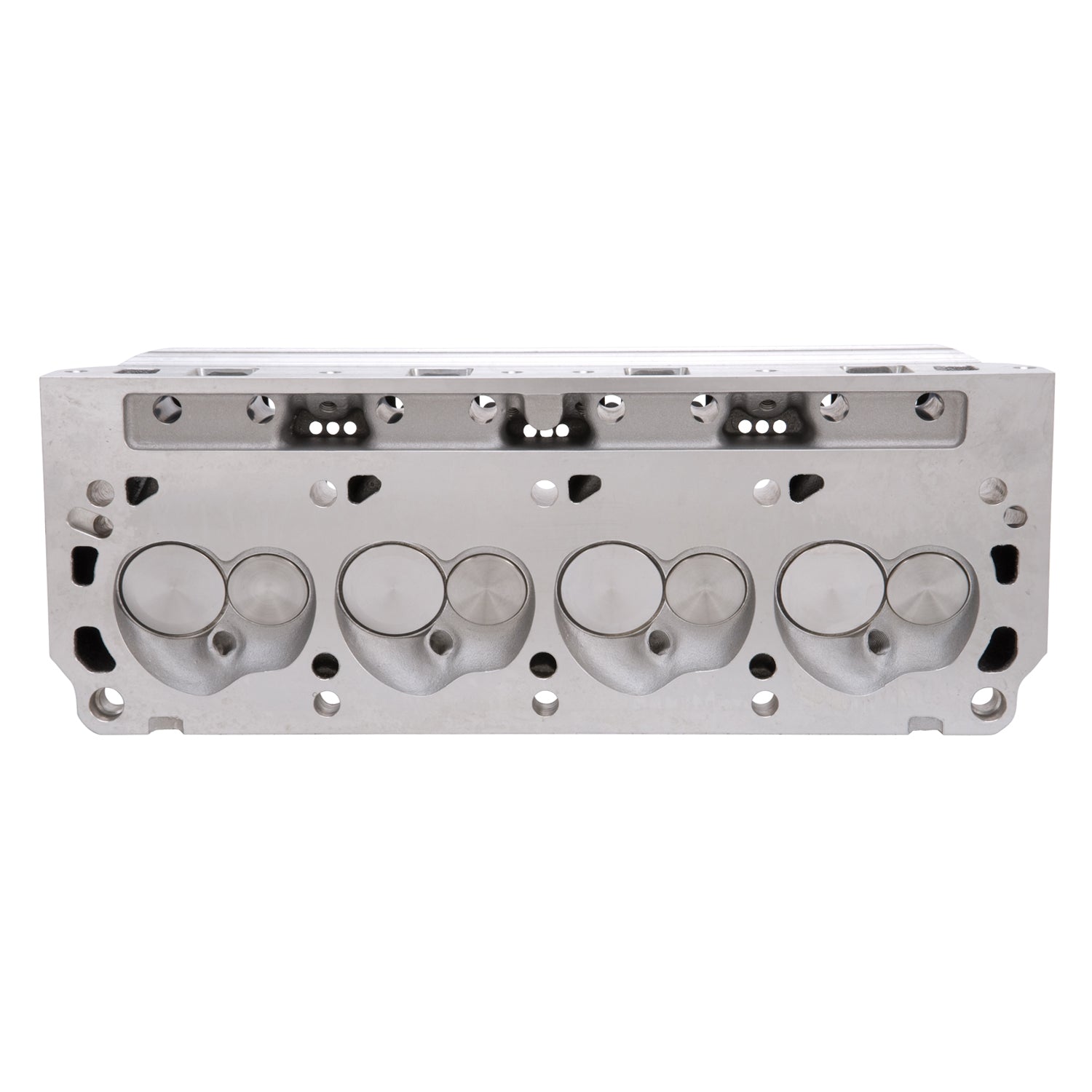

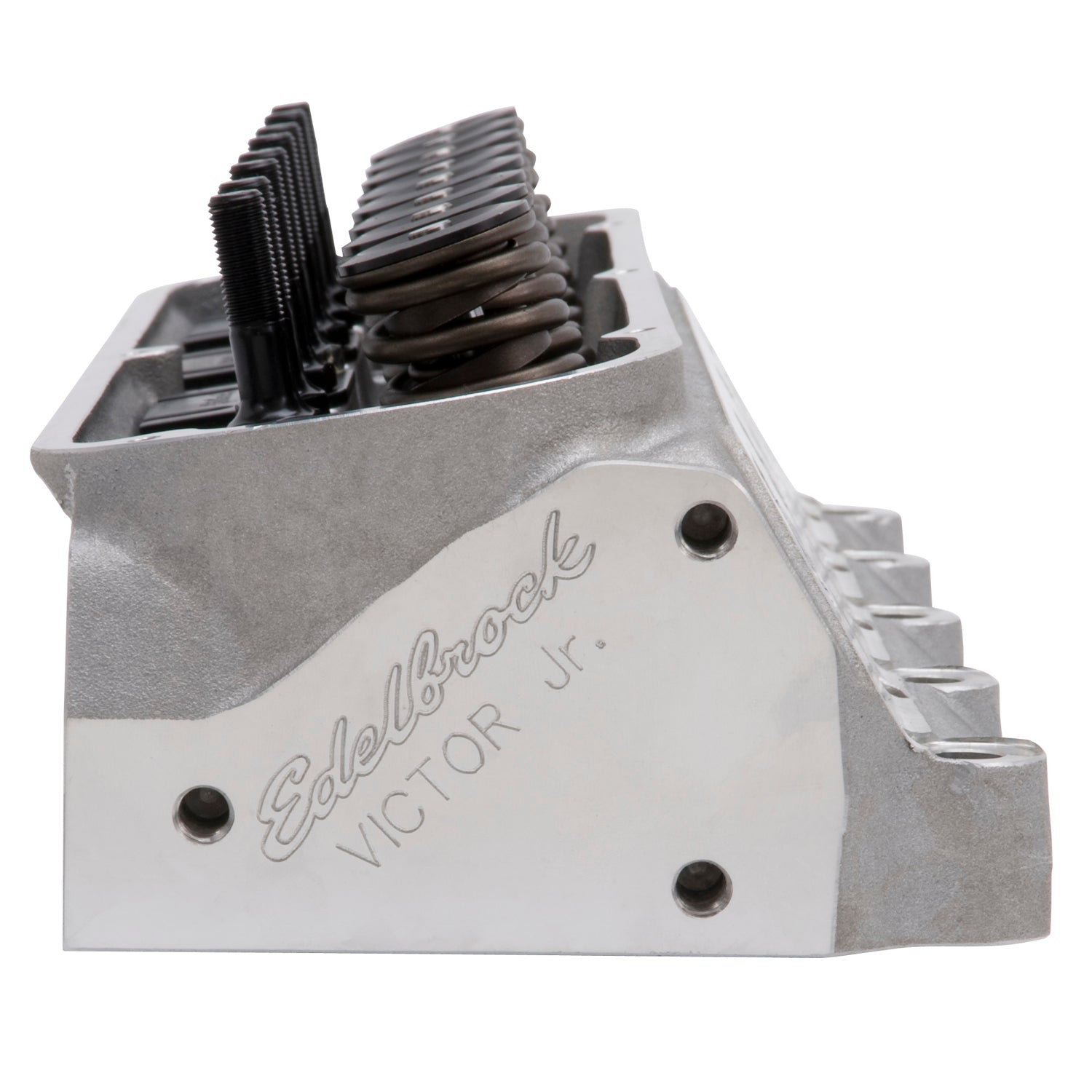

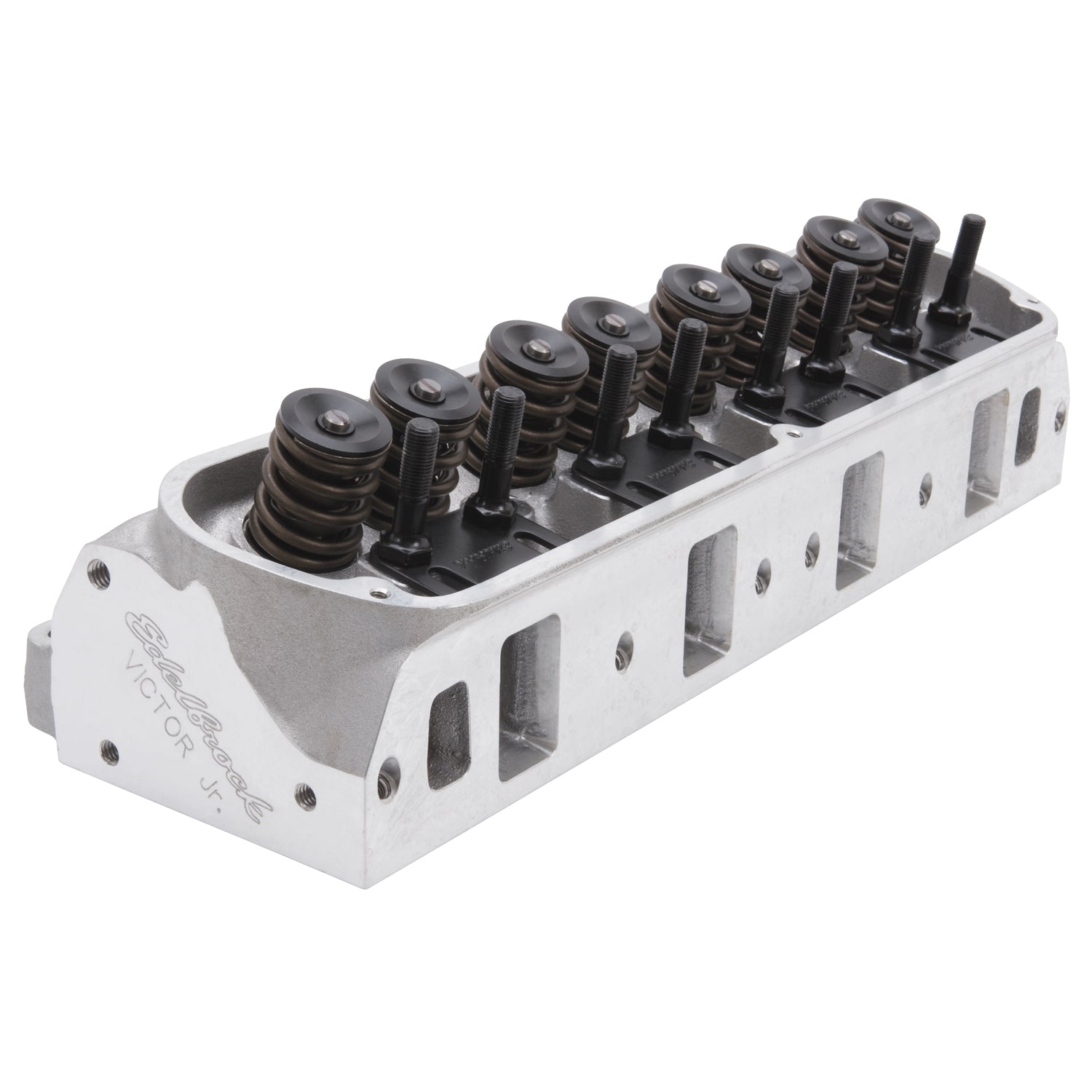

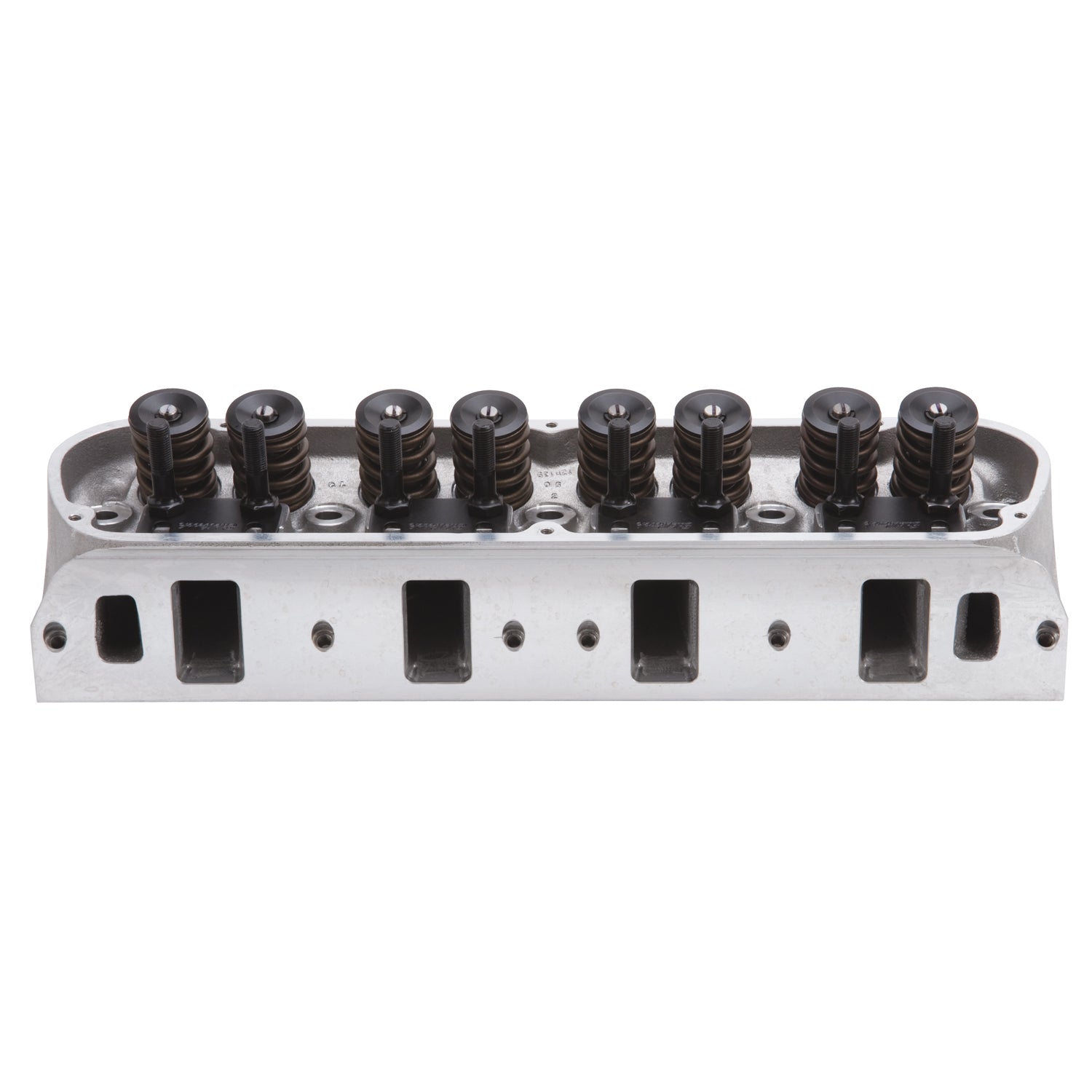

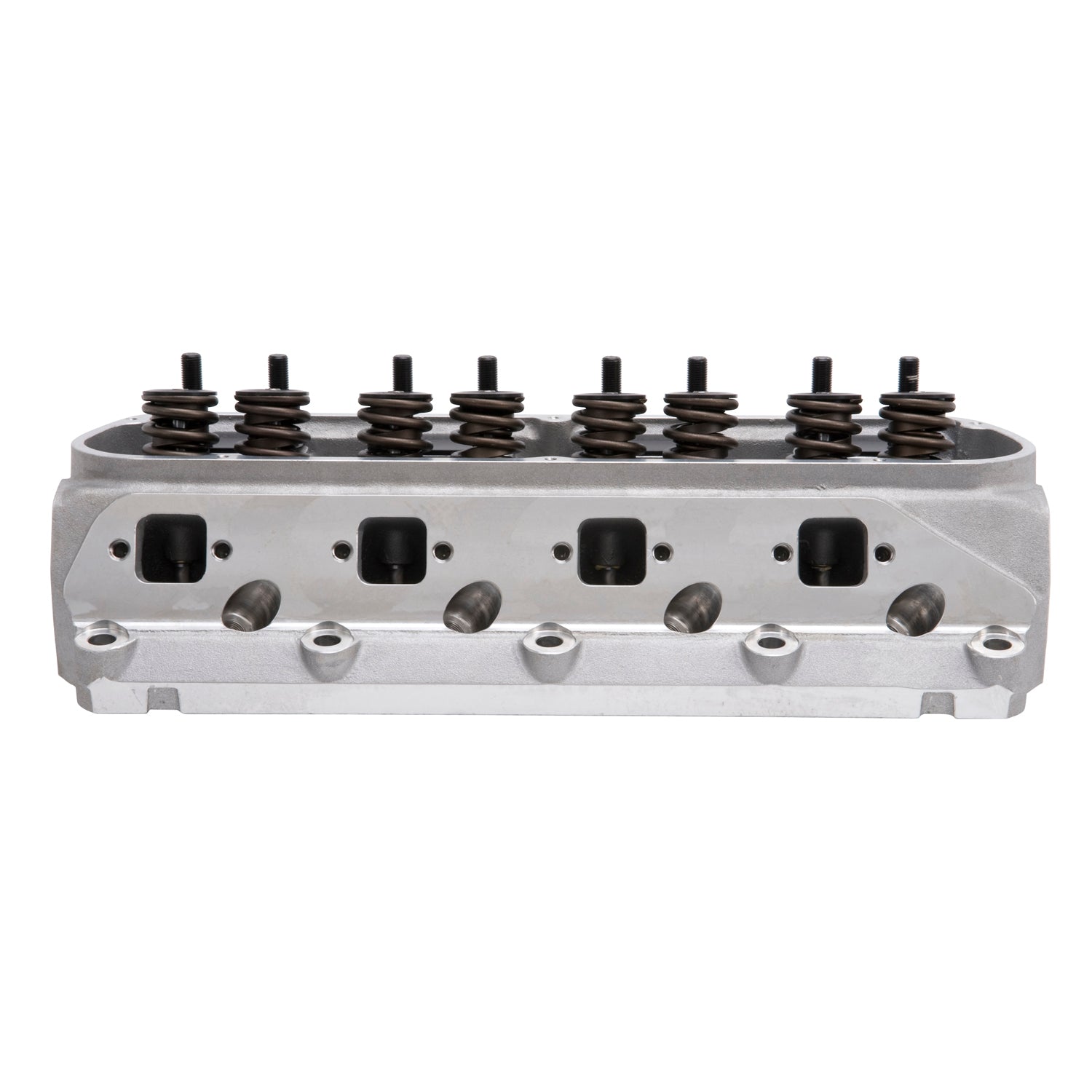

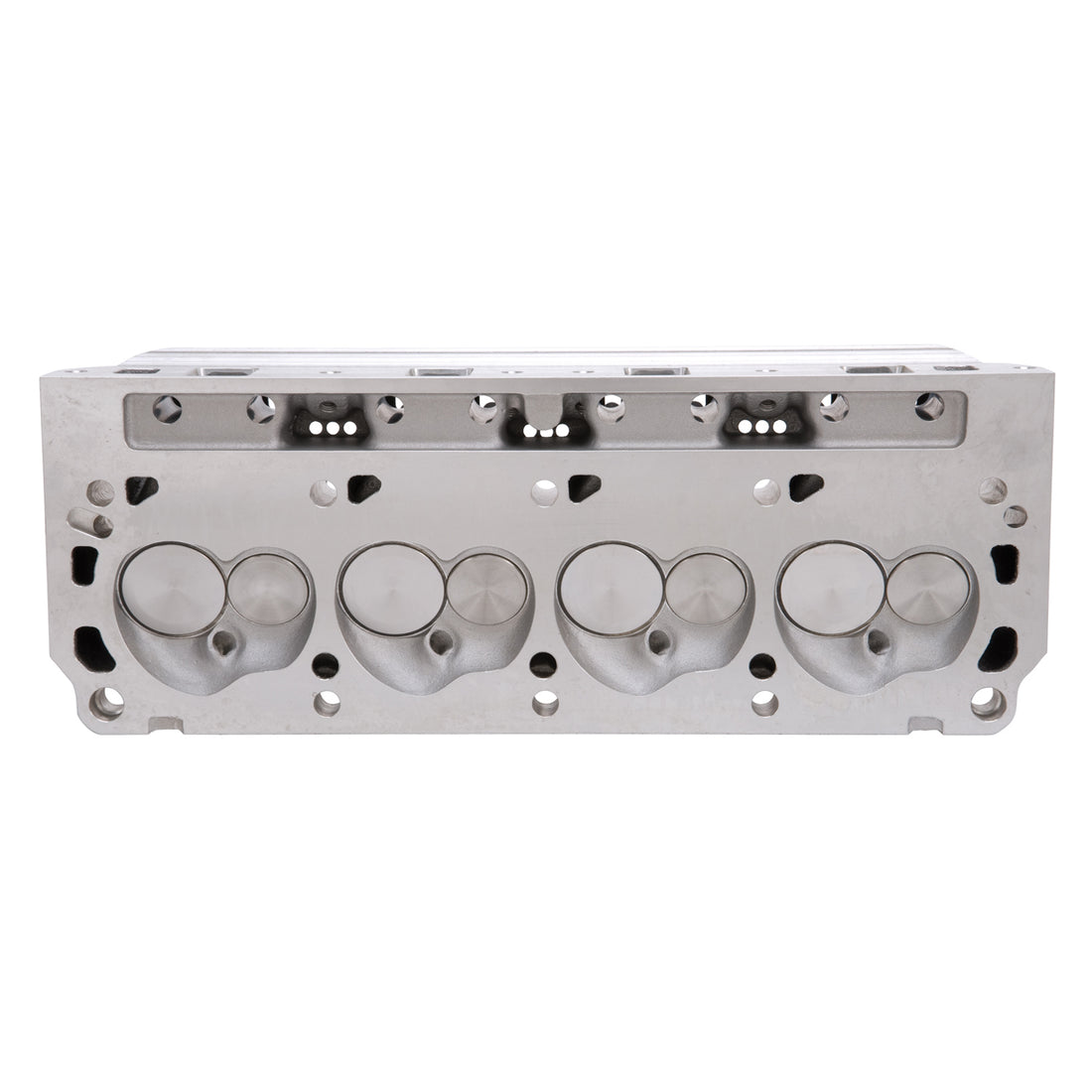

Edelbrock part #77199 Victor Jr. 20 Degree is a complete cylinder head designed for S/B Ford 289-351W engines. This head has the potential of 500+ Horsepower out-of-the-box using a stock valve train geometry.
The Edelbrock 77199 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20deg - 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing the head
Specifications
| Valve Stem Diameter | 0.3438 IN |
| Seat Material | Ductile Iron |
| Push Rod Diameter | (Suggested) 0.3125 IN |
| Exhaust Port Location | +.125 |
| Rocker Arm Stud Diameter | 0.4375 IN |
| Deck Thickness | 0.625 IN |
| Valve Spring Maximum Lift | 0.670 IN |
| Combustion Chamber Volume | 60 CCM |
| Exhaust Runner Volume | 75 CCM |
| Deck Height | 9.5 IN |
| Material | Aluminum |
| Valve Lock Material | Chromoly Steel |
| Guide Plate Material | Chromoly Steel |
| Construction Type | Complete |
| Seat Angle | Exhaust 45 deg/Intake 45 DD |
| Guide Plate Material | Hardened Steel |
| Guide Material | Manganese Bronze |
| Camshaft Type | Mechanical Roller |
| Rocker Arms Included | No |
| Cylinder Head Gasket Included | No |
| Valve Cover Gasket Included | No |
| Mounting Hardware Included | No |
| CNC Ported | No |
| EGR Port | No |
| Grade Type | Performance |
| Quantity | Sold Individually |
| Valve Lock Material | Steel |
| Family | Victor Jr. |
| Series | Victor Jr. |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Spring Retainers Included | Yes |
| Valve Locks Included | Yes |
| Rocker Arm Studs/Bolts Included | Yes |
| Assembled | Yes |
| Guide Plates Included | Yes |
| Valve Springs Included | Yes |
| Valve Seals Included | Yes |
| Valves Included | Yes |
| Retainer Included | Yes |
| Valve Spring Diameter | 1.55 IN |
| Exhaust Valve Diameter | 1.60 IN |
| Intake Valve Diameter | 2.05 IN |
| Valve Angle | 20 DD |
| Intake Runner Volume | 210 CCM |
| Head Casting Number | 31-7716 |
| Horsepower | 400-600 HJ |
β οΈ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
