Edelbrock 77485 Victor Jr Big-Block Chevy 106cc Hydraulic Roller Camshaft
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.

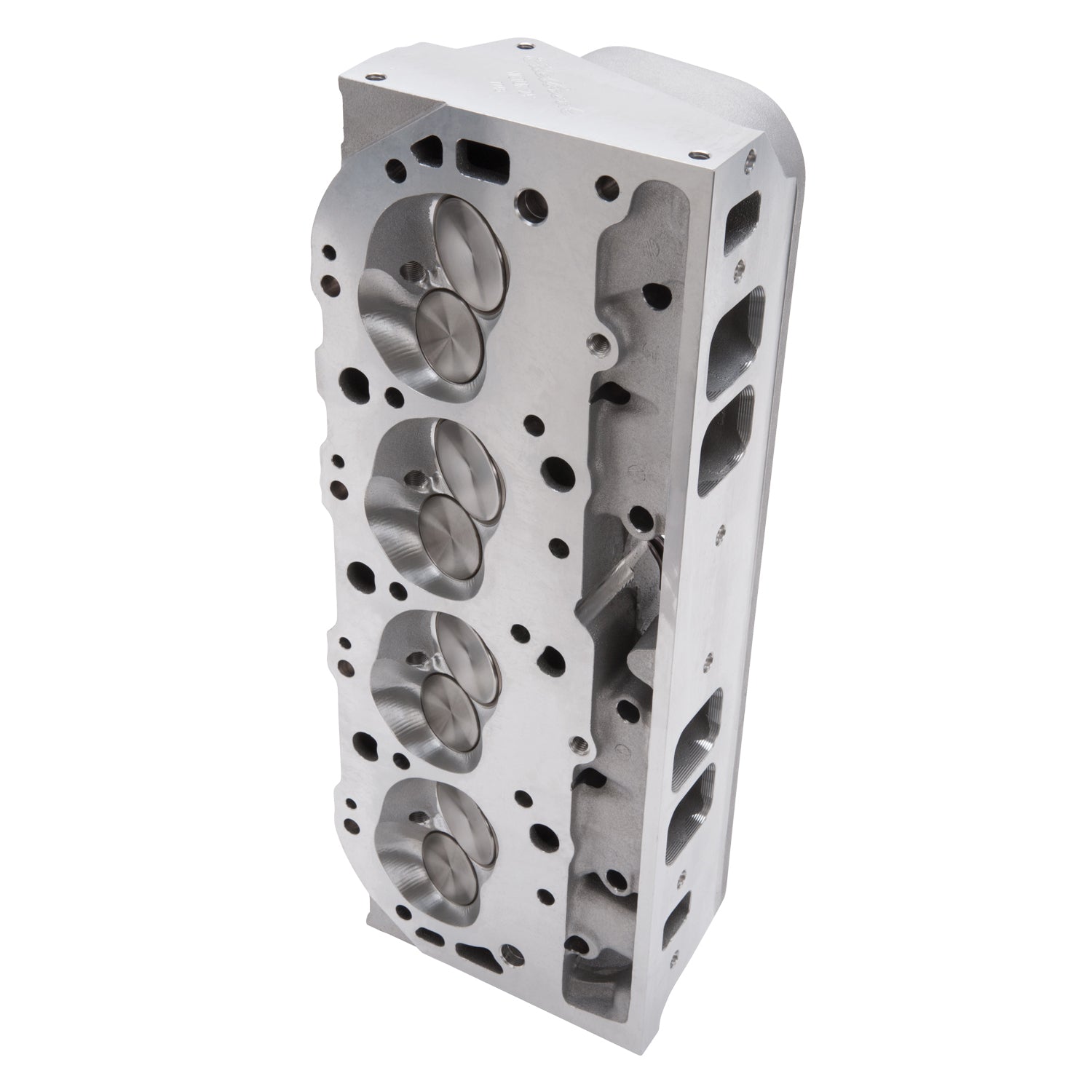

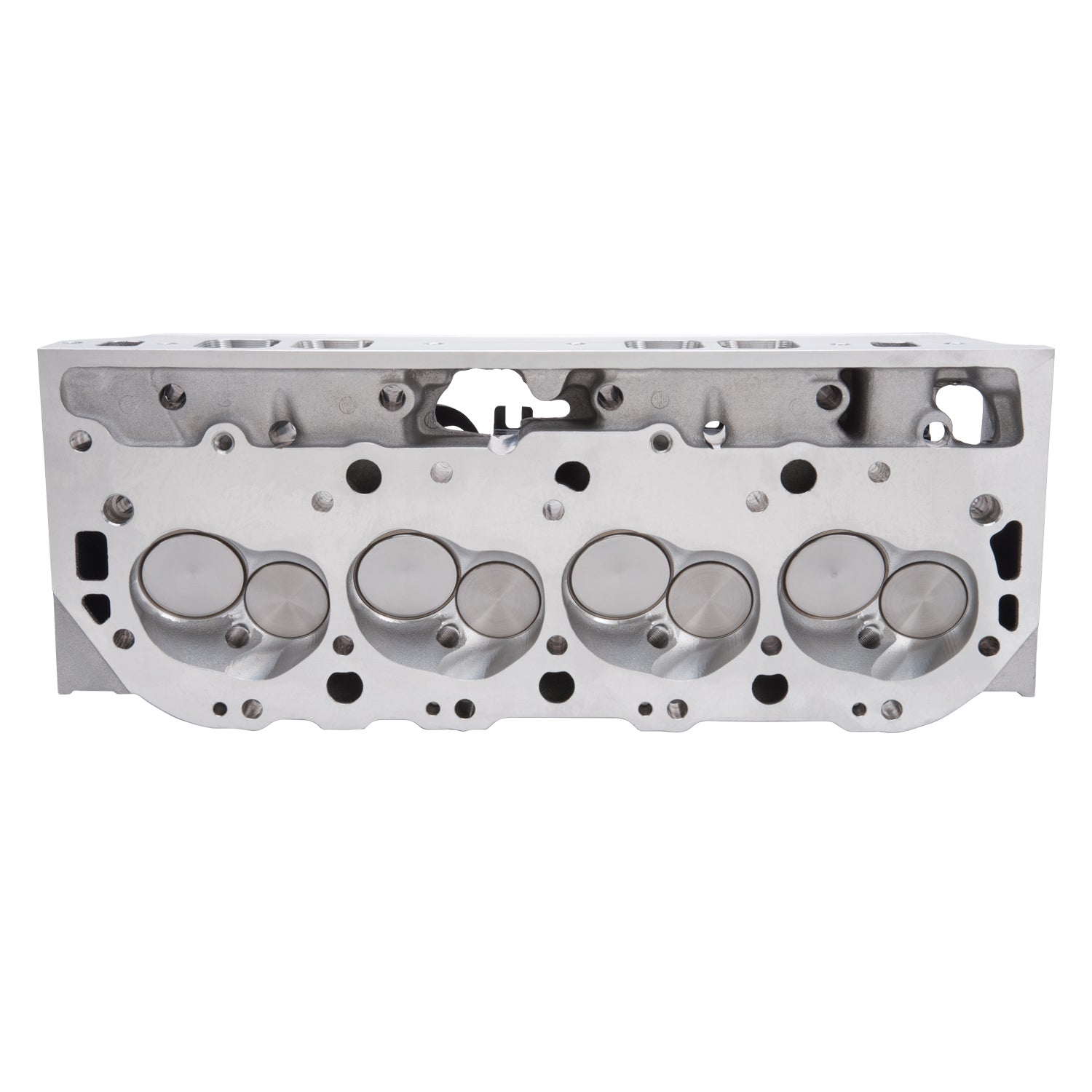

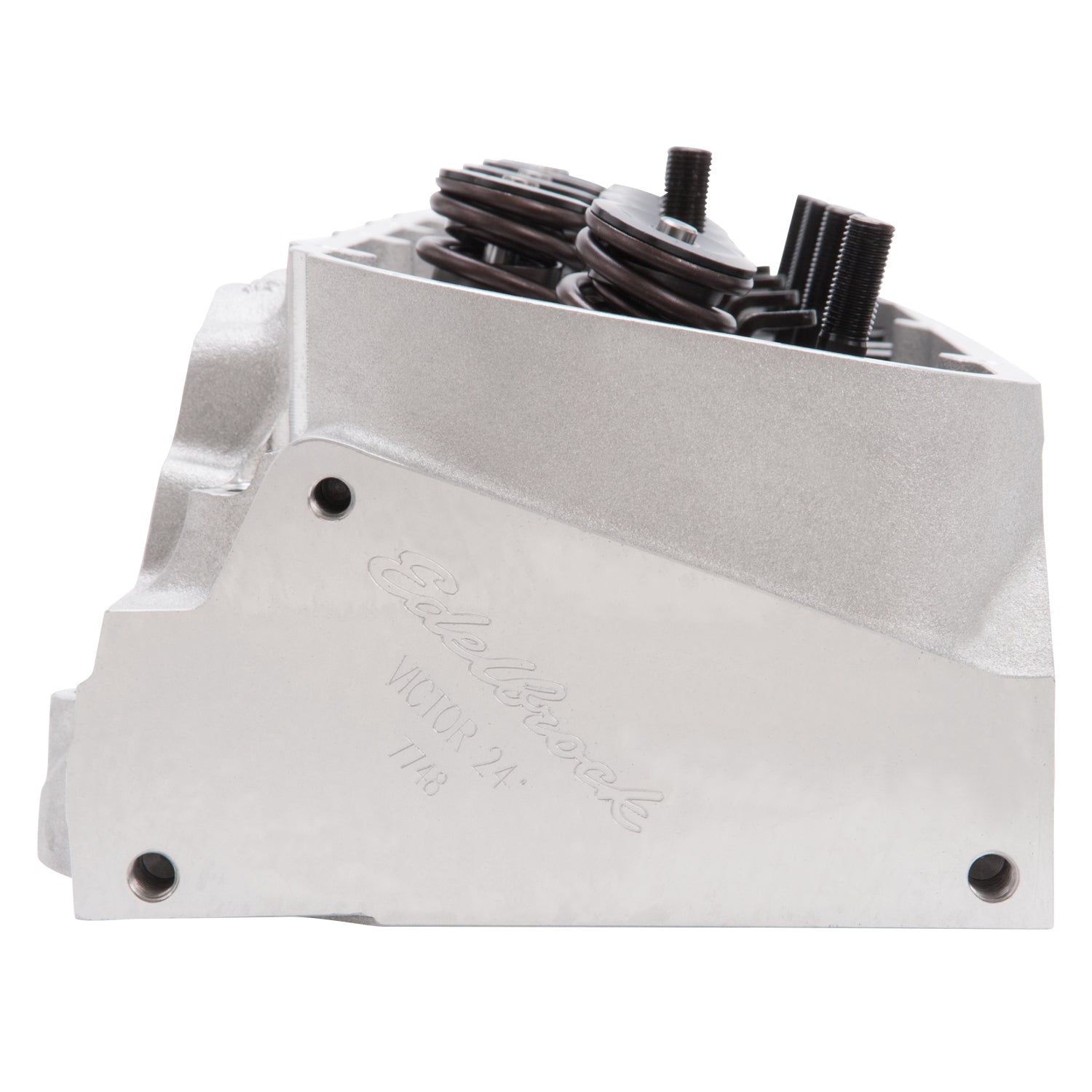

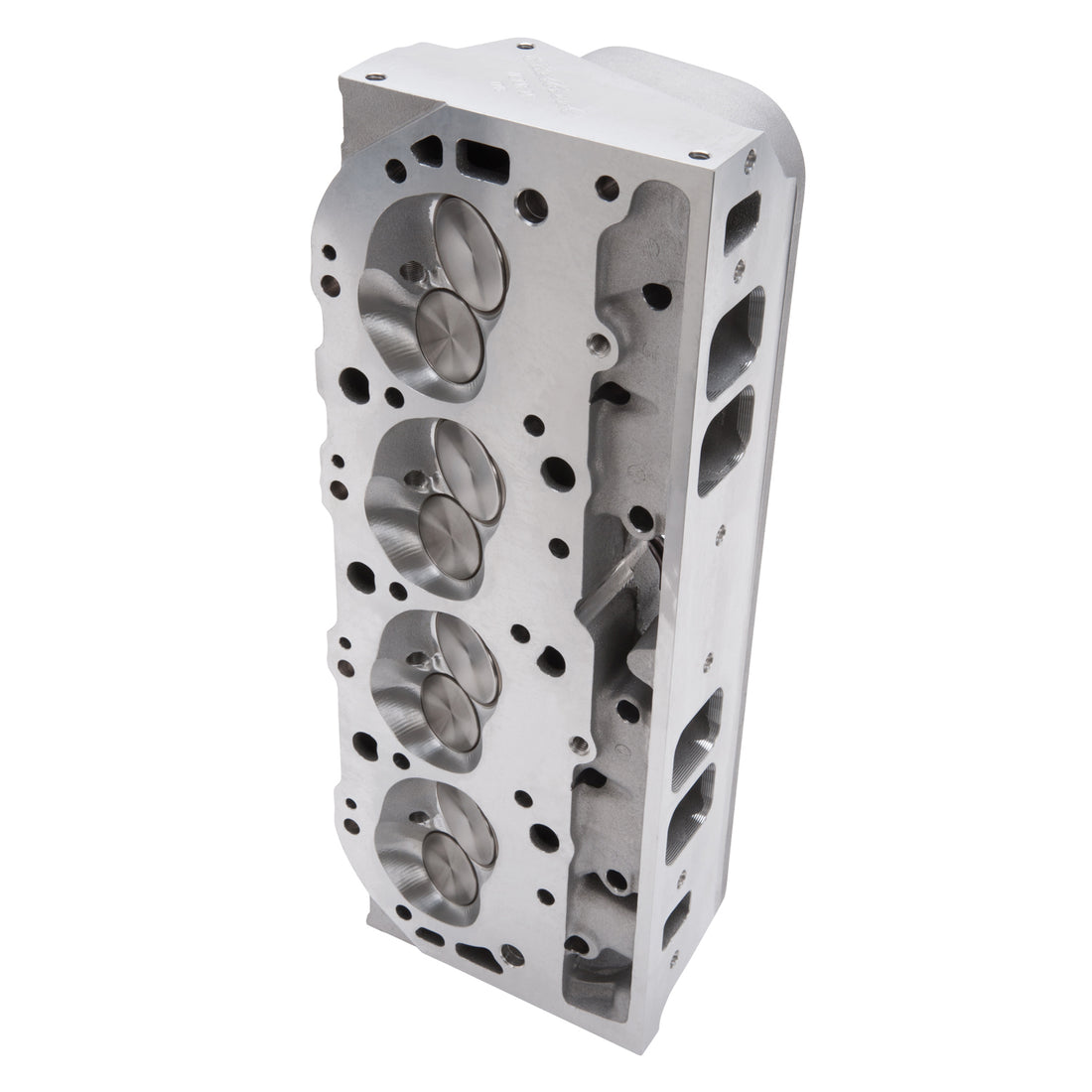

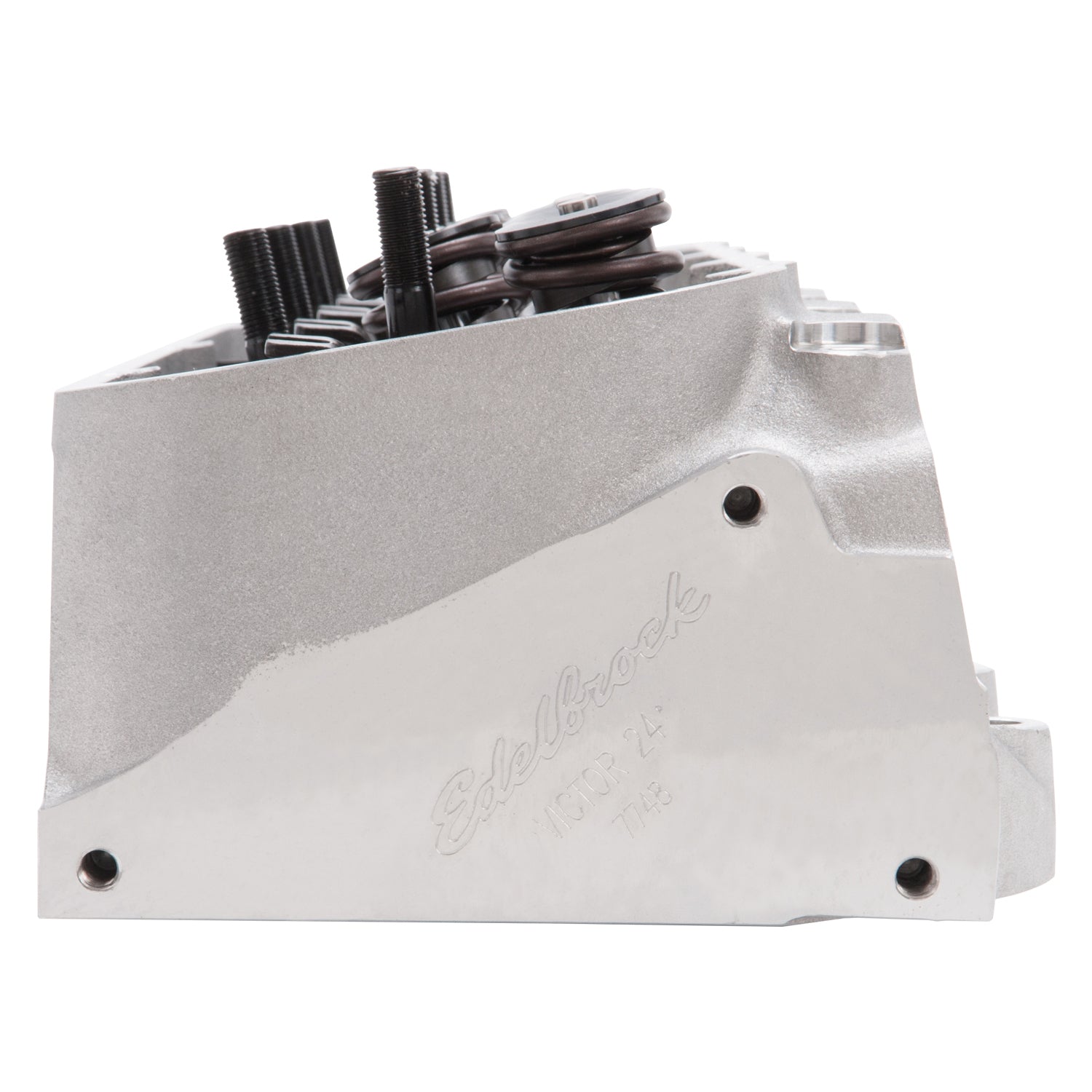

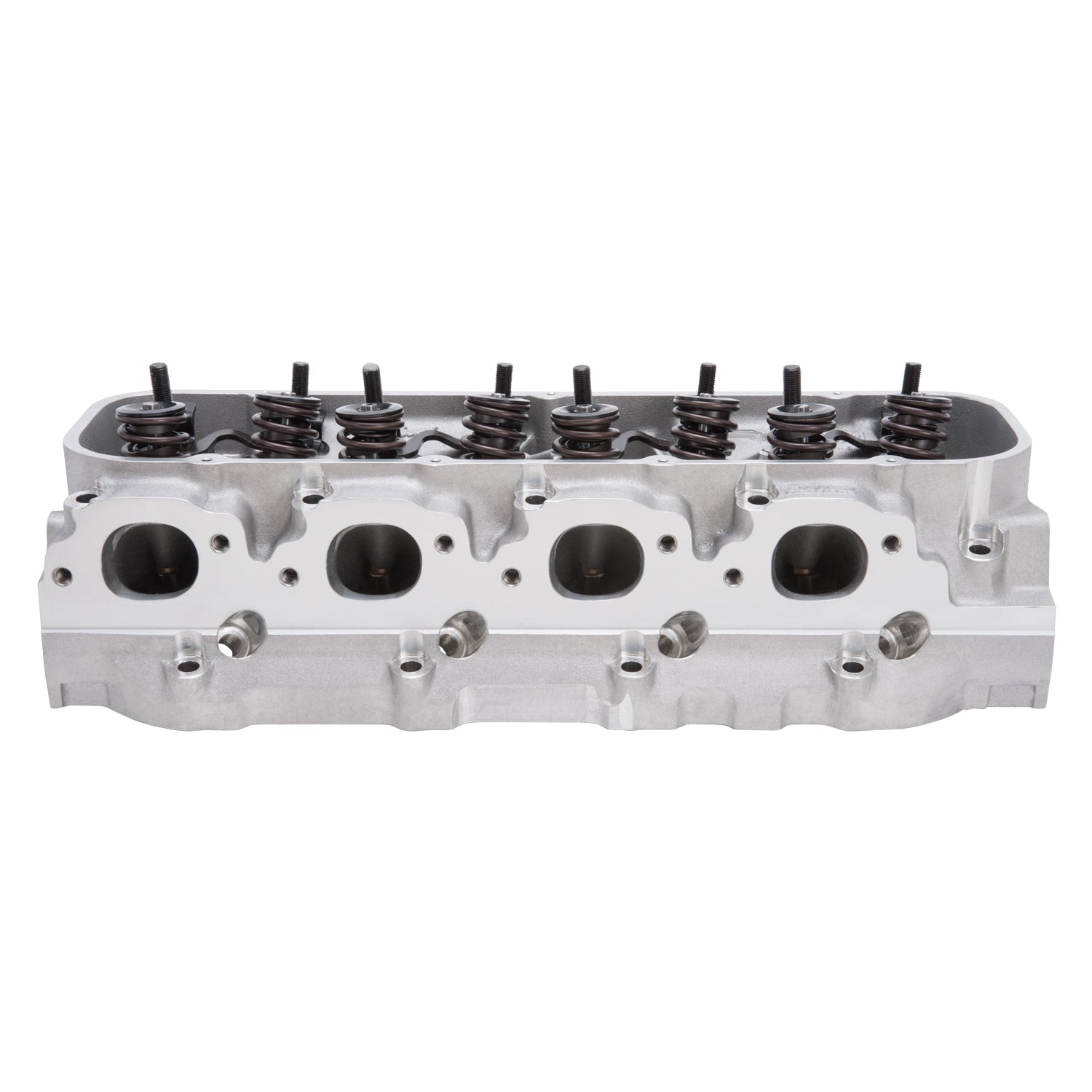

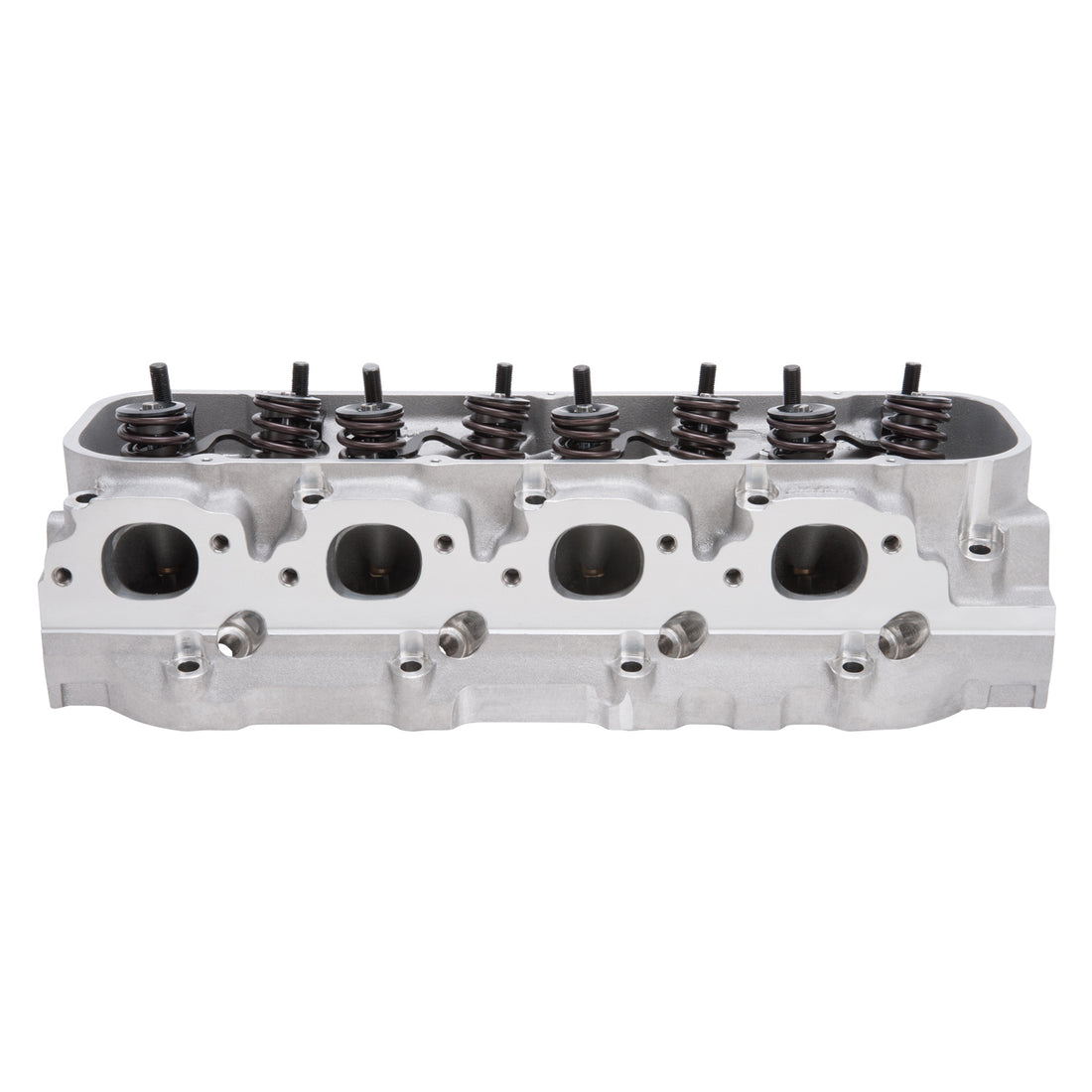

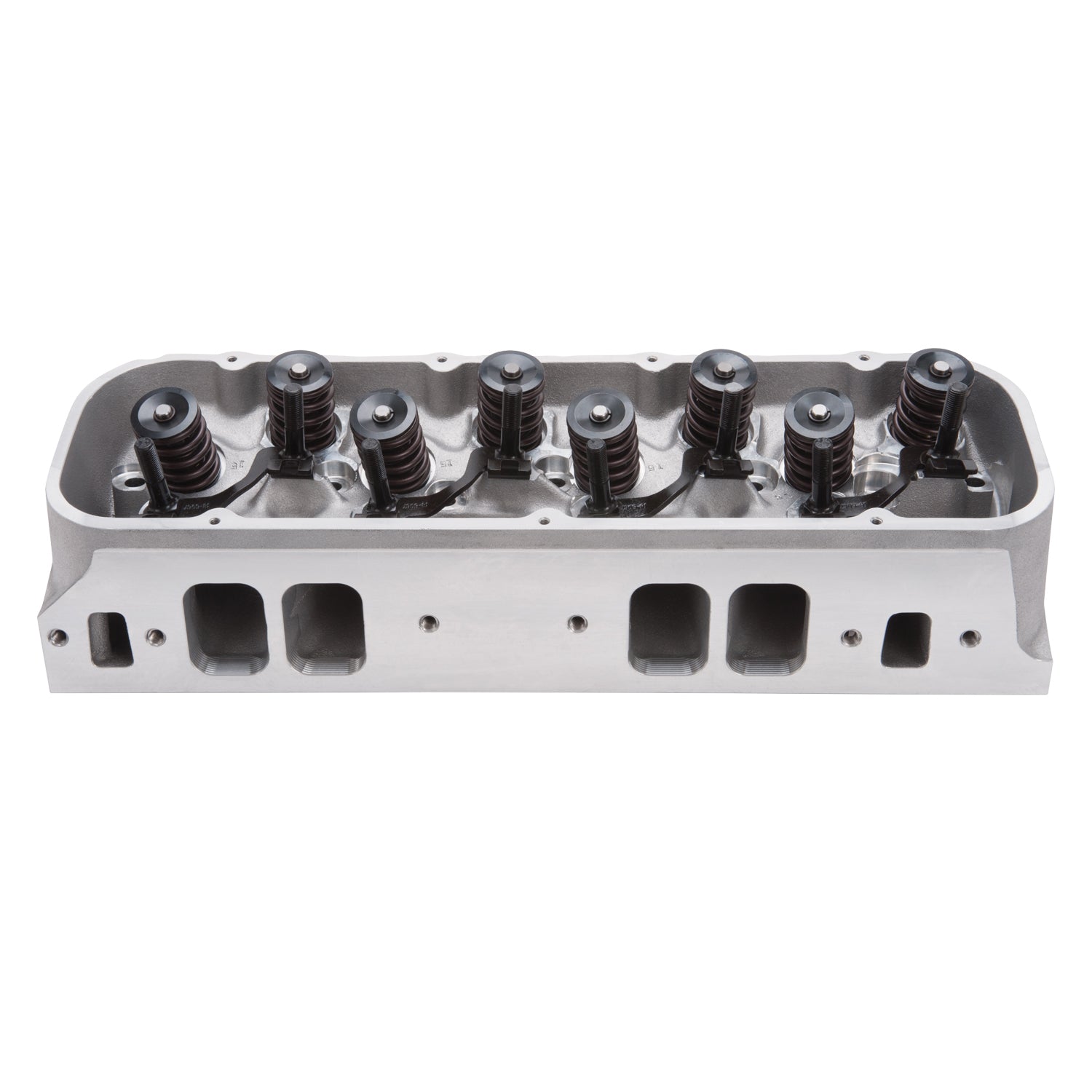

Edelbrock part #77485 Victor Jr. 24 Degree is a complete cylinder head designed for Big Block Chevy 396-502 V8 engines. The 300cc rectangle ports produce impressive flow on competition big-blocks up to 510 c.i.d. with 4.310" or larger bore.
The Edelbrock part #77485 Big-Block Chevy Victor Jr. 24deg cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete 774815 cylinder head with a spring packages to suit hydraulic roller cams. The 300cc rectangle ports produce impressive flow and great power on competition big-blocks up to 510 c.i.d. with 4.310" or larger bore. Exhaust port exits are raised .534" to greatly improve exhaust flow and power.
Specifications
| Quantity | Sold Individually |
| Seat Material | Ductile Iron |
| Retainer Included | Yes |
| Push Rod Diameter | (Suggested) 0.375 IN |
| Exhaust Port Location | +0.500 |
| Valve Stem Diameter | 0.3438 IN |
| Rocker Arm Stud Diameter | 0.4375 IN |
| Deck Thickness | 0.5625 IN |
| Valve Spring Maximum Lift | 0.700 IN |
| Valve Spring Diameter | 1.55 IN |
| Exhaust Valve Diameter | 1.90 IN |
| Deck Height | 10.2 IN |
| Combustion Chamber Volume | 106 CCM |
| Exhaust Runner Volume | 129 CCM |
| Intake Valve Diameter | 2.25 IN |
| Valve Angle | 24 DD |
| Intake Runner Volume | 300 CCM |
| Head Casting Number | 31-7745 |
| Horsepower | 600-800 HJ |
| Material | Aluminum |
| Valve Lock Material | Chromoly Steel |
| Guide Plate Material | Chromoly Steel |
| Construction Type | Complete |
| Seat Angle | Exhaust 45 deg/Intake 45 DD |
| Guide Plate Material | Hardened Steel |
| Camshaft Type | Hydraulic Roller |
| Guide Material | Manganese Bronze |
| Rocker Arms Included | No |
| Cylinder Head Gasket Included | No |
| Valve Cover Gasket Included | No |
| Mounting Hardware Included | No |
| CNC Ported | No |
| EGR Port | No |
| Grade Type | Performance |
| Flange Type | Rectangle Intake |
| Valve Lock Material | Steel |
| Family | Victor Jr. |
| Series | Victor Jr. |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Spring Retainers Included | Yes |
| Valve Locks Included | Yes |
| Rocker Arm Studs/Bolts Included | Yes |
| Assembled | Yes |
| Guide Plates Included | Yes |
| Valve Springs Included | Yes |
| Valve Seals Included | Yes |
| Valves Included | Yes |
⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
