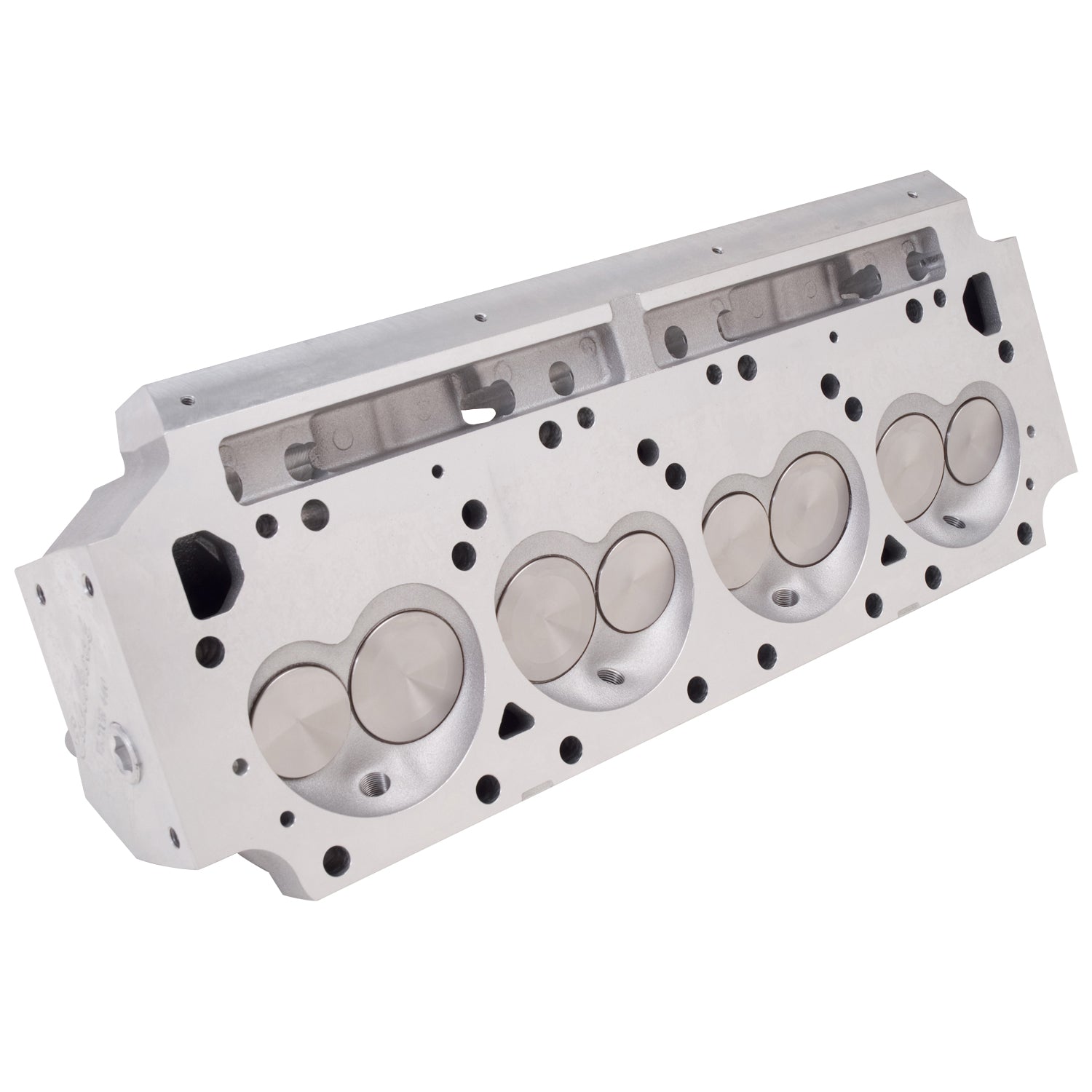

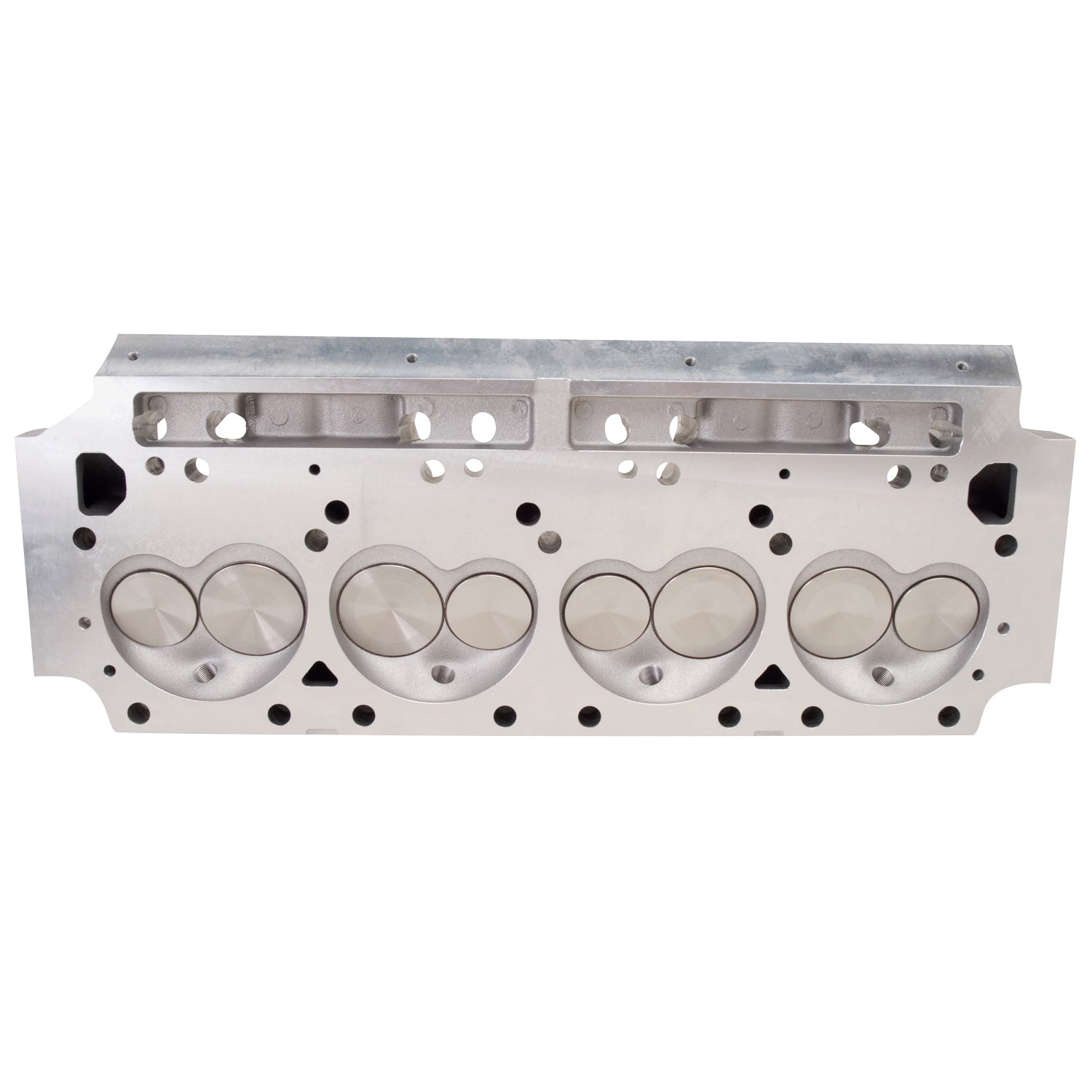

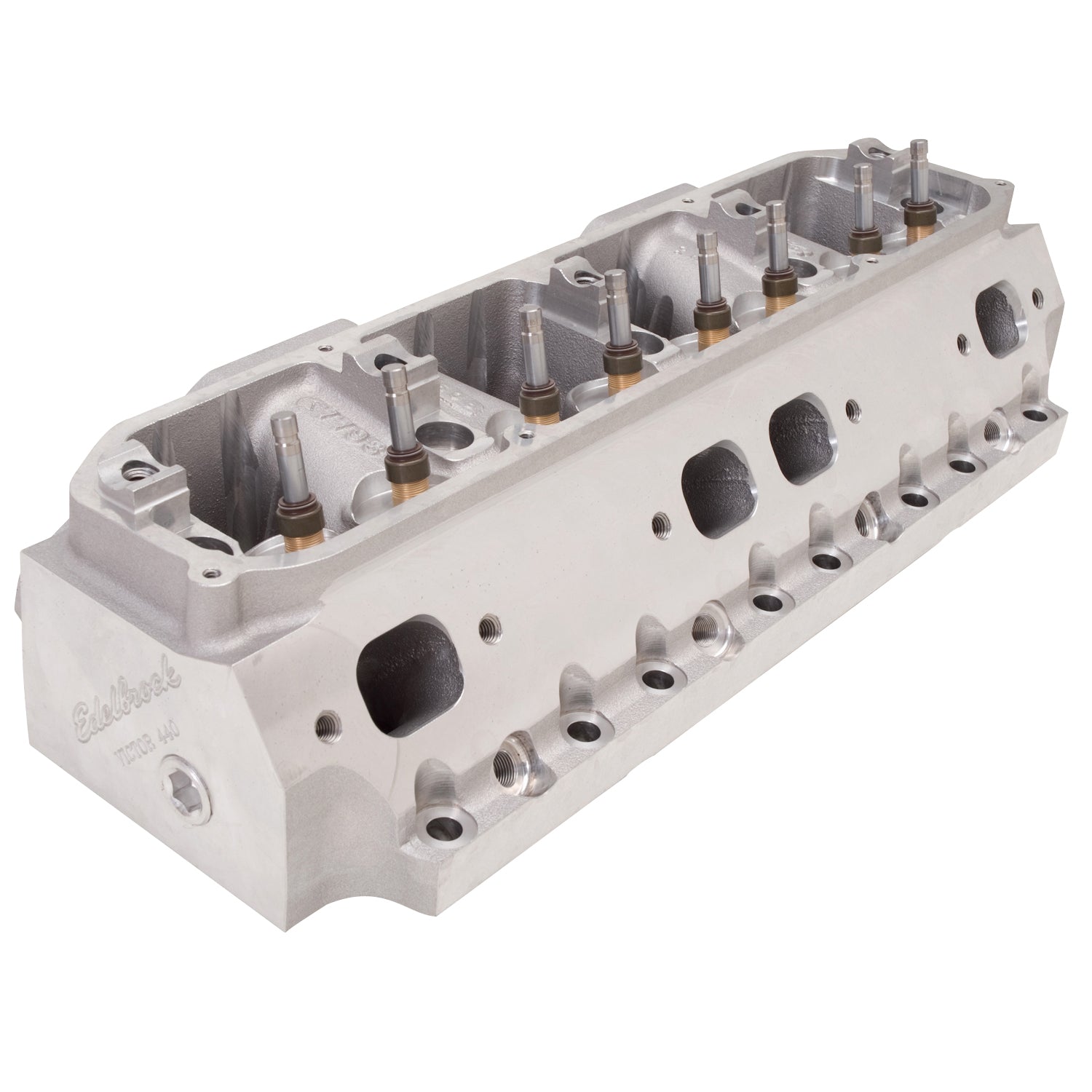

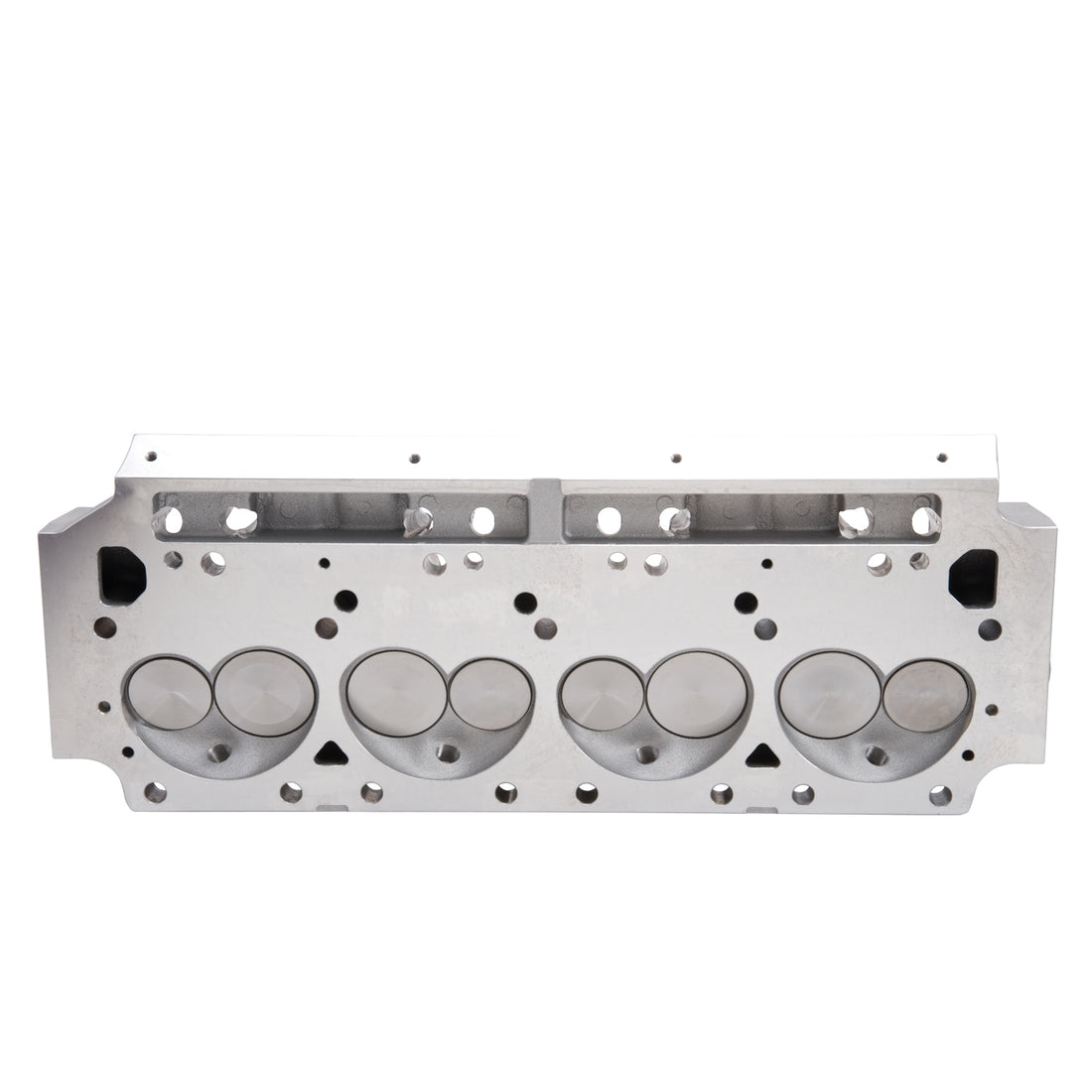

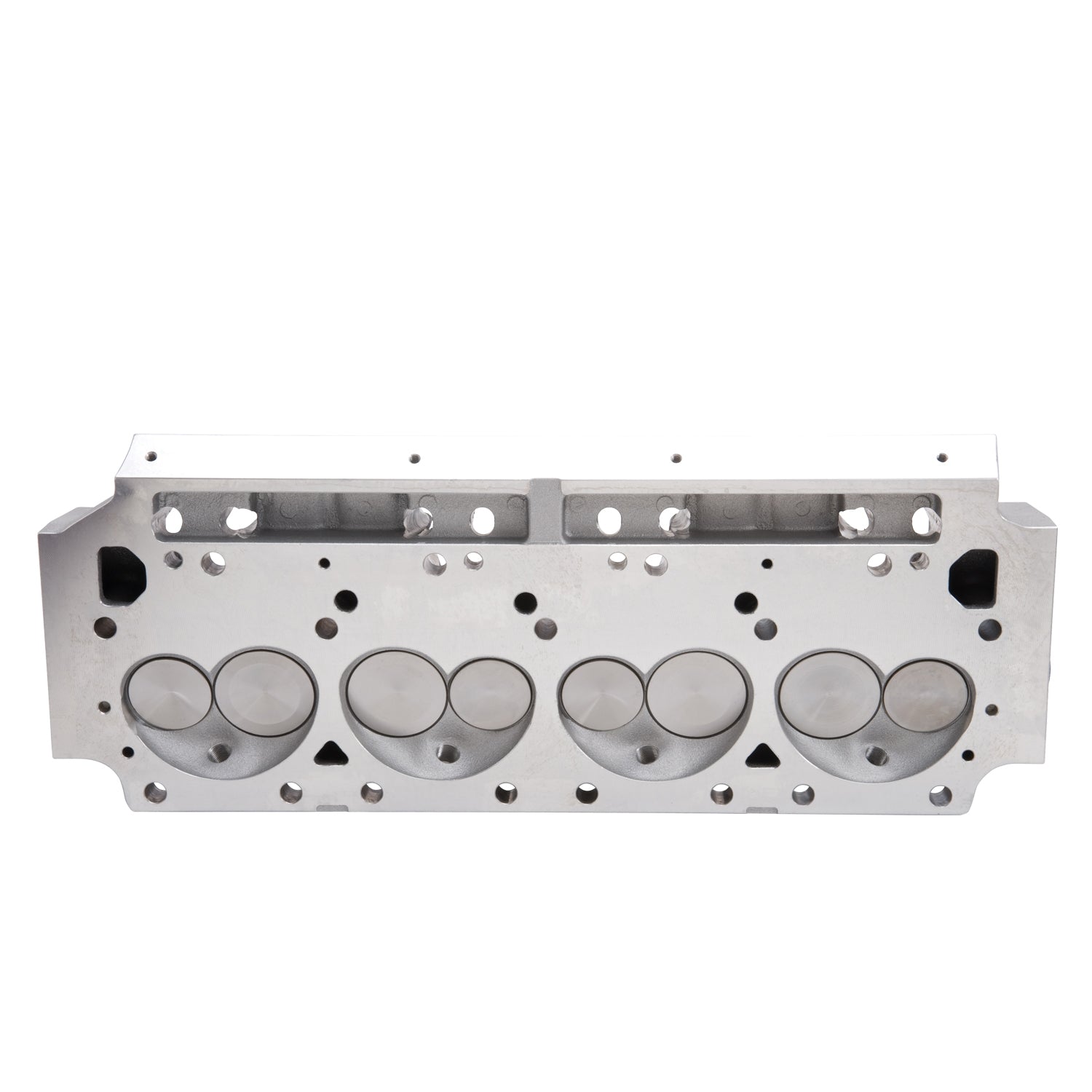

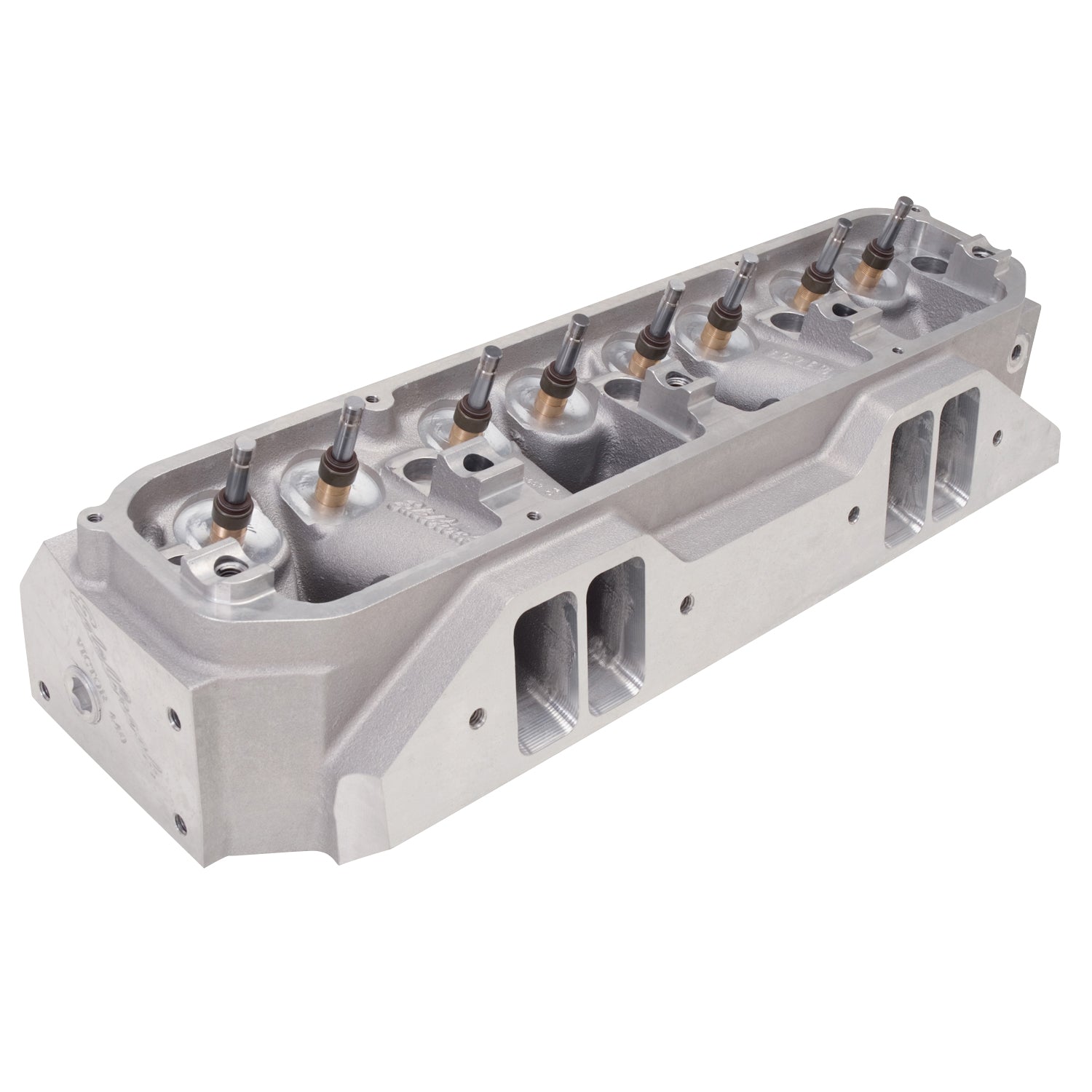

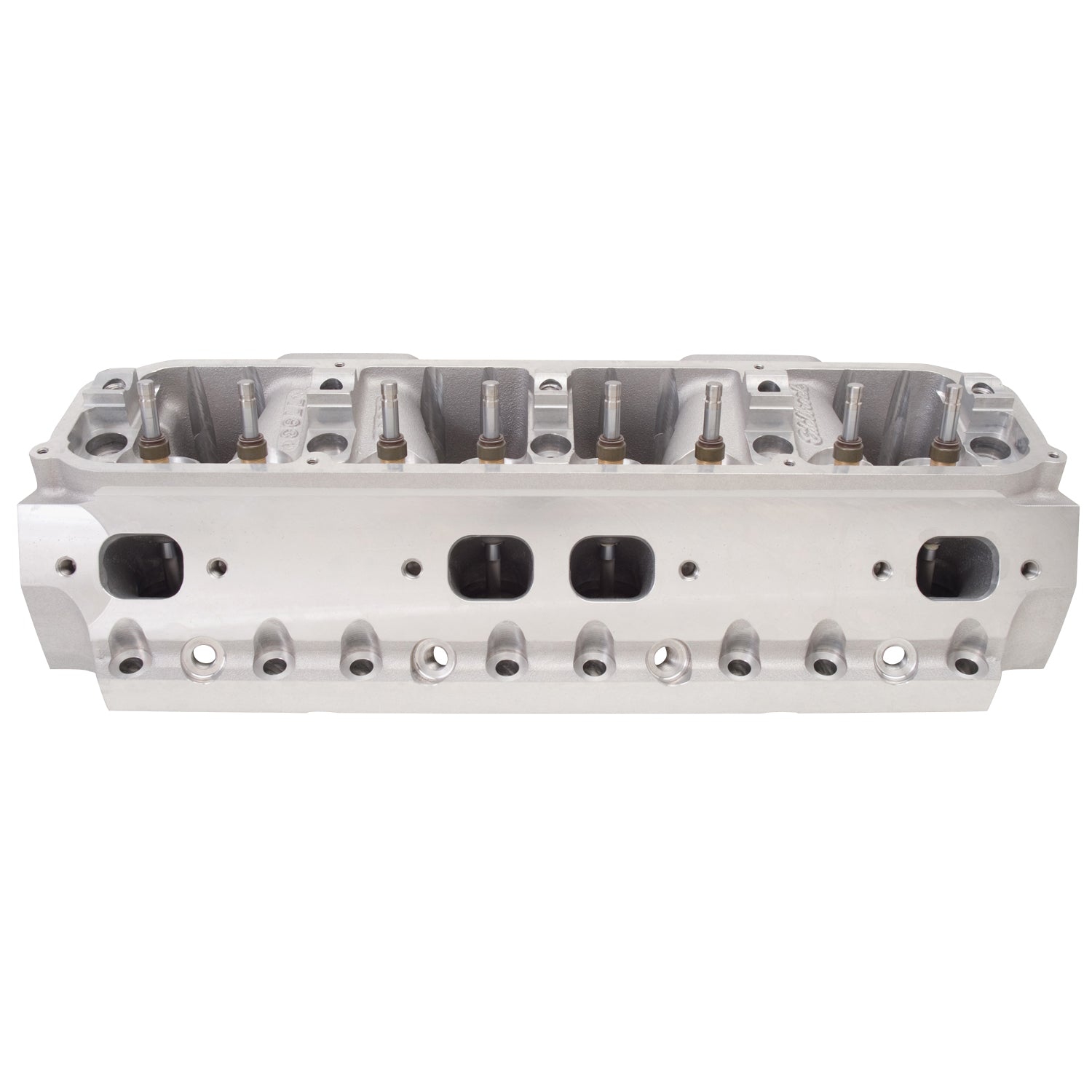

Edelbrock 77949 Victor RB/ B Big-Block Chrysler Max Wedge Cylinder Head W/ Valves

Edelbrock part #77949 Victor Max Wedge is a complete cylinder head designed for Big Block Chrysler 383-440 V8 engines. The Victor features the best standard port location for competition big-block Chryslers.

The Edelbrock part #77949 Big Block Chrysler Max Wedge Victor Series cylinder head is used by many of the best racers in the country and are the best choice for all-out competition. Edelbrock engineers work with leading racers like Billy Glidden, John Urist and Pat Musi to produce the ultimate components for racing. The end results is a competition ready cylinder head that features a cylinder head which is compatible with OE valve train and pistons for bolt-on convenience while Victor cylinder head features raised runners, revised chambers and relocated valves for all-out competition. VICTOR B/B CHRYSLER MAX WEDGE FEATURES: - The best standard port location cylinder head available for competition big-block Chryslers - Intake ports are raised .650", exhaust ports are raised .250" for improved flow - The intake flange is extended .950" to eliminate the need for intake spacer plates - Cylinder head will fit Edelbrock Victor manifolds for both high and low deck engines - Sold without springs or retainers use recommended springs to match your camshaft - Exhaust flange is extended .300" from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts - Max Wedge intake ports are machined to match intake manifolds for B and RB competition big-block Chryslers - 72cc combustion chamber volume - Cylinder head part #77949 comes bare with valves only

Specifications

⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Warranty: 12 Months
