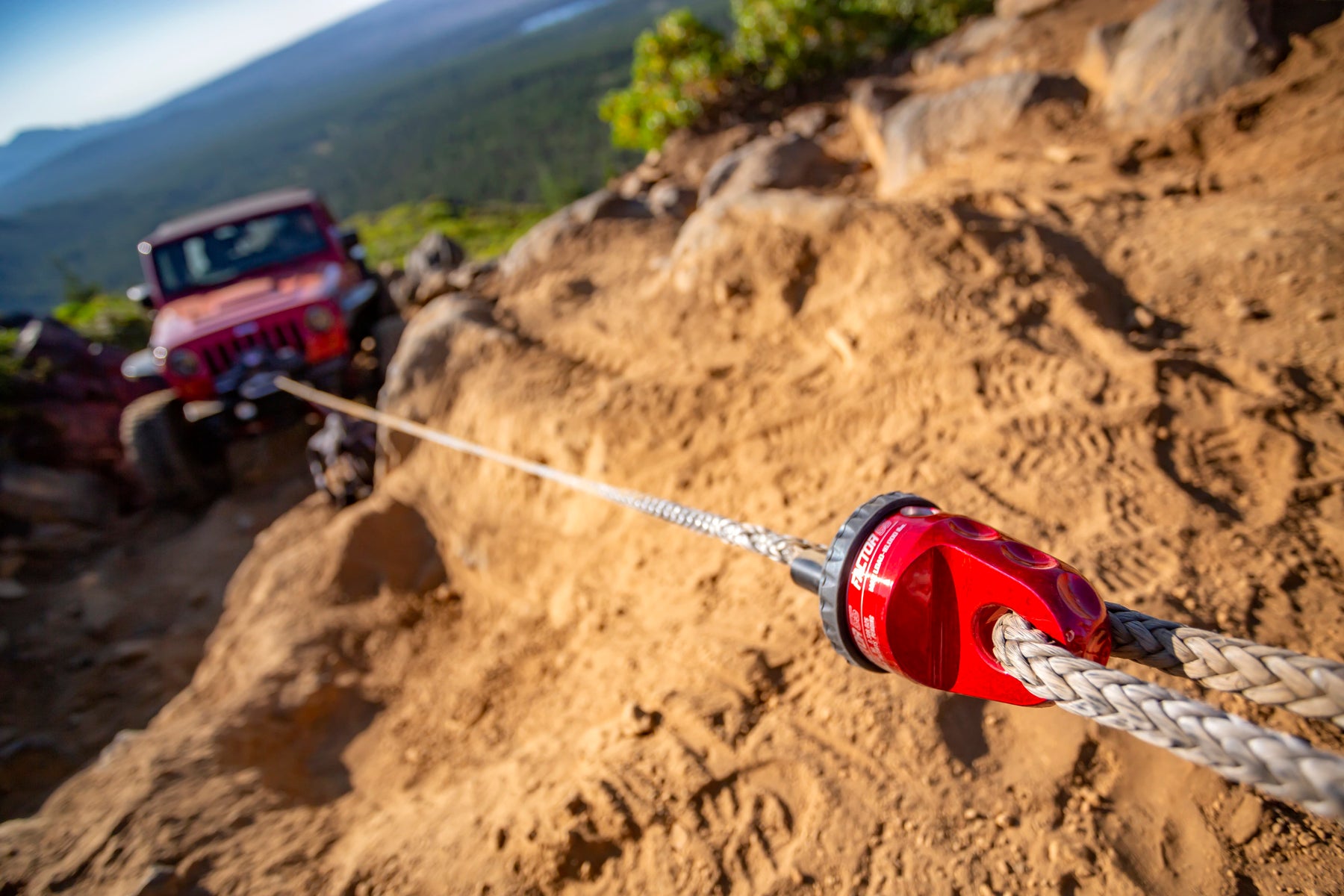

Factor 55 00015-07 Winch Shackle

The ProLink eliminates the conventional winch hook and provides a precision shackle mounting hole with a massive 1.2" thick mounting tab.

ProLink shackle mount for winch cables and synthetic ropes. Replace conventional winch hooks with the safer, stronger, and smarter ProLink shackle mount. Engineered and machined in the USA from lightweight billet 6061 aluminum, the ProLink provides a safe means to easily attach a standard 3/4" screw pin shackle to your winch line. The cable or rope eye is captured into the body of the ProLink by a removable oversized 5/8" double shear pin. The front of the ProLink provides the precision shackle mounting hole and massive 1.2" thick mounting tab. The ProLink is compatible with both Hawse and Roller fairleads and features an EPDM rubber guard that snugs neatly against both versions.

Features

• Fits all steel cables and synthetic ropes up to 3/8" in diameter, attaches with 5/8" diameter 6Al-4V titanium double shear pin.
• Compatible with both hawse and roller fairleads.
• Integrated EPDM rubber boot for fairlead protection.
• Billet construction ? precision machined from 6061-T6 Aluminum round bar
• Max load rating : 16,000 pounds
• Engineered, tested, and made in USA ? Patent pending.

Specifications

Note: The ProLink provides a safe means to easily attach a standard 3/4" screw pin or soft shackle to existing winch cable and rope eyes. Replace conventional winch hooks with the new safer, stronger, and smarter Factor 55 ProLink shackle mount.

Short Description: PROLINK ORANGE

Invoice Description: Factor 55 PROLINK WNCH SHKL MT ORG

Definition: Winch Shackle
