Factor 55 00210-03 Winch Shackle

The ProLink is Factor 55's original shackle mount. Trusted and used by first responders worldwide, ProLink is easy to install and allows winch owners the ability to replace the vehicle's winch hook with a stronger shackle/D-Ring mount.

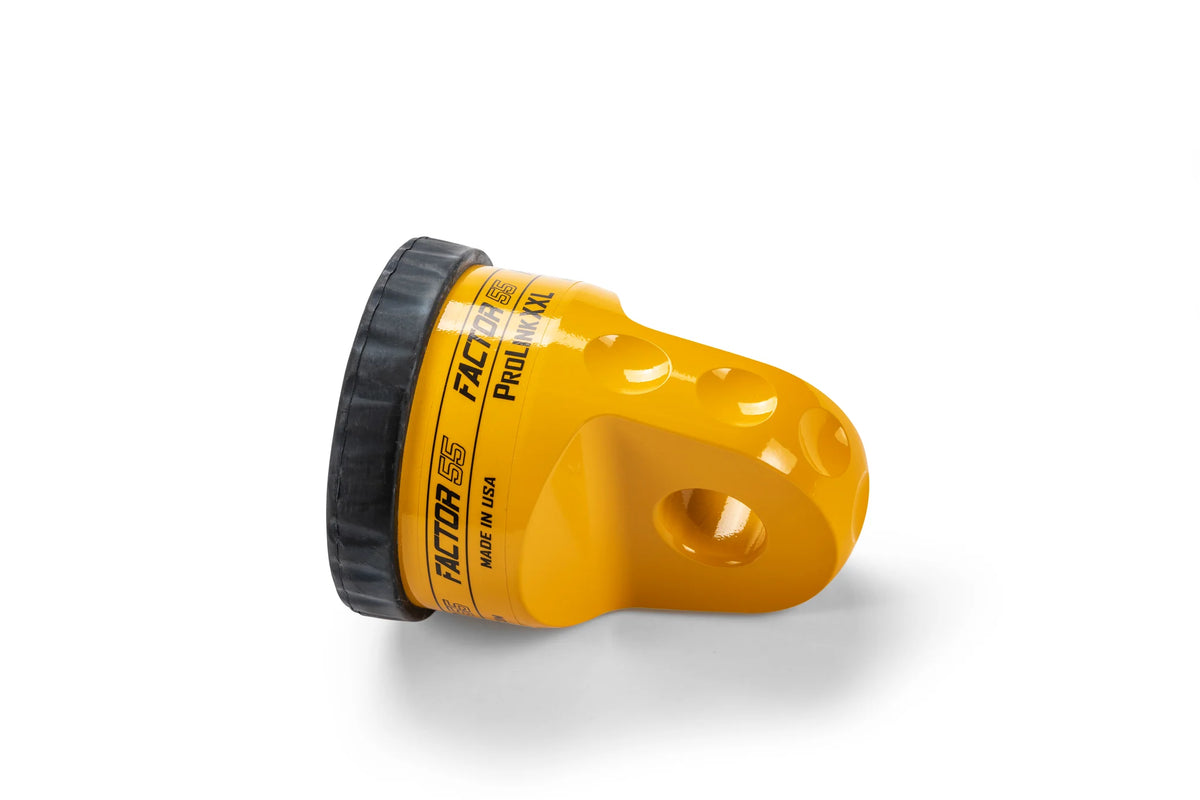

The Factor 55 ProLink XXL is the largest and strongest ProLink winch shackle mount in production. The ProLink XXL provides winch owners with a means to replace the conventional winch hook with a safer and stronger screw pin shackle/D-ring. Originally designed for military 24,000 pound winch applications, the ProLink XXL is now available to the general public. Engineered and machined in the USA from lightweight billet 6061 aluminum, ProLink doesn't require splicing and is compatible with steel or synthetic ropes and both hawse and roller fairleads.

The cable eye is retained in the ProLink by an ultra-strong aerospace-grade titanium double-shear pin and internal snap ring, and is easily installed in minutes. The EPDM rubber guards protects alloy fairleads and is securely attached to the ProLink with four barbed tips and prevents rattling.

This product is compatible with Closed System Winching, a technique that uses rigging comprised entirely of closed-link hardware. With Closed System Winching you get the extra security and confidence needed to tackle the most demanding winch recoveries.

• ProLink XXL Heavy Duty Winch Shackle Mount Yellow
• .750 inch diameter Titanium double-shear pin and internal snap ring for an ultra-secure connection
• EPDM rubber guards are attached with four barbed tips and protects fairleads, cushions line stowage, and prevents rattling
• Precision machined from 6000 series billet Kaiser Aluminum
• Larger size for large overland and military-style vehicles
• Fits all steel cables and synthetic ropes up to 1/2 inch diameter
• The rope eye is retained in the ProLink with a 3/4 inch-diameter grade 6AI-4V grade V
• Works with 7/8 inch shackles and 3/4 inch shackles
• Max load rating: 24,000 lbs., Ultimate failure of greater than 63,000lbs
• Engineered, Tested, and Made in USA. Patent pending
• Weight: 40 oz

Installation / Product Video: Watch on YouTube
