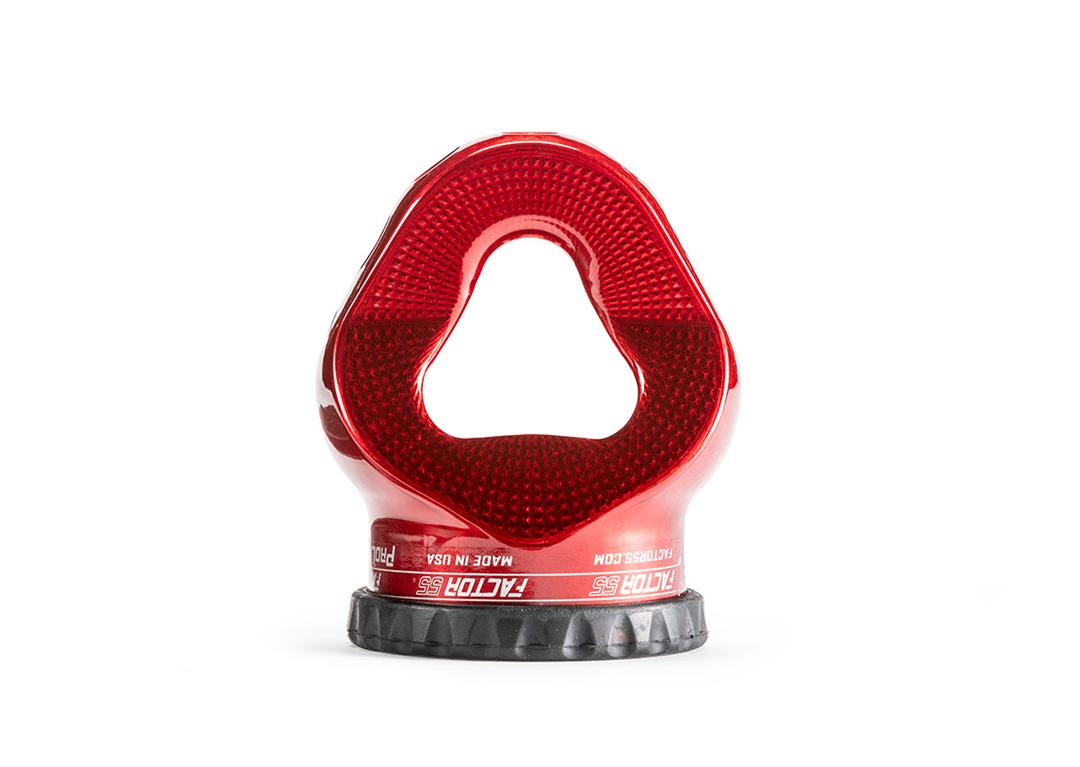

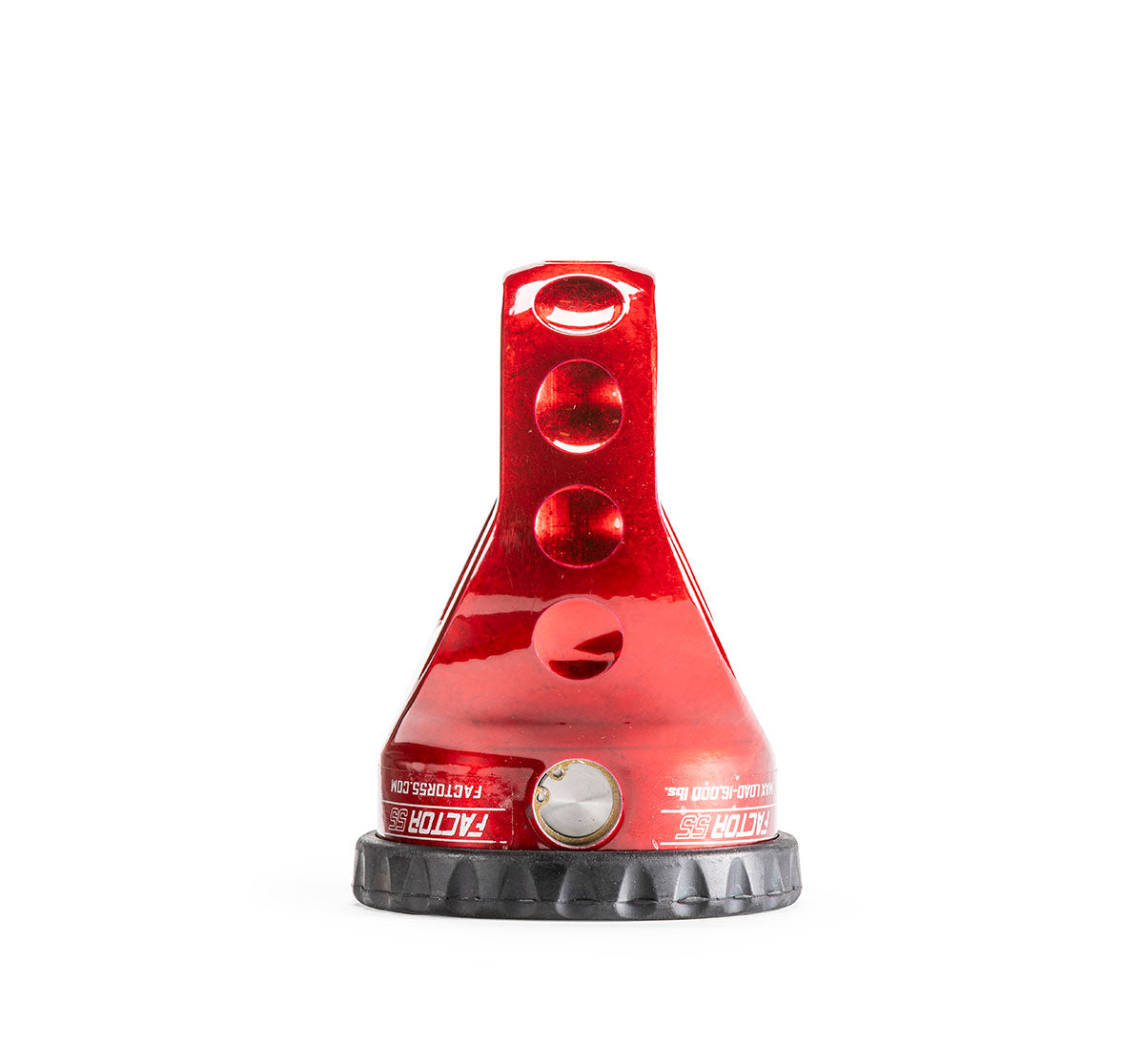

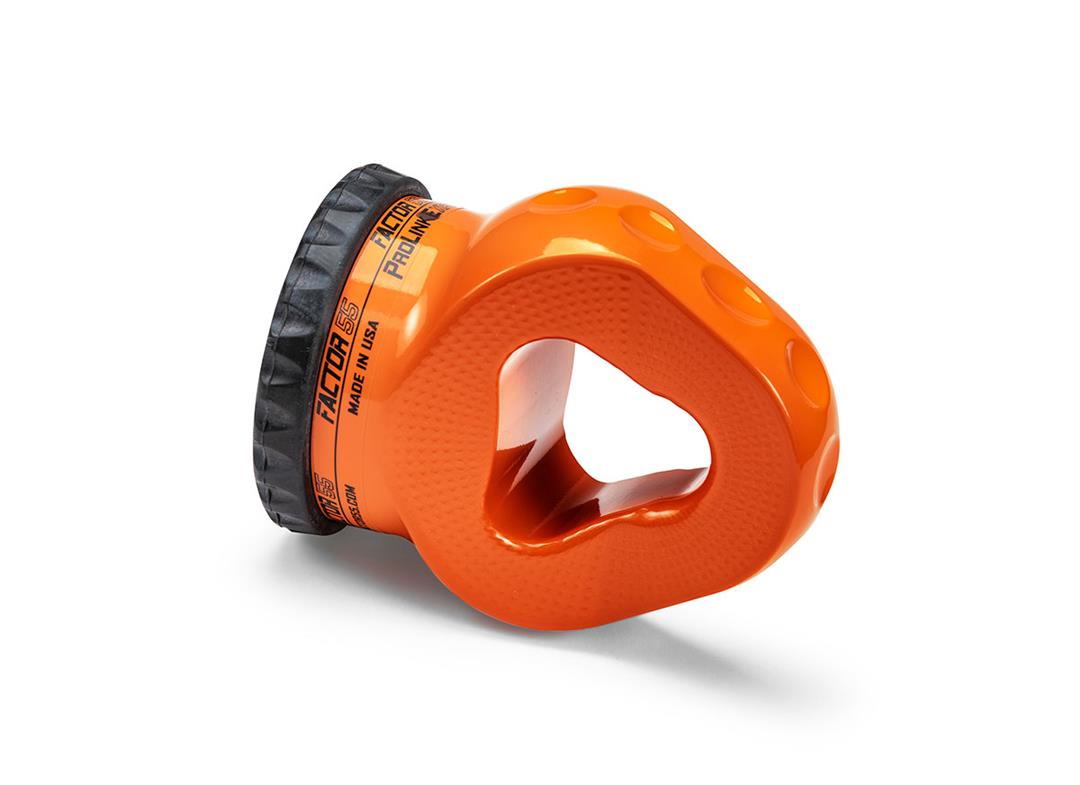

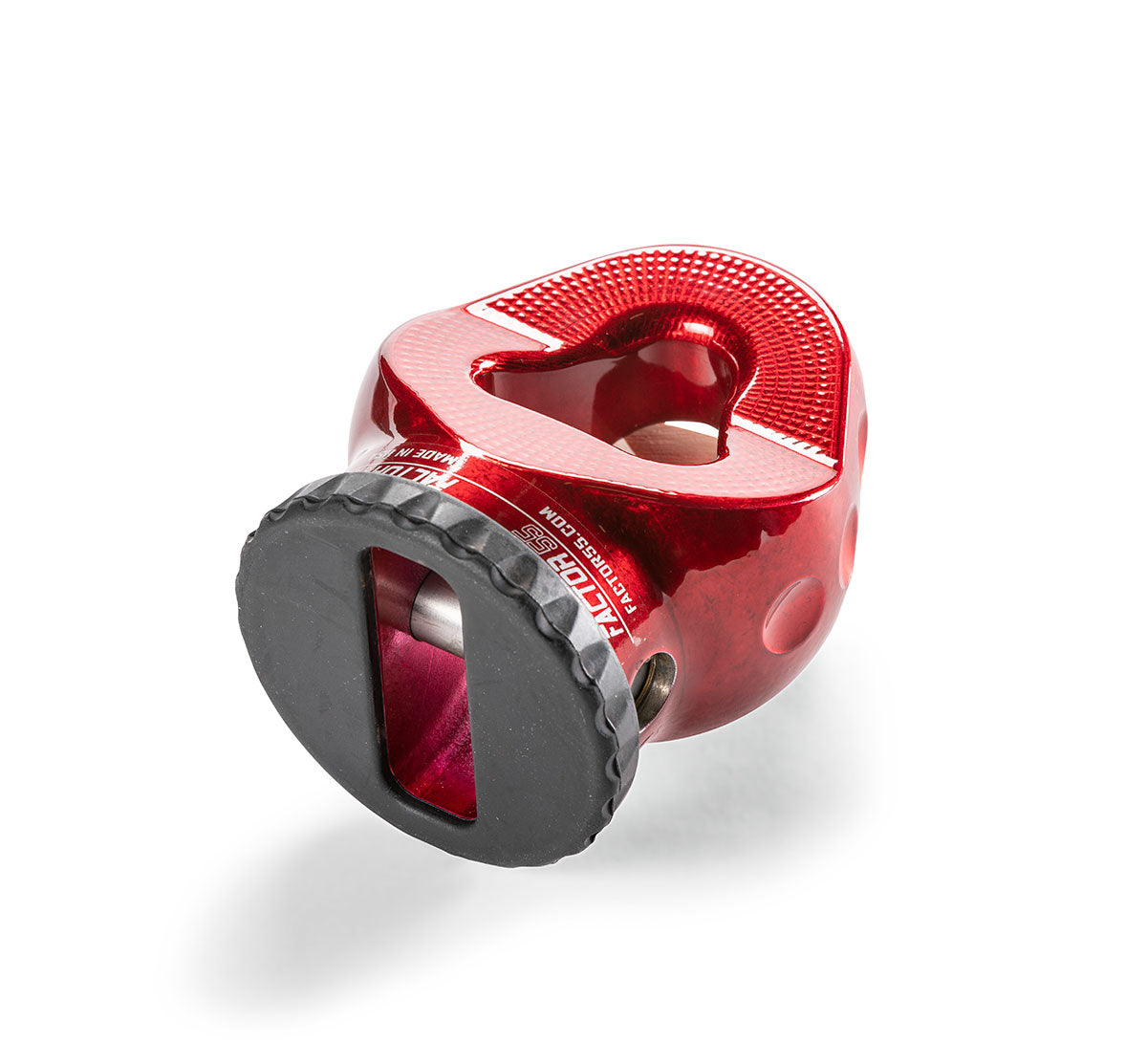

Factor 55 00310-07 Winch Shackle

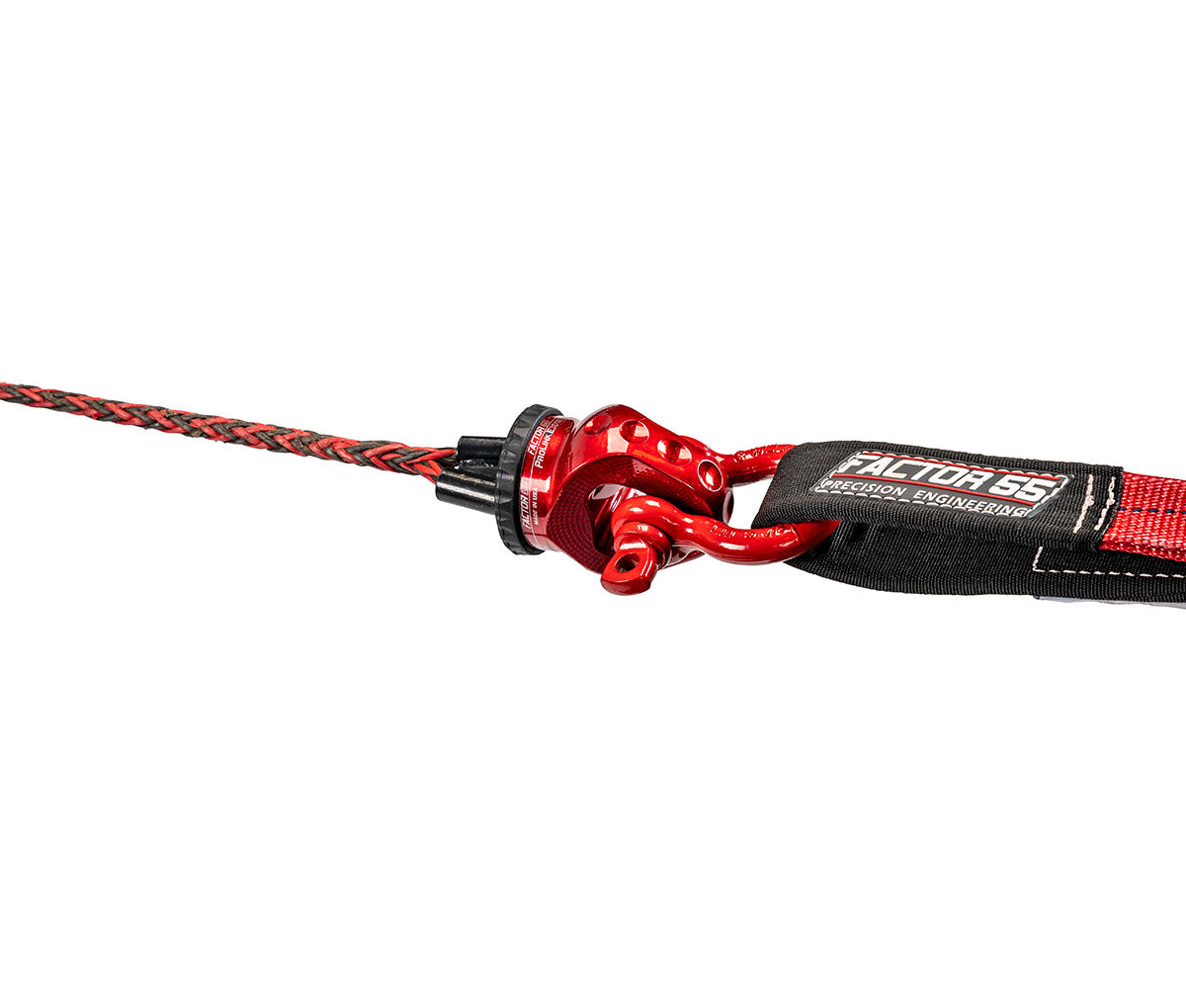

The ProLink E (EXPERT) eliminates the conventional winch hook and provides a versatile shackle mounting opening that allows the use of either end of a screw pin shackle or soft shackle.

ProLink E (Expert) shackle mount for winch cables and synthetic ropes. Replace conventional winch hooks with the safer, stronger, and smarter Factor 55 ProLink E shackle mount. Engineered and machined in the USA from lightweight billet 6061 aluminum, the ProLink E provides a safe means to easily attach either end of a standard 3/4" screw pin or up to a 1/2? soft shackle to the winch line. The cable or rope eye is captured into the body of the ProLink E by a removable oversized 5/8" double shear pin. The ProLink is compatible with both hawse and roller fairleads and features an EPDM rubber guard that snugs neatly against both versions.

Features

• Fits all steel cables and synthetic ropes up to 3/8" in diameter, attaches with 5/8? diameter 6Al-4V titanium double shear pin
• Compatible with both hawse and roller fairleads
• Integrated EPDM rubber boot for fairlead protection
• Billet construction ? precision machined from 6061-T6 Aluminum round bar
• Max load rating : 16,000 pounds
• Engineered, tested, and made in USA ? Patent pending.

Specifications

Note: The ProLink E provides a safe means to easily attach either end of a standard 3/4" screw pin or soft shackle to existing winch cable and rope eyes. Replace conventional winch hooks with the new safer, stronger, and smarter Factor 55 ProLink-E shackle mount.

Short Description: PROLINK E ORANGE

Invoice Description: Factor 55 PROLINK E WNCH SHKL MT ORG

Definition: Winch Shackle
