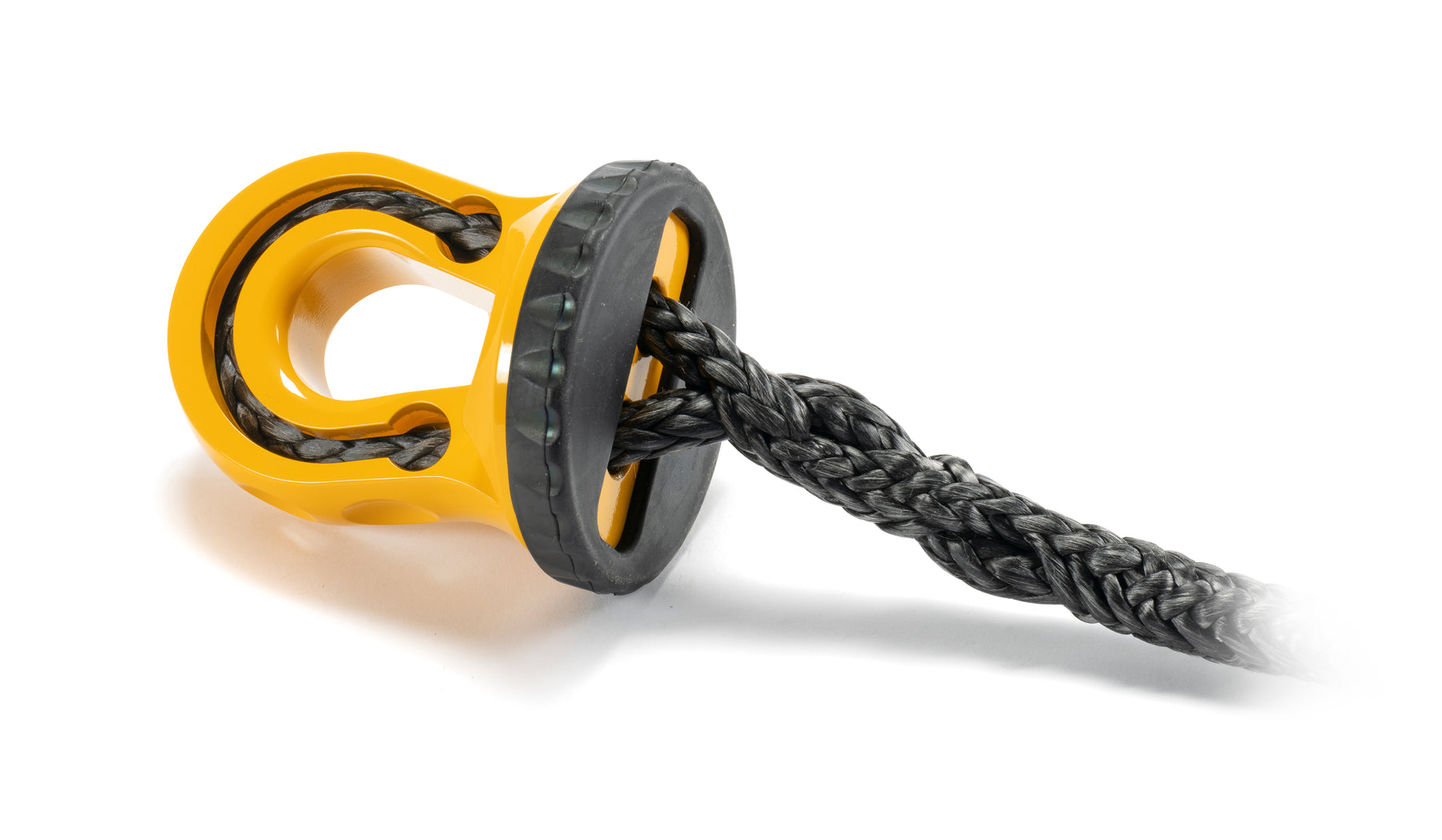

Factor 55 00352-01 Winch Shackle

Splice on synthetic rope shackle mounting thimble with rope protection and integrated rubber pad.

The world?s first splice on synthetic rope shackle mounting thimble with rope protection and integrated rubber pad. The unique machined rope passage provides a tough outer barrier to protect against rope impact and abrasion as well as UV exposure protection. Compatible with synthetic ropes up to 1/2" in diameter. NOTE: Unlike the Factor 55 ProLink and Flatlink shackle mount products, The Splicer requires synthetic rope splicing knowledge. We recommend either the locking Brummel Splice or Long Bury Splice. Due to the splice-on design, the Working Load Limit (WLL) is based on the rope diameter used. Each Splice-On Shackle Mount exceeds minimum bend radius requirements to provide full breaking strengths of synthetic winch lines used. Made in USA

Features

• For synthetic winch rope only
• Lightweight ? Precision CNC machined 6000 series Military Grade Aluminum
• Due to the splice-on design, the Working Load Limit (WLL) is based on the rope diameter used. Each Splice-On Shackle Mount exceeds minimum bend radius requirements to provide full breaking strengths of synthetic winch lines used
• Unique machined rope path provides complete rope protection
• Engineered, Tested, and Made in USA ? Patent Pending

Specifications

Note: The unique machined rope passage provides a tough outer barrier to protect against rope impact and abrasion as well as UV exposure protection. Compatible with synthetic ropes up to 1/2" in diameter Unlike the Factor 55 ProLink and Flatlink shackle mount products, The Splicer requires synthetic rope splicing knowledge. ?We recommend either the locking Brummel Splice or Long Bury Splice

Short Description: SPLICER RED

Invoice Description: Factor 55 SPLICER 3/8 SYN ROP SPL ON RED

Definition: Winch Shackle
