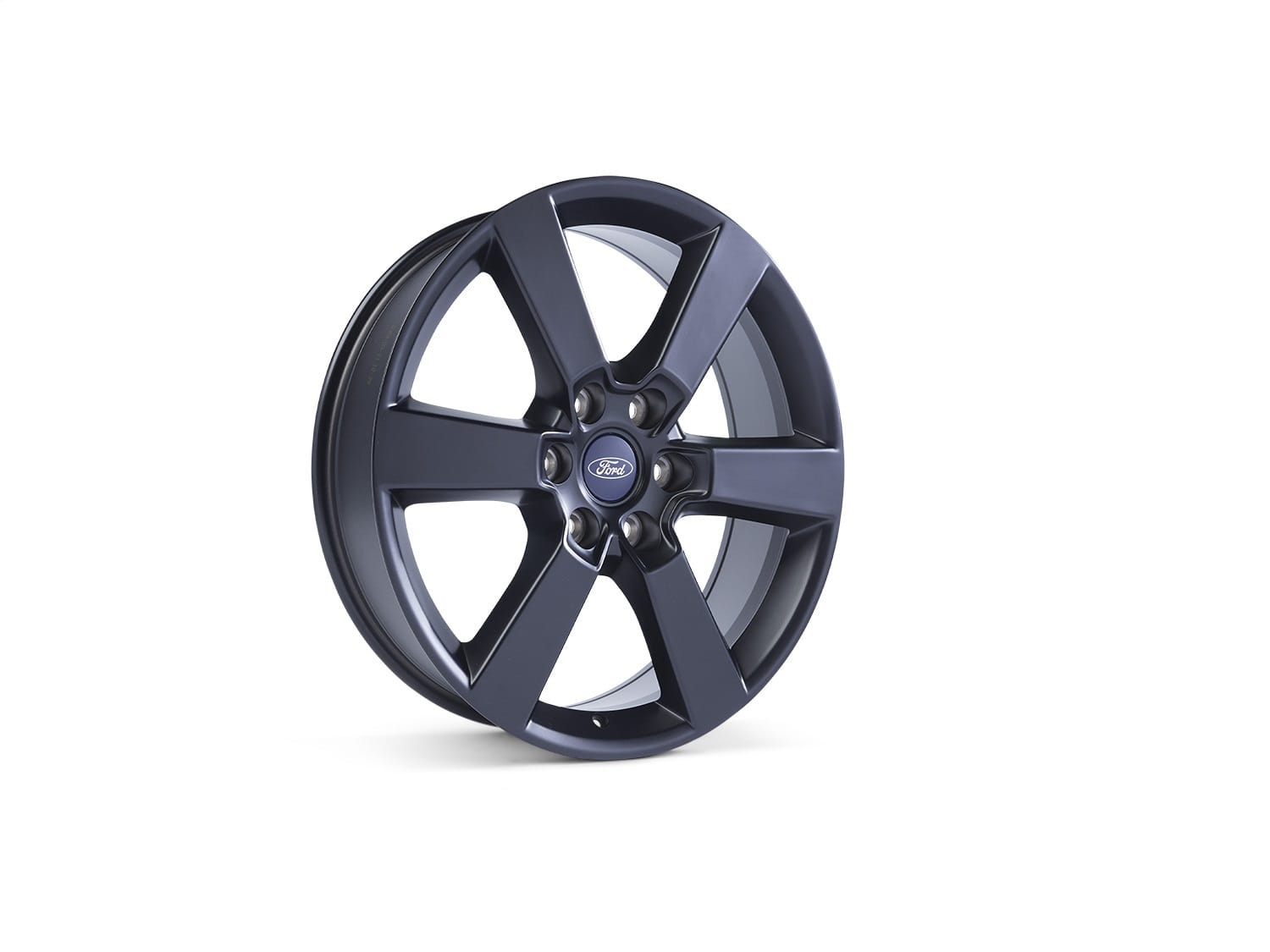

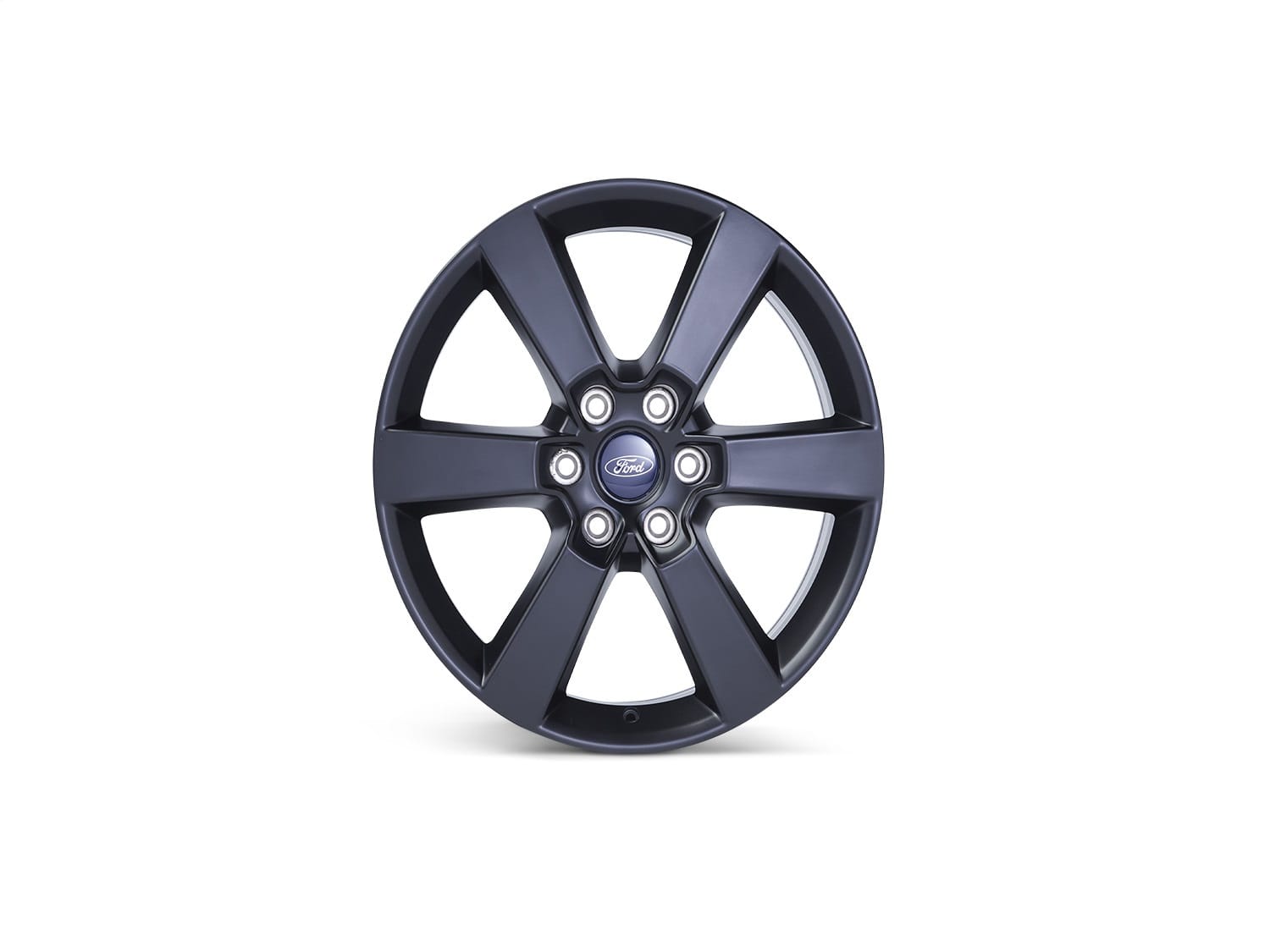

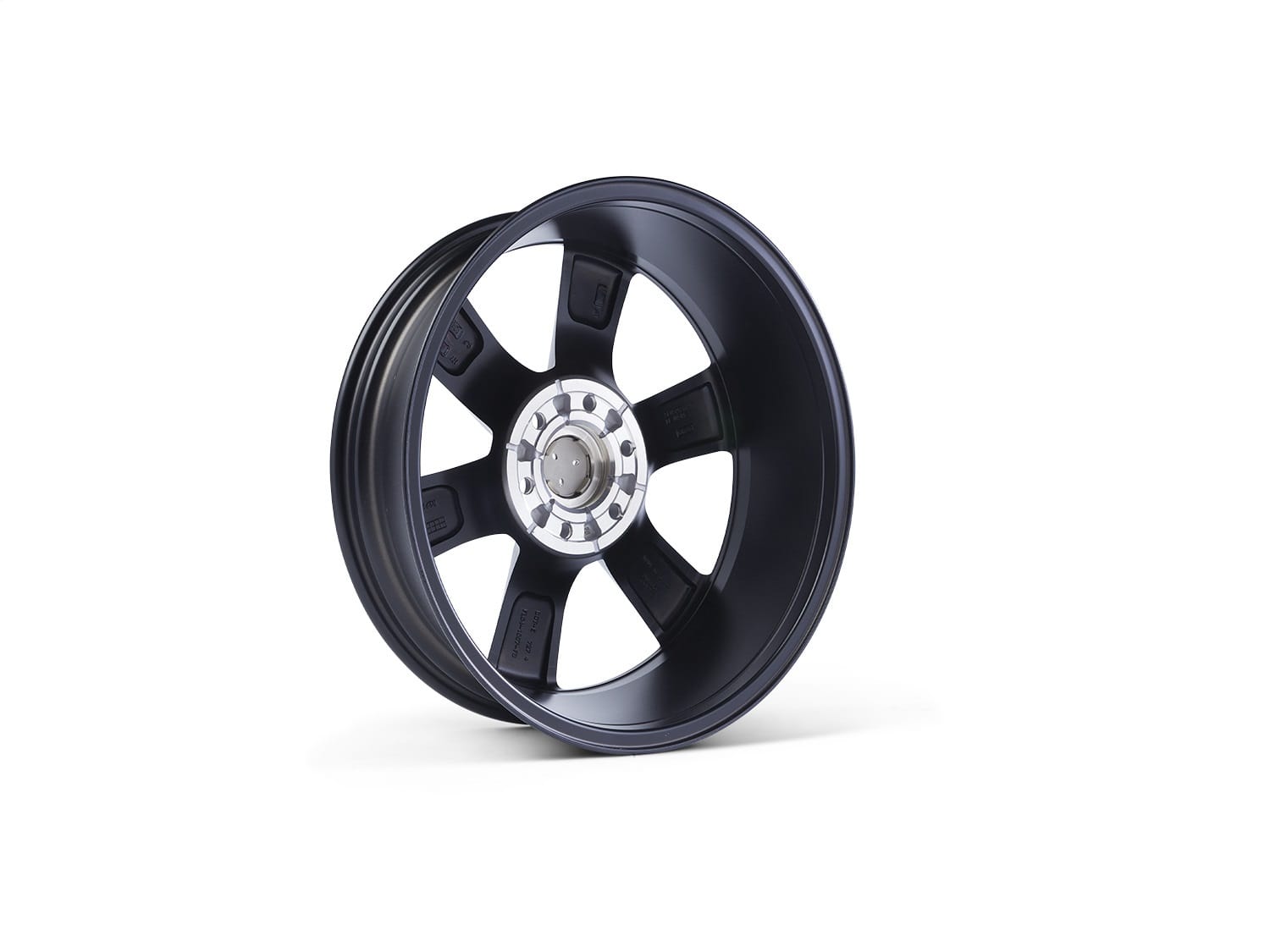

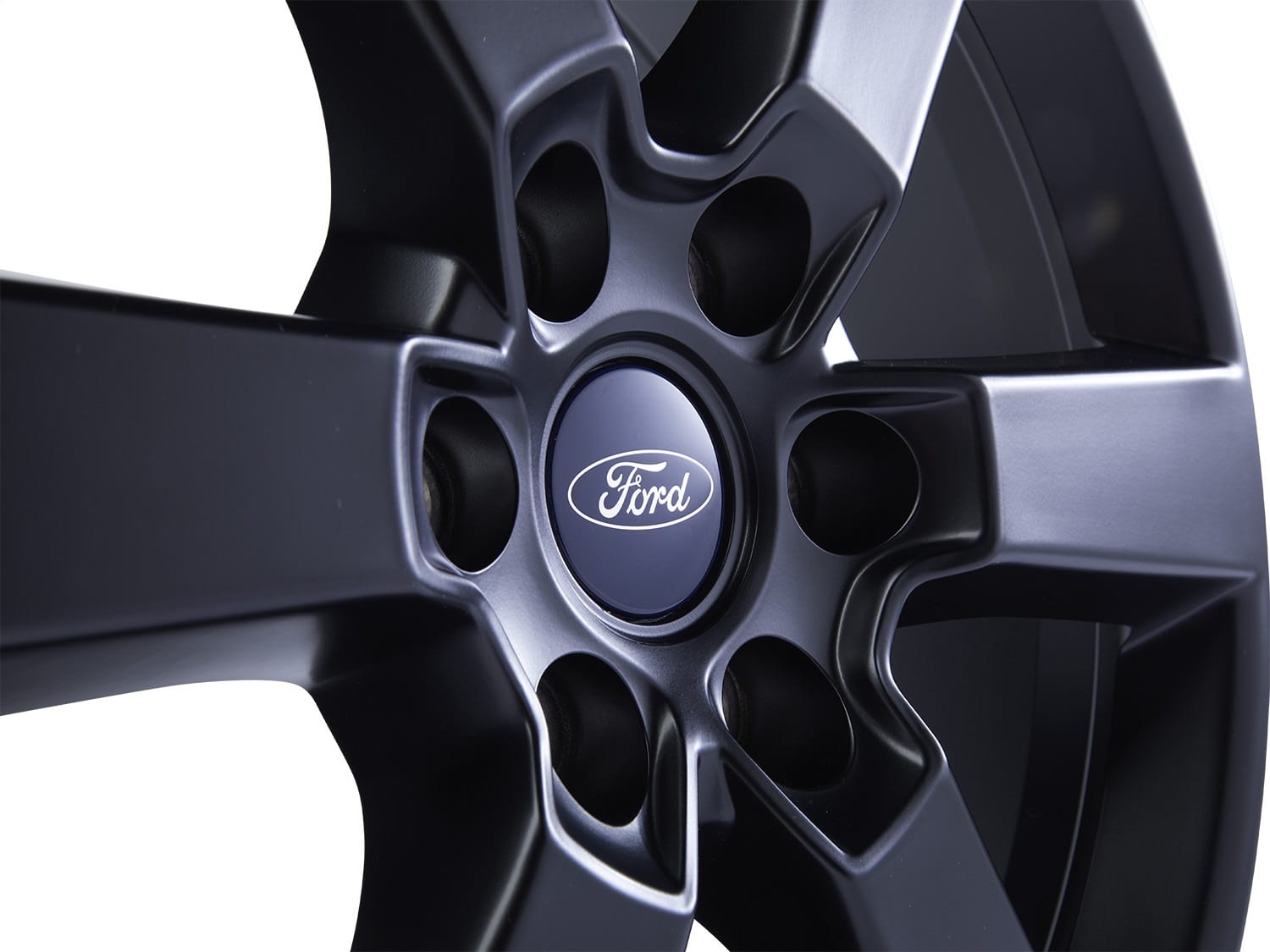

Ford Performance M-1007-P2085MB Wheel

2015-2020 F-150 20" X 8.5" Six Spoke Matte Black Wheel

FRPP uses the Society of Automotive Engineers (SAE) and American Society for Testing and Materials (ASTM) Standard: SAE J175 and J328 for impact and fatigue testing and ASTM B368 for chrom testing. These standards define a series of tests that ensure the safety and finish of a wheel. THESE TESTS ARE THE MINIMUM STANDARD USED TO DEFINE THE ENDURANCE OF FRPP WHEELS. Impact Testing: This test simulates a curb impact on the side of a tire/wheel assembly. During testing, a tire/wheel assembly is mounted at a 13-degree angle to a test fixture by the hub. A weight is dropped from 9 inches onto the assembly at the tire/wheel intersection. The mass of the weight is determined by a formula, using the vehicle weight. Dynamic Cornering Fatigue Testing: This test simulates lateral loads applied to a wheel by the vehicle. During testing, a wheel is clamped to a fixture by the front face and a constant bending moment is applied through the hub. A wheel of new design will run a minimum of 1,000,000 cycles before approved. The load applied is determined by a formula, using the vehicle weight. Dynamic Radial Fatigue Testing: This test simulates axial loads applied to a wheel by the vehicle. During testing, a tire/wheel assembly is mounted to an axle by the hub. A large drum drives the assembly while a load is applied perpendicular to the tire patch. A wheel of new design will run a minimum of 5,000,000 cycles. The load applied is determined by a formula, using the vehicle weight. Chrome Quality Testing: Copper-accelerated acetic acid-salt spray, commonly known as CASS testing, is the standard method used to test the corrosive performance of copper/nickel/chromium-plated wheels. The test is performed in a sealed chamber with a highly acetic spray directed onto the wheel for a predetermined amount of time, usually 66 hours.

Features

• Matte Black Finish
• Clear Coated To OEM Standards
• Valve Stem TPMS Compatible
• Use w/TPMS Sensor/Activation Tool M1180-B
• 20 x 8.5 in. Wide
• 6 Lug 136mm Bolt Circle
• 44mm Offset
• 160mm Backspacing

Short Description: Wheel -Aluminum

Invoice Description: Wheel -Aluminum - M-1007-P2085MB

Definition: Wheel
