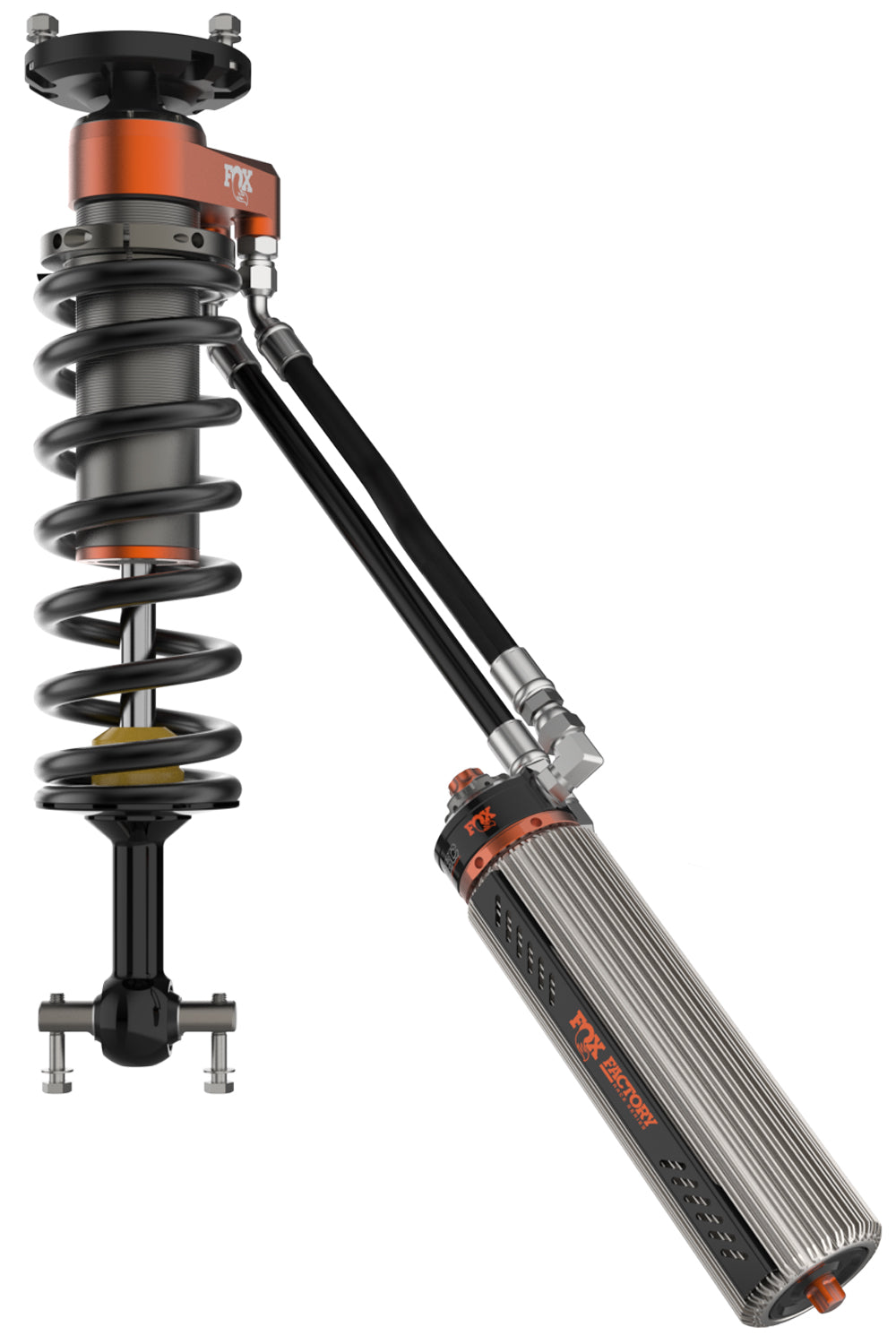

FOX Shocks 883-06-175 Suspension Shock Absorber Kit
Product Availability Request
Fill the form and our team will contact you.
Application specific valving to maximize performance.
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Features
- Finned External Reservoir System Dissipates Heat Fast
- Quick Switch Compression And Rebound Adjusters
- Black Anodized CNC Machined Aluminum Components
Specifications
| Bottom Mount (p/n) | 213-63-011 |
| Fox Catalog | TRUCK |
| Extended Length (in) | 22.74 IN |
| Compressed Length (in) | 17.15 IN |
| Adjuster Type | DSC - Dual Speed Compression |
| Series | Factory Race |
| Top Mount | OEM |
| Bottom Mount | Bar Pin |
| Travel (in) | 5.34 IN |
| Label Name | Kit: 19-ON GM 1500 Front Coilover, Internal Bypass, 3.0 Series, Recirc R/R, DSC, Non-TB/Non-AT4 3" Lift, TB/AT4 1" Lift |
| Prop 65 Y/N | Y |
| Body Diameter (in) | 3 |
| Reservoir Type | Recirculating Remote |
| Body Material | Aluminum |
| Type | Coil-Over Internal Bypass |
| California Proposition 65 | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Note: Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Short Description: 3.0 Bypass Shocks
Invoice Description: FOX 3.0 FACTORY INTERNAL BYPASS SHOCKS
Definition: Suspension Shock Absorber Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year
