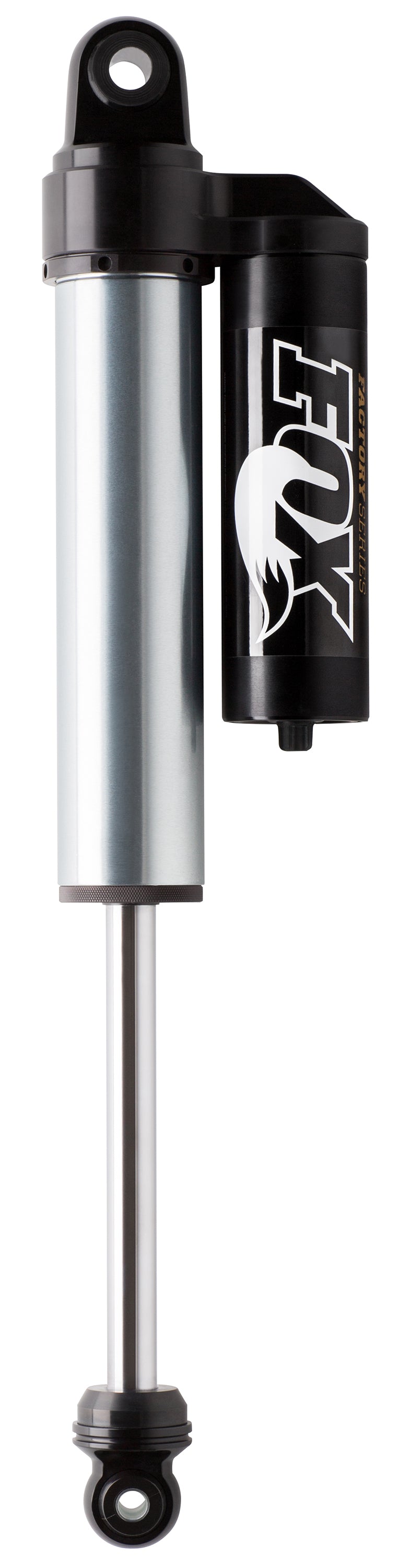

FOX Shocks 883-24-002 Suspension Shock Absorber Kit

Delivering race-tuned suspension control, the FOX Shocks 883-24-002 is a Factory Race Series shock absorber kit engineered with application-specific valving to maximize performance. Fits the 2004-2020 Ford F-150. This 2.5-inch smooth body rear shock features an 11.0-inch piggyback reservoir system with 10.96 inches of travel, capable of 0 to 1.5 inches of lift, and extends from 17.40 inches when compressed to 28.36 inches fully extended. Built with a durable zinc-plated seamless steel body and black anodized CNC-machined aluminum components, the shock incorporates FOX's race-proven internal bypass technology for controlled damping across varied terrain. The external reservoir dissipates heat rapidly to maintain consistent performance, backed by a one-year warranty.

• Extended Length (in): 28.36 IN
• Compressed Length (in): 17.40 IN
• Bottom Mount (p/n): 213-27-000-B
• Series: Factory Race
• Top Mount (p/n): 213-27-000-B
• Top Mount: ES1
• Bottom Mount: ES1
• Travel (in): 10.96 IN
• Body Diameter (in): 2.5
• Body Material: Steel
• Type: Smooth Body
• Reservoir Type: Piggyback
• Shock Type: Smooth Body
• Collapsed Length: 17.4 Inch
• Drive: 4WD & 2WD
• Extended Length: 28.36 Inch
• Travel/Length: 10.96 Inch
• Label Name: Kit: 04-08 4wd & 09-On 2wd/4wd Ford F-150 Rear, 2.5 Series, P/B, 11.0", 0-1.5" Lift
