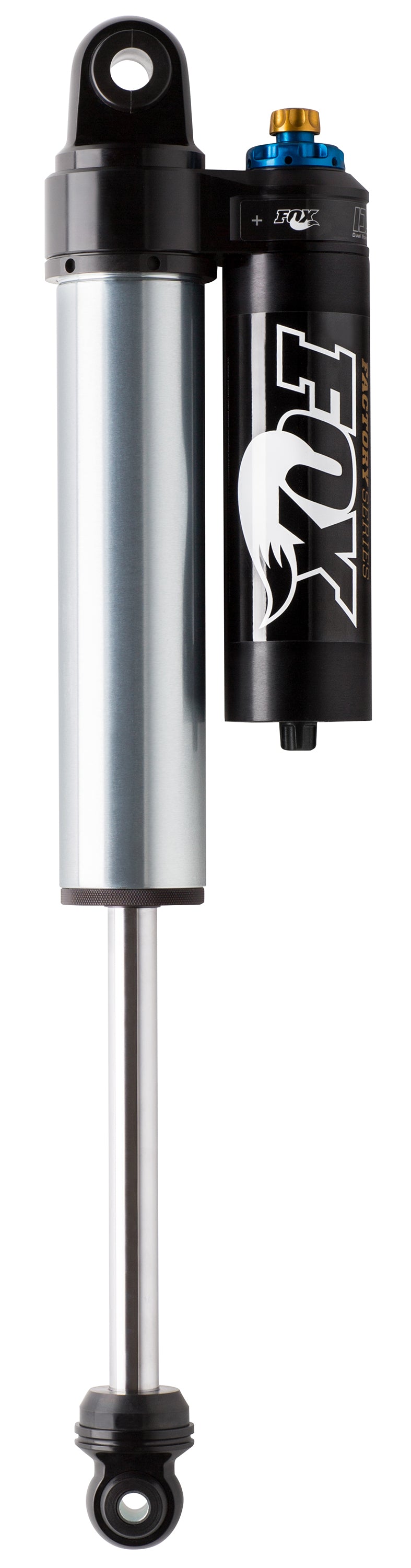

FOX Shocks 883-26-002 Suspension Shock Absorber Kit

For 04-08 4WD and 09-on 2WD/4WD Ford F-150 rear applications, the FOX Shocks 883-26-002 is a Factory Race Series shock with a steel body and piggyback external reservoir system. Fits the 2004-2020 Ford F-150. Extended to 28.36 inches and compressed to 17.40 inches, the unit provides 10.96 inches of travel with DSC dual-speed compression adjustability. Mount points use ES1 design (part number 213-27-000-B on both top and bottom) for straightforward installation on compatible vehicles. Race-developed internal damping technology and fully serviceable components support 0-1.5 inch lift modifications with 11.0 inch maximum height capacity, backed by a 1-year warranty.

• Extended Length (in): 28.36 IN
• Compressed Length (in): 17.40 IN
• Bottom Mount (p/n): 213-27-000-B
• Adjuster Type: DSC - Dual Speed Compression
• Series: Factory Race
• Top Mount (p/n): 213-27-000-B
• Top Mount: ES1
• Bottom Mount: ES1
• Travel (in): 10.96 IN
• Body Diameter (in): 2.5
• Reservoir Type: Piggyback
• Body Material: Steel
• Type: Smooth Body
• Shock Type: Smooth Body
• Collapsed Length: 17.4 Inch
• Drive: 4WD & 2WD
• Extended Length: 28.36 Inch
• Travel/Length: 10.96 Inch
• Label Name: Kit: 04-08 4wd & 09-On 2wd/4wd Ford F-150 Rear, 2.5 Series, P/B, 11.0", 0-1.5" Lift, DSC
