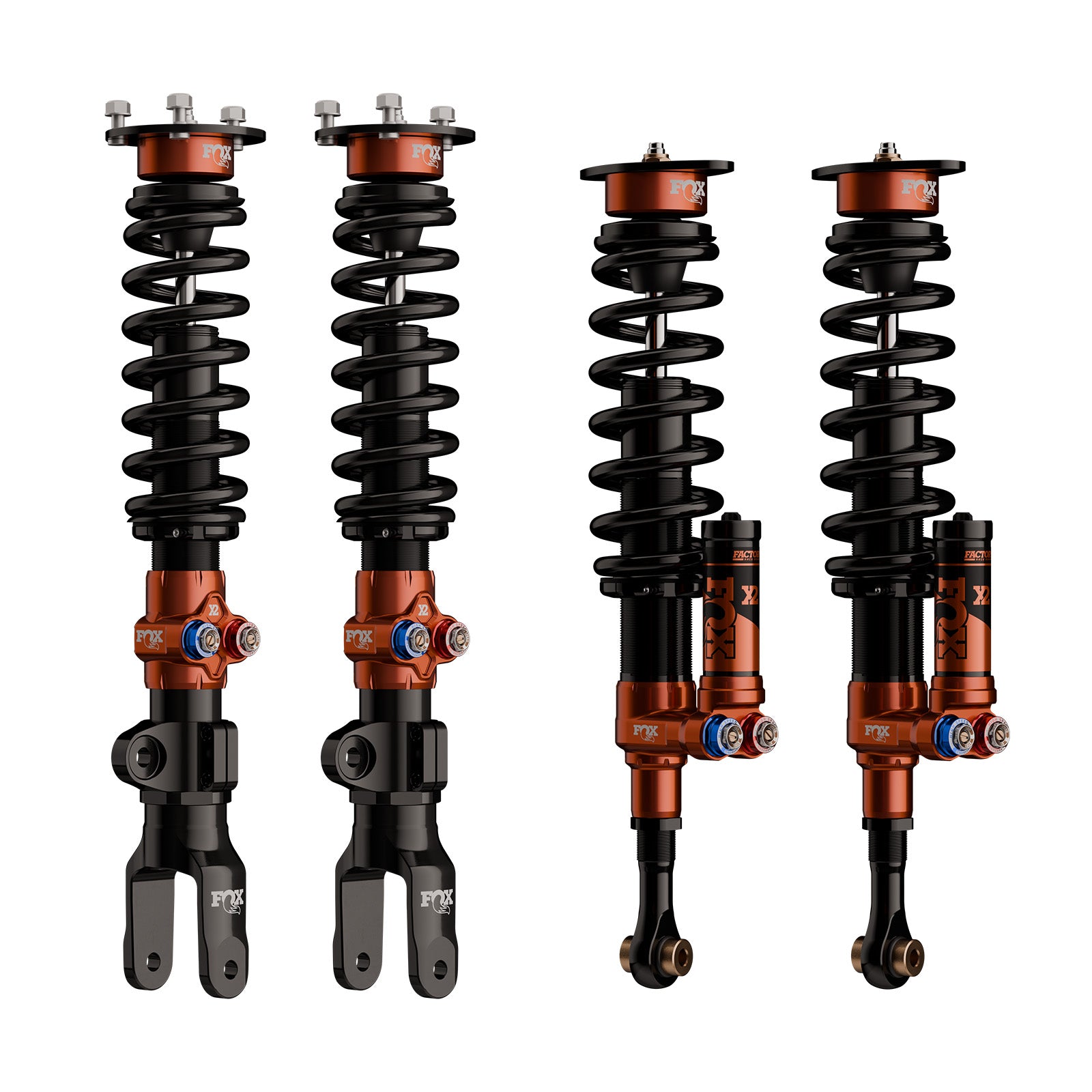

FOX Shocks 883-30-000 Suspension Shock Absorber Kit
Product Availability Request
Fill the form and our team will contact you.
Application specific valving to maximize performance
The Dodge Charger and Challenger are powerful, modern muscle cars with a prominent role in car culture. FOX Factory Race Series 2.0 X2 shocks dramatically improve the car as a performance-oriented daily driver with handling that’s adaptable to the track. TYPE III hard anodization prevents corrosion and wear of the 2.0-inch aluminum bodies. Converting the rear suspension to a coil-over improves the motion ration and makes ride height adjustments easy. The Factory Race Series kit accommodates 0.75-1.5” of lowering. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Our ride engineers spent considerable time testing the Dodge. We drove the car on the road and track, then optimized the shock valving for a variety of road textures to enhance vehicle balance. Fine-tune the vehicle’s damping with the 4-way adjuster, X2. Easily tune high-speed compression, high-speed rebound, low-speed compression, and low-speed rebound separately with 24 clicks each. The shock’s twin tube recirculating oil architecture coupled with X2 provides motorsport-level damping on the track, and 4-way adjustment allows for a comfortable drive home. The Charger and Challenger are comfortable and powerful muscle cars. With FOX, you can transform their ride dynamics to deliver a planted and stable ride through inconsistent pavement and track days.
Features
- 2.0” impact-extruded and CNC-machined 6061-T6 TYPE III anodized aluminum body
- 5/8” hard chromed steel shafts
- Vehicle-specific tuning maximizes performance
- Patented rubber isolated spherical bearing
- Redundant sealing pack system: main seal, wiper seal, scraper seal
- External reservoir, with internal floating piston
Specifications
| Vehicle Ride Height Drop | 0.75"-1.5" |
| Body Diameter (in) | 2.0 |
| Compressed Length (in) | 21.35(F)/18.48(R) IN |
| Extended Length (in) | 25.33(F)/22.75(R) IN |
| Travel (in) | 3.98(F)/4.27(R) IN |
| Body Material | Aluminum |
| Bottom Mount | Clevis(F)/Eyelet(R) |
| Type | Coil-Over |
| Series | Factory Race |
| Reservoir Type | Internal Floating Piston (IFP) |
| Label Name | Kit: MY11-23 Dodge Charger/Challenger, 2.0 On-Road FRS, X2, DSC, DSR |
| Top Mount | OEM(F/R) |
| Fox Catalog | TRUCK |
| Adjuster Type | X2 DSC, DSR |
| Prop 65 Y/n | Y |
| California Proposition 65 | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Note: Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Short Description: 2.0 Coil-Over Shocks
Invoice Description: FOX FACTORY RACE IFP SHOCK
Definition: Suspension Shock Absorber Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year
