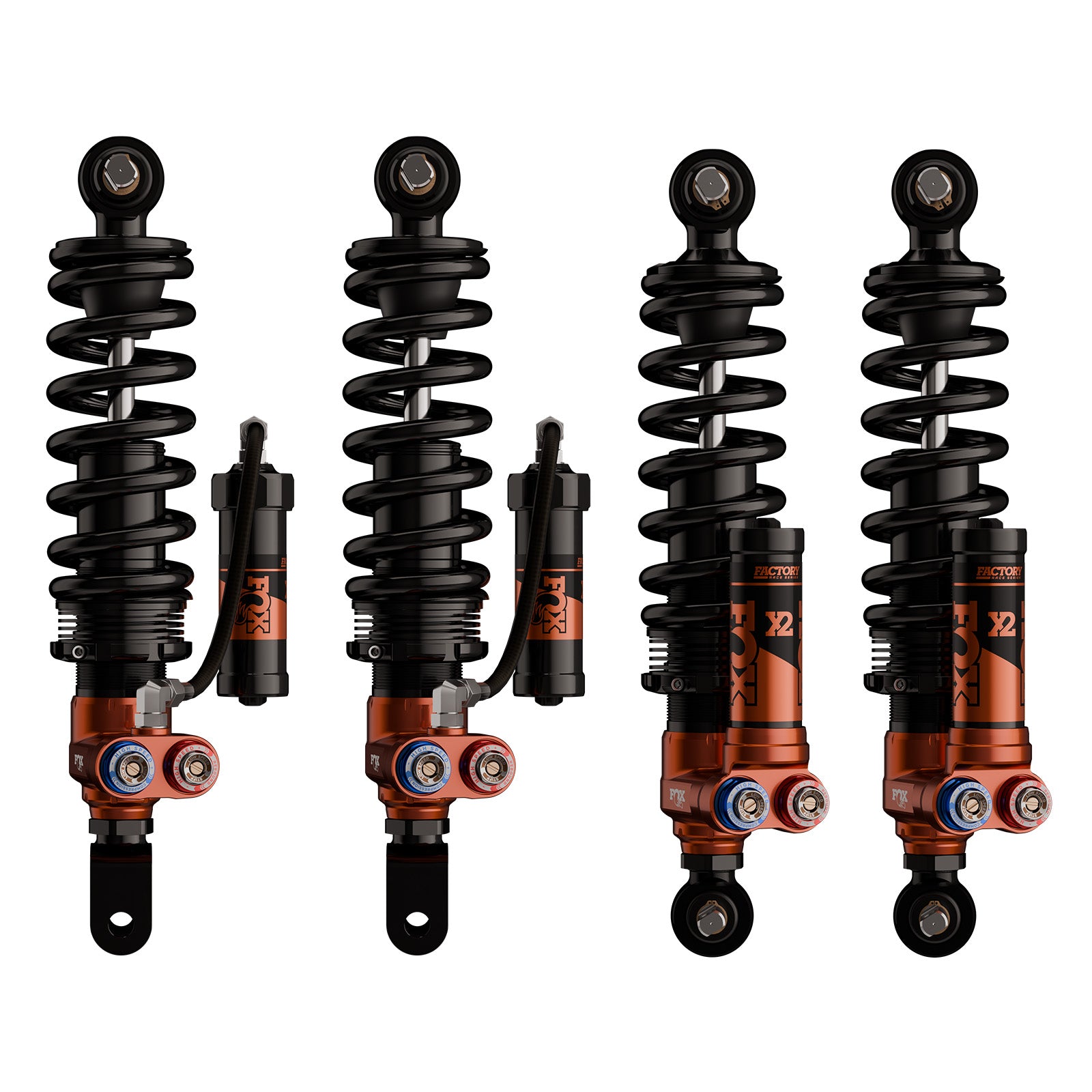

FOX Shocks 883-30-004 Suspension Shock Absorber Kit
Product Availability Request
Fill the form and our team will contact you.
Application specific valving to maximize performance
The C7 Corvette delivers speed from the factory, and a strong aftermarket catalog makes the chassis an ideal vehicle to configure into a dedicated track car or performance-oriented daily driver. FOX Factory Race Series 2.0 X2 shocks dramatically improve the car’s handling and driver confidence. TYPE III hard anodization prevents corrosion and wear of the 2.0-inch aluminum bodies. Converting the front suspension to a coil-over makes spring changes, ride height adjustment, and corner balancing easier. The Factory Race Series kit accommodates 0.75-1.5” of lowering. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Our ride engineers spent considerable time testing the Corvette. We tracked the car, drove the C7 on the street, and optimized the shock valving for various driving conditions. Fine-tune the vehicle’s damping with the 4-way adjuster, X2. Easily tune high-speed compression, high-speed rebound, low-speed compression, and low-speed rebound separately with 24 clicks each. The shock’s twin tube recirculating oil architecture coupled with X2 provides motorsport-level damping on the track, and 4-way adjustment allows for a comfortable drive home. The C7 Corvette is powerful and track-capable. With FOX, you can transform its ride dynamics to deliver more comfort over rough surfaces while feeling planted and stable through different track layouts and topography.
Features
- 2.0” impact-extruded and CNC-machined 6061-T6 TYPE III anodized aluminum body
- 5/8” hard chromed steel shafts
- Vehicle-specific tuning maximizes performance
- Patented rubber isolated spherical bearing
- Redundant sealing pack system: main seal, wiper seal, scraper seal
- External reservoir, with internal floating piston
Specifications
| Vehicle Ride Height Drop | 0.75"-1.5" |
| Compressed Length (in) | 12.58(F)/12.86(R) IN |
| Extended Length (in) | 16.56(F)/16.94(R) IN |
| Body Diameter (in) | 2.0 |
| Travel (in) | 3.98(F)/4.08(R) IN |
| Body Material | Aluminum |
| Top Mount | Bar Pin |
| Bottom Mount | Bar Pin(F)/Clevis(R) |
| Type | Coil-Over |
| Series | Factory Race |
| Label Name | Kit: MY14-19 Chevrolet Corvette C7, 2.0 On-Road FRS, X2, DSC, DSR |
| Reservoir Type | Remote |
| Fox Catalog | TRUCK |
| Adjuster Type | X2 DSC - Dual-Speed Compression, DSR - Dual-Speed Rebound |
| Prop 65 Y/n | Y |
| California Proposition 65 | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Note: FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Short Description: 2.0 Coil-Over Shocks
Invoice Description: FOX FRS RESI KIT - CORVETTE
Definition: Suspension Shock Absorber Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year
