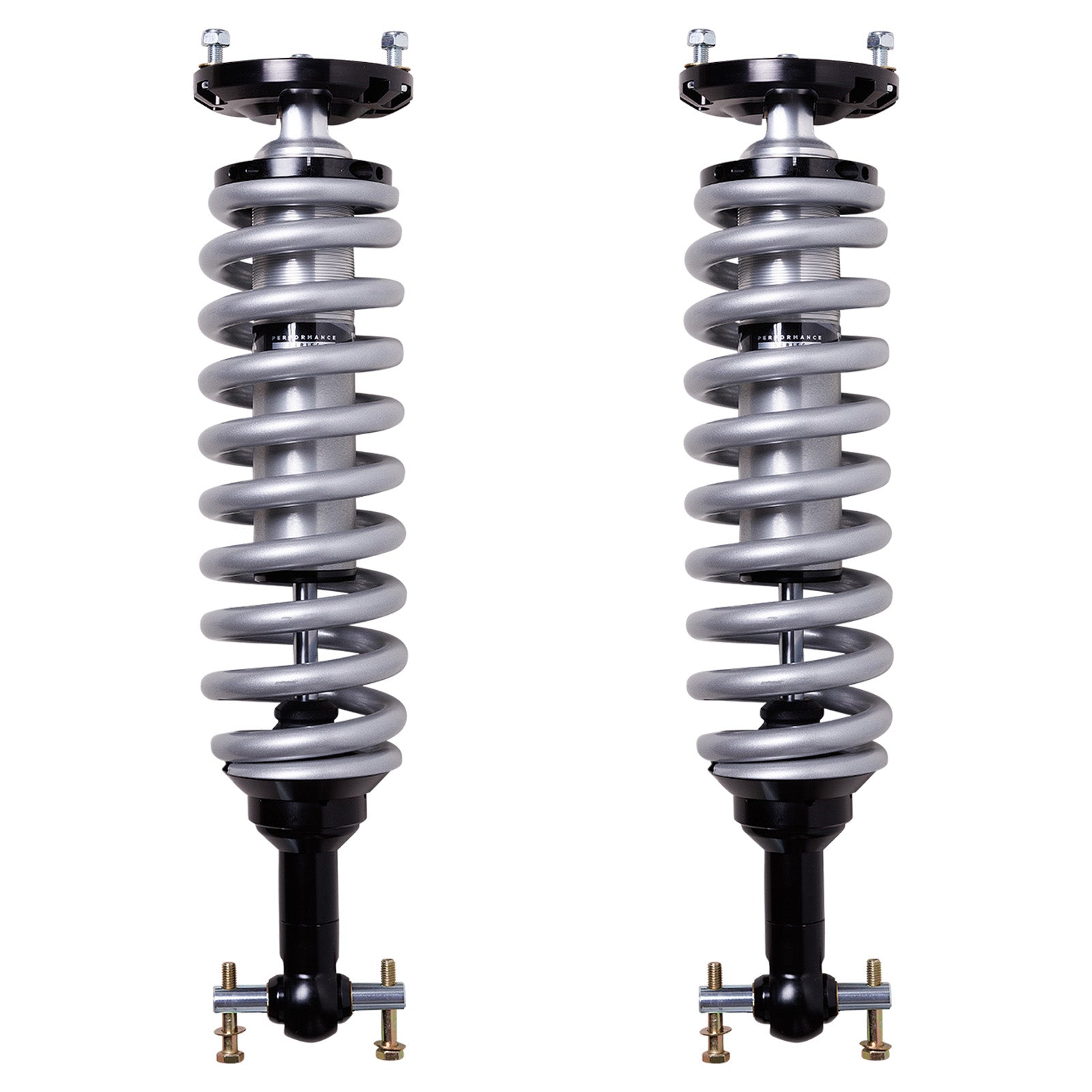

FOX Shocks 887-02-012 Suspension Shock Absorber Kit
Product Availability Request
Fill the form and our team will contact you.
Application specific valving to maximize performance.
FOX Performance Series shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
Features
- 2.5” Impact extruded 6061-T6 aluminum shock body
- Type II clear-anodized body plating
- High-flow velocity-sensitive damping
- 5/8” hard chrome shaft
- Internal floating piston (IFP)
- Corrosion resistant
- Application specific tune
- Fully rebuildable and re-tunable
Specifications
| Reservoir Type | Internal Floating Piston |
| Series | Performance |
| Body Material | Aluminum |
| Fox Catalog | TRUCK |
| Prop 65 Y/n | Y |
| Body Diameter (in) | 2.5 |
| Compressed Length (in) | 14.31 IN |
| Extended Length (in) | 18.80 IN |
| Bottom Mount | Bar Pin |
| Label Name | Kit: 07-18 GM 1500, Front Coilover, 2.5 Truck PS, IFP 2-3” Lift |
| Top Mount | OEM |
| Travel (in) | 4.49 IN |
| Type | Coil-Over |
| California Proposition 65 | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Note: *IMPORTANT*: Cast aluminum lower control arm required for '16-18 model year trucks for CV boot clearance. - OE aluminum lower control arm reference numbers = 22853473 and 22853474, or equivalents. - Cast aluminum and stamped steel lower control arms have the same ball joint taper. - Cast steel LCAs have a different ball joint taper and would not be usable for ’16-'18 model years.
Short Description: 2.5 Shock
Invoice Description: FOX 2.5 PS IFP SHOCK|07-18 GM 1500 2-3"
Definition: Suspension Shock Absorber Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: Lifetime
