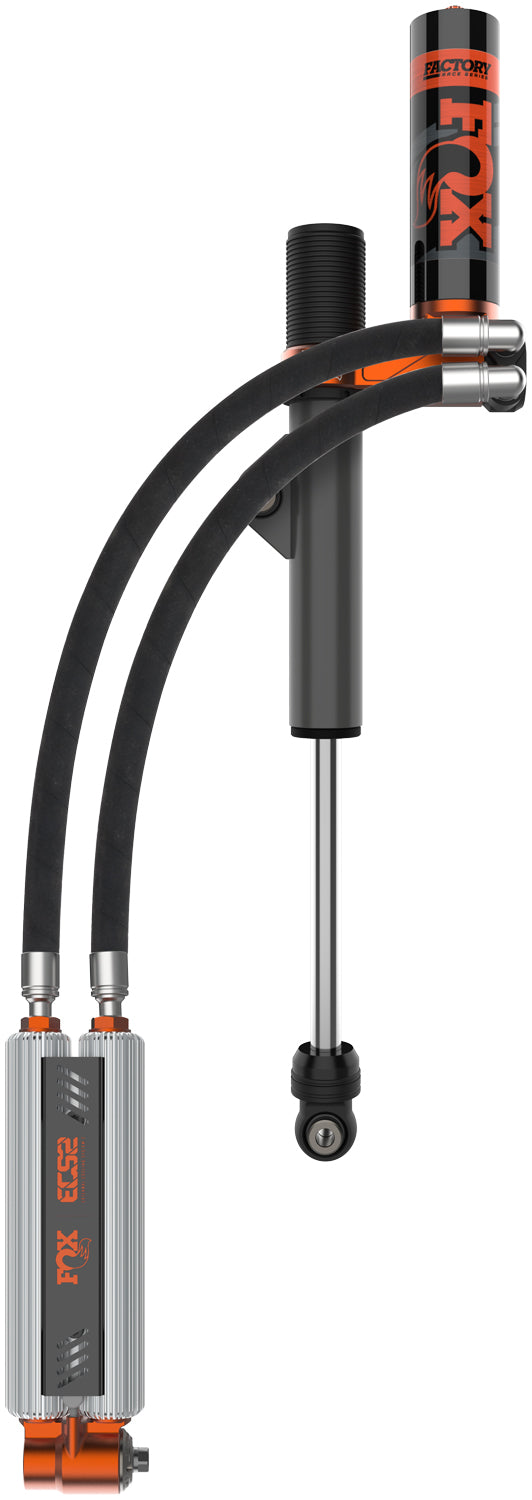

FOX Shocks 981-20-014-3L Suspension Shock Absorber
Product Availability Request
Fill the form and our team will contact you.
*APPLICATION SPECIFIC - CLASS 11*
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Features
- NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
- External Cooling System 2 (ECS2)
- Owner serviceable and rebuildable
- JM92 MIL-SPEC oil developed specifically for off-road racing
- Orange and Black Anodized CNC Machined Aluminum Components
Specifications
| Adjuster Type | DSC - Dual Speed Compression |
| Shaft Size (in) | 7/8 IN |
| Travel (in) | 9.44 IN |
| Prop 65 Y/N | Y |
| Bottom Mount | Eyelet |
| Compressed Length (in) | 15.96 IN |
| Label Name | Class 11, Rear (Side Mount), 2.0 FRS, SB, P/B, ECS2, DSC, 9.4", Left |
| Extended Length (in) | 25.40 IN |
| Fox Catalog | OFFROAD |
| Series | Factory Race |
| Hose | -10 x 24.00 |
| Eyelet Length (in) | 1.68 IN |
| Mounting | 1/2 x 1-1/2 |
| Reservoir Dimensions | 2.55 x 8.00 |
| Top Mount | Welded Side Mount |
| Body Diameter (in) | 2.0 |
| Valving | 807-24-058 |
| Reservoir Type | Rotating Piggyback |
| Type | Smooth Body |
| Body Material | Aluminum |
| California Proposition 65 | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Note: Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Short Description: 2.0 Smooth Body
Invoice Description: FOX 2.0 X 9.4 Smooth Body Piggyback ECS2
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year
