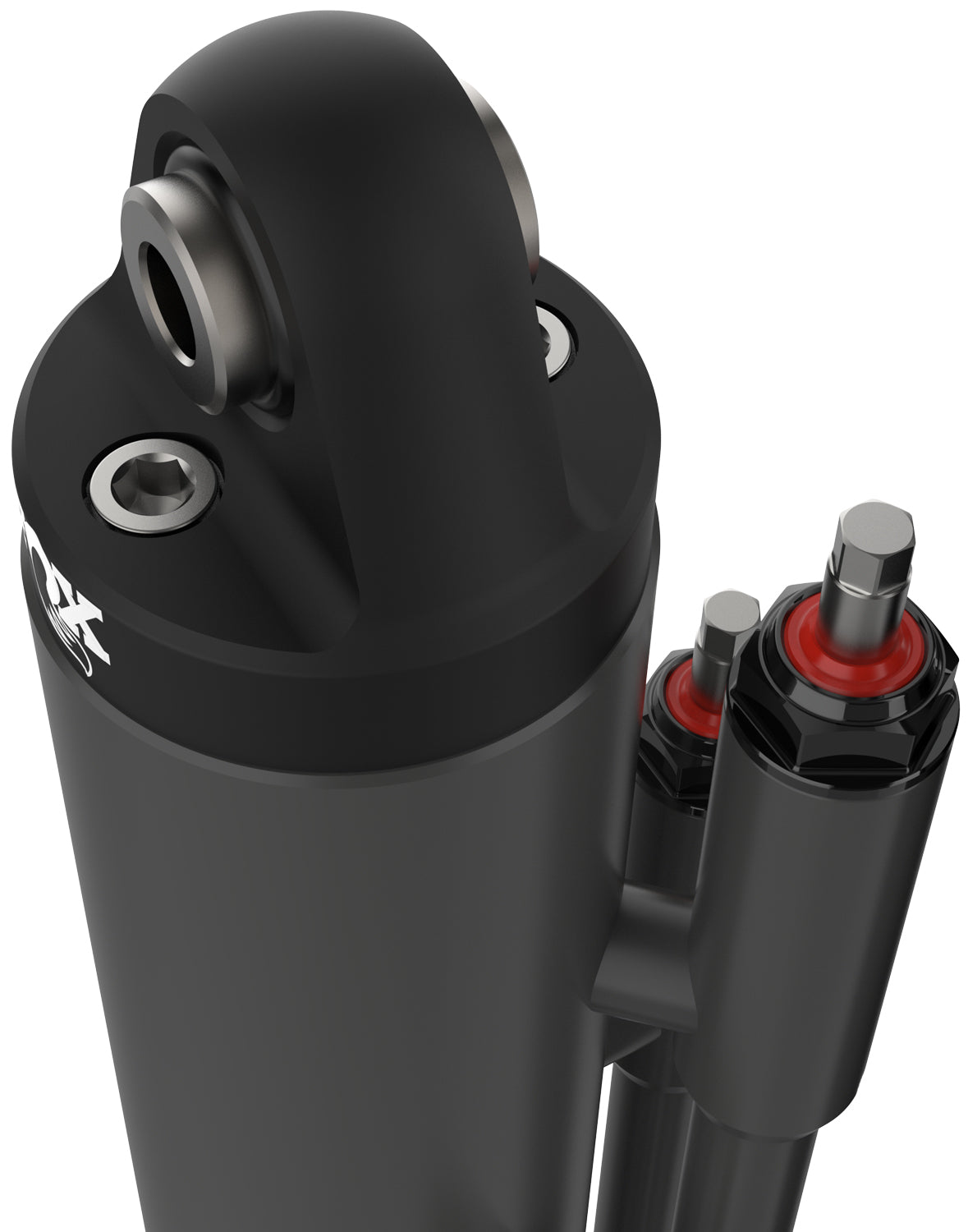

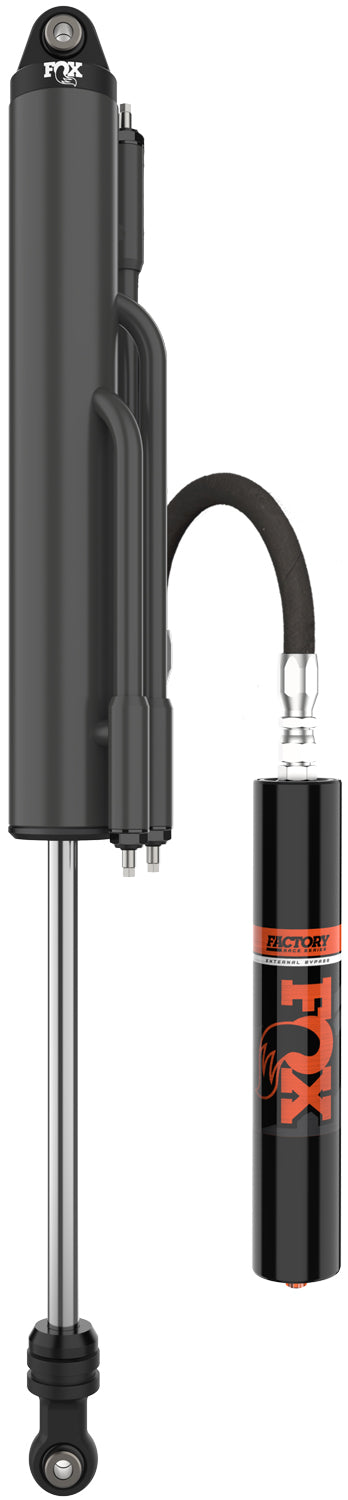

FOX Shocks 981-30-408-R Suspension Shock Absorber
Product Availability Request
Fill the form and our team will contact you.
Rebuildable and serviceable. Custom valving options available.
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Features
- NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
- 17-4 H900 hard chrome plated stainless steel shaft
- Owner serviceable and rebuildable
- JM92 MIL-SPEC oil developed specifically for off-road racing
- Black Anodized CNC Machined Aluminum Components
Specifications
| Body Finish | FOX Grey Cerakote |
| Adjuster Type | External Bypass Clicker - Gen 2 |
| Bypass Tubes | 3 |
| Hose | -10 x 38.00 |
| Reservoir Dimensions | 2.55 x 14.00 |
| Shaft Size (in) | 7/8 IN |
| Mounting | 1/2 x 1-1/2 |
| Bottom Mount | Eyelet |
| Top Mount | Eyelet |
| Series | Factory Race |
| Fox Catalog | OFFROAD |
| Label Name | 3.0 FRS, EXBP, 3T, R/R, 14", RH |
| Travel (in) | 13.91 IN |
| Compressed Length (in) | 23.60 IN |
| Extended Length (in) | 37.51 IN |
| Eyelet Length (in) | 2.00 IN |
| Prop 65 Y/N | Y |
| Body Diameter (in) | 3 |
| Body Material | Steel |
| Reservoir Type | Remote |
| Valving | 807-24-600 |
| Type | External Bypass |
| California Proposition 65 | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Note: Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Short Description: 3.0 External Bypass
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year
