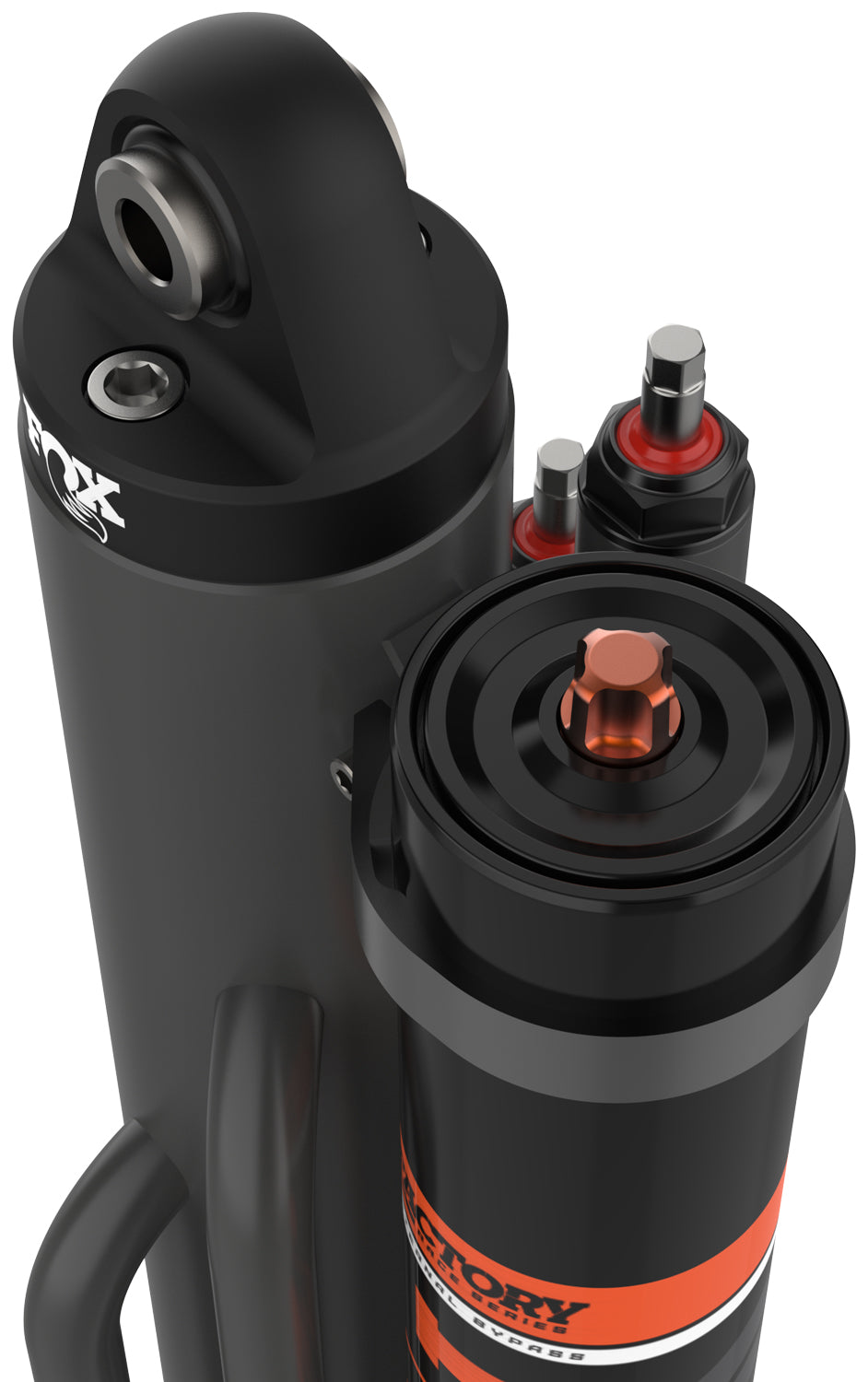

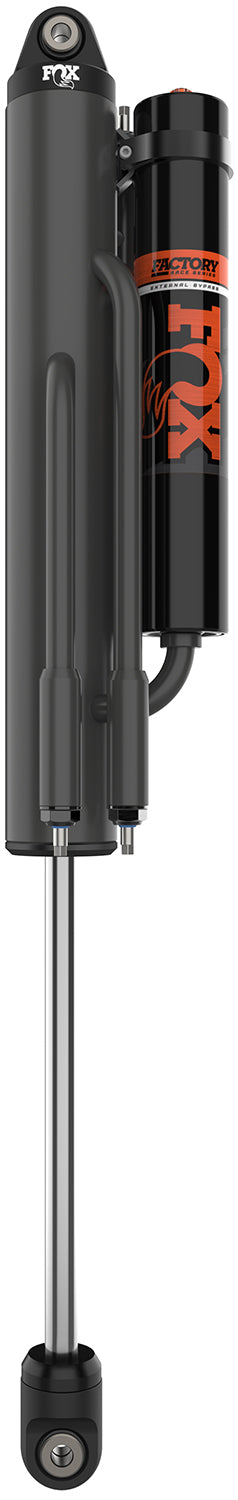

FOX Shocks 981-30-423-R Suspension Shock Absorber
Product Availability Request
Fill the form and our team will contact you.
*APPLICATION SPECIFIC - SHORT COURSE SPEC*
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Features
- NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
- 17-4 H900 hard chrome plated stainless steel shaft
- Owner serviceable and rebuildable
- JM92 MIL-SPEC oil developed specifically for off-road racing
- Black Anodized CNC Machined Aluminum Components
Specifications
| Body Finish | FOX Grey Cerakote |
| Adjuster Type | External Bypass Clicker - Gen 2 |
| Bypass Tubes | 4 |
| Extended Length (in) | 42.23 IN |
| Series | Factory Race |
| Fox Catalog | OFFROAD |
| Label Name | 3.0 FRS, EXBP (1" Shaft), 4T (Gold Valve), P/B, 16", RH |
| Reservoir Dimensions | 2.55 x 16.00 |
| Shaft Size (in) | 1 IN |
| Eyelet Length (in) | 2.50 IN |
| Mounting | 5/8 x 1-1/2 |
| Bottom Mount | Eyelet |
| Top Mount | Eyelet |
| Compressed Length (in) | 26.25 IN |
| Travel (in) | 15.98 IN |
| Prop 65 Y/N | Y |
| Body Diameter (in) | 3 |
| Type | External Bypass |
| Valving | 807-24-610 |
| Reservoir Type | Piggyback |
| Body Material | Steel |
| California Proposition 65 | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Note: Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Short Description: 3.0 External Bypass
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year
