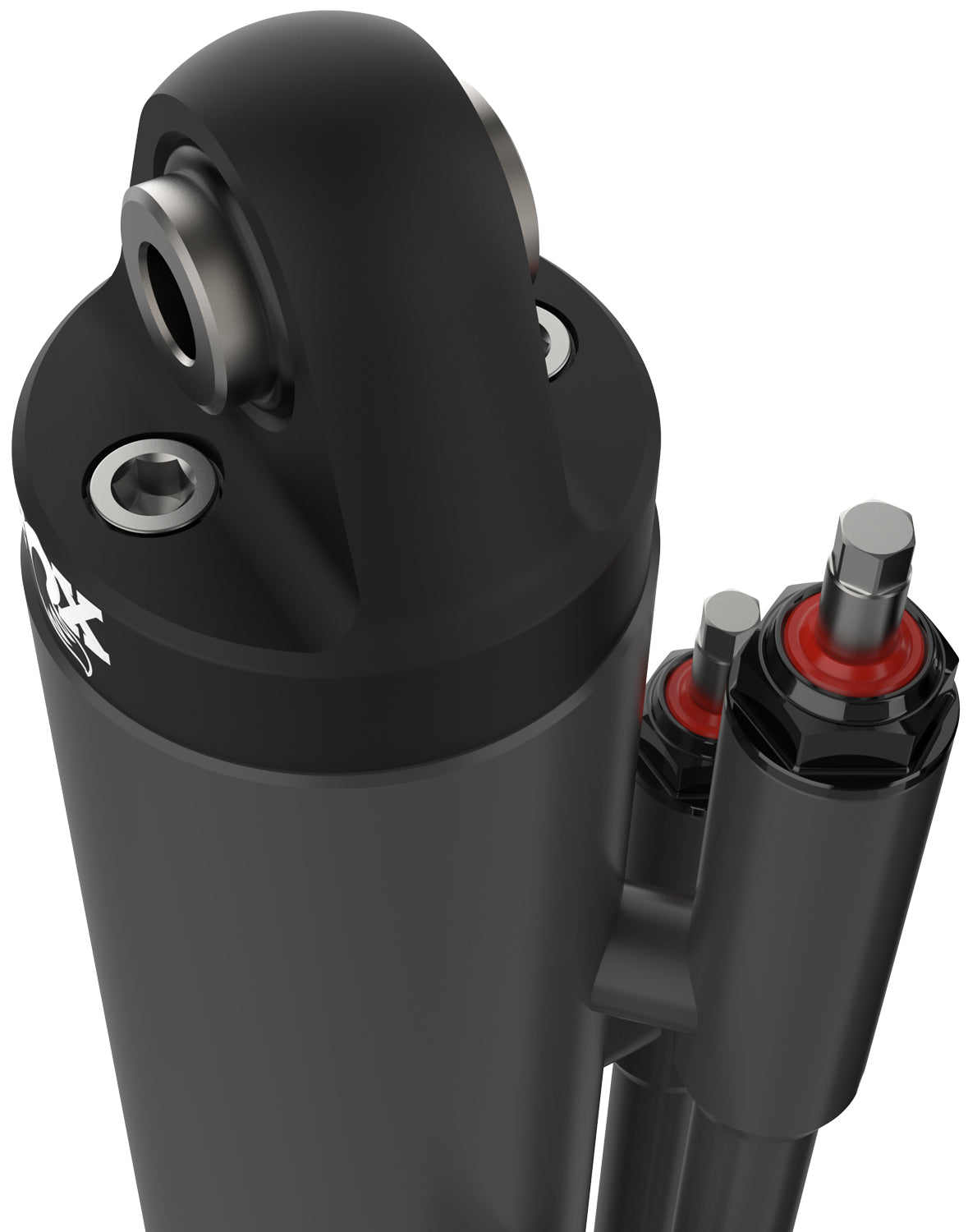

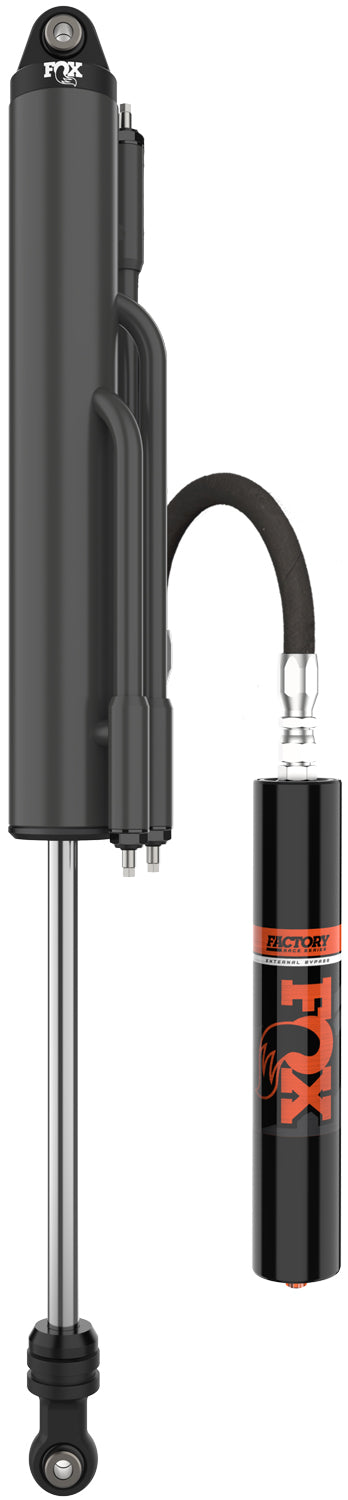

FOX Shocks 981-30-428-L Suspension Shock Absorber
Product Availability Request
Fill the form and our team will contact you.
Rebuildable and serviceable. Custom valving options available.
FOX External Bypass shocks have racked up countless wins across the globe over the past 30 years. There's no questioning whether they're race proven, but in the words of Bob Fox, "we're never done." In that spirit, we've reitalized our tried-and-true externally, adjustable position sensitive damping archtecture to deliver all-new standards of performance and durability, all while streamlining the production process.
Features
- NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
- 17-4 H900 hard chrome plated stainless steel shaft
- Owner serviceable and rebuildable
- JM92 MIL-SPEC oil developed specifically for off-road racing
- Black Anodized CNC Machined Aluminum Components
Specifications
| Hose | -10 x 28.00 |
| Mounting | 1/2 x 1-1/2 |
| Compressed Length (in) | 16.6 IN |
| Eyelet Length (in) | 2 IN |
| Reservoir Dimensions | 2.55 x 8.00 |
| Extended Length (in) | 24.46 IN |
| Body Diameter (in) | 3 |
| Label Name | 3.0 FRS, EXBP, 4T, R/R, 8", LH |
| Bypass Tube Size | 3/4 |
| Bypass Tubes | 4 |
| Travel (in) | 7.86 IN |
| Shaft Size (in) | 7/8 IN |
| Travel (rounded) | 8 |
| Seal Kit | 803-04-025 |
| Valving | 807-24-600 |
| Type | External Bypass |
| Adjuster Type | External Bypass Clicker - Gen 2 |
| Bottom Mount | Eyelet |
| Top Mount | Eyelet |
| Series | Factory Race |
| Body Finish | FOX Grey Cerakote |
| Fox Catalog | OFFROAD |
| Reservoir Type | Remote |
| Body Material | Steel |
| Prop 65 Y/n | Y |
| California Proposition 65 | ! Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Note: FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Short Description: 3.0 External Bypass
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year
