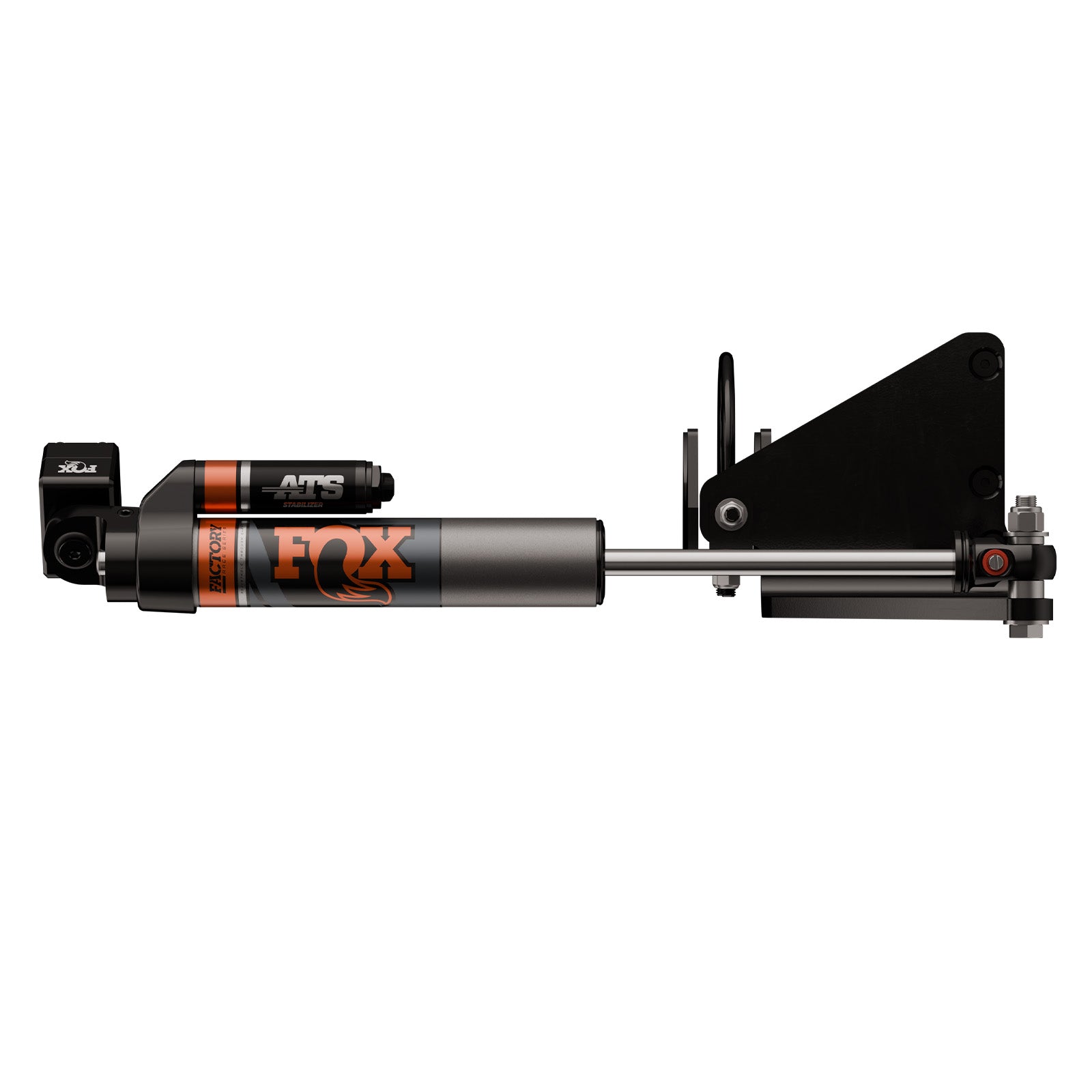

FOX Shocks 983-02-252 Steering Stabilizer
Product Availability Request
Fill the form and our team will contact you.
Application specific valving to maximize performance.
With conventional steering stabilizers, turning in one direction creates an increase in pressure inside the stabilizer as the shaft occupies more volume in the body and displaces the oil. The repercussion is a push or pull steering force felt by the driver as the stabilizer attempts to return to its neutral state. To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space.The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.
Features
- Adjustable Through Shaft Stabilizer
- Performance Tuned For Vehicle Specific Application
- Aluminum Body Dissipates Heat Faster Than Steel
- Eliminates fluid displacement, delivering neutral and consistent damping of unwanted steering feedback
- External Reservoir With Compression Adjuster
- Black Anodized CNC Machined Aluminum Components
Specifications
| Tie Rod Clamp | 1-3/4" |
| Compressed Length (in) | 14.09 IN |
| Body Diameter (in) | 2.0 |
| Extended Length (in) | 22.19 IN |
| Label Name | 23-ON Ford Superduty ATS Stabilizer w/ Bracket, 8.1" Trav, 22.19" Ext, Through-Shaft, 1-3/4" Clamp |
| Travel (in) | 8.11 IN |
| Body Material | Aluminum |
| Bottom Mount | Eyelet |
| Series | Factory Race |
| Reservoir Type | Piggyback |
| Type | Stabilizer |
| Top Mount | Tie Rod Clamp |
| Fox Catalog | TRUCK |
| Prop 65 Y/n | Y |
| California Proposition 65 | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Note: FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Short Description: 2.0 Stabilizer
Invoice Description: FOX 2.0 FRS ATS STABILIZER&BRACKET
Definition: Steering Stabilizer
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year
