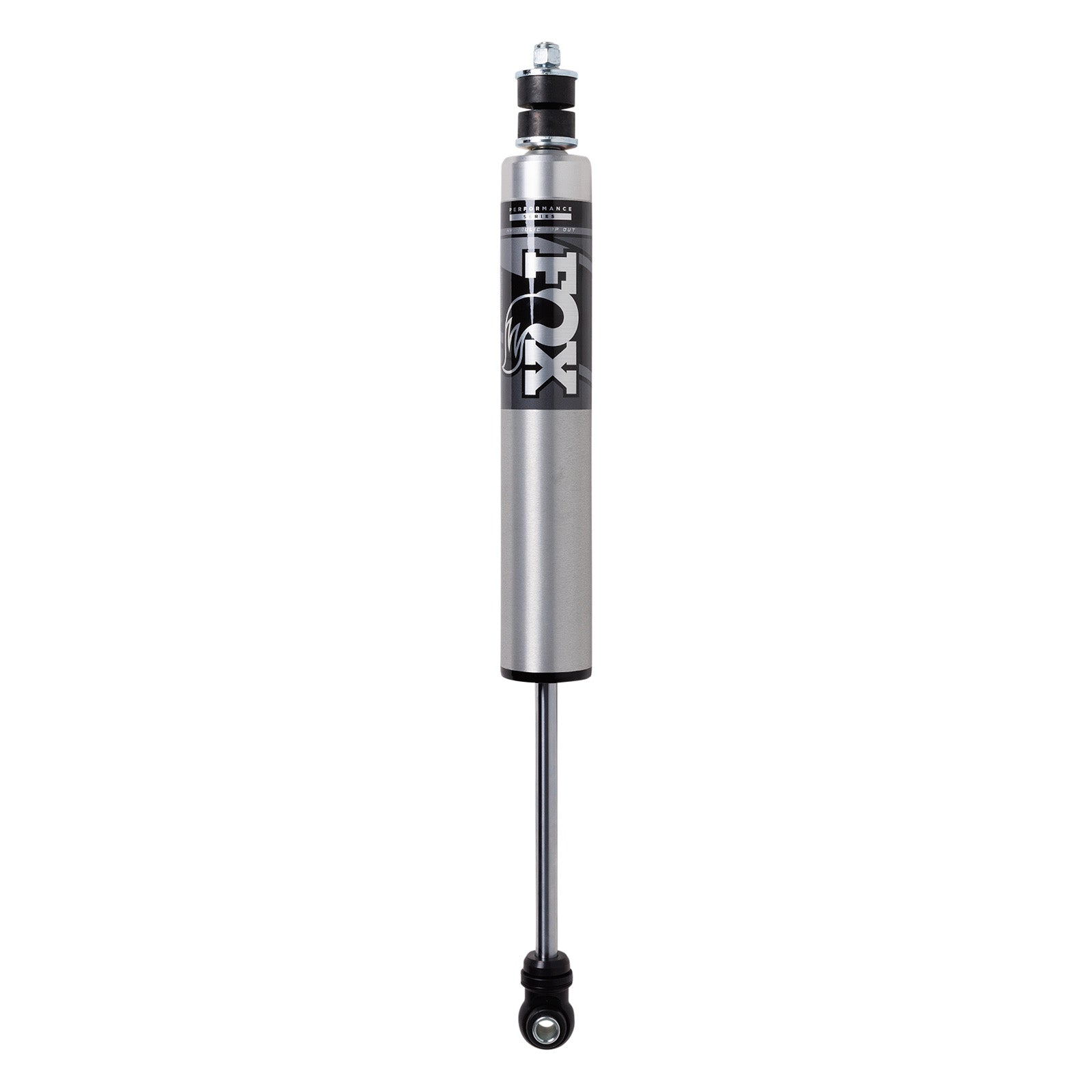

FOX Shocks 987-24-050 Suspension Shock Absorber

Application specific valving to maximize performance.

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

Features

• 2.5” Impact extruded 6061-T6 aluminum shock body
• Type II clear-anodized body plating
• High-flow velocity-sensitive damping
• 5/8” hard chrome shaft
• Internal floating piston (IFP)
• Hydraulic Top Out (HTO) piston
• Corrosion resistant
• Application specific tune
• Fully rebuildable and re-tunable

Specifications

Note: Increase your vehicle's off-road capability by extending drop-out travel in most applications. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway. Tuned specifically for your vehicle’s application._x000D__x000D__x000D__x000D_Consistent and fade-resistant performance due to high-quality materials: aluminum bodies, race-developed main piston, and a true internal floating piston (IFP) to separate gas and oil._x000D__x000D__x000D__x000D_Built-to-last, torture-tested and race-proven to give a lifetime of great rides. FOX products are built from aluminum, dissipating heat four times better than conventional materials. All FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Short Description: 2.5 Shock

Invoice Description: FOX 2.5 PERFORMANCE SERIES HTO SHOCK

Definition: Suspension Shock Absorber

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: Lifetime
