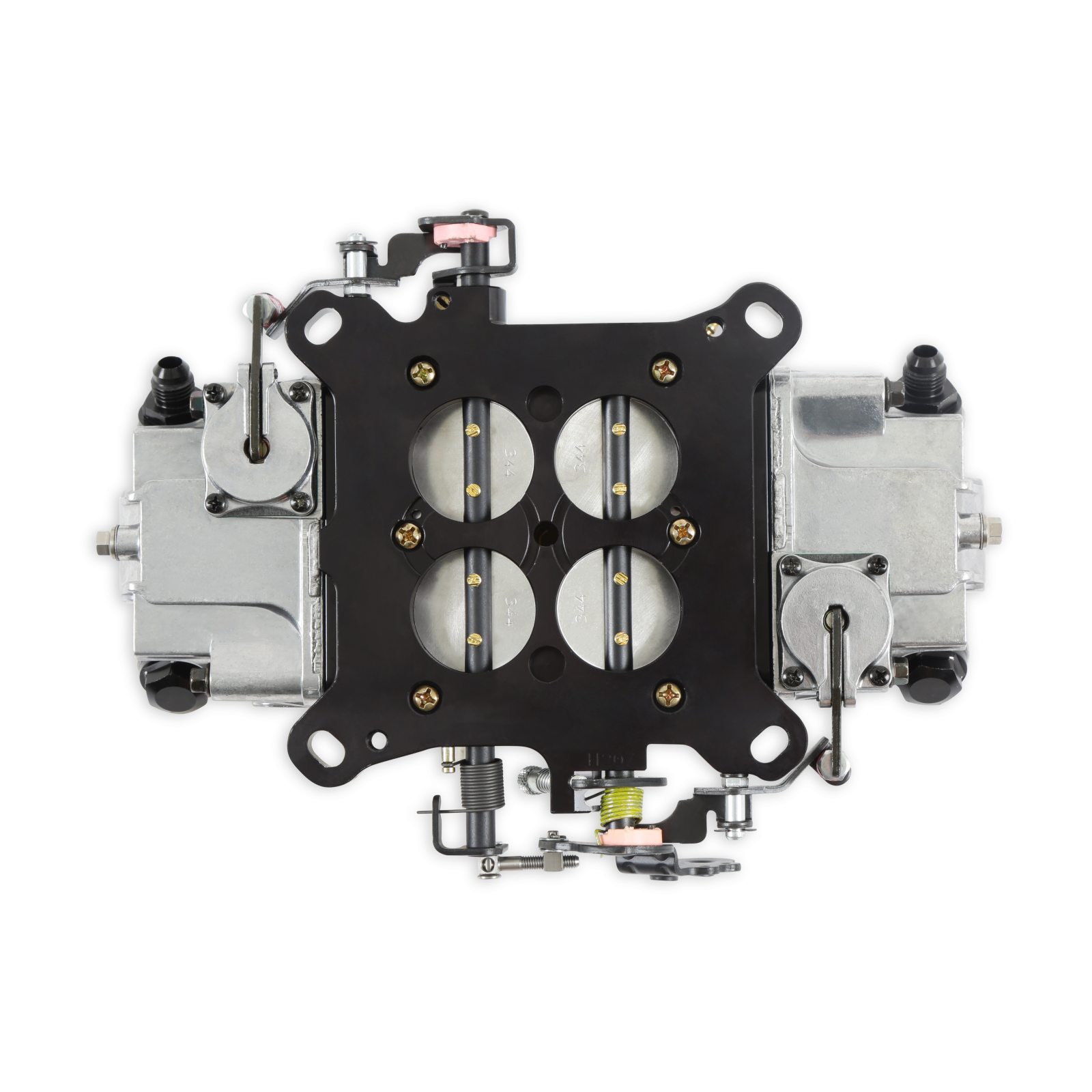

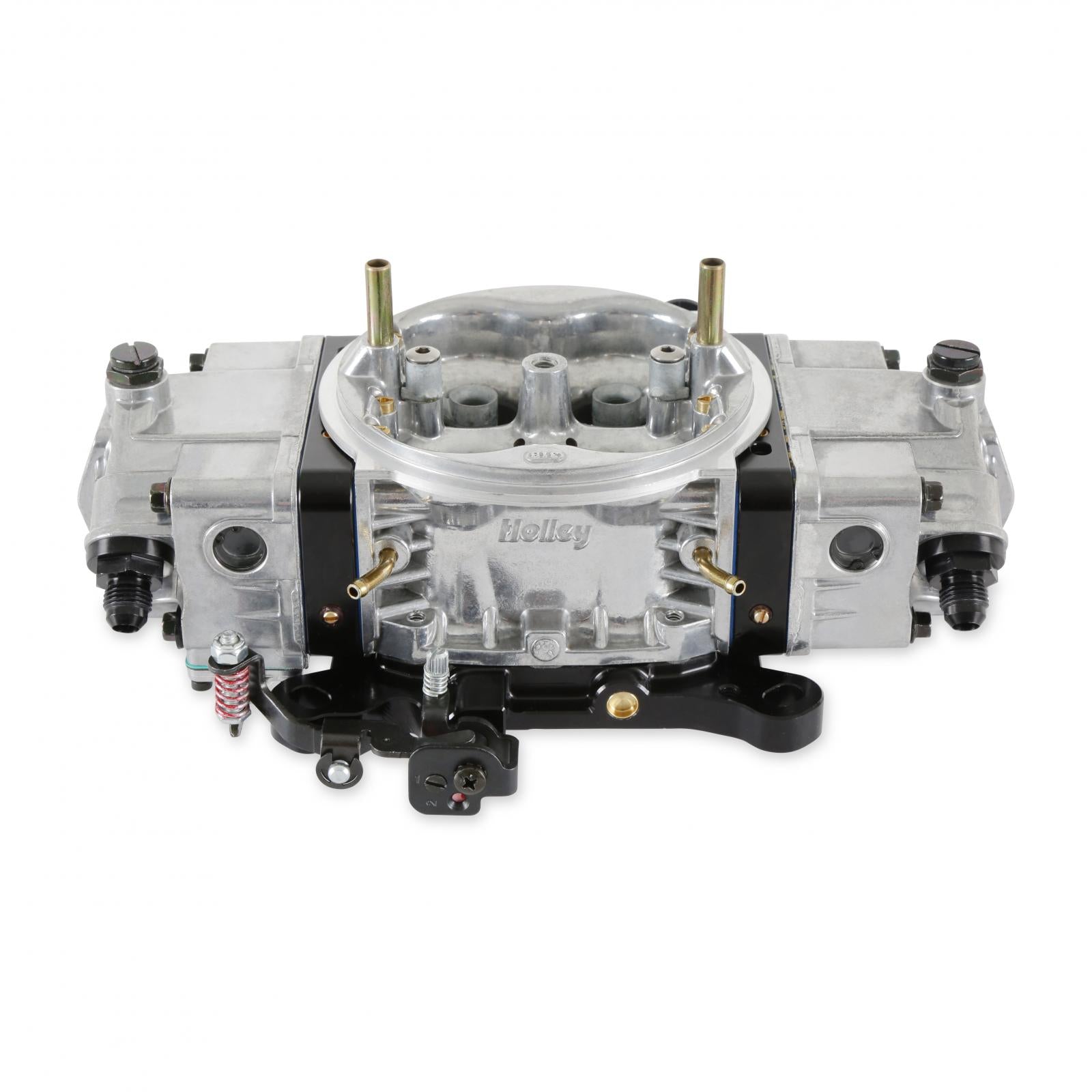

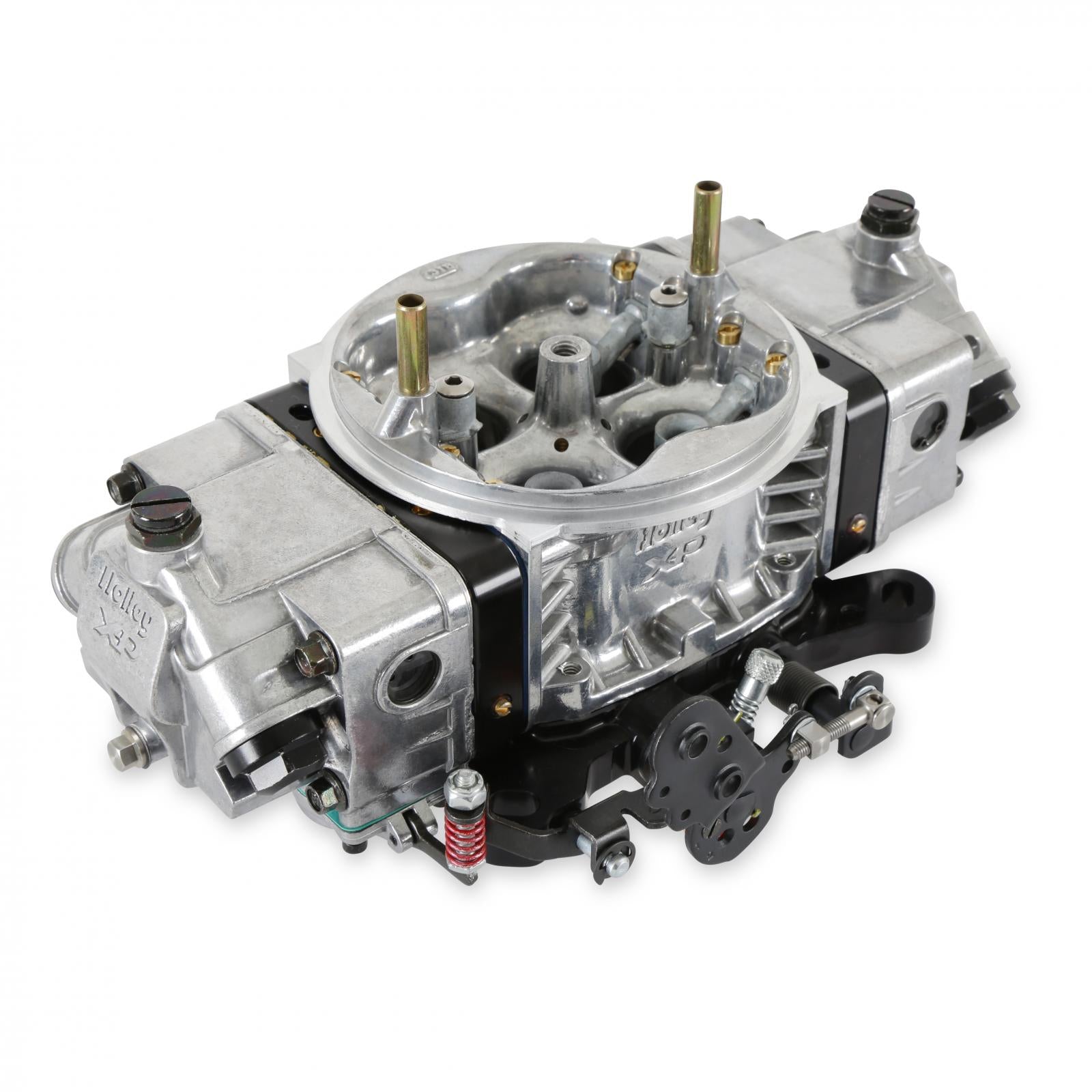

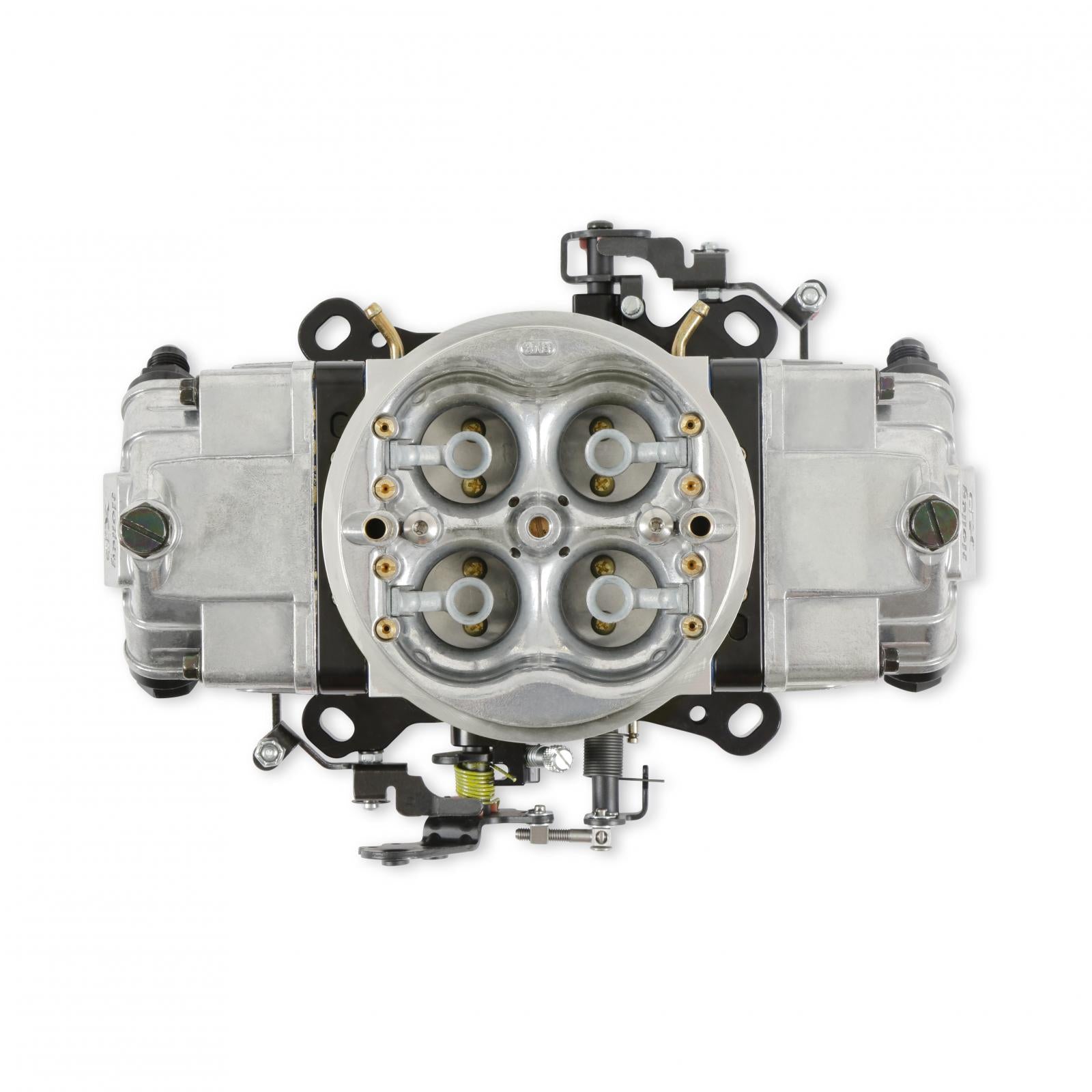

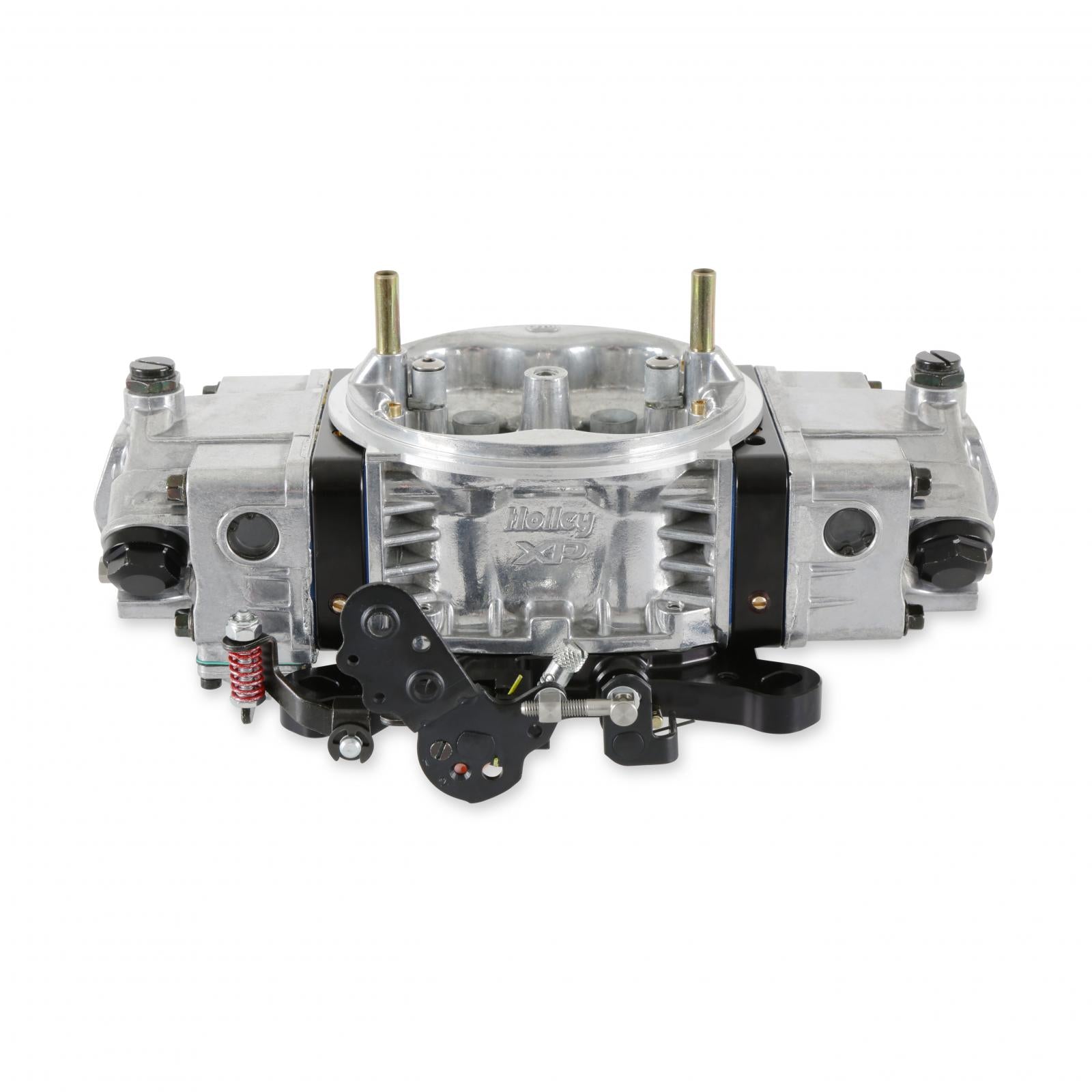

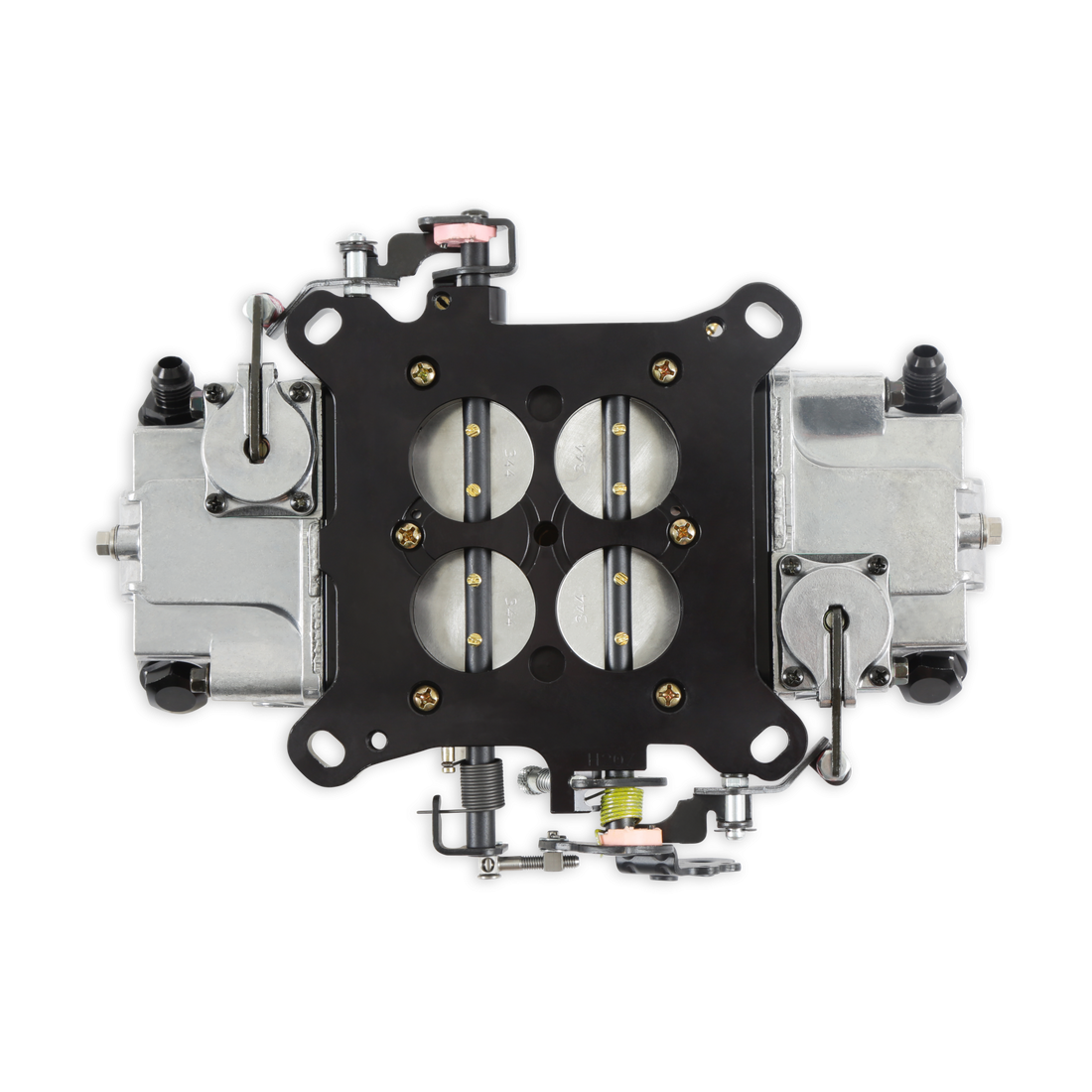

Holley 0-80577SA Supercharger XP Carburetor Draw-Thru 950 CFM 4150 Mechanical Secondaries Shiny Gasoline

By popular demand, Holley is expanding the draw-thru supercharger carburetor line to now include the Xp series. Like the existing HP line, these are available in 600, 750, and 950 CFM flow rates and standard polished with black accents.

The feature-laden Xp includes a contoured venturi inlet for balanced air flow, screw in air bleeds for precision tuning capabilities, high flow billet metering blocks, billet base plate, and Dominator style fuel bowls which allow plumbing from either side. Supercharger Xp carburetors also have a unique capability that allows their power valves to reference the intake manifold vacuum below the supercharger.

This allows the power valve to operate as it should, based off intake manifold vacuum. A power valve provides further enrichment to the main metering system under load (low vacuum) conditions.

Holley Xp carburetors are the standard for square bore race carburetors. Race-Ready out of the box!

Features and Benefits:

• Tumble polished shiny finish for good looks Big block Chevrolet 2x4, 871 & 1071 blower calibration Contoured venturri inlet offers balanced airflow for increased horsepower Screw in air bleeds for precision tuning capabilities Dual 30cc accelerator pumps for additional fuel under initial acceleration Dual feed fuel inlets for constant high volume fuel delivery 4 corner idle allows you to precisely control your idle system Mechanical Secondaries for perfect off the line launches Boost referenced power valve for proper enrichment under acceleration Throttle lever cut off for clearance on a sideways application 100 percent wet-flow tested by Holley technicians to assure it arrives ready to run!

Associated Comments:

• This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter Afb, and Autolite style carburetors with 5 3/16 inch x 5 5/8 inch bolt pattern.
• If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr.
• Gasket #1932.

Details:

• Barrel Quantity: 4.0
• Body Color: Polished
• Body Finish: Polished
• Booster: Downleg
• Booster Design: Downleg
• CFM: 950.0
• Carburetor Material: Aluminum
• Carburetor Use: Performance and Race
• Circuit: 2.0
• Condition: New
• Cubic Feet Per Minute Rating: 950.0
• Finish: Shiny
• Flange Type: Square/4150
• Fuel Type: Gasoline
• Fuel Inlet: Dual
• Grade Type: Performance
• Linkage Attached: Yes
• Marine Approved: No
• Marine Use: No
• Material: Aluminum
• Model: Xp-Series
• Mounting Hole Quantity: 4.0
• Primary Jet Diameter: 90.0
• Primary Main Jet: 90.0
• Primary Power Valve: 10.5
• Primary Pump Nozzle Size: 31.0
• Secondaries: Mechanical
• Secondary Main Jet: 95.0
• Secondary Pump Nozzle Size: 31.0
• Spacer Included: No
• Supercharged Application: Yes
• System Type: Draw Thru
• Throttle Bore: 1.750 inch
• Venturii Size: 1.375 inch
• Warranty: Manufacturer's Limited 90 Day Warranty

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube
